Tutorial 1: Getting Started with BrainEvent#
Welcome to the BrainEvent tutorial series! This tutorial will introduce you to BrainEvent’s core data structure - BinaryArray, and how to use it for efficient event-driven computation.
1. What is BinaryArray?#
In neuroscience modeling, brain computation is performed through discrete spike events. These spike events are binary (0 or 1), indicating whether a neuron fires at a specific moment.
BinaryArray is the core data structure provided by BrainEvent for representing these binary event arrays. After wrapping your data with BinaryArray, subsequent matrix operations will automatically leverage event-driven optimization algorithms, significantly improving computational efficiency.
Core Advantages#
✅ Automatic Optimization: Automatically leverage data sparsity for efficient computation
✅ Hardware Acceleration: Support for multiple hardware platforms including CPU, GPU, TPU
✅ Seamless Integration: Fully compatible with JAX/NumPy ecosystem
✅ Physical Units: Support for BrainUnit’s unit-aware computation
2. Installation and Import#
First, make sure you have BrainEvent installed:
# Install BrainEvent
# !pip install brainevent -U
# Or install the complete BrainX ecosystem
# !pip install BrainX -U
import brainevent
import brainstate
import jax.numpy as jnp
import numpy as np
import jax
print(f"BrainEvent version: {brainevent.__version__}")
print(f"JAX version: {jax.__version__}")
BrainEvent version: 0.0.4
JAX version: 0.7.2
3. Creating BinaryArray#
3.1 Creating from Regular Arrays#
BinaryArray Can be created from NumPy arrays, JAX arrays, or Python lists:
# Create from list
event1 = brainevent.BinaryArray([1, 0, 1, 1, 0, 0, 1])
print("BinaryArray from list:")
print(event1)
print(f"Shape: {event1.shape}, dtype: {event1.dtype}")
print()
BinaryArray from list:
BinaryArray(value=Array([1, 0, 1, 1, 0, 0, 1]), dtype=int32)
Shape: (7,), dtype: int32
# Create from NumPy array
np_array = np.array([[1, 0, 1], [0, 1, 0]], dtype=bool)
event2 = brainevent.BinaryArray(np_array)
print("BinaryArray from NumPy array:")
print(event2)
print()
BinaryArray from NumPy array:
BinaryArray(value=Array([[ True, False, True],
[False, True, False]]),
dtype=bool)
# Create from JAX array
jax_array = jnp.array([1, 1, 0, 1], dtype=bool)
event3 = brainevent.BinaryArray(jax_array)
print("BinaryArray from JAX array:")
print(event3)
BinaryArray from JAX array:
BinaryArray(value=Array([ True, True, False, True]), dtype=bool)
3.2 Simulating Neuron Spikes#
In practical applications, BinaryArray typically used to represent neuron spike firing patterns:
# Simulate spike states of 10 neurons at a moment
# 1 indicates firing spike, 0 indicates resting
num_neurons = 10
spike_rate = 0.3 # 30%的神经元fired
# Use brainstate.random to generate spike patterns
brainstate.random.seed(0)
spikes = brainstate.random.bernoulli(spike_rate, size=(num_neurons,))
spike_array = brainevent.BinaryArray(spikes)
print(f"Neuron spike pattern (firing rate={spike_rate}):")
print(spike_array)
print(f"Number of firing neurons: {spike_array.sum()}")
Neuron spike pattern (firing rate=0.3):
BinaryArray(value=Array([ True, True, False, False, True, True, True, False, True,
False]),
dtype=bool)
Number of firing neurons: 6
4. Basic Operations of BinaryArray#
4.1 Access and Indexing#
# Create a 2D BinaryArray
events_2d = brainevent.BinaryArray([
[1, 0, 1, 0],
[0, 1, 1, 0],
[1, 1, 0, 1]
])
print("Original BinaryArray:")
print(events_2d)
print()
# Indexing operations
print("First row:", events_2d[0])
print("Second column:", events_2d[:, 1])
print("Submatrix:", events_2d[1:, :2])
Original BinaryArray:
BinaryArray(value=Array([[1, 0, 1, 0],
[0, 1, 1, 0],
[1, 1, 0, 1]]),
dtype=int32)
First row: [1 0 1 0]
Second column: [0 1 1]
Submatrix: [[0 1]
[1 1]]
4.2 Mathematical Operations#
# Basic statistics
print("Total spikes:", events_2d.sum())
print("Spikes per row:", events_2d.sum(axis=1))
print("Spikes per column:", events_2d.sum(axis=0))
print()
# Logical operations
event_a = brainevent.BinaryArray([1, 0, 1, 0])
event_b = brainevent.BinaryArray([1, 1, 0, 0])
print("Event A:", event_a)
print("Event B:", event_b)
print("A AND B:", event_a & event_b)
print("A OR B:", event_a | event_b)
Total spikes: 7
Spikes per row: [2 2 3]
Spikes per column: [2 2 2 1]
Event A: BinaryArray(value=Array([1, 0, 1, 0]), dtype=int32)
Event B: BinaryArray(value=Array([1, 1, 0, 0]), dtype=int32)
A AND B: [1 0 0 0]
A OR B: [1 1 1 0]
5. Event-driven matrix multiplication#
This is BinaryArray’s most powerful feature! When BinaryArray is multiplied with a matrix, BrainEvent automatically leverages event sparsity for optimization.
5.1 Multiplication with Dense Matrix#
# Create BinaryArray (simulating presynaptic neuron spikes)
pre_spikes = brainevent.BinaryArray([1, 0, 1, 0, 1]) # 5 neurons
# Create weight matrix (5 presynaptic -> 3 postsynaptic)
weights = jnp.array([
[0.5, 0.2, 0.1], # neuron 0 -> post neurons
[0.3, 0.4, 0.2], # neuron 1 -> post neurons
[0.1, 0.5, 0.3], # neuron 2 -> post neurons
[0.2, 0.1, 0.4], # neuron 3 -> post neurons
[0.4, 0.3, 0.5], # neuron 4 -> post neurons
])
# Event-driven matrix multiplication
# Only neurons that fired spikes(索引0, 2, 4)corresponding rows participate in computation
post_input = pre_spikes @ weights
print("Presynaptic spikes:", pre_spikes)
print("Weight matrix shape:", weights.shape)
print("Postsynaptic input:", post_input)
print()
print("Explanation: Only neurons0, 2, 4fired spikes, so only these 3rows are computed for weighted sum")
Presynaptic spikes: BinaryArray(value=Array([1, 0, 1, 0, 1]), dtype=int32)
Weight matrix shape: (5, 3)
Postsynaptic input: [1. 1. 0.9]
Explanation: Only neurons0, 2, 4fired spikes, so only these 3rows are computed for weighted sum
5.2 Performance Comparison: BinaryArray vs Regular Array#
Let’s compare using BinaryArray and regular arrays in performance:
import time
# Large-scale network parameters
n_pre = 10000 # Number of presynaptic neurons
n_post = 5000 # Number of postsynaptic neurons
spike_rate = 0.05 # 5% firing rate (sparse spikes)
# Set random seed for reproducibility
brainstate.random.seed(42)
# Generate sparse spikes
spikes_bool = brainstate.random.bernoulli(spike_rate, size=(n_pre,))
# Generate weight matrix
weights = brainstate.random.normal(size=(n_pre, n_post)) * 0.1
# Method 1: Using BinaryArray (event-driven)
event_spikes = brainevent.BinaryArray(spikes_bool)
# Method 2: Using regular array
normal_spikes = spikes_bool.astype(jnp.float32)
# Warmup and compilation
_ = jax.block_until_ready(event_spikes @ weights)
_ = jax.block_until_ready(normal_spikes @ weights)
# Performance test
n_trials = 100
# BinaryArray method
start = time.time()
for _ in range(n_trials):
result_event = jax.block_until_ready(event_spikes @ weights)
event_time = (time.time() - start) / n_trials
# Regular array method
start = time.time()
for _ in range(n_trials):
result_normal = jax.block_until_ready(normal_spikes @ weights)
normal_time = (time.time() - start) / n_trials
print(f"Network size: {n_pre} -> {n_post} neurons")
print(f"Spike firing rate: {spike_rate*100}%")
print(f"Actual firing count: {spikes_bool.sum()}")
print()
print(f"BinaryArray time: {event_time*1000:.3f} ms")
print(f"Regular array time: {normal_time*1000:.3f} ms")
print(f"Speedup: {normal_time/event_time:.2f}x")
print()
print("Result consistency check:", jnp.allclose(result_event, result_normal))
Network size: 10000 -> 5000 neurons
Spike firing rate: 5.0%
Actual firing count: 516
BinaryArray time: 0.685 ms
Regular array time: 3.768 ms
Speedup: 5.50x
Result consistency check: True
6. Practical Application Example: Feedforward Network#
Let’s build a simple two-layer feedforward spiking neural network:
class SimpleSpikingNetwork:
"""Simple two-layer spiking neural network"""
def __init__(self, n_input, n_hidden, n_output, seed=0):
self.n_input = n_input
self.n_hidden = n_hidden
self.n_output = n_output
# Initialize weights - using brainstate.random
brainstate.random.seed(seed)
self.w1 = brainstate.random.normal(size=(n_input, n_hidden)) * 0.1
self.w2 = brainstate.random.normal(size=(n_hidden, n_output)) * 0.1
def forward(self, input_spikes):
"""Forward propagation
Args:
input_spikes: BinaryArray，Input layer spikes
Returns:
Output layer activity values
"""
# First layer: Input -> Hidden
hidden_input = input_spikes @ self.w1
# Hidden layer neurons: simple threshold activation
threshold = 0.5
hidden_spikes = brainevent.BinaryArray(hidden_input > threshold)
# Second layer: Hidden -> Output
output = hidden_spikes @ self.w2
return output, hidden_spikes
# Create network
network = SimpleSpikingNetwork(n_input=20, n_hidden=10, n_output=5, seed=123)
# Generate input spikes
brainstate.random.seed(456)
input_pattern = brainstate.random.bernoulli(0.3, size=(20,))
input_events = brainevent.BinaryArray(input_pattern)
# Forward propagation
output, hidden_spikes = network.forward(input_events)
print("Input layer spikes:", input_events)
print(f"Input layer firing count: {input_events.sum()}/20")
print()
print("Hidden layer spikes:", hidden_spikes)
print(f"Hidden layer firing count: {hidden_spikes.sum()}/10")
print()
print("Output layer activity:")
print(output)
print(f"Output neuron with strongest response: {jnp.argmax(output)}")
Input layer spikes: BinaryArray(value=Array([False, False, True, False, False, True, False, False, False,
False, True, False, False, True, True, False, False, True,
False, True]),
dtype=bool)
Input layer firing count: 7/20
Hidden layer spikes: BinaryArray(value=Array([False, False, False, False, False, False, False, False, False,
False]),
dtype=bool)
Hidden layer firing count: 0/10
Output layer activity:
[0. 0. 0. 0. 0.]
Output neuron with strongest response: 0
7. Time Series Spike Patterns#
In actual neural network simulations, we typically need to process time series spike data:
# Simulate 100 time steps, each step has 50 neurons
n_steps = 100
n_neurons = 50
spike_rate = 0.1
# Generate time series spikes
brainstate.random.seed(999)
spike_trains = brainstate.random.bernoulli(spike_rate, size=(n_steps, n_neurons))
# Create BinaryArray for each time step and compute network output
brainstate.random.seed(0)
weights = brainstate.random.normal(size=(n_neurons, 10)) * 0.1
outputs = []
for t in range(n_steps):
spikes_t = brainevent.BinaryArray(spike_trains[t])
output_t = spikes_t @ weights
outputs.append(output_t)
outputs = jnp.stack(outputs)
print(f"Time series length: {n_steps} steps")
print(f"Neurons per step: {n_neurons}")
print(f"Output shape: {outputs.shape}")
print()
print(f"Total spikes: {spike_trains.sum()}")
print(f"Average spikes per step: {spike_trains.sum(axis=1).mean():.1f}")
print(f"Average firing rate per neuron: {spike_trains.mean():.3f}")
Time series length: 100 steps
Neurons per step: 50
Output shape: (100, 10)
Total spikes: 503
Average spikes per step: 5.0
Average firing rate per neuron: 0.101

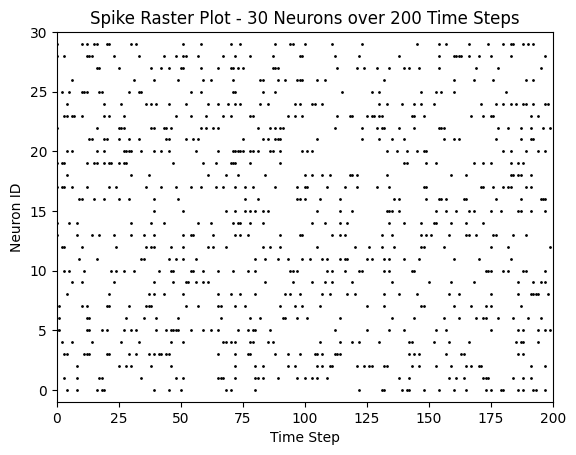

8. Visualizing Spike Patterns#
Let’s use braintools to visualize neuron spike firing patterns (raster plot):
import braintools
# Generate spike patterns
n_steps = 200
n_neurons = 30
brainstate.random.seed(456)
spike_trains = brainstate.random.bernoulli(0.15, size=(n_steps, n_neurons))
# Use braintools.visualize.raster_plot to draw raster plot
ts = np.arange(n_steps)
braintools.visualize.raster_plot(
ts,
spike_trains,
markersize=4,
xlabel='Time Step',
ylabel='Neuron ID',
title='Spike Raster Plot - 30 Neurons over 200 Time Steps',
xlim=(0, n_steps),
ylim=(-1, n_neurons),
show=True
)
# Statistics
print(f"Total spikes: {spike_trains.sum()}")
print(f"Average firing rate: {spike_trains.mean():.3f}")
print(f"Most active neuron: {spike_trains.sum(axis=0).argmax()}, fired {spike_trains.sum(axis=0).max()} times")
Total spikes: 904
Average firing rate: 0.151
Most active neuron: 20, fired 39 times
9. Summary#
In this tutorial, we learned:
✅ BinaryArray Concept: Core data structure for representing binary spike events
✅ Creating BinaryArray: Creating from lists, NumPy arrays, JAX arrays
✅ Basic Operations: Indexing, statistics, logical operations
✅ Event-driven Computation: Leveraging sparsity to optimize matrix multiplication
✅ Performance Advantages: BinaryArray’s acceleration effect in sparse spike scenarios
✅ Practical Applications: Building simple spiking neural networks
✅ Time Series Processing: Processing multi-step time series spike data
✅ Visualization: Using braintools to draw spike raster plots
Next steps#
In the next tutorial, we will dive deeper into:
📚 Tutorial 2: Sparse Data Structures - CSR, COO, CSC
Learn how to use different sparse matrix formats to represent neural network connections
Learn how to choose appropriate data structures for optimal performance
