`brainpy.state` documentation#

brainpy.state is the point-neuron modeling layer of the BrainX ecosystem. It provides spiking neural network models built on JAX and the brainstate state-management system.

One differentiable substrate, two worlds. brainpy.state is designed so that the same models serve both brain simulation (biophysical networks, spike rasters, conductance dynamics) and brain-inspired computing (surrogate-gradient training, online learning). The bridge is a small set of ideas — explicit State, physical units, and the distinctive AlignPre / AlignPost synaptic projection design — that keep memory linear in the number of neurons while remaining fully differentiable. See AlignPre / AlignPost — the keystone for the keystone chapter.

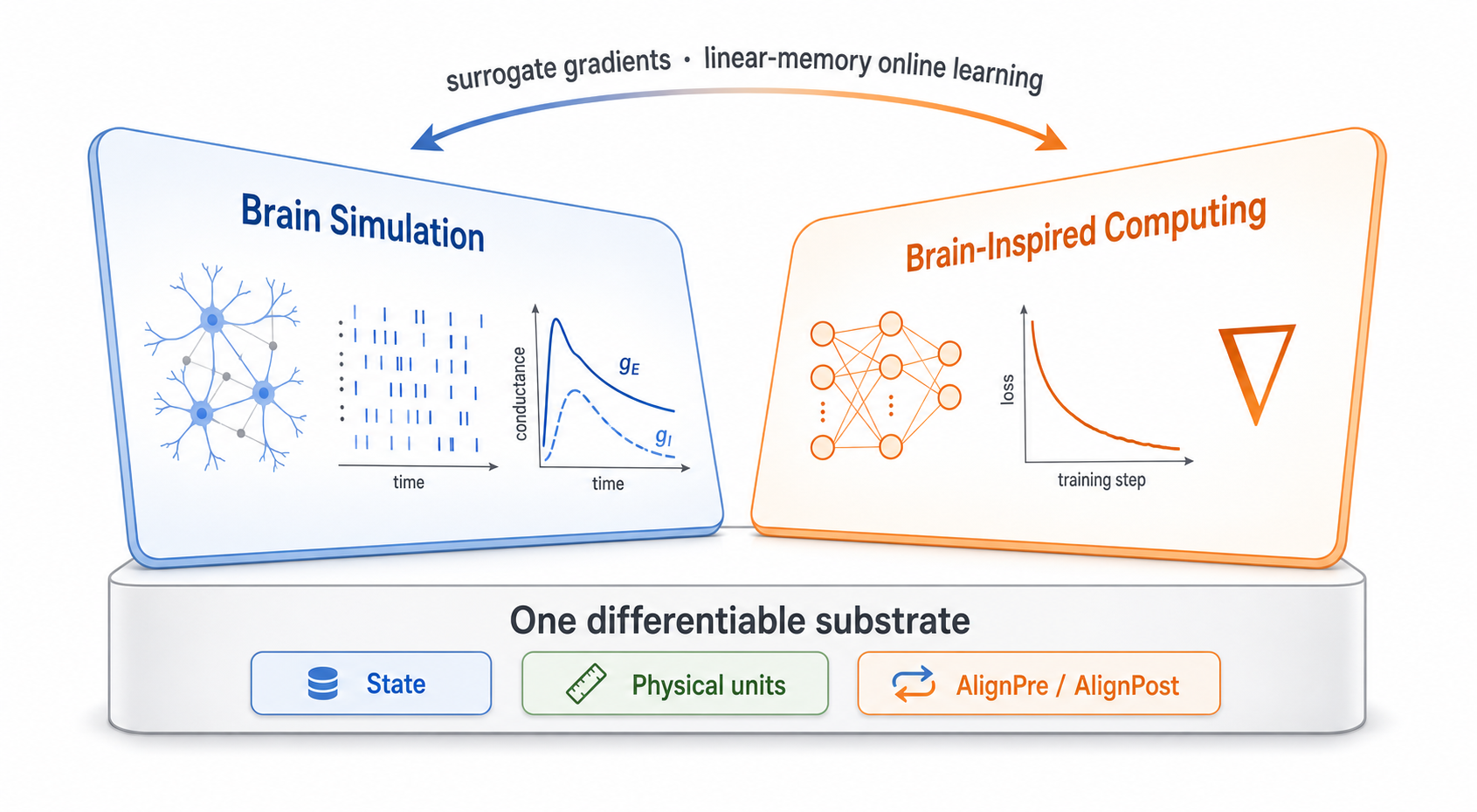

A bridge diagram. On the left, a blue "Brain Simulation" panel with a network schematic, a spike raster, and a conductance-versus-time trace; on the right, an orange "Brain-Inspired Computing" panel with a feedforward network, a loss-versus-training-step curve, and a surrogate-gradient symbol. An arc across the top links the two panels, labelled "surrogate gradients" and "linear-memory online learning". Both panels rest on a single platform bar reading "One differentiable substrate", whose three pills read "State", "Physical units", and "AlignPre / AlignPost". — Fig. 1 **Two worlds on one substrate.** The same `State`-based, unit-aware models — wired with AlignPre / AlignPost projections — drive both biophysical **brain simulation** and gradient-trained **brain-inspired computing**. Surrogate gradients and linear-memory online learning are the bridge between them.#

Two model families#

brainpy.state ships two complementary, production-ready model families on a shared substrate:

BrainPy-style models — high-level, composable neurons (LIF, ALIF, AdEx, HH, Izhikevich, …), synapses (Expon, Alpha, AMPA, GABAa, BioNMDA), projections (AlignPostProj, DeltaProj, …), readouts, input generators, and short-term plasticity, in the tradition of BrainPy. The idiomatic entry point — start here.
NEST-compatible models — JAX re-implementations of NEST simulator neuron, synapse, plasticity (STDP, STP), and device models with NEST parameter names, validated against live NEST with formal tolerance bands. The migration path for NEST users.

All parameters carry physical units via brainunit, and every model compiles through JAX to CPU, GPU, and TPU.

Installation#

CPU

pip install -U brainpy.state[cpu]

GPU

pip install -U brainpy.state[cuda12]

pip install -U brainpy.state[cuda13]

TPU

pip install -U brainpy.state[tpu]

Ecosystem

pip install -U BrainX

Quick example#

A small excitatory–inhibitory balanced network, built two ways: with the high-level BrainPy-style API, and with the NEST-compatible Simulator. See the 5-minute tour for the full walkthrough.

BrainPy-style

import brainpy
import brainstate
import braintools
import brainunit as u


class EINet(brainstate.nn.Module):
    def __init__(self):
        super().__init__()
        self.n_exc, self.n_inh = 3200, 800
        self.num = self.n_exc + self.n_inh
        self.N = brainpy.state.LIFRef(
            self.num,
            V_rest=-60. * u.mV, V_th=-50. * u.mV, V_reset=-60. * u.mV,
            tau=20. * u.ms, tau_ref=5. * u.ms,
            V_initializer=braintools.init.Normal(-55., 2., unit=u.mV),
        )
        self.E = brainpy.state.AlignPostProj(
            comm=brainstate.nn.EventFixedProb(self.n_exc, self.num,
                                               conn_num=0.02, conn_weight=0.6 * u.mS),
            syn=brainpy.state.Expon.desc(self.num, tau=5. * u.ms),
            out=brainpy.state.COBA.desc(E=0. * u.mV),
            post=self.N,
        )
        self.I = brainpy.state.AlignPostProj(
            comm=brainstate.nn.EventFixedProb(self.n_inh, self.num,
                                               conn_num=0.02, conn_weight=6.7 * u.mS),
            syn=brainpy.state.Expon.desc(self.num, tau=10. * u.ms),
            out=brainpy.state.COBA.desc(E=-80. * u.mV),
            post=self.N,
        )

    def update(self, t, inp):
        with brainstate.environ.context(t=t):
            spk = self.N.get_spike() != 0.
            self.E(spk[:self.n_exc])
            self.I(spk[self.n_exc:])
            self.N(inp)
            return self.N.get_spike()


net = EINet()
brainstate.nn.init_all_states(net)

with brainstate.environ.context(dt=0.1 * u.ms):
    times = u.math.arange(0. * u.ms, 1000. * u.ms, brainstate.environ.get_dt())
    spikes = brainstate.transform.for_loop(lambda t: net.update(t, 20. * u.mA), times)

NEST-compatible

import brainstate
import brainunit as u
from brainpy.state import (Simulator, iaf_psc_alpha, poisson_generator,
                           spike_recorder, all_to_all, fixed_indegree)


# Brunel (2000) sparse balanced random network, built with the explicit Simulator
order = 400
NE, NI = 4 * order, 1 * order              # 1600 excitatory + 400 inhibitory
CE, CI = int(0.1 * NE), int(0.1 * NI)      # 10% fixed in-degree
J = 20. * u.pA                             # excitatory PSC; inhibition is -g * J

neuron = dict(C_m=250. * u.pF, tau_m=20. * u.ms, t_ref=2. * u.ms,
              E_L=0. * u.mV, V_reset=0. * u.mV, V_th=20. * u.mV)

sim = Simulator(dt=0.1 * u.ms)
ne = sim.create(iaf_psc_alpha, NE, params=neuron)
ni = sim.create(iaf_psc_alpha, NI, params=neuron)
noise = sim.create(poisson_generator, rate=15000. * u.Hz)
rec = sim.create(spike_recorder)

sim.connect(noise, ne + ni, weight=J, delay=1.5 * u.ms, rule=all_to_all)
sim.connect(ne, ne + ni, weight=J, delay=1.5 * u.ms,
            rule=fixed_indegree(CE), comm='sparse', seed=1)
sim.connect(ni, ne + ni, weight=-5. * J, delay=1.5 * u.ms,
            rule=fixed_indegree(CI), comm='sparse', seed=2)
sim.connect(ne[:50], rec)

res = sim.simulate(1000. * u.ms)
print(res.rate(rec.segments[0].population))   # excitatory firing rate
