Simulating morphological Golgi cell with braincell#
import os.path
import braincell
import brainstate
import braintools
import brainunit as u
import numpy as np
brainstate.environ.set(dt=0.01 * u.ms, precision=64)
Golgi cell model#
class Golgi(braincell.MultiCompartment):
def __init__(self, popsize, morphology, el, gl, gh1, gh2, ek, gkv11, gkv34, gkv43, ena, gnarsg, V_init=-65):
super().__init__(
popsize=popsize,
morphology=morphology,
V_th=20. * u.mV,
V_initializer=braintools.init.Constant(V_init * u.mV),
spk_fun=braintools.surrogate.ReluGrad(),
solver='staggered'
)
self.IL = braincell.channel.IL(self.varshape, E=el * u.mV, g_max=gl * u.mS / (u.cm ** 2))
self.Ih1 = braincell.channel.Ih1_Ma2020(self.varshape, E=-20. * u.mV, g_max=gh1 * u.mS / (u.cm ** 2))
self.Ih2 = braincell.channel.Ih2_Ma2020(self.varshape, E=-20. * u.mV, g_max=gh2 * u.mS / (u.cm ** 2))
self.k = braincell.ion.PotassiumFixed(self.varshape, E=ek * u.mV)
self.k.add(IKv11=braincell.channel.IKv11_Ak2007(self.varshape, g_max=gkv11 * u.mS / (u.cm ** 2)))
self.k.add(IKv34=braincell.channel.IKv34_Ma2020(self.varshape, g_max=gkv34 * u.mS / (u.cm ** 2)))
self.k.add(IKv43=braincell.channel.IKv43_Ma2020(self.varshape, g_max=gkv43 * u.mS / (u.cm ** 2)))
self.na = braincell.ion.SodiumFixed(self.varshape, E=ena * u.mV)
self.na.add(INa_Rsg=braincell.channel.INa_Rsg(self.varshape, g_max=gnarsg * u.mS / (u.cm ** 2)))
def step_run(self, t, inp):
with brainstate.environ.context(t=t):
self.update(inp)
return self.V.value
Utility functions#
def step_input(num, dur, amp, dt):
brainstate.environ.set(dt=dt * u.ms)
value = u.math.zeros((len(dur), num))
for i in range(len(value)):
value = value.at[i, 0].set(amp[i])
return braintools.input.section(values=value, durations=dur * u.ms) * u.nA
import matplotlib.pyplot as plt
def plot_voltage_comparison(
t_vec,
v_vecs,
indices=None,
title="Voltage Comparison",
xlabel="Time (ms)",
ylabel="Voltage (mV)",
figsize=(7, 4),
legend=True,
grid=True
):
if indices is None:
indices = range(len(v_vecs))
plt.figure(figsize=figsize)
for idx, i in enumerate(indices):
plt.plot(t_vec, v_vecs[i], linewidth=2)
if legend:
plt.legend(frameon=False, fontsize=11)
plt.xlabel(xlabel, fontsize=13)
plt.ylabel(ylabel, fontsize=13)
plt.title(title, fontsize=15, weight='bold')
if grid:
plt.grid(alpha=0.4)
plt.tight_layout()
plt.show()
# index for ion channel
def is_basal(idx):
return (
0 <= idx <= 3
or 16 <= idx <= 17
or 33 <= idx <= 41
or idx == 84
or 105 <= idx <= 150
)
def is_apical(idx):
return (
4 <= idx <= 15
or 18 <= idx <= 32
or 42 <= idx <= 83
or 85 <= idx <= 104
)
def seg_ion_params(morphology):
# segment index for each type
index_soma = []
index_axon = []
index_dend_basal = []
index_dend_apical = []
for i, seg in enumerate(morphology.segments):
name = str(seg.section_name)
if name.startswith("soma"):
index_soma.append(i)
elif name.startswith("axon"):
index_axon.append(i)
elif name.startswith("dend_"):
idx = int(name.split("_")[-1])
if is_basal(idx):
index_dend_basal.append(i)
if is_apical(idx):
index_dend_apical.append(i)
n_compartments = len(morphology.segments)
# conductvalues
conductvalues = 1e3 * np.array(
[
0.00499506303209, 0.01016375552607, 0.00247172479141, 0.00128859564935,
3.690771983E-05, 0.0080938853146, 0.01226052748146, 0.01650689958385,
0.00139885617712, 0.14927733727426, 0.00549507510519, 0.14910988921938,
0.00406420380423, 0.01764345789036, 0.10177335775222, 0.0087689418803,
3.407734319E-05, 0.0003371456442, 0.00030643090764, 0.17233663543619,
0.00024381226198, 0.10008178886943, 0.00595046001148, 0.0115, 0.0091
]
)
# IL
gl = np.ones(n_compartments)
gl[index_soma] = 0.03
gl[index_axon] = 0.001
gl[index_axon[0:5]] = 0.03
gl[index_dend_basal] = 0.03
gl[index_dend_apical] = 0.03
# IKv11_Ak2007
gkv11 = np.zeros(n_compartments)
gkv11[index_soma] = conductvalues[10]
# IKv34_Ma2020
gkv34 = np.zeros(n_compartments)
gkv34[index_soma] = conductvalues[11]
gkv34[index_axon[5:]] = 9.1
# IKv43_Ma2020
gkv43 = np.zeros(n_compartments)
gkv43[index_soma] = conductvalues[12]
# ICaGrc_Ma2020
gcagrc = np.zeros(n_compartments)
gcagrc[index_soma] = conductvalues[15]
gcagrc[index_dend_basal] = conductvalues[8]
gcagrc[index_axon[0:5]] = conductvalues[22]
# ICav23_Ma2020
gcav23 = np.zeros(n_compartments)
gcav23[index_dend_apical] = conductvalues[3]
# ICav31_Ma2020
gcav31 = np.zeros(n_compartments)
gcav31[index_soma] = conductvalues[16]
gcav31[index_dend_apical] = conductvalues[4]
# INa_Rsg
gnarsg = np.zeros(n_compartments)
gnarsg[index_soma] = conductvalues[9]
gnarsg[index_dend_apical] = conductvalues[0]
gnarsg[index_dend_basal] = conductvalues[5]
gnarsg[index_axon[0:5]] = conductvalues[19]
gnarsg[index_axon[5:]] = 11.5
# Ih1_Ma2020
gh1 = np.zeros(n_compartments)
gh1[index_axon[0:5]] = conductvalues[17]
# Ih2_Ma2020
gh2 = np.zeros(n_compartments)
gh2[index_axon[0:5]] = conductvalues[18]
# IKca3_1_Ma2020
gkca31 = np.zeros(n_compartments)
gkca31[index_soma] = conductvalues[14]
return gl, gh1, gh2, gkv11, gkv34, gkv43, gnarsg, gcagrc, gcav23, gcav31, gkca31
Morphology#
import kagglehub
# Download latest version
path = kagglehub.dataset_download("oujago/golgi-cell-morphology-example1")
Golgi_mor = braincell.Morphology.from_asc(os.path.join(path, 'golgi.asc'))
Golgi_mor.set_passive_params()
Golgi_mor.visualize()
Simulation#
gl, gh1, gh2, gkv11, gkv34, gkv43, gnarsg, gcagrc, gcav23, gcav31, gkca31 = seg_ion_params(Golgi_mor)
nseg = len(Golgi_mor.segments)
El = -55
Ek = -80
Ena = 60
V_init = -65 * np.ones(nseg)
cell = Golgi(
popsize=1, # number of cells in the population,
morphology=Golgi_mor,
el=El,
gl=gl,
gh1=gh1,
gh2=gh2,
ek=Ek,
gkv11=gkv11,
gkv34=gkv34,
gkv43=gkv43,
ena=Ena,
gnarsg=gnarsg,
V_init=V_init,
)
_ = brainstate.nn.init_all_states(cell)
I = step_input(num=nseg, dur=[100, 0, 0], amp=[0, 0, 0], dt=brainstate.environ.get_dt() / u.ms)
times = u.math.arange(I.shape[0]) * brainstate.environ.get_dt()
vs = brainstate.transform.for_loop(cell.step_run, times, I)
fig, gs = braintools.visualize.get_figure(1, 1, 4, 8)
fig.add_subplot(gs[0, 0])

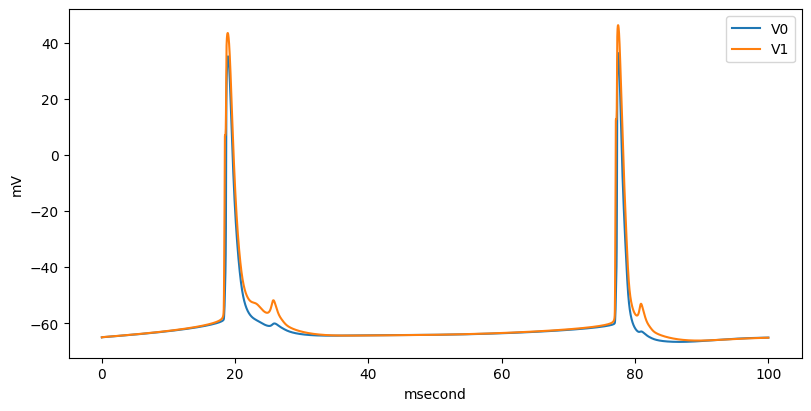

plt.plot(times, vs[:, 0, 0], label="V0")
plt.plot(times, vs[:, 0, 1], label="V1")
plt.legend()
plt.show()
