Simulating Jansen–Rit population dynamics with brainmass

We simulate a single Jansen–Rit (JR) neural mass model node under a variety of inputs to illustrate different regimes: baseline alpha-like rhythms, sinusoidal entrainment, spike–wave-like activity, reduced inhibition, and irregular/noisy dynamics.

The JR model captures mesoscopic cortical column activity using three interacting subpopulations:

• Excitatory pyramidal cells (P) — principal output population;

• Excitatory interneurons (E) — provide excitatory feedback to P;

• Inhibitory interneurons (I) — provide inhibitory feedback to P.

Each subpopulation transforms incoming pulse-density (in Hz) through a synaptic impulse response (with gains and time constants) into membrane potentials (in mV), and a sigmoid nonlinearity maps potentials back to pulse-density. The model’s macroscopic EEG-like output is typically taken as a scaled difference between excitatory and inhibitory postsynaptic potentials onto pyramidal cells.

Setup

• Import brainmass (JR implementation), brainstate (simulation/runtime control), brainunit for units, and plotting utilities.

• Set the global integration step dt to 0.5 ms.

• Define a small helper to plot the pyramidal (M), excitatory (E), inhibitory (I) membrane potentials and the EEG-like output.

import brainstate
import brainmass
import braintools
import brainunit as u

# Set simulation time step
brainstate.environ.set(dt=0.5 * u.ms)

import numpy as np
import matplotlib.pyplot as plt

def show(times, data, title):
    M, E, I, eeg = data
    fig, gs = braintools.visualize.get_figure(4, 1, 1.2, 10)
    fig.add_subplot(gs[0, 0])
    plt.plot(times, M)
    plt.ylabel('M (mV)')

    fig.add_subplot(gs[1])
    plt.plot(times, E)
    plt.ylabel('E (mV)')

    fig.add_subplot(gs[2])
    plt.plot(times, I)
    plt.ylabel('I (mV)')

    fig.add_subplot(gs[3])
    plt.plot(times, eeg)
    plt.xlabel('Time (ms)')
    plt.ylabel('EEG (mV)')

    plt.suptitle(title)
    plt.show()

Notes on inputs and noise

• Inputs to the JR node (E_inp) are specified in Hz, representing background afferent pulse density.

• We generate Gaussian white-noise-like inputs using brainstate.random.normal(mean, std_per_step, shape) * u.Hz.

• To maintain step-size–independent noise intensity, the standard deviation scales as std / sqrt(dt) where dt is in seconds. This follows the usual discretization of a white noise process.

We retrieve dt from brainstate.environ.get_dt() when constructing input arrays and time axes.

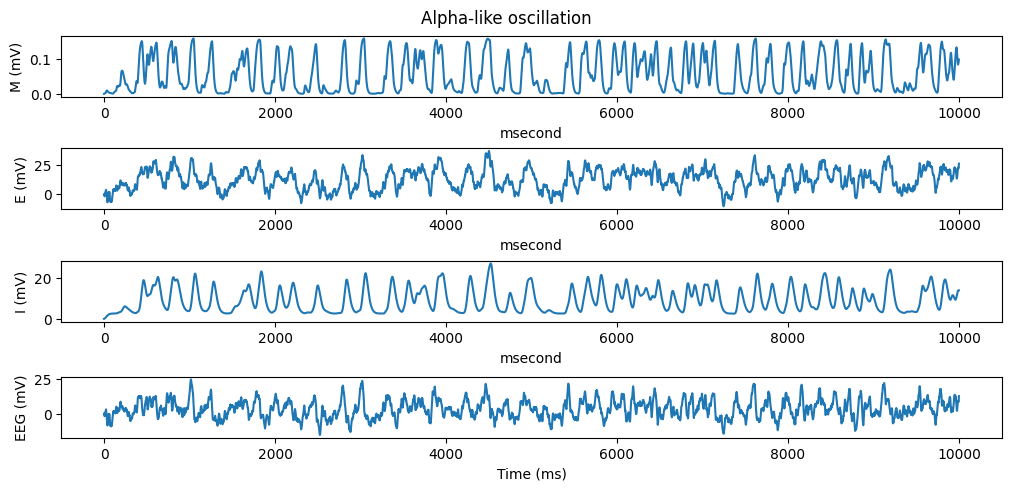

1) Alpha-like baseline oscillation

A single JR node with default parameters and moderate noisy drive exhibits an alpha-like rhythm (8–12 Hz).

• Model: brainmass.JansenRitModel(1) builds one node (one cortical column).

• Initialization: brainstate.nn.init_all_states(node) sets internal states consistently.

• Drive: mean 120 Hz with noise SD ≈ 30 Hz per sqrt(second), scaled per time step.

• Duration: 10 seconds.

# Alpha-like idle rhythm (baseline JR)
node = brainmass.JansenRitModel(1)
brainstate.nn.init_all_states(node)

def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg

dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(120., 30. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Alpha-like oscillation')

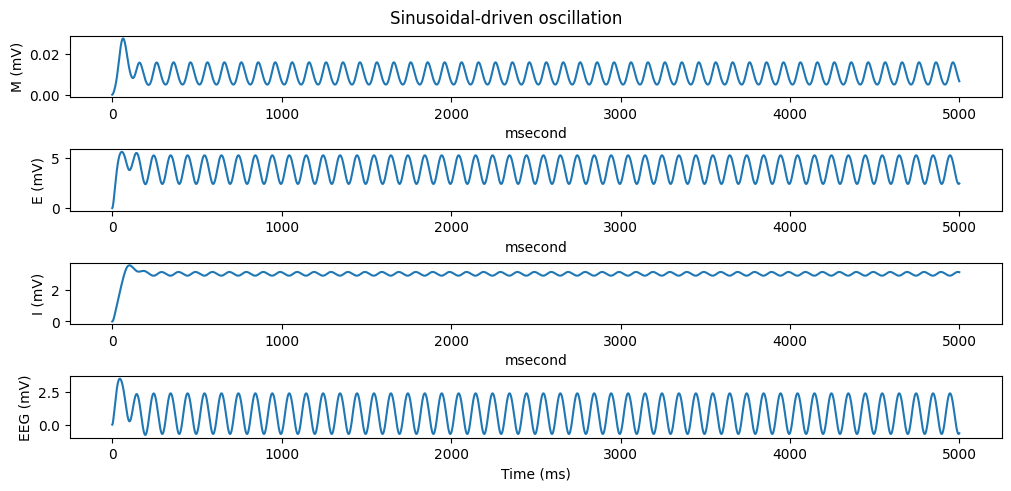

2) Sinusoidally driven/entrained oscillation

Adding a sinusoidal component to the input can entrain the JR node. Here we drive with a 10 Hz sinusoid around a baseline of ~80 Hz.

• Drive: inp(t) = 80 + 70 sin(2π f t) Hz with f = 10 Hz.

• Duration: 5 seconds.

node = brainmass.JansenRitModel(1)
brainstate.nn.init_all_states(node)
f_drive = 10. * u.Hz

def step_run(i):
    tt = i * dt
    inp = 80 + 70.0 * u.math.sin(2 * u.math.pi * f_drive * tt)
    eeg = node.update(E_inp=inp * u.Hz)
    return node.M.value, node.E.value, node.I.value, eeg

dt = brainstate.environ.get_dt()
indices = np.arange(int(5. * u.second / dt))
data = brainstate.transform.for_loop(step_run, indices)
show(indices * dt, data, title='Sinusoidal-driven oscillation')

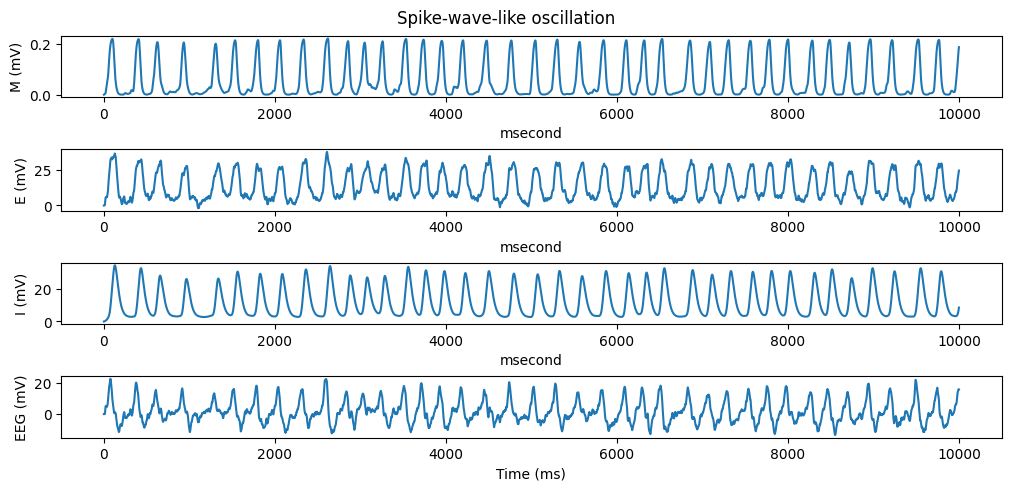

3) Spike–wave-like regime

Changing synaptic gains and time constants can push the node into a spike–wave-like regime reminiscent of epileptiform dynamics.

• Gains: increase excitatory gain Ae and reduce inhibitory gain Ai relative to typical JR defaults.

• Time constants: set inhibitory inverse time constant bi to 40 Hz (slower than the usual 50–100 Hz range), favoring prolonged inhibitory kinetics.

• Drive: mean 90 Hz with moderate noise.

• Duration: 10 seconds.

node = brainmass.JansenRitModel(1, Ae=4.5 * u.mV, Ai=18. * u.mV, bi=40. * u.Hz)
brainstate.nn.init_all_states(node)

def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg

dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(90., 10. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Spike-wave-like oscillation')

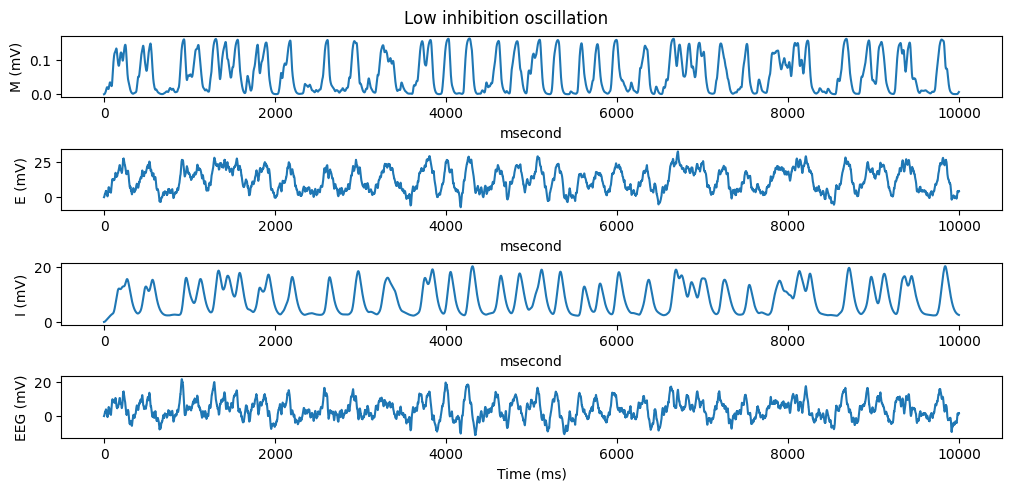

4) Reduced inhibition (disinhibited)

Lowering inhibitory strength typically increases oscillation amplitude and can shift frequency.

• Parameters: lower Ai and use bi = 40 Hz.

• Drive: mean 100 Hz with noise SD ≈ 20 Hz per sqrt(second).

• Duration: 10 seconds.

node = brainmass.JansenRitModel(1, Ai=15. * u.mV, bi=40. * u.Hz)
brainstate.nn.init_all_states(node)

def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg

dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(100., 20. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Low inhibition oscillation')

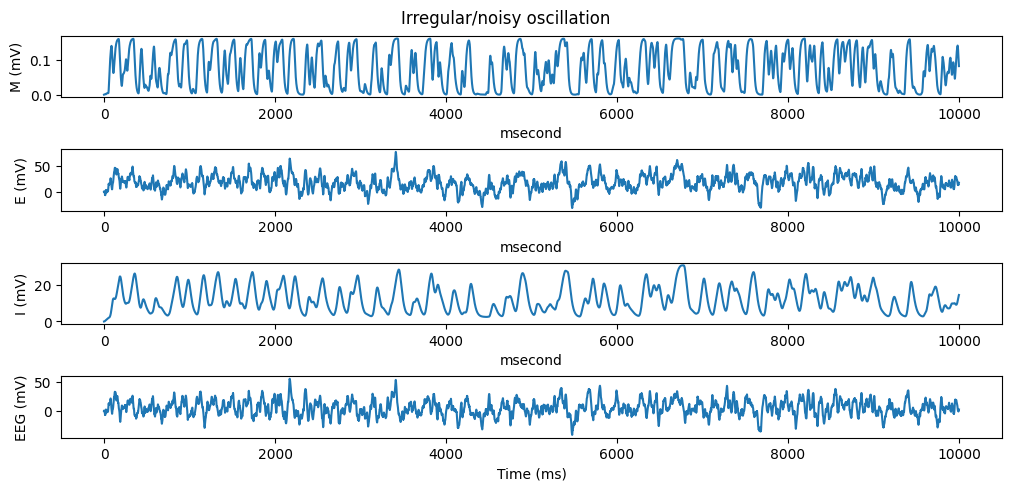

5) Irregular/noisy regime

Increasing mean drive and noise level yields more irregular, broadband dynamics.

• Drive: mean 220 Hz with high noise SD ≈ 80 Hz per sqrt(second).

• Duration: 10 seconds.

node = brainmass.JansenRitModel(1)
brainstate.nn.init_all_states(node)

def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg

dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(220., 80. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Irregular/noisy oscillation')

Tips

• Change dt under the Setup cell to trade accuracy for speed (smaller dt is slower but more precise).

• Try different Ae, Ai, be, bi parameters when constructing JansenRitModel to explore bifurcations.

• Replace the noisy input with deterministic waveforms (ramps, chirps) to test entrainment and resonance.

• For reproducible noise, set the random seed if available in your brainstate version (e.g., brainstate.random.seed(0)).
