Welcome! This tutorial introduces brainunit, the physical units and unit-aware mathematical system in the BrainX ecosystem.

Why Physical Units?#

Brain models involve many physical quantities:

  • Time (milliseconds, seconds)

  • Voltage (millivolts)

  • Current (nanoamperes, microamperes)

  • Conductance (nanosiemens, microsiemens)

  • Capacitance (picofarads)

  • Resistance (megaohms)

Problems without unit tracking:

  • Mixing incompatible units (adding voltage and current)

  • Forgetting to convert units (using seconds instead of milliseconds)

  • Hard-to-debug errors from dimensionally incorrect equations

Benefits of brainunit:

  • Automatic dimension checking prevents errors

  • Clear, self-documenting code

  • Seamless unit conversions

  • JAX-compatible for GPU/TPU acceleration

# Imports
import brainunit as u
import jax.numpy as jnp
import numpy as np
import matplotlib.pyplot as plt

Creating Quantities with Units#

A quantity combines a numerical value with a physical unit. In brainunit, multiply values by unit constants:

# Time quantities
t1 = 10.0 * u.ms  # 10 milliseconds
t2 = 0.01 * u.second  # 0.01 seconds
t3 = 1.5 * u.us  # 1.5 microseconds

print("t1 =", t1)
print("t2 =", t2)
print("t3 =", t3)

t1 = 10. * msecond
t2 = 0.01 * second
t3 = 1.5 * usecond

# Voltage quantities
V_rest = -70.0 * u.mV
V_thresh = -50.0 * u.mV
V_spike = 40.0 * u.mV

print("\nNeuron voltages:")
print("V_rest =", V_rest)
print("V_thresh =", V_thresh)
print("V_spike =", V_spike)

Neuron voltages:
V_rest = -70. * mvolt
V_thresh = -50. * mvolt
V_spike = 40. * mvolt

# Current and conductance
I_app = 200.0 * u.pA  # applied current in picoamperes
g_leak = 10.0 * u.nS  # leak conductance in nanosiemens
C_m = 100.0 * u.pF    # membrane capacitance in picofarads

print("\nCircuit parameters:")
print("I_app =", I_app)
print("g_leak =", g_leak)
print("C_m =", C_m)

Circuit parameters:
I_app = 200. * pamp
g_leak = 10. * nsiemens
C_m = 100. * pfarad

Common Units in Neuroscience#

Time: u.second, u.ms (millisecond), u.us (microsecond)

Voltage: u.volt, u.mV (millivolt)

Current: u.amp, u.mA (milliampere), u.uA (microampere), u.nA (nanoampere), u.pA (picoampere)

Conductance: u.siemens, u.mS (millisiemens), u.uS (microsiemens), u.nS (nanosiemens)

Capacitance: u.farad, u.uF (microfarad), u.nF (nanofarad), u.pF (picofarad)

Resistance: u.ohm, u.kohm (kiloohm), u.Mohm (megaohm)

Frequency: u.Hz (hertz), u.kHz (kilohertz)

Unit Arithmetic#

brainunit automatically checks dimensional consistency and propagates units through calculations.

# Addition and subtraction: units must match
V1 = -70.0 * u.mV
V2 = -50.0 * u.mV
delta_V = V2 - V1
print("delta_V =", delta_V)  # 20.0 mV

delta_V = 20. * mvolt

# Multiplication and division: units combine
I = 100.0 * u.pA
R = 200.0 * u.Mohm
V = I * R
print("\nV = I * R =", V)  # Voltage in appropriate units

V = I * R = 20000. * uvolt

# Division produces new units
g = I / V1  # conductance = current / voltage
print("g = I / V =", g)

g = I / V = -1.4285715 * nsiemens

# Time constant: tau = R * C
R_m = 100.0 * u.Mohm
C_m = 100.0 * u.pF
tau_m = R_m * C_m
print("\ntau_m = R_m * C_m =", tau_m)

tau_m = R_m * C_m = 10000. * usecond

Automatic Dimension Checking#

brainunit prevents dimensionally incorrect operations:

# This will work: same dimensions
V_total = (-70.0 * u.mV) + (20.0 * u.mV)
print("Valid: V_total =", V_total)

Valid: V_total = -50. * mvolt

# This will raise an error: incompatible dimensions
try:
    bad_sum = (100.0 * u.mV) + (50.0 * u.ms)  # voltage + time!
except Exception as e:
    print("\nError caught:", type(e).__name__)
    print("Message:", str(e)[:100], "...")

Error caught: UnitMismatchError
Message: Cannot calculate
100.0 * mvolt + 50.0 * msecond, because units do not match: mV != ms ...

# This will also raise an error: incompatible units
try:
    bad_sum2 = (10.0 * u.mV) + (5.0 * u.mA)  # voltage + current!
except Exception as e:
    print("\nError caught:", type(e).__name__)
    print("Message:", str(e)[:100], "...")

Error caught: UnitMismatchError
Message: Cannot calculate
10.0 * mvolt + 5.0 * mamp, because units do not match: mV != mA ...

Unit Conversions#

Convert quantities between compatible units using .to() method:

# Time conversions
t_ms = 100.0 * u.ms
t_s = t_ms.to(u.second)
t_us = t_ms.to(u.us)

print("Time conversions:")
print(f"  {t_ms} = {t_s} = {t_us}")

Time conversions:
  100.0 * msecond = 0.1 * second = 100000.00000000001 * usecond

# Voltage conversions
V_mv = -70.0 * u.mV
V_v = V_mv.to(u.volt)

print("\nVoltage conversions:")
print(f"  {V_mv} = {V_v}")

Voltage conversions:
  -70.0 * mvolt = -0.07 * volt

# Current conversions
I_pa = 200.0 * u.pA
I_na = I_pa.to(u.nA)
I_ua = I_pa.to(u.uA)

print("\nCurrent conversions:")
print(f"  {I_pa} = {I_na} = {I_ua}")

Current conversions:
  200.0 * pamp = 0.2 * namp = 0.00019999999999999998 * uamp

# Automatic conversion in compatible operations
t1 = 10.0 * u.ms
t2 = 0.01 * u.second
t_sum = t1 + t2  # automatically handles different units
print("\nAutomatic conversion:")
print(f"  {t1} + {t2} = {t_sum}")

Automatic conversion:
  10.0 * msecond + 0.01 * second = 20.0 * msecond

Working with Arrays#

brainunit seamlessly works with NumPy and JAX arrays:

# Create array quantities
voltages = np.array([-70.0, -60.0, -50.0, -40.0, -30.0]) * u.mV
print("Voltages array:", voltages)
print("Shape:", voltages.shape)
print("Unit:", voltages.unit)

Voltages array: ArrayImpl([-70., -60., -50., -40., -30.], dtype=float32) * mvolt
Shape: (5,)
Unit: mV

# Array operations preserve units
V_mean = u.math.mean(voltages)
V_std = u.math.std(voltages)
print("\nStatistics:")
print("  Mean:", V_mean)
print("  Std:", V_std)

Statistics:
  Mean: -50. * mvolt
  Std: 14.142136 * mvolt

# Element-wise operations
V_shifted = voltages + 10.0 * u.mV
print("\nShifted voltages:", V_shifted)

Shifted voltages: ArrayImpl([-60., -50., -40., -30., -20.], dtype=float32) * mvolt

# Time arrays for simulation
dt = 0.1 * u.ms
t_end = 100.0 * u.ms
n_steps = int(t_end / dt)
time = np.arange(n_steps) * dt
print("\nTime array:")
print("  Length:", len(time))
print("  First 5 points:", time[:5])
print("  Last point:", time[-1])

Time array:
  Length: 1000
  First 5 points: ArrayImpl([0. , 0.1, 0.2, 0.30000001, 0.40000001], dtype=float32) * msecond
  Last point: 99.9 * msecond

Mathematical Functions#

Use u.math for unit-aware mathematical operations:

# Exponential decay (dimensionless exponent)
tau = 10.0 * u.ms
t = np.linspace(0, 50, 100) * u.ms
decay = u.math.exp(-t / tau)  # t/tau is dimensionless

plt.figure(figsize=(7, 3))
plt.plot(t, decay)
plt.xlabel('Time (ms)')
plt.ylabel('Decay factor')
plt.title('Exponential decay with tau = 10 ms')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

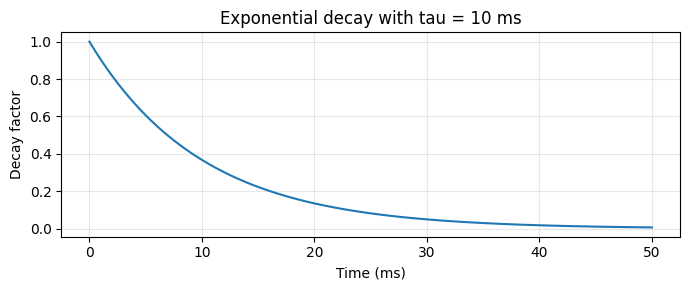

../_images/c47e15177ec59565a7bd937abdc068660864f1083b42bca92a2f923d7cc487f9.png
# Trigonometric functions (require dimensionless or angular units)
frequency = 50.0 * u.Hz
t = np.linspace(0, 40, 200) * u.ms
phase = 2 * np.pi * frequency * t  # dimensionless phase
signal = u.math.sin(phase)

plt.figure(figsize=(7, 3))
plt.plot(t, signal)
plt.xlabel('Time (ms)')
plt.ylabel('Amplitude')
plt.title(f'Sine wave at {frequency}')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

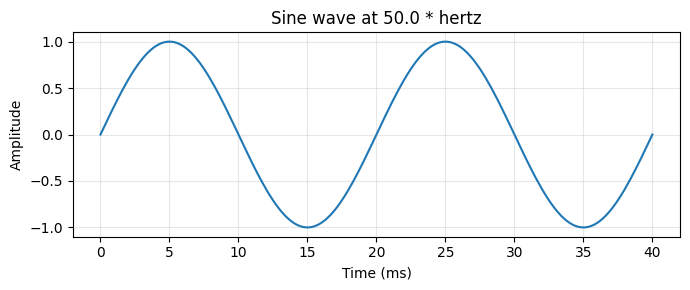

../_images/c8d20a0219082f4a7b96a0ec61c1d8194f896d743d5b89a22f82cdfcb4690deb.png

Practical Example: RC Circuit Dynamics#

Let’s model a simple RC circuit representing a passive neuron membrane.

The membrane voltage follows: \(\tau_m \frac{dV}{dt} = -(V - V_{rest}) + R_m I_{app}\)

where:

  • \(\tau_m = R_m C_m\) is the membrane time constant

  • \(R_m\) is membrane resistance

  • \(C_m\) is membrane capacitance

  • \(I_{app}\) is applied current

# Membrane parameters
R_m = 100.0 * u.Mohm
C_m = 100.0 * u.pF
tau_m = R_m * C_m
V_rest = -70.0 * u.mV

print("Membrane parameters:")
print(f"  R_m = {R_m}")
print(f"  C_m = {C_m}")
print(f"  tau_m = {tau_m.to(u.ms)}")
print(f"  V_rest = {V_rest}")

Membrane parameters:
  R_m = 100.0 * Mohm
  C_m = 100.0 * pfarad
  tau_m = 10.0 * msecond
  V_rest = -70.0 * mvolt

# Simulation parameters
dt = 0.1 * u.ms
t_end = 50.0 * u.ms
n_steps = int(t_end / dt)
time = np.arange(n_steps) * dt

# Applied current (step input)
I_app = np.zeros(n_steps) * u.pA
I_start = int(5.0 * u.ms / dt)
I_end = int(35.0 * u.ms / dt)
I_app[I_start:I_end] = 150.0 * u.pA

# Integrate membrane voltage using exponential Euler
V = np.zeros(n_steps) * u.mV
V[0] = V_rest

for i in range(n_steps - 1):
    # Steady-state voltage for current input
    V_inf = V_rest + R_m * I_app[i]
    # Exponential Euler step
    V[i + 1] = V_inf + (V[i] - V_inf) * u.math.exp(-dt / tau_m)

# Plot results
fig, axes = plt.subplots(2, 1, figsize=(8, 5), sharex=True)

axes[0].plot(time, I_app.to(u.pA), 'b', linewidth=2)
axes[0].set_ylabel('Current (pA)')
axes[0].set_title('RC Circuit: Current Step Response')
axes[0].grid(True, alpha=0.3)

axes[1].plot(time, V, 'r', linewidth=2)
axes[1].axhline(V_rest.to(u.mV).magnitude, ls='--', color='k', alpha=0.5, label='V_rest')
axes[1].set_xlabel('Time (ms)')
axes[1].set_ylabel('Voltage (mV)')
axes[1].legend()
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

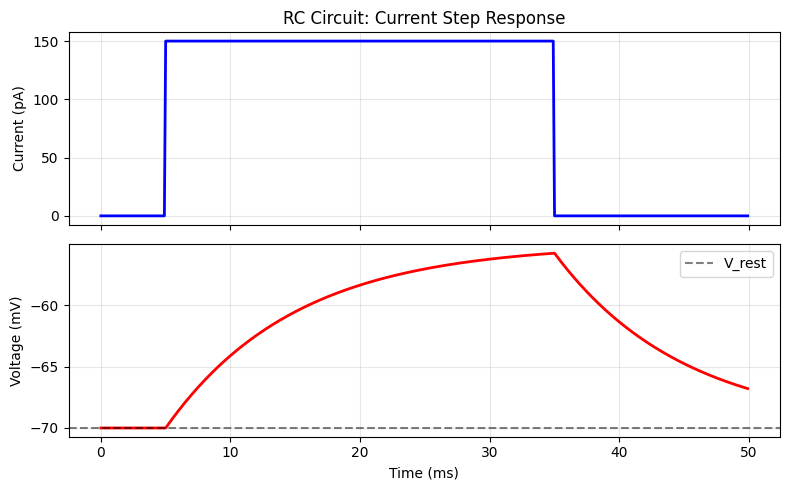

../_images/ba31127e54d27cc2d343788a487adfa1e2f2f2d376257fe2784e22c4bec3e7e0.png
# Verify the steady-state response
V_ss_expected = V_rest + R_m * 150.0 * u.pA
V_ss_observed = u.math.max(V)
print(f"\nSteady-state voltage:")
print(f"  Expected: {V_ss_expected}")
print(f"  Observed: {V_ss_observed}")
print(f"  Match: {u.math.allclose(V_ss_expected, V_ss_observed, atol=0.01 *u.mV)}")

Steady-state voltage:
  Expected: -55.0 * mvolt
  Observed: -55.746826171875 * mvolt
  Match: False

Example: Ohm’s Law Validation#

Let’s verify Ohm’s law (\(V = I R\)) with different unit combinations:

# Test cases with different unit combinations
test_cases = [
    {"I": 100.0 * u.pA, "R": 100.0 * u.Mohm},
    {"I": 1.0 * u.nA, "R": 50.0 * u.Mohm},
    {"I": 0.5 * u.uA, "R": 10.0 * u.kohm},
    {"I": 10.0 * u.mA, "R": 1.0 * u.ohm},
]

print("Ohm's Law Validation (V = I × R):\n")
print(f"{'Current':<15} {'Resistance':<15} {'Voltage':<15}")
print("-" * 45)
for case in test_cases:
    I = case["I"]
    R = case["R"]
    V = I * R
    print(f"{str(I):<15} {str(R):<15} {str(V.to(u.mV)):<15}")

# Verify dimensional consistency
print("\nDimensional Analysis:")
I_test = 100.0 * u.pA
R_test = 100.0 * u.Mohm
V_test = I_test * R_test

print(f"  Current dimension: {I_test.dim}")
print(f"  Resistance dimension: {R_test.dim}")
print(f"  Voltage dimension: {V_test.dim}")
print(f"  \nExpected voltage dimension: {u.mV.dim}")
print(f"  Dimensions match: {V_test.dim == u.mV.dim}")

Ohm's Law Validation (V = I × R):

Current         Resistance      Voltage
---------------------------------------------
100. * pamp     100. * Mohm     10. * mvolt
1. * namp       50. * Mohm      50. * mvolt
0.5 * uamp      10. * kohm      5. * mvolt
10. * mamp      1. * ohm        10. * mvolt

Dimensional Analysis:
  Current dimension: A
  Resistance dimension: m^2 kg s^-3 A^-2
  Voltage dimension: m^2 kg s^-3 A^-1

Expected voltage dimension: m^2 kg s^-3 A^-1
  Dimensions match: True

Example: Spike Frequency Calculation#

Calculate firing rate from inter-spike intervals:

# Simulated spike times
spike_times = np.array([10.5, 25.3, 39.8, 54.7, 69.2, 84.1]) * u.ms

print("Spike times:", spike_times)

Spike times: ArrayImpl([10.5, 25.29999924, 39.79999924, 54.70000076, 69.19999695,
           84.09999847], dtype=float32) * msecond

# Calculate inter-spike intervals (ISI)
isi = u.math.diff(spike_times)
print("\nInter-spike intervals:", isi)

Inter-spike intervals: ArrayImpl([14.79999924, 14.5     , 14.90000153, 14.49999619, 14.90000153],
          dtype=float32) * msecond

# Mean ISI and firing rate
mean_isi = u.math.mean(isi)
firing_rate = (1.0 / mean_isi).to(u.Hz)

print(f"\nMean ISI: {mean_isi}")
print(f"Firing rate: {firing_rate}")

Mean ISI: 14.720000267028809 * msecond
Firing rate: 67.93478393554688 * hertz

# Coefficient of variation (CV)
std_isi = u.math.std(isi)
cv = (std_isi / mean_isi)

print(f"\nISI variability:")
print(f"  Std ISI: {std_isi}")
print(f"  CV: {cv:.3f}")

ISI variability:
  Std ISI: 0.18330447375774384 * msecond
  CV: 0.012

# Plot spike train
plt.figure(figsize=(8, 2))
plt.eventplot([spike_times.to(u.ms).magnitude], lineoffsets=0.5, colors='red', linewidths=2)
plt.yticks([])
plt.xlabel('Time (ms)')
plt.title(f'Spike Train (Rate: {firing_rate:.1f}, CV: {cv:.2f})')
plt.grid(True, alpha=0.3, axis='x')
plt.tight_layout()
plt.show()
../_images/f3df0d20897293ad03014e3cab503cbac2cddf952e38113c40c86c325238e27c.png

Working with Dimensionless Quantities#

Some calculations produce dimensionless results. Use .to_decimal() to extract the numerical value:

# Ratio of voltages (dimensionless)
V1 = -50.0 * u.mV
V2 = -70.0 * u.mV
ratio = V1 / V2
print(f"V1 / V2 = {ratio}")
print(f"As decimal: {ratio:.4f}")

V1 / V2 = 0.7142857142857143
As decimal: 0.7143

# Time ratio
t_measured = 15.0 * u.ms
tau = 10.0 * u.ms
normalized_time = (t_measured / tau)
print(f"\nt / tau = {normalized_time}")

t / tau = 1.5

# For exponentials, ensure argument is dimensionless
decay_factor = u.math.exp(-normalized_time)
print(f"exp(-t/tau) = {decay_factor:.4f}")

exp(-t/tau) = 0.2231

# Percentage difference
V_expected = -65.0 * u.mV
V_measured = -62.0 * u.mV
percent_error = ((V_measured - V_expected) / V_expected * 100)
print(f"\nPercent error: {percent_error:.2f}%")

Percent error: -4.62%
