Simulating asynchronous or Gamma oscillations using AdEx neurons in brainpy.state#
Implementation of the paper:
Susin, Eduarda, and Alain Destexhe. “Integration, coincidence detection and resonance in networks of spiking neurons expressing gamma oscillations and asynchronous states.” PLoS computational biology 17.9 (2021): e1009416. https://pmc.ncbi.nlm.nih.gov/articles/PMC8478196/
import braintools
import brainstate
import brainpy.state
import brainunit as u
import matplotlib.pyplot as plt
import numpy as np
from scipy.signal import kaiserord, lfilter, firwin, hilbert
Parameters#
# Table 1: specific neuron model parameters
RS_par = dict(
Vth=-40 * u.mV, delta=2. * u.mV, tau_ref=5. * u.ms, tau_w=500 * u.ms,
a=4 * u.nS, b=20 * u.pA, C=150 * u.pF, gL=10 * u.nS, EL=-65 * u.mV, V_reset=-65 * u.mV,
E_e=0. * u.mV, E_i=-80. * u.mV
)
FS_par = dict(
Vth=-47.5 * u.mV, delta=0.5 * u.mV, tau_ref=5. * u.ms, tau_w=500 * u.ms,
a=0 * u.nS, b=0 * u.pA, C=150 * u.pF, gL=10 * u.nS, EL=-65 * u.mV, V_reset=-65 * u.mV,
E_e=0. * u.mV, E_i=-80. * u.mV
)
Ch_par = dict(
Vth=-47.5 * u.mV, delta=0.5 * u.mV, tau_ref=1. * u.ms, tau_w=50 * u.ms,
a=80 * u.nS, b=150 * u.pA, C=150 * u.pF, gL=10 * u.nS, EL=-58 * u.mV, V_reset=-65 * u.mV,
E_e=0. * u.mV, E_i=-80. * u.mV,
)
Neuron model#
class AdEx(brainpy.state.Neuron):
def __init__(
self,
in_size,
# neuronal parameters
Vth=-40 * u.mV, delta=2. * u.mV, tau_ref=5. * u.ms, tau_w=500 * u.ms,
a=4 * u.nS, b=20 * u.pA, C=150 * u.pF,
gL=10 * u.nS, EL=-65 * u.mV, V_reset=-65 * u.mV, V_sp_th=-40. * u.mV,
# synaptic parameters
tau_e=1.5 * u.ms, tau_i=7.5 * u.ms, E_e=0. * u.mV, E_i=-80. * u.mV,
# other parameters
V_initializer=braintools.init.Uniform(-65., -50., unit=u.mV),
w_initializer=braintools.init.Constant(0. * u.pA),
ge_initializer=braintools.init.Constant(0. * u.nS),
gi_initializer=braintools.init.Constant(0. * u.nS),
):
super().__init__(in_size=in_size)
# neuronal parameters
self.Vth = Vth
self.delta = delta
self.tau_ref = tau_ref
self.tau_w = tau_w
self.a = a
self.b = b
self.C = C
self.gL = gL
self.EL = EL
self.V_reset = V_reset
self.V_sp_th = V_sp_th
# synaptic parameters
self.tau_e = tau_e
self.tau_i = tau_i
self.E_e = E_e
self.E_i = E_i
# other parameters
self.V_initializer = V_initializer
self.w_initializer = w_initializer
self.ge_initializer = ge_initializer
self.gi_initializer = gi_initializer
def init_state(self):
# neuronal variables
self.V = brainstate.HiddenState(braintools.init.param(self.V_initializer, self.varshape))
self.w = brainstate.HiddenState(braintools.init.param(self.w_initializer, self.varshape))
self.t_last_spike = brainstate.HiddenState(braintools.init.param(braintools.init.Constant(-1e7 * u.ms), self.varshape))
self.spike = brainstate.HiddenState(braintools.init.param(lambda s: u.math.zeros(s, bool), self.varshape))
# synaptic parameters
self.ge = brainstate.HiddenState(braintools.init.param(self.ge_initializer, self.varshape))
self.gi = brainstate.HiddenState(braintools.init.param(self.gi_initializer, self.varshape))
def dV(self, V, w, ge, gi, Iext):
I = ge * (self.E_e - V) + gi * (self.E_i - V)
Iext = self.sum_current_inputs(Iext)
dVdt = (self.gL * self.delta * u.math.exp((V - self.Vth) / self.delta)
- w + self.gL * (self.EL - V) + I + Iext) / self.C
return dVdt
def dw(self, w, V):
dwdt = (self.a * (V - self.EL) - w) / self.tau_w
return dwdt
def update(self, x=0. * u.pA):
# numerical integration
ge = brainstate.nn.exp_euler_step(lambda g: -g / self.tau_e, self.ge.value)
ge = self.sum_delta_inputs(ge, label='ge')
gi = brainstate.nn.exp_euler_step(lambda g: -g / self.tau_i, self.gi.value)
gi = self.sum_delta_inputs(gi, label='gi')
V = brainstate.nn.exp_euler_step(self.dV, self.V.value, self.w.value, self.ge.value, self.gi.value, x)
V = self.sum_delta_inputs(V, label='V')
w = brainstate.nn.exp_euler_step(self.dw, self.w.value, self.V.value)
# spike detection
t = brainstate.environ.get('t')
refractory = (t - self.t_last_spike.value) <= self.tau_ref
V = u.math.where(refractory, self.V.value, V)
spike = V >= self.V_sp_th
self.V.value = u.math.where(spike, self.V_reset, V)
self.w.value = u.math.where(spike, w + self.b, w)
self.ge.value = ge
self.gi.value = gi
self.spike.value = spike
self.t_last_spike.value = u.math.where(spike, t, self.t_last_spike.value)
return spike
Utility functions#
def get_inputs(c_low, c_high, t_transition, t_min_plato, t_max_plato, t_gap, t_total):
t = 0
dt = brainstate.environ.get_dt()
num_gap = int(t_gap / dt)
num_total = int(t_total / dt)
num_transition = int(t_transition / dt)
inputs = []
ramp_up = u.math.linspace(c_low, c_high, num_transition)
ramp_down = u.math.linspace(c_high, c_low, num_transition)
plato_base = u.math.ones(num_gap) * c_low
while t < num_total:
num_plato = int(brainstate.random.uniform(low=t_min_plato, high=t_max_plato) / dt)
inputs.extend([plato_base, ramp_up, np.ones(num_plato) * c_high, ramp_down])
t += (num_gap + num_transition + num_plato + num_transition)
return u.math.concatenate(inputs)[:num_total]
def signal_phase_by_Hilbert(signal, signal_time, low_cut, high_cut, sampling_space):
# sampling_space: in seconds (no units)
# signal_time: in seconds (no units)
# low_cut: in Hz (no units)(band to filter)
# high_cut: in Hz (no units)(band to filter)
signal = signal - np.mean(signal)
width = 5.0 # The desired width in Hz of the transition from pass to stop
ripple_db = 60.0 # The desired attenuation in the stop band, in dB.
sampling_rate = 1. / sampling_space
Nyquist = sampling_rate / 2.
num_taps, beta = kaiserord(ripple_db, width / Nyquist)
if num_taps % 2 == 0:
num_taps = num_taps + 1 # Numtaps must be odd
taps = firwin(num_taps, [low_cut / Nyquist, high_cut / Nyquist], window=('kaiser', beta),
pass_zero=False, scale=True)
filtered_signal = lfilter(taps, 1.0, signal)
delay = 0.5 * (num_taps - 1) / sampling_rate # To corrected to zero-phase
delay_index = int(np.floor(delay * sampling_rate))
filtered_signal = filtered_signal[num_taps - 1:] # taking out the "corrupted" signal
# correcting the delay and taking out the "corrupted" signal part
filtered_time = signal_time[num_taps - 1:] - delay
cutted_signal = signal[(num_taps - 1 - delay_index): (len(signal) - (num_taps - 1 - delay_index))]
# --------------------------------------------------------------------------
# The hilbert transform are very slow when the signal has odd lenght,
# This part check if the length is odd, and if this is the case it adds a zero in the end
# of all the vectors related to the filtered Signal:
if len(filtered_signal) % 2 != 0: # If the lengh is odd
tmp1 = filtered_signal.tolist()
tmp1.append(0)
tmp2 = filtered_time.tolist()
tmp2.append((len(filtered_time) + 1) * sampling_space + filtered_time[0])
tmp3 = cutted_signal.tolist()
tmp3.append(0)
filtered_signal = np.asarray(tmp1)
filtered_time = np.asarray(tmp2)
cutted_signal = np.asarray(tmp3)
# --------------------------------------------------------------------------
ht_filtered_signal = hilbert(filtered_signal)
envelope = np.abs(ht_filtered_signal)
phase = np.angle(ht_filtered_signal) # The phase is between -pi and pi in radians
return filtered_time, filtered_signal, cutted_signal, envelope, phase
def visualize_simulation_results(
times, spikes, example_potentials, varied_rates,
xlim=None, t_lfp_start=None, t_lfp_end=None, filename=None
):
times = times.to_decimal(u.ms)
varied_rates = varied_rates.to_decimal(u.Hz)
example_potentials = {k: v.to_decimal(u.mV) for k, v in example_potentials.items()}
fig, gs = braintools.visualize.get_figure(7, 1, 1, 12)
# 1. input firing rate
ax = fig.add_subplot(gs[0])
plt.plot(times, varied_rates)
if xlim is None:
xlim = (0, times[-1])
else:
xlim = (xlim[0].to_decimal(u.ms), xlim[1].to_decimal(u.ms))
ax.set_xlim(*xlim)
ax.set_xticks([])
ax.set_ylabel('External\nRate (Hz)')
# 2. inhibitory cell rater plot
ax = fig.add_subplot(gs[1: 3])
i = 0
y_ticks = ([], [])
for key, (sp_matrix, sp_type) in spikes.items():
iis, sps = np.where(sp_matrix)
tts = times[iis]
plt.scatter(tts, sps + i, s=1, label=key)
y_ticks[0].append(i + sp_matrix.shape[1] / 2)
y_ticks[1].append(key)
i += sp_matrix.shape[1]
ax.set_xlim(*xlim)
ax.set_xlabel('')
ax.set_ylabel('Neuron Index')
ax.set_xticks([])
ax.set_yticks(*y_ticks)
# 3. example membrane potential
ax = fig.add_subplot(gs[3: 5])
for key, potential in example_potentials.items():
vs = np.where(spikes[key][0][:, 0], 0, potential)
plt.plot(times, vs, label=key)
ax.set_xlim(*xlim)
ax.set_xticks([])
ax.set_ylabel('V (mV)')
ax.legend()
# 4. LFP
ax = fig.add_subplot(gs[5:7])
ax.set_xlim(*xlim)
t1 = int(t_lfp_start / brainstate.environ.get_dt()) if t_lfp_start is not None else 0
t2 = int(t_lfp_end / brainstate.environ.get_dt()) if t_lfp_end is not None else len(times)
times = times[t1: t2]
lfp = 0
for sp_matrix, sp_type in spikes.values():
lfp += braintools.metric.unitary_LFP(times, sp_matrix[t1: t2], sp_type)
phase_ts, filtered, cutted, envelope, _ = signal_phase_by_Hilbert(
lfp, times * 1e-3, 30, 50, brainstate.environ.get_dt() / u.second
)
plt.plot(phase_ts * 1e3, cutted, color='k', label='Raw LFP')
plt.plot(phase_ts * 1e3, filtered, color='orange', label="Filtered LFP (30-50 Hz)")
plt.plot(phase_ts * 1e3, envelope, color='purple', label="Hilbert Envelope")
plt.legend(loc='best')
plt.xlabel('Time (ms)')
# save or show
if filename:
plt.savefig(filename, dpi=500)
plt.show()

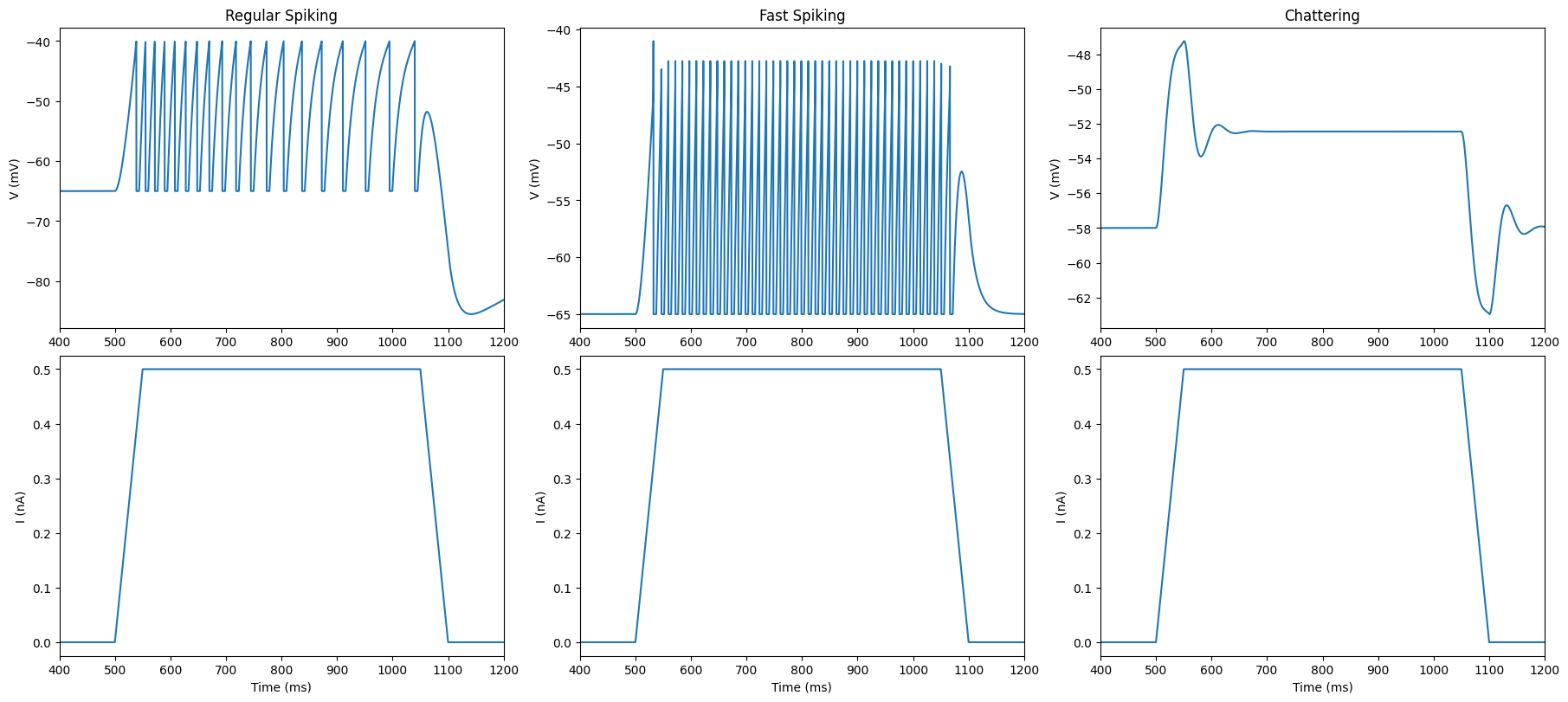

Neuron dynamics simulation#
def simulate_adex_neuron(ax_v, ax_I, pars, title):
with brainstate.environ.context(dt=0.1 * u.ms):
# neuron
adex = brainstate.nn.init_all_states(AdEx(1, **pars))
def run_step(t, x):
with brainstate.environ.context(t=t):
adex.update(x)
return adex.V.value
# simulation
duration = 1.5e3 * u.ms
times = u.math.arange(0. * u.ms, duration, brainstate.environ.get_dt())
inputs = get_inputs(0. * u.nA, 0.5 * u.nA, t_transition=50. * u.ms,
t_min_plato=500 * u.ms, t_max_plato=500 * u.ms,
t_gap=500 * u.ms, t_total=duration)
vs = brainstate.transform.for_loop(run_step, times, inputs, pbar=brainstate.transform.ProgressBar(10))
# visualization
ax_v.plot(times.to_decimal(u.ms), vs.to_decimal(u.mV))
ax_v.set_title(title)
ax_v.set_ylabel('V (mV)')
ax_v.set_xlim(0.4 * u.second / u.ms, 1.2 * u.second / u.ms)
ax_I.plot(times.to_decimal(u.ms), inputs.to_decimal(u.nA))
ax_I.set_ylabel('I (nA)')
ax_I.set_xlabel('Time (ms)')
ax_I.set_xlim(0.4 * u.second / u.ms, 1.2 * u.second / u.ms)
def simulate_adex_neurons():
fig, gs = braintools.visualize.get_figure(2, 3, 4, 6)
simulate_adex_neuron(fig.add_subplot(gs[0, 0]), fig.add_subplot(gs[1, 0]), RS_par, 'Regular Spiking')
simulate_adex_neuron(fig.add_subplot(gs[0, 1]), fig.add_subplot(gs[1, 1]), FS_par, 'Fast Spiking')
simulate_adex_neuron(fig.add_subplot(gs[0, 2]), fig.add_subplot(gs[1, 2]), Ch_par, 'Chattering')
plt.show()
simulate_adex_neurons()

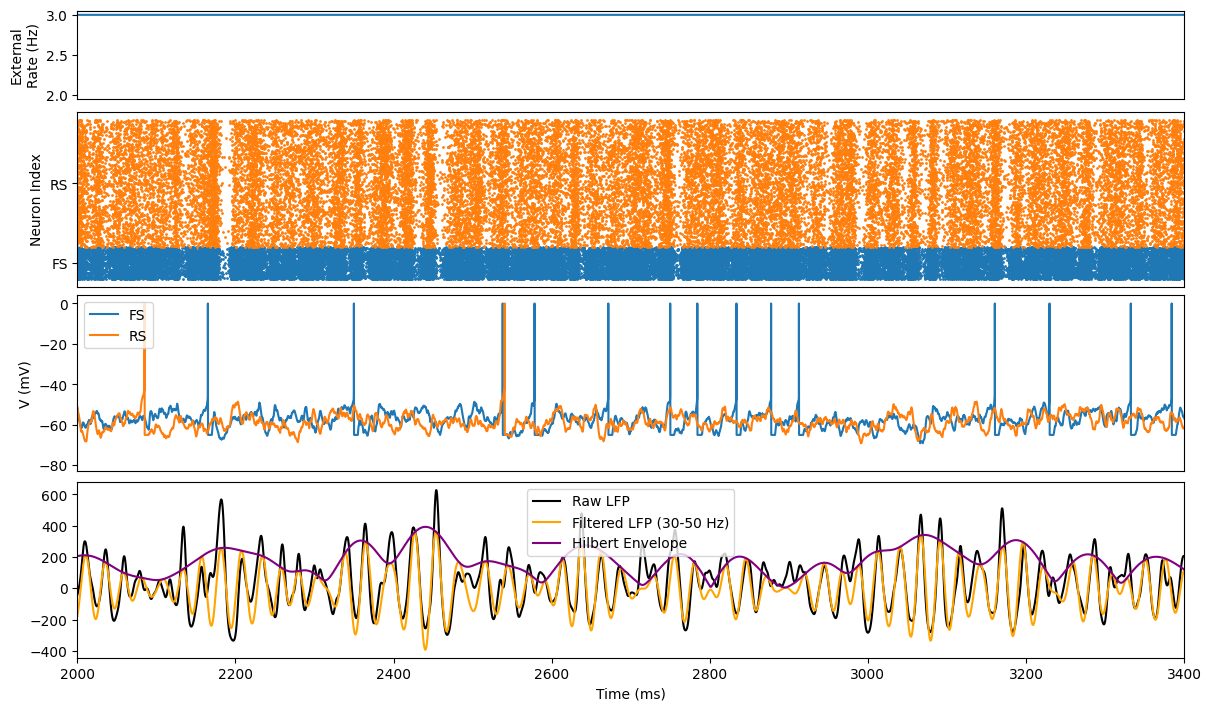

PING Network for Generating Gamma Oscillation#
class PINGNet(brainstate.nn.Module):
def __init__(self):
super().__init__()
self.num_exc = 20000
self.num_inh = 5000
self.exc_syn_tau = 1. * u.ms
self.inh_syn_tau = 7.5 * u.ms
self.exc_syn_weight = 5. * u.nS
self.inh_syn_weight = 3.34 * u.nS
self.ext_weight = 4. * u.nS
self.delay = 1.5 * u.ms
# neuronal populations
RS_par_ = RS_par.copy()
FS_par_ = FS_par.copy()
RS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
FS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
self.rs_pop = AdEx(self.num_exc, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **RS_par_)
self.fs_pop = AdEx(self.num_inh, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **FS_par_)
self.ext_pop = brainpy.state.PoissonEncoder(self.num_exc)
# Poisson inputs
self.ext_to_FS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_inh, 0.02, self.ext_weight),
post=self.fs_pop,
label='ge'
)
self.ext_to_RS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_exc, 0.02, self.ext_weight),
post=self.rs_pop,
label='ge'
)
# synaptic projections
self.RS_to_FS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_inh, 0.02, self.exc_syn_weight),
post=self.fs_pop,
label='ge'
)
self.RS_to_RS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_exc, 0.02, self.exc_syn_weight),
post=self.rs_pop,
label='ge'
)
self.FS_to_RS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_inh, self.num_exc, 0.02, self.inh_syn_weight),
post=self.rs_pop,
label='gi'
)
self.FS_to_FS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_inh, self.num_inh, 0.02, self.inh_syn_weight),
post=self.fs_pop,
label='gi'
)
def update(self, i, t, freq):
with brainstate.environ.context(t=t, i=i):
ext_spikes = self.ext_pop(freq)
self.ext_to_FS(ext_spikes)
self.ext_to_RS(ext_spikes)
self.RS_to_RS()
self.RS_to_FS()
self.FS_to_RS()
self.FS_to_FS()
self.rs_pop()
self.fs_pop()
return {
'FS.V0': self.fs_pop.V.value[0],
'RS.V0': self.rs_pop.V.value[0],
'FS.spike': self.fs_pop.spike.value,
'RS.spike': self.rs_pop.spike.value
}

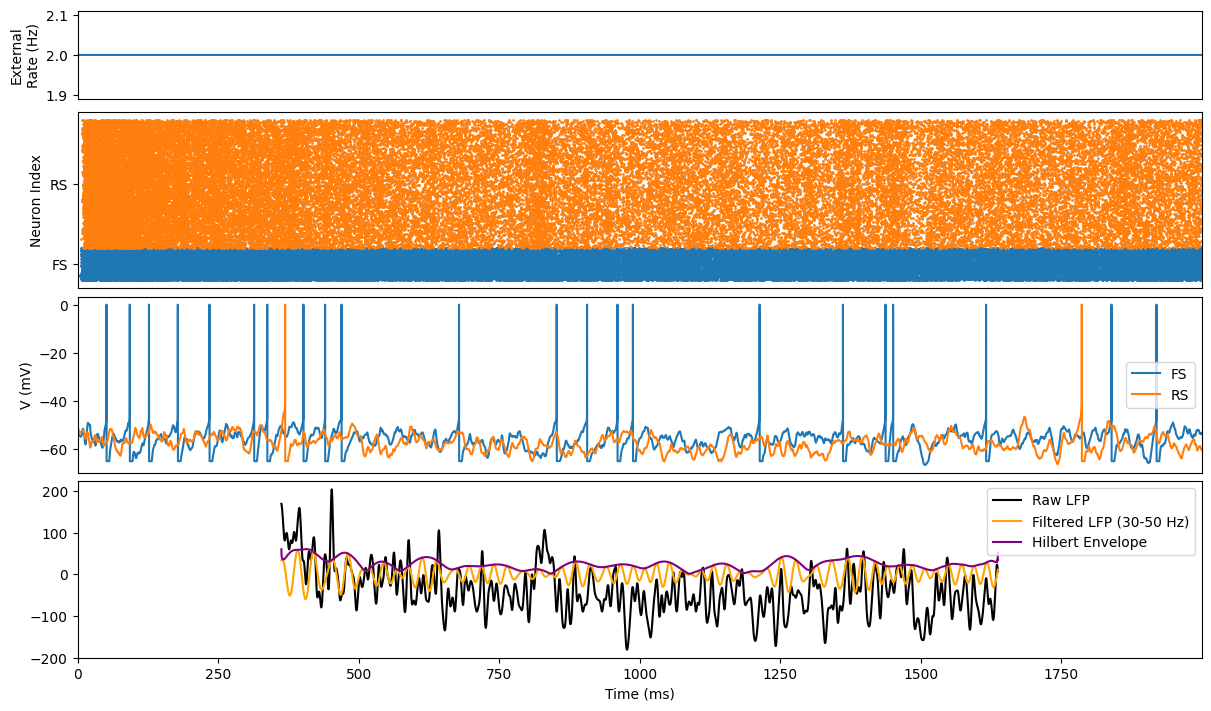

def simulate_ping_net():
with brainstate.environ.context(dt=0.1 * u.ms):
# inputs
duration = 6e3 * u.ms
varied_rates = get_inputs(2. * u.Hz, 3. * u.Hz, 50. * u.ms, 3150 * u.ms, 600 * u.ms, 1e3 * u.ms, duration)
# network
net = brainstate.nn.init_all_states(PINGNet())
# simulation
times = u.math.arange(0. * u.ms, duration, brainstate.environ.get_dt())
indices = u.math.arange(0, len(times))
returns = brainstate.transform.for_loop(net.update, indices, times, varied_rates,
pbar=brainstate.transform.ProgressBar(100))
# visualization
visualize_simulation_results(
times=times,
spikes={'FS': (returns['FS.spike'], 'inh'),
'RS': (returns['RS.spike'], 'exc')},
example_potentials={'FS': returns['FS.V0'],
'RS': returns['RS.V0']},
varied_rates=varied_rates,
xlim=(2e3 * u.ms, 3.4e3 * u.ms),
t_lfp_start=1e3 * u.ms,
t_lfp_end=5e3 * u.ms
)
simulate_ping_net()
ING Network for Generating Gamma Oscillation#
class INGNet(brainstate.nn.Module):
def __init__(self):
super().__init__()
self.num_rs = 20000
self.num_fs = 4000
self.num_fs2 = 1000
self.exc_syn_tau = 5. * u.ms
self.inh_syn_tau = 5. * u.ms
self.ext_weight = 0.9 * u.nS
self.exc_syn_weight = 1. * u.nS
self.inh_syn_weight = 5. * u.nS
self.delay = 1.5 * u.ms
# neuronal populations
RS_par_ = RS_par.copy()
FS_par_ = FS_par.copy()
FS2_par_ = FS_par.copy()
RS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
FS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
FS2_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
self.rs_pop = AdEx(self.num_rs, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **RS_par_)
self.fs_pop = AdEx(self.num_fs, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **FS_par_)
self.fs2_pop = AdEx(self.num_fs2, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **FS2_par_)
self.ext_pop = brainpy.state.PoissonEncoder(self.num_rs)
# Poisson inputs
self.ext_to_FS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_fs, 0.02, self.ext_weight),
post=self.fs_pop,
label='ge'
)
self.ext_to_RS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_rs, 0.02, self.ext_weight),
post=self.rs_pop,
label='ge'
)
self.ext_to_RS2 = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_fs2, 0.02, self.ext_weight),
post=self.fs2_pop,
label='ge'
)
# synaptic projections
self.RS_to_FS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_fs, 0.02, self.exc_syn_weight),
post=self.fs_pop,
label='ge'
)
self.RS_to_RS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_rs, 0.02, self.exc_syn_weight),
post=self.rs_pop,
label='ge'
)
self.RS_to_FS2 = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_fs2, 0.15, self.exc_syn_weight),
post=self.fs2_pop,
label='ge'
)
self.FS_to_RS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs, self.num_rs, 0.02, self.inh_syn_weight),
post=self.rs_pop,
label='gi'
)
self.FS_to_FS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs, self.num_fs, 0.02, self.inh_syn_weight),
post=self.fs_pop,
label='gi'
)
self.FS_to_FS2 = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs, self.num_fs2, 0.03, self.inh_syn_weight),
post=self.fs2_pop,
label='gi'
)
self.FS2_to_RS = brainpy.state.DeltaProj(
self.fs2_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs2, self.num_rs, 0.15, self.exc_syn_weight),
post=self.rs_pop,
label='gi'
)
self.FS2_to_FS = brainpy.state.DeltaProj(
self.fs2_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs2, self.num_fs, 0.15, self.exc_syn_weight),
post=self.fs_pop,
label='gi'
)
self.FS2_to_FS2 = brainpy.state.DeltaProj(
self.fs2_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs2, self.num_fs2, 0.6, self.exc_syn_weight),
post=self.fs2_pop,
label='gi'
)
def update(self, i, t, freq):
with brainstate.environ.context(t=t, i=i):
ext_spikes = self.ext_pop(freq)
self.ext_to_FS(ext_spikes)
self.ext_to_RS(ext_spikes)
self.ext_to_RS2(ext_spikes)
self.RS_to_RS()
self.RS_to_FS()
self.RS_to_FS2()
self.FS_to_RS()
self.FS_to_FS()
self.FS_to_FS2()
self.FS2_to_RS()
self.FS2_to_FS()
self.FS2_to_FS2()
self.rs_pop()
self.fs_pop()
self.fs2_pop()
return {
'FS.V0': self.fs_pop.V.value[0],
'FS2.V0': self.fs2_pop.V.value[0],
'RS.V0': self.rs_pop.V.value[0],
'FS.spike': self.fs_pop.spike.value,
'FS2.spike': self.fs2_pop.spike.value,
'RS.spike': self.rs_pop.spike.value
}

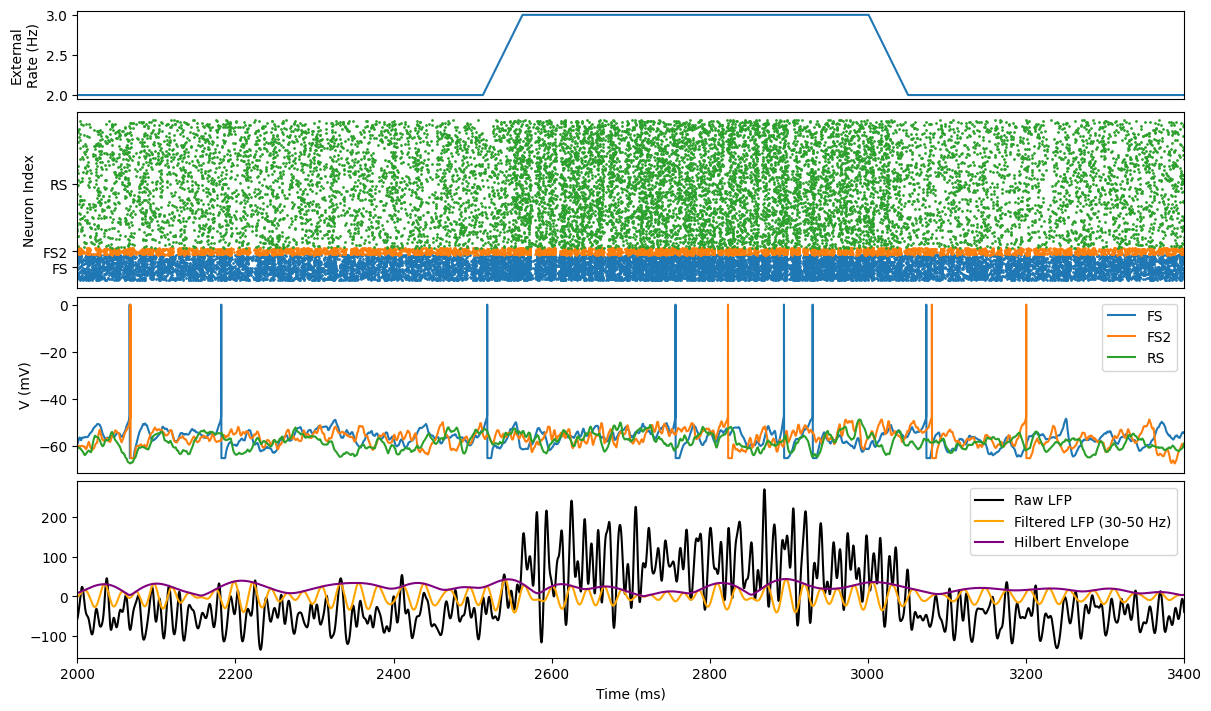

def simulate_ing_net():
with brainstate.environ.context(dt=0.1 * u.ms):
# inputs
duration = 6e3 * u.ms
varied_rates = get_inputs(2. * u.Hz, 3. * u.Hz, 50. * u.ms, 350 * u.ms, 600 * u.ms, 1e3 * u.ms, duration)
# network
net = brainstate.nn.init_all_states(INGNet())
# simulation
times = u.math.arange(0. * u.ms, duration, brainstate.environ.get_dt())
indices = u.math.arange(0, len(times))
returns = brainstate.transform.for_loop(net.update, indices, times, varied_rates,
pbar=brainstate.transform.ProgressBar(100))
# visualization
visualize_simulation_results(
times=times,
spikes={'FS': (returns['FS.spike'], 'inh'),
'FS2': (returns['FS2.spike'], 'inh'),
'RS': (returns['RS.spike'], 'exc')},
example_potentials={'FS': returns['FS.V0'],
'FS2': returns['FS2.V0'],
'RS': returns['RS.V0']},
varied_rates=varied_rates,
xlim=(2e3 * u.ms, 3.4e3 * u.ms),
t_lfp_start=1e3 * u.ms,
t_lfp_end=5e3 * u.ms
)
simulate_ing_net()
CHING Network for Generating Gamma Oscillation#
class CHINGNet(brainstate.nn.Module):
def __init__(self):
super().__init__()
self.num_rs = 19000
self.num_fs = 5000
self.num_ch = 1000
self.exc_syn_tau = 5. * u.ms
self.inh_syn_tau = 5. * u.ms
self.exc_syn_weight = 1. * u.nS
self.inh_syn_weight1 = 7. * u.nS
self.inh_syn_weight2 = 5. * u.nS
self.ext_weight1 = 1. * u.nS
self.ext_weight2 = 0.75 * u.nS
self.delay = 1.5 * u.ms
# neuronal populations
RS_par_ = RS_par.copy()
FS_par_ = FS_par.copy()
Ch_par_ = Ch_par.copy()
RS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
FS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
Ch_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
self.rs_pop = AdEx(self.num_rs, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **RS_par_)
self.fs_pop = AdEx(self.num_fs, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **FS_par_)
self.ch_pop = AdEx(self.num_ch, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **Ch_par_)
self.ext_pop = brainpy.state.PoissonEncoder(self.num_rs)
# Poisson inputs
self.ext_to_FS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_fs, 0.02, self.ext_weight2),
post=self.fs_pop,
label='ge',
)
self.ext_to_RS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_rs, 0.02, self.ext_weight1),
post=self.rs_pop,
label='ge',
)
self.ext_to_CH = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_ch, 0.02, self.ext_weight1),
post=self.ch_pop,
label='ge',
)
# synaptic projections
self.RS_to_FS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_fs, 0.02, self.exc_syn_weight),
post=self.fs_pop,
label='ge',
)
self.RS_to_RS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_rs, 0.02, self.exc_syn_weight),
post=self.rs_pop,
label='ge',
)
self.RS_to_Ch = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_rs, self.num_ch, 0.02, self.exc_syn_weight),
post=self.ch_pop,
label='ge',
)
# inhibitory projections
self.FS_to_RS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs, self.num_rs, 0.02, self.inh_syn_weight1),
post=self.rs_pop,
label='gi',
)
self.FS_to_FS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs, self.num_fs, 0.02, self.inh_syn_weight2),
post=self.fs_pop,
label='gi',
)
self.FS_to_Ch = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_fs, self.num_ch, 0.02, self.inh_syn_weight1),
post=self.ch_pop,
label='gi',
)
# chatter cell projections
self.Ch_to_RS = brainpy.state.DeltaProj(
self.ch_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_ch, self.num_rs, 0.02, self.exc_syn_weight),
post=self.rs_pop,
label='ge',
)
self.Ch_to_FS = brainpy.state.DeltaProj(
self.ch_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_ch, self.num_fs, 0.02, self.exc_syn_weight),
post=self.fs_pop,
label='ge',
)
self.Ch_to_Ch = brainpy.state.DeltaProj(
self.ch_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_ch, self.num_ch, 0.02, self.exc_syn_weight),
post=self.ch_pop,
label='ge',
)
def update(self, i, t, freq):
with brainstate.environ.context(i=i, t=t):
ext_spikes = self.ext_pop(freq)
self.ext_to_FS(ext_spikes)
self.ext_to_RS(ext_spikes)
self.ext_to_CH(ext_spikes)
self.RS_to_FS()
self.RS_to_RS()
self.RS_to_Ch()
self.FS_to_RS()
self.FS_to_FS()
self.FS_to_Ch()
self.Ch_to_RS()
self.Ch_to_FS()
self.Ch_to_Ch()
self.rs_pop()
self.fs_pop()
self.ch_pop()
return {
'FS.V0': self.fs_pop.V.value[0],
'CH.V0': self.ch_pop.V.value[0],
'RS.V0': self.rs_pop.V.value[0],
'FS.spike': self.fs_pop.spike.value,
'CH.spike': self.ch_pop.spike.value,
'RS.spike': self.rs_pop.spike.value
}

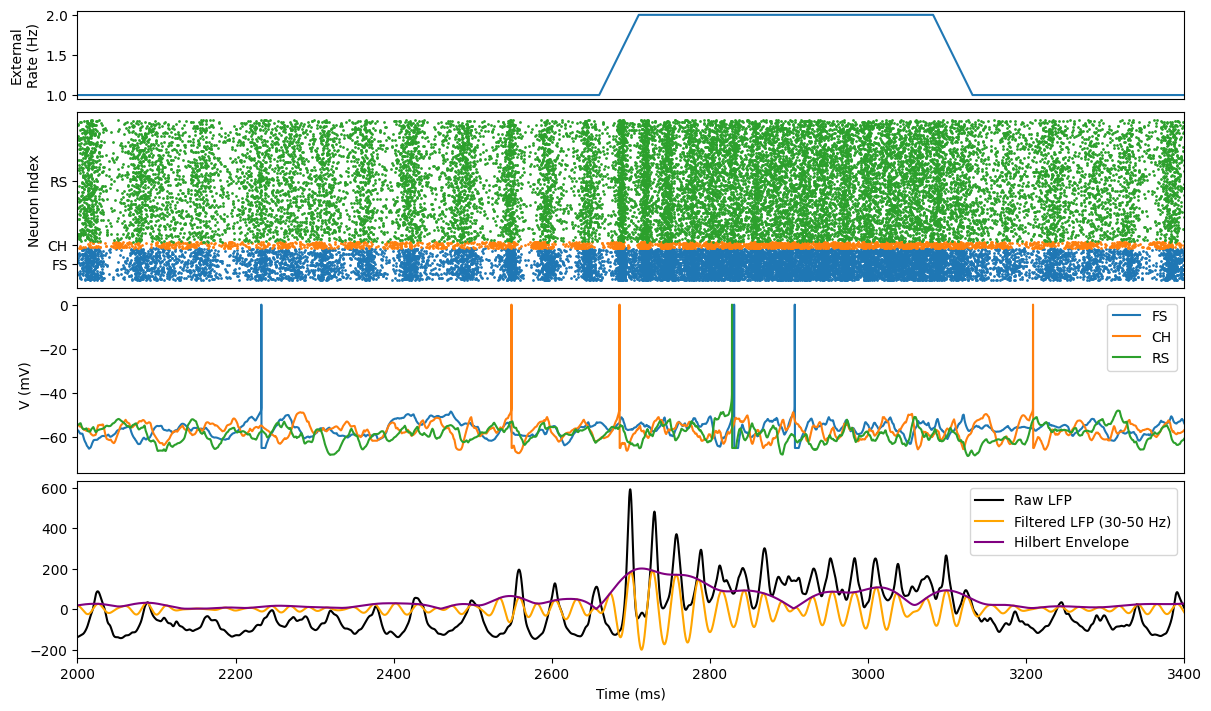

def simulate_ching_net():
with brainstate.environ.context(dt=0.1 * u.ms):
# inputs
duration = 6e3 * u.ms
varied_rates = get_inputs(1. * u.Hz, 2. * u.Hz, 50. * u.ms, 150 * u.ms, 600 * u.ms, 1e3 * u.ms, duration)
# network
net = brainstate.nn.init_all_states(CHINGNet())
# simulation
times = u.math.arange(0. * u.ms, duration, brainstate.environ.get_dt())
indices = u.math.arange(0, len(times))
returns = brainstate.transform.for_loop(net.update, indices, times, varied_rates,
pbar=brainstate.transform.ProgressBar(100))
# visualization
visualize_simulation_results(
times=times,
spikes={'FS': (returns['FS.spike'], 'inh'),
'CH': (returns['CH.spike'], 'exc'),
'RS': (returns['RS.spike'], 'exc')},
example_potentials={'FS': returns['FS.V0'],
'CH': returns['CH.V0'],
'RS': returns['RS.V0']},
varied_rates=varied_rates,
xlim=(2e3 * u.ms, 3.4e3 * u.ms),
t_lfp_start=1e3 * u.ms,
t_lfp_end=5e3 * u.ms
)
simulate_ching_net()
Asynchronous Network State#
class AINet(brainstate.nn.Module):
def __init__(self):
super().__init__()
self.num_exc = 20000
self.num_inh = 5000
self.exc_syn_tau = 5. * u.ms
self.inh_syn_tau = 5. * u.ms
self.exc_syn_weight = 1. * u.nS
self.inh_syn_weight = 5. * u.nS
self.delay = 1.5 * u.ms
self.ext_weight = 1.0 * u.nS
# neuronal populations
RS_par_ = RS_par.copy()
FS_par_ = FS_par.copy()
RS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
FS_par_.update(Vth=-50 * u.mV, V_sp_th=-40 * u.mV)
self.fs_pop = AdEx(self.num_inh, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **FS_par_)
self.rs_pop = AdEx(self.num_exc, tau_e=self.exc_syn_tau, tau_i=self.inh_syn_tau, **RS_par_)
self.ext_pop = brainpy.state.PoissonEncoder(self.num_exc)
# Poisson inputs
self.ext_to_FS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_inh, 0.02, self.ext_weight),
post=self.fs_pop,
label='ge'
)
self.ext_to_RS = brainpy.state.DeltaProj(
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_exc, 0.02, self.ext_weight),
post=self.rs_pop,
label='ge'
)
# synaptic projections
self.RS_to_FS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_inh, 0.02, self.exc_syn_weight),
post=self.fs_pop,
label='ge'
)
self.RS_to_RS = brainpy.state.DeltaProj(
self.rs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_exc, self.num_exc, 0.02, self.exc_syn_weight),
post=self.rs_pop,
label='ge'
)
self.FS_to_FS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_inh, self.num_inh, 0.02, self.inh_syn_weight),
post=self.fs_pop,
label='gi'
)
self.FS_to_RS = brainpy.state.DeltaProj(
self.fs_pop.prefetch('spike').delay.at(self.delay),
comm=brainstate.nn.EventFixedProb(self.num_inh, self.num_exc, 0.02, self.inh_syn_weight),
post=self.rs_pop,
label='gi'
)
def update(self, i, t, freq):
with brainstate.environ.context(t=t, i=i):
ext_spikes = self.ext_pop(freq)
self.ext_to_FS(ext_spikes)
self.ext_to_RS(ext_spikes)
self.RS_to_RS()
self.RS_to_FS()
self.FS_to_FS()
self.FS_to_RS()
self.rs_pop()
self.fs_pop()
return {
'FS.V0': self.fs_pop.V.value[0],
'RS.V0': self.rs_pop.V.value[0],
'FS.spike': self.fs_pop.spike.value,
'RS.spike': self.rs_pop.spike.value
}
def simulate_ai_net():
with brainstate.environ.context(dt=0.1 * u.ms):
# inputs
duration = 2e3 * u.ms
varied_rates = get_inputs(2. * u.Hz, 2. * u.Hz, 50. * u.ms, 150 * u.ms, 600 * u.ms, 1e3 * u.ms, duration)
# network
net = brainstate.nn.init_all_states(AINet())
# simulation
times = u.math.arange(0. * u.ms, duration, brainstate.environ.get_dt())
indices = u.math.arange(0, len(times))
returns = brainstate.transform.for_loop(net.update, indices, times, varied_rates, pbar=brainstate.transform.ProgressBar(100))
# # spike raster plot
# spikes = returns['FS.spike']
# fig, gs = braintools.visualize.get_figure(1, 1, 4., 5.)
# fig.add_subplot(gs[0, 0])
# times2 = times.to_decimal(u.ms)
# t_indices, n_indices = u.math.where(spikes)
# plt.scatter(times2[t_indices], n_indices, s=1, c='k')
# plt.xlabel('Time (ms)')
# plt.ylabel('Neuron index')
# plt.title('Spike raster plot')
# plt.show()
# visualization
visualize_simulation_results(
times=times,
spikes={'FS': (returns['FS.spike'], 'inh'),
'RS': (returns['RS.spike'], 'exc')},
example_potentials={'FS': returns['FS.V0'],
'RS': returns['RS.V0']},
varied_rates=varied_rates
)
simulate_ai_net()
