The Wilson-Cowan model

The Wilson–Cowan model considers a homogeneous population of interconnected neurons of excitatory and inhibitory subtypes. All cells receive the same number of excitatory and inhibitory afferents, that is, all cells receive the same average excitation, \(x(t)\). The target is to analyze the evolution in time of number of excitatory and inhibitory cells firing at time \(t\), \(E(t)\) and \(I(t)\) respectively.

Background / Theory

The Wilson-Cowan Model

The Wilson-Cowan model (1972) is a foundational neural mass model describing the interaction between excitatory (E) and inhibitory (I) neural populations. It was one of the first models to capture emergent oscillatory dynamics from E/I balance.

The Equations

\[\begin{split} \begin{aligned} \tau_E \frac{dr_E}{dt} &= -r_E + (1 - r \cdot r_E) \cdot F_E(w_{EE} r_E - w_{EI} r_I + I_E) \\ \tau_I \frac{dr_I}{dt} &= -r_I + (1 - r \cdot r_I) \cdot F_I(w_{IE} r_E - w_{II} r_I + I_I) \end{aligned} \end{split}\]

where:

• \(r_E, r_I\): Excitatory and inhibitory population activities

• \(\tau_E, \tau_I\): Time constants

• \(w_{XY}\): Connection weights from population Y to X

• \(r\): Refractory parameter (limits maximum firing)

• \(I_E, I_I\): External inputs

The Sigmoid Transfer Function

\[ F(x; a, \theta) = \frac{1}{1 + e^{-a(x - \theta)}} - \frac{1}{1 + e^{a\theta}} \]

Parameter	Role
\(a\)	Gain (steepness of response)
\(\theta\)	Threshold (input level for half-activation)

Connection Weights

Weight	Meaning	Typical Effect
\(w_{EE}\)	E→E recurrence	Positive feedback, bistability
\(w_{EI}\)	I→E inhibition	Negative feedback, stabilization
\(w_{IE}\)	E→I excitation	Drives inhibition
\(w_{II}\)	I→I recurrence	Self-inhibition

Dynamical Regimes

The Wilson-Cowan model exhibits rich dynamics:

1. Stable fixed points: E/I balance at rest

2. Limit cycle oscillations: Rhythmic E/I alternation

3. Bistability: Multiple stable states

4. Excitable dynamics: Transient responses to perturbations

Parameter “Knobs” - Biological Interpretation

Each parameter in the Wilson-Cowan model corresponds to a biological or functional “knob” that can be tuned to produce different neural dynamics. Understanding these mappings is crucial for relating model behavior to neuroscience.

Parameter	Knob Name	Biological Correspondence	Effect Range
\(\tau_E, \tau_I\)	Response Speed	Membrane time constant, ion channel kinetics	Fast (1ms) → Slow (10ms)
\(a_E, a_I\)	Neural Gain	Synaptic efficacy, neurotransmitter sensitivity	0.5 (sluggish) → 2.0 (sensitive)
\(\theta_E, \theta_I\)	Activation Threshold	Firing threshold voltage	1.0 (easy to activate) → 5.0 (hard to activate)
\(w_{EE}\)	Recurrent Excitation	AMPA/NMDA strength within E population	0-20
\(w_{EI}\)	Feedback Inhibition	GABAergic strength I→E	0-20
\(w_{IE}\)	Feedforward Excitation	Glutamatergic drive to inhibition	0-10
\(w_{II}\)	Recurrent Inhibition	GABAergic self-inhibition within I	0-15
\(r\)	Refractory Period	Sodium channel inactivation	0 (none) → 2 (strong)

These combinations of parameters control higher-level system properties:

1. E/I Balance Knob (\(w_{EE} / w_{EI}\) ratio):

• High ratio (>1.0): Excitation-dominant system, risk of runaway activity (epileptiform)

• Balanced (~0.9): Stable limit-cycle oscillations (gamma rhythms)

• Low ratio (<0.8): Over-stabilized system, suppressed dynamics

2. Timescale Separation Knob (\(\tau_I / \tau_E\)):

• \(\tau_I \gg \tau_E\): Slow inhibition relative to excitation → beta/gamma rhythms

• \(\tau_I \approx \tau_E\): Symmetric dynamics → alpha rhythms

• \(\tau_I \ll \tau_E\): Fast inhibition → high-frequency filtering

3. Excitability Knob (\(a_E, \theta_E\)):

• High \(a_E\), low \(\theta_E\): Hyperexcitable regime (epilepsy models)

• Low \(a_E\), high \(\theta_E\): Hypoexcitable regime (anesthesia models)

• Intermediate: Normal awake cortical states

These “knobs” provide an intuitive interface for parameter exploration while maintaining biological interpretability.

import brainmass
import brainstate
import braintools
import brainunit as u
import matplotlib.pyplot as plt
import numpy as np

plt.rcParams['image.cmap'] = 'plasma'

brainstate.environ.set(dt=0.1 * u.ms)

Environment:

• dt = 0.1 ms sets the integration time step for all updates.

• We will rely on brainstate.transform.for_loop to advance the model efficiently.

Single node simulation

We instantiate one Wilson–Cowan node with OU noise on both E and I. The step_run(i) helper advances the model one time step with a proper (i, t) context. The node returns the current excitatory rate rE.

node = brainmass.WilsonCowanStep(
    1,
    noise_E=brainmass.OUProcess(1, sigma=0.01, init=braintools.init.ZeroInit()),
    noise_I=brainmass.OUProcess(1, sigma=0.01, init=braintools.init.ZeroInit()),
)
node.init_all_states()


def step_run(i):
    node.update(0.1)
    return node.rE.value, node.rI.value



indices = np.arange(1000)
exes, inhs = brainstate.transform.for_loop(step_run, indices)

plt.plot(indices * brainstate.environ.get_dt(), exes, lw=2, label='Excitation')
plt.plot(indices * brainstate.environ.get_dt(), inhs, lw=2, label='Inhibition')
plt.title("Wilson-Cowan Oscillator Dynamics")
plt.legend()
plt.xlabel("t [ms]")
plt.ylabel("Activity")
plt.show()

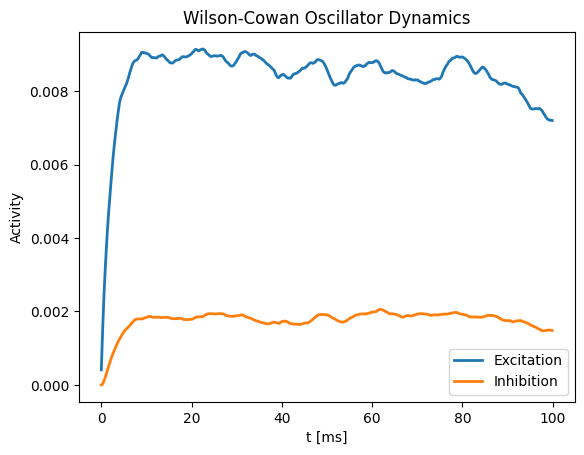

The trace shows rE(t) over time. With small noise and constant drive, the oscillator may settle to a fixed point or a limit cycle depending on parameters.

node = brainmass.WilsonCowanStep(
    1,
    wEE=10.,
    wEI=12.,
    wIE=8.,
    wII=3.0,
    a_E=0.2,
    a_I=4.0,
    rE_init=braintools.init.Constant(1.),
    rI_init=braintools.init.Constant(1.),
    # noise_E=brainmass.OUProcess(1, sigma=0.01, init=braintools.init.ZeroInit()),
    # noise_I=brainmass.OUProcess(1, sigma=0.01, init=braintools.init.ZeroInit()),
)
node.init_all_states()


def step_run(i):
    node.update()
    return node.rE.value, node.rI.value


indices = np.arange(1000)
exes, inhs = brainstate.transform.for_loop(step_run, indices)

plt.plot(indices * brainstate.environ.get_dt(), exes, lw=2, label='Excitation')
plt.plot(indices * brainstate.environ.get_dt(), inhs, lw=2, label='Inhibition')
plt.title("Wilson-Cowan Oscillator Dynamics")
plt.legend()
plt.xlabel("t [ms]")
plt.ylabel("Activity")
plt.show()

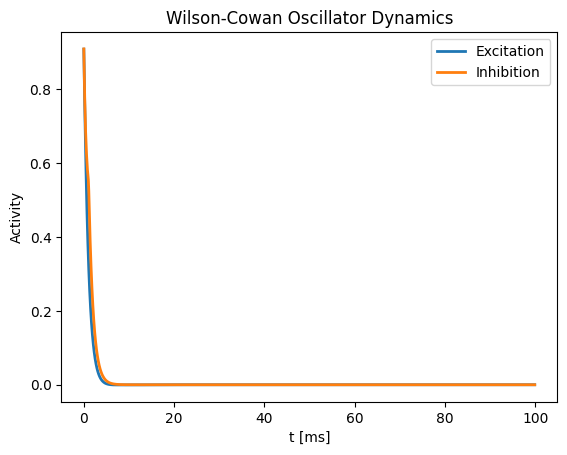

node = brainmass.WilsonCowanStep(
    1,
    wEE=20.,
    wEI=21.,
    wIE=16.,
    wII=6.,
    a_E=1.6,
    a_I=7.0,
    rE_init=braintools.init.Constant(1.),
    rI_init=braintools.init.Constant(1.),
    # noise_E=brainmass.OUProcess(1, sigma=0.01, init=braintools.init.ZeroInit()),
    # noise_I=brainmass.OUProcess(1, sigma=0.01, init=braintools.init.ZeroInit()),
)
node.init_all_states()


def step_run(i):
    node.update()
    return node.rE.value, node.rI.value


indices = np.arange(1000)

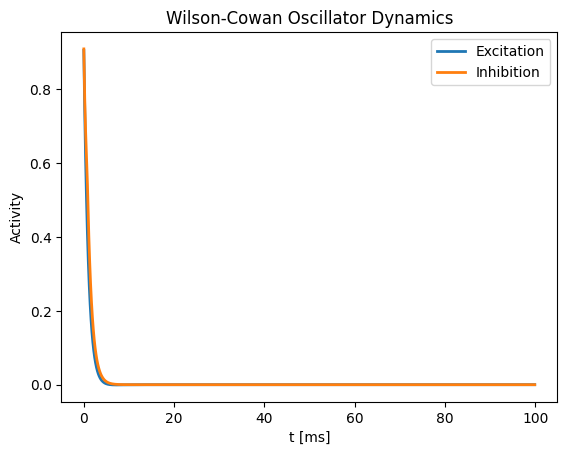

exes, inhs = brainstate.transform.for_loop(step_run, indices)

plt.plot(indices * brainstate.environ.get_dt(), exes, lw=2, label='Excitation')
plt.plot(indices * brainstate.environ.get_dt(), inhs, lw=2, label='Inhibition')
plt.title("Wilson-Cowan Oscillator Dynamics")
plt.legend()
plt.xlabel("t [ms]")
plt.ylabel("Activity")
plt.show()

Bifurcation diagram

Let’s draw a simple one-dimensional bifurcation diagram of this model to orient ourselves in the parameter space.

# these are the different input values that we want to scan
exc_inputs = np.arange(0, 5.5, 0.05)

We sweep a constant excitatory input across multiple independent nodes (one input per node). For each input value we simulate, then record the minimum and maximum of rE over time. Plotting min/max against input visualizes fixed points (lines collapsing) versus oscillatory regimes (min/max bands).

Notes:

• Increase simulation duration to better capture oscillation envelopes.

• You can reduce exc_inputs resolution for speed during exploration.

nodes = brainmass.WilsonCowanStep(exc_inputs.size)
nodes.init_all_states()


def step_run(i):
    return nodes.update(exc_inputs)


indices = np.arange(10000)
exec_activity = brainstate.transform.for_loop(step_run, indices)

max_exc = exec_activity.max(axis=0)
min_exc = exec_activity.min(axis=0)

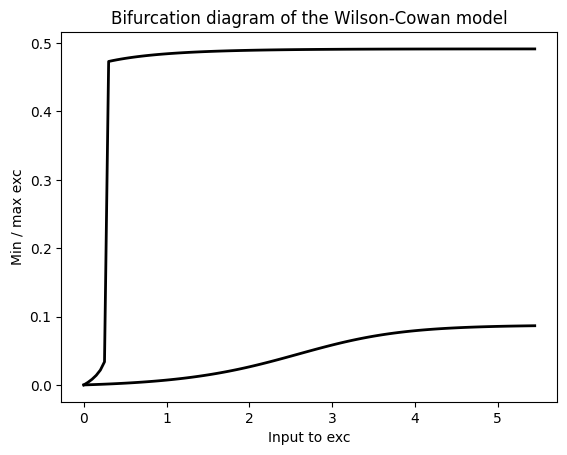

The resulting diagram shows how steady‑state activity or oscillation amplitude varies with the external excitatory drive.

plt.plot(exc_inputs, max_exc, c='k', lw=2)
plt.plot(exc_inputs, min_exc, c='k', lw=2)
plt.title("Bifurcation diagram of the Wilson-Cowan model")
plt.xlabel("Input to exc")
plt.ylabel("Min / max exc")
plt.show()

Input-Driven Transient Response

Neural systems must respond to external stimuli. The transient response characterizes how the system reacts to inputs of different profiles:

1. Pulse Input: Brief stimulation (e.g., sensory flash) → tests excitability

2. Step Input: Sustained drive onset (e.g., attention signal) → tests adaptation

3. Ramp Input: Gradually increasing signal (e.g., accumulating evidence) → tests tracking

These response patterns reveal:

• Latency: How quickly the system responds

• Gain: Amplitude of response relative to input

• Damping: Whether oscillations persist or decay

• Steady-state error: Difference between input and equilibrium response

# Define input functions
def pulse_input(t):
    """Brief 10ms pulse at t=100ms"""
    return u.math.where(
        u.math.logical_and(t > 100. * u.ms, t < 110. * u.ms),
        2.0,
        0.0
    )


def step_input(t):
    """Step increase at t=200ms"""
    return u.math.where(
        t > 200. * u.ms,
        1.0,
        0.0,
    )


def ramp_input(t):
    """Ramp from 0 to 2.0 over 500ms"""
    return u.math.where(
        t > 0. * u.ms,
        u.math.minimum(t / (500. * u.ms), 2.0),
        0.0
    )


# Input types to test
input_functions = [pulse_input, step_input, ramp_input]
input_names = ['Pulse (10ms)', 'Step (at 200ms)', 'Ramp (500ms)']
input_colors = ['purple', 'orange', 'green']

# Simulate each input type
responses_E = []
responses_I = []
input_traces = []

print("Simulating input-driven responses...")

for input_func, name in zip(input_functions, input_names):
    # Create fresh model
    model_transient = brainmass.WilsonCowanStep(1)
    model_transient.init_all_states()


    def step_transient(i):
        t = i * brainstate.environ.get_dt()
        inp = input_func(t)
        model_transient.update(rE_inp=inp)
        return model_transient.rE.value, model_transient.rI.value, inp


    indices_trans = np.arange(6000)  # 600 ms
    rE_resp, rI_resp, inp_trace = brainstate.transform.for_loop(step_transient, indices_trans)

    responses_E.append(rE_resp)
    responses_I.append(rI_resp)
    input_traces.append(inp_trace)

    print(f"  {name}: Complete")

print("Done!")

Simulating input-driven responses...
  Pulse (10ms): Complete
  Step (at 200ms): Complete
  Ramp (500ms): Complete
Done!

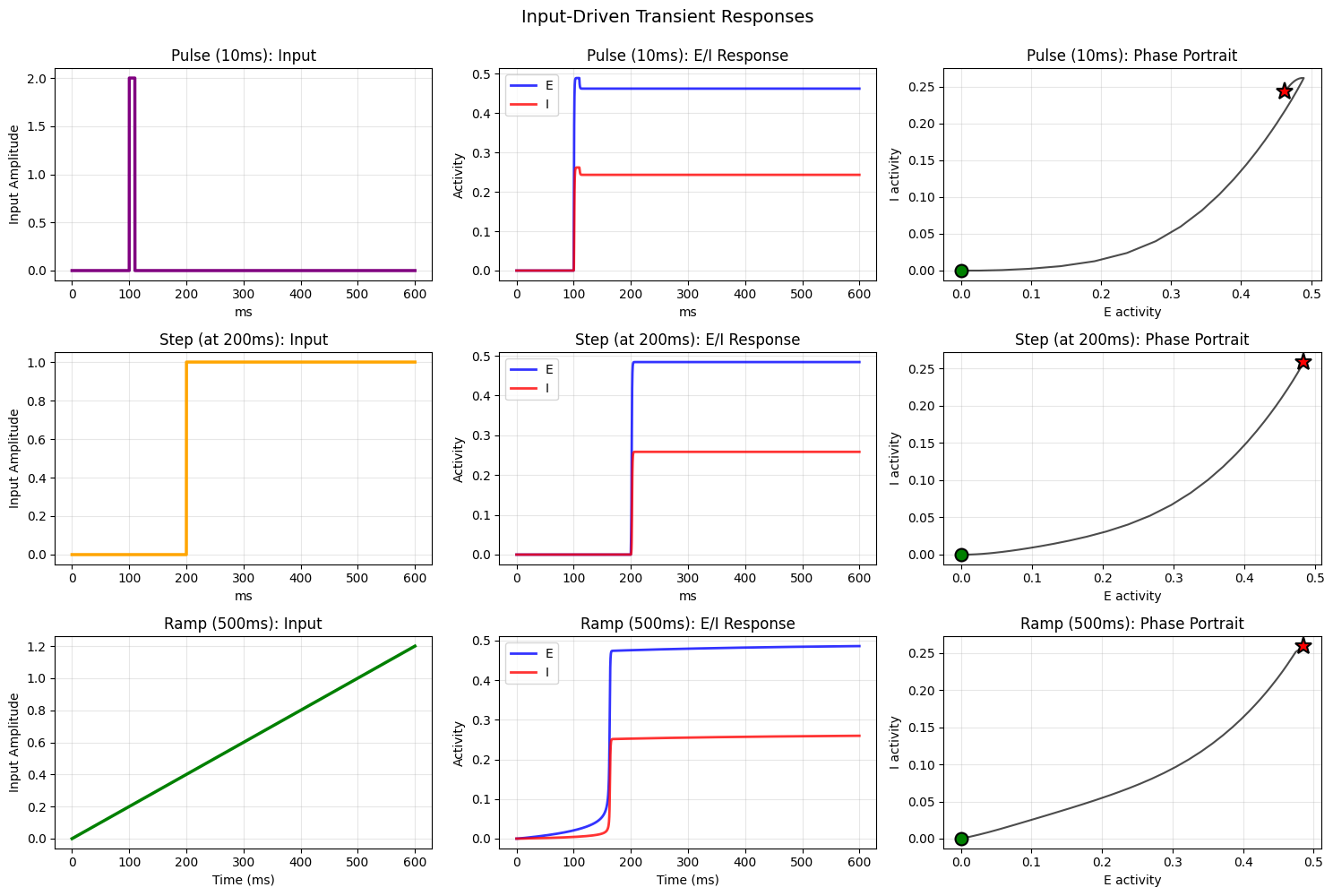

# Visualization: 3x3 grid (input type × measurement)
fig, axes = plt.subplots(3, 3, figsize=(15, 10))

t_trans = indices_trans * brainstate.environ.get_dt()

for row, (rE_resp, rI_resp, inp_trace, name, color) in enumerate(
    zip(responses_E, responses_I, input_traces, input_names, input_colors)
):

    # Column 1: Input trace
    ax = axes[row, 0]
    ax.plot(t_trans, inp_trace, color=color, linewidth=2.5)
    ax.set_ylabel('Input Amplitude')
    ax.set_title(f'{name}: Input')
    ax.grid(True, alpha=0.3)
    if row == 2:
        ax.set_xlabel('Time (ms)')

    # Column 2: E/I Response
    ax = axes[row, 1]
    ax.plot(t_trans, rE_resp[:, 0], 'b-', linewidth=2, label='E', alpha=0.8)
    ax.plot(t_trans, rI_resp[:, 0], 'r-', linewidth=2, label='I', alpha=0.8)
    ax.set_ylabel('Activity')
    ax.set_title(f'{name}: E/I Response')
    ax.legend()
    ax.grid(True, alpha=0.3)
    if row == 2:
        ax.set_xlabel('Time (ms)')

    # Column 3: Phase Portrait
    ax = axes[row, 2]
    ax.plot(rE_resp[:, 0], rI_resp[:, 0], 'k-', linewidth=1.5, alpha=0.7)
    ax.plot(rE_resp[0, 0], rI_resp[0, 0], 'go', markersize=10, markeredgecolor='black', markeredgewidth=1.5)
    ax.plot(rE_resp[-1, 0], rI_resp[-1, 0], 'r*', markersize=14, markeredgecolor='black', markeredgewidth=1.5)
    ax.set_xlabel('E activity')
    ax.set_ylabel('I activity')
    ax.set_title(f'{name}: Phase Portrait')
    ax.grid(True, alpha=0.3)

plt.suptitle('Input-Driven Transient Responses', fontsize=14, y=0.995)
plt.tight_layout()
plt.show()

# Quantitative metrics
print("\nResponse Metrics:")
print("=" * 60)

for i, (rE_resp, name) in enumerate(zip(responses_E, input_names)):
    # Find peak
    peak_idx = np.argmax(rE_resp[:, 0])
    peak_time = float(t_trans[peak_idx] / u.ms)
    peak_amplitude = rE_resp[peak_idx, 0]

    # Steady state (last 100 samples)
    steady_state = np.mean(rE_resp[-100:, 0])

    # Initial response time (when crosses 10% of peak)
    threshold = 0.1 * peak_amplitude
    response_idx = np.where(rE_resp[:, 0] > threshold)[0]
    response_time = float(t_trans[response_idx[0]] / u.ms) if len(response_idx) > 0 else 0

    print(f"{name}:")
    print(f"  Peak amplitude: {peak_amplitude:.4f} at t={peak_time:.1f} ms")
    print(f"  Response latency: {response_time:.1f} ms")
    print(f"  Steady state: {steady_state:.4f}")
    print(f"  Overshoot: {(peak_amplitude - steady_state) / steady_state * 100:.1f}%")
    print()

Response Metrics:
============================================================
Pulse (10ms):
  Peak amplitude: 0.4894 at t=108.3 ms
  Response latency: 100.2 ms
  Steady state: 0.4625
  Overshoot: 5.8%

Step (at 200ms):
  Peak amplitude: 0.4843 at t=209.7 ms
  Response latency: 200.7 ms
  Steady state: 0.4843
  Overshoot: 0.0%

Ramp (500ms):
  Peak amplitude: 0.4859 at t=599.9 ms
  Response latency: 145.9 ms
  Steady state: 0.4858
  Overshoot: 0.0%

Bistability Demonstration

One of the most fascinating phenomena in neural dynamics is bistability: the coexistence of two stable states. Depending on the initial condition, the system can settle into different attractors, even with the same parameters and inputs.

This property is crucial for modeling:

• Cortical up/down states (transitions between high and low firing)

• Working memory (persistent activity states)

• Decision-making (commitment to one of two choices)

We’ll demonstrate bistability by:

1. Finding parameter regime where two stable fixed points coexist

2. Showing trajectories from different initial conditions converge to different attractors

3. Computing the basin of attraction for each stable state

@brainstate.transform.jit(static_argnums=2, static_argnames='n_steps')
def bistable_simulation(rE0, rI0, n_steps: int = 20000):
    # Create model in bistable parameter regime
    # Key: High recurrent excitation (wEE) creates positive feedback
    model_bistable = brainmass.WilsonCowanStep(
        1,
        wEE=16.0,  # Increased from default 12
        wEI=12.0,  # Decreased from default 13
        wII=8.0,  # Decreased from default 11
    )

    # Reset and set initial condition
    model_bistable.init_all_states()
    model_bistable.rE.value = u.math.array([rE0])
    model_bistable.rI.value = u.math.array([rI0])

    # Simulate
    def step_bistable(i):
        model_bistable.update(rE_inp=0.5)  # Constant input
        return model_bistable.rE.value, model_bistable.rI.value

    indices_bistable = np.arange(n_steps)  # 2000 ms
    rE_traj, rI_traj = brainstate.transform.for_loop(step_bistable, indices_bistable)
    return rE_traj, rI_traj

# Different initial conditions
initial_conditions = [
    (0.05, 0.05),  # Low state
    (0.65, 0.35),  # High state
    (0.35, 0.20),  # Intermediate (will go to one or the other)
]

colors_ic = ['blue', 'red', 'purple']
labels_ic = ['Low IC', 'High IC', 'Mid IC']

# Storage for trajectories
trajectories_rE = []
trajectories_rI = []

print("Simulating bistability from different initial conditions...")

for (rE0, rI0), color, label in zip(initial_conditions, colors_ic, labels_ic):
    rE_traj, rI_traj = bistable_simulation(rE0, rI0, n_steps=20000)

    trajectories_rE.append(rE_traj)
    trajectories_rI.append(rI_traj)

    print(
        f"  {label}: "
        f"Started at ({rE0:.2f}, {rI0:.2f}), "
        f"ended at ({float(rE_traj[-1, 0]):.4f}, {float(rI_traj[-1, 0]):.4f})"
    )

print("Done!")

Simulating bistability from different initial conditions...

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[13], line 18
     15 print("Simulating bistability from different initial conditions...")
     17 for (rE0, rI0), color, label in zip(initial_conditions, colors_ic, labels_ic):
---> 18     rE_traj, rI_traj = bistable_simulation(rE0, rI0, n_steps=20000)
     20     trajectories_rE.append(rE_traj)
     21     trajectories_rI.append(rI_traj)

File ~\miniconda3\envs\brainx\Lib\site-packages\brainstate\transform\_jit.py:103, in _get_jitted_fun.<locals>.jitted_fn(*args, **params)
    100     return fun.fun(*args, **params)
    102 # compile the function and get the state trace
--> 103 state_trace = fun.get_state_trace(*args, **params, compile_if_miss=True)
    104 read_state_vals = state_trace.get_read_state_values(True)
    106 # call the jitted function

File ~\miniconda3\envs\brainx\Lib\site-packages\brainstate\transform\_make_jaxpr.py:594, in StatefulFunction.get_state_trace(self, compile_if_miss, *args, **kwargs)
    576 def get_state_trace(self, *args, compile_if_miss: bool = True, **kwargs) -> StateTraceStack:
    577     """
    578     Read the state trace of the function.
    579
   (...)    592         The state trace of the function.
    593     """
--> 594     cache_key = self.get_arg_cache_key(*args, **kwargs, compile_if_miss=compile_if_miss)
    595     return self.get_state_trace_by_cache(cache_key)

File ~\miniconda3\envs\brainx\Lib\site-packages\brainstate\transform\_make_jaxpr.py:418, in StatefulFunction.get_arg_cache_key(self, compile_if_miss, *args, **kwargs)
    411 cache_key = get_arg_cache_key(
    412     self.static_argnums,
    413     self.static_argnames,
    414     args,
    415     kwargs,
    416 )
    417 if cache_key not in self._compilation_cache and compile_if_miss:
--> 418     self.make_jaxpr(*args, **kwargs)
    419 return cache_key

File ~\miniconda3\envs\brainx\Lib\site-packages\brainstate\transform\_make_jaxpr.py:845, in StatefulFunction.make_jaxpr(self, *args, **kwargs)
    843     max_idx = max(self.static_argnums)
    844     if max_idx >= len(args):
--> 845         raise ValueError(
    846             f'static_argnums contains index {max_idx}, but only '
    847             f'{len(args)} positional arguments were provided.'
    848         )
    850 # Fast path: already compiled
    851 if cache_key in self._compilation_cache:

ValueError: static_argnums contains index 2, but only 2 positional arguments were provided.

# Sigmoid function
def F(x, a, theta):
    return 1 / (1 + np.exp(-a * (x - theta))) - 1 / (1 + np.exp(a * theta))

indices_bistable = np.arange(20000)  # 2000 ms

# Visualization: 3-panel bistability figure
fig, axes = plt.subplots(1, 3, figsize=(16, 5))

# Panel 1: Phase portrait with trajectories
ax = axes[0]

# Plot nullclines for reference
rE_range_bis = np.linspace(0, 1, 200)
rI_range_bis = np.linspace(0, 0.8, 200)
RE_bis, RI_bis = np.meshgrid(rE_range_bis, rI_range_bis)

wEE_bis, wEI_bis = 16.0, 12.0
wIE_bis, wII_bis = 4.0, 8.0
I_E_bis = 0.5

drE_bis = -RE_bis + (1 - 1.0 * RE_bis) * F(wEE_bis * RE_bis - wEI_bis * RI_bis + I_E_bis, 1.2, 2.8)
drI_bis = -RI_bis + (1 - 1.0 * RI_bis) * F(wIE_bis * RE_bis - wII_bis * RI_bis, 1.0, 4.0)

ax.contour(RE_bis, RI_bis, drE_bis, levels=[0], colors=['blue'], linewidths=1.5, alpha=0.3)
ax.contour(RE_bis, RI_bis, drI_bis, levels=[0], colors=['red'], linewidths=1.5, alpha=0.3)

# Plot trajectories
for (rE_traj, rI_traj, color, label) in zip(trajectories_rE, trajectories_rI, colors_ic, labels_ic):
    ax.plot(rE_traj[:, 0], rI_traj[:, 0], '-', color=color, linewidth=1.5, alpha=0.7, label=label)
    ax.plot(rE_traj[0, 0], rI_traj[0, 0], 'o', color=color, markersize=12, markeredgecolor='black', markeredgewidth=2)
    ax.plot(rE_traj[-1, 0], rI_traj[-1, 0], '*', color=color, markersize=16, markeredgecolor='black', markeredgewidth=2)

ax.set_xlabel('E activity (rE)')
ax.set_ylabel('I activity (rI)')
ax.set_title('Phase Portrait: Bistability')
ax.legend()
ax.grid(True, alpha=0.3)

# Panel 2: Time series overlay
ax = axes[1]
t_bis = indices_bistable * brainstate.environ.get_dt()

for (rE_traj, color, label) in zip(trajectories_rE, colors_ic, labels_ic):
    ax.plot(t_bis, rE_traj[:, 0], '-', color=color, linewidth=2, label=label, alpha=0.8)

ax.set_xlabel('Time (ms)')
ax.set_ylabel('E activity (rE)')
ax.set_title('Time Series: Different Steady States')
ax.legend()
ax.grid(True, alpha=0.3)
ax.axhline(y=trajectories_rE[0][-1, 0], color=colors_ic[0], linestyle='--', alpha=0.5)
ax.axhline(y=trajectories_rE[1][-1, 0], color=colors_ic[1], linestyle='--', alpha=0.5)

# Panel 3: Basin of attraction
ax = axes[2]

# Grid of initial conditions
rE_init_grid = np.linspace(0, 1, 40)
rI_init_grid = np.linspace(0, 0.8, 40)
basin_map = np.zeros((len(rI_init_grid), len(rE_init_grid)))

print("Computing basin of attraction (this may take ~30-60 seconds)...")

for i, rE_init in enumerate(rE_init_grid):
    for j, rI_init in enumerate(rI_init_grid):
        rE_final = bistable_simulation(rE_init, rI_init, n_steps=15000)[0]

        # Classify final state (low vs high)
        final_value = rE_final[-1, 0]
        if final_value < 0.3:
            basin_map[j, i] = 0  # Low state
        else:
            basin_map[j, i] = 1  # High state

print("Basin computation complete!")

# Plot basin
im = ax.imshow(basin_map, extent=[0, 1, 0, 0.8], origin='lower', cmap='RdBu_r', alpha=0.6, aspect='auto')
ax.set_xlabel('Initial E activity')
ax.set_ylabel('Initial I activity')
ax.set_title('Basin of Attraction')

# Mark the initial conditions we tested
for (rE0, rI0), color in zip(initial_conditions, colors_ic):
    ax.plot(rE0, rI0, 'o', color=color, markersize=12, markeredgecolor='black', markeredgewidth=2)

# Colorbar
cbar = plt.colorbar(im, ax=ax, ticks=[0, 1])
cbar.set_label('Final State')
cbar.ax.set_yticklabels(['Low', 'High'])

plt.tight_layout()
plt.show()

print("\nBiological Significance:")
print("- Blue region → Low state (cortical 'down' state)")
print("- Red region → High state (cortical 'up' state)")
print("- Boundary separates the two basins of attraction")

Brain network

import os.path
import kagglehub

path = kagglehub.dataset_download("oujago/hcp-gw-data-samples")
data = braintools.file.msgpack_load(os.path.join(path, "hcp-data-sample.msgpack"))

We now couple many Wilson–Cowan nodes according to structural connectivity (weights Cmat) and distances Dmat from the hcp dataset. Delays are derived from distances and a signal_speed. We use diffusive coupling on rE with per‑edge delays and scale the interaction by a global gain k.

class Network(brainstate.nn.Module):
    def __init__(self, signal_speed=2., k=1.):
        super().__init__()

        conn_weight = data['Cmat'].copy()
        np.fill_diagonal(conn_weight, 0)
        delay_time = data['Dmat'].copy() / signal_speed
        np.fill_diagonal(delay_time, 0)
        indices_ = np.arange(conn_weight.shape[1])
        indices_ = np.tile(np.expand_dims(indices_, axis=0), (conn_weight.shape[0], 1))

        self.node = brainmass.WilsonCowanStep(
            80,
            noise_E=brainmass.OUProcess(80, sigma=0.01, init=braintools.init.ZeroInit()),
            noise_I=brainmass.OUProcess(80, sigma=0.01, init=braintools.init.ZeroInit()),
        )
        self.coupling = brainmass.DiffusiveCoupling(
            self.node.prefetch_delay('rE', (delay_time * u.ms, indices_), init=braintools.init.Uniform(0, 0.05)),
            self.node.prefetch('rE'),
            conn_weight,
            k=k
        )

    def update(self):
        current = self.coupling()
        rE = self.node(current)
        return rE

    def step_run(self, i):
        return self.update()

Network dynamics:

• prefetch_delay('rE', (delay_time, indices)) constructs a delayed view of E‑rates along edges.

• DiffusiveCoupling computes inputs from delayed neighbors and scales by k.

• The node integrates these inputs and returns rE.

net = Network()
net.init_all_states()
indices = np.arange(0, 6e3 // (brainstate.environ.get_dt() / u.ms))
exes = brainstate.transform.for_loop(net.step_run, indices)

We compute functional connectivity (pairwise correlation) from the simulated rE matrix and plot it alongside sample time series. Stronger structure‑function correspondence typically emerges around specific k and delay regimes.

fig, gs = braintools.visualize.get_figure(1, 2, 4, 6)
ax1 = fig.add_subplot(gs[0, 0])
fc = braintools.metric.functional_connectivity(exes)
ax = ax1.imshow(fc)
plt.colorbar(ax, ax=ax1)
ax2 = fig.add_subplot(gs[0, 1])
ax2.plot(indices, exes[:, ::5], alpha=0.8)
plt.show()
