Jansen–Rit Single-Node Simulation#

We simulate a single Jansen–Rit (JR) neural mass model node under a variety of inputs to illustrate different regimes: baseline alpha-like rhythms, sinusoidal entrainment, spike–wave-like activity, reduced inhibition, and irregular/noisy dynamics.

The JR model captures mesoscopic cortical column activity using three interacting subpopulations:

  • Excitatory pyramidal cells (P) — principal output population;

  • Excitatory interneurons (E) — provide excitatory feedback to P;

  • Inhibitory interneurons (I) — provide inhibitory feedback to P.

Each subpopulation transforms incoming pulse-density (in Hz) through a synaptic impulse response (with gains and time constants) into membrane potentials (in mV), and a sigmoid nonlinearity maps potentials back to pulse-density. The model’s macroscopic EEG-like output is typically taken as a scaled difference between excitatory and inhibitory postsynaptic potentials onto pyramidal cells.

Background / Theory#

The Jansen-Rit Model#

The Jansen-Rit model (1995) describes the dynamics of a cortical column with three interacting neural populations:

  1. Pyramidal cells (M): Principal output neurons

  2. Excitatory interneurons (E): Provide excitatory feedback to pyramidal cells

  3. Inhibitory interneurons (I): Provide inhibitory feedback to pyramidal cells

Circuit Architecture#

External Input (p)
      |
      v
  [E: Excitatory] ---(C2)--> [M: Pyramidal] <---(C4)--- [I: Inhibitory]
      ^                           |                          ^
      |                           |                          |
      +---------(C1)--------------+-----------(C3)-----------+

The Equations#

Each population has two state variables: membrane potential and its derivative.

\[\begin{split} \begin{aligned} \dot{M} &= M_v \\ \dot{E} &= E_v \\ \dot{I} &= I_v \\ \dot{M}_v &= A_e b_e \cdot S(E - I + M_{inp}) - 2 b_e M_v - b_e^2 M \\ \dot{E}_v &= A_e b_e (E_{inp} + C a_2 \cdot S(C a_1 M)) - 2 b_e E_v - b_e^2 E \\ \dot{I}_v &= A_i b_i \cdot C a_4 \cdot S(C a_3 M + I_{inp}) - 2 b_i I_v - b_i^2 I \end{aligned} \end{split}\]

The Sigmoid Function#

Maps membrane potential to firing rate:

\[ S(v) = \frac{s_{max}}{1 + e^{r(v_0 - v)}} \]

Parameter

Description

Default

\(s_{max}\)

Maximum firing rate

5 Hz

\(v_0\)

Half-activation threshold

6 mV

\(r\)

Sigmoid steepness

0.56

EEG Proxy#

The EEG-like signal is the difference between excitatory and inhibitory postsynaptic potentials:

\[ EEG(t) = E(t) - I(t) \]

Key Parameters#

Parameter

Description

Default

Effect

\(A_e\)

Excitatory gain

3.25 mV

Amplitude of excitatory response

\(A_i\)

Inhibitory gain

22 mV

Amplitude of inhibitory response

\(b_e\)

Excitatory rate

100 Hz

Speed of excitatory dynamics

\(b_i\)

Inhibitory rate

50 Hz

Speed of inhibitory dynamics

\(C\)

Connectivity constant

135

Overall coupling strength

Setup#

  • Import brainmass (JR implementation), brainstate (simulation/runtime control), brainunit for units, and plotting utilities.

  • Set the global integration step dt to 0.5 ms.

  • Define a small helper to plot the pyramidal (M), excitatory (E), inhibitory (I) membrane potentials and the EEG-like output.

import brainmass
import brainstate
import braintools
import brainunit as u
import matplotlib.pyplot as plt
import numpy as np

# Set simulation time step
brainstate.environ.set(dt=0.5 * u.ms)


def show(times, data, title):
    M, E, I, eeg = data
    fig, gs = braintools.visualize.get_figure(4, 1, 1.2, 10)
    fig.add_subplot(gs[0, 0])
    plt.plot(times, M, 'b-', linewidth=0.5)
    plt.ylabel('M (mV)')

    fig.add_subplot(gs[1])
    plt.plot(times, E, 'g-', linewidth=0.5)
    plt.ylabel('E (mV)')

    fig.add_subplot(gs[2])
    plt.plot(times, I, 'r-', linewidth=0.5)
    plt.ylabel('I (mV)')

    fig.add_subplot(gs[3])
    plt.plot(times, eeg, 'k-', linewidth=0.5)
    plt.xlabel('Time (ms)')
    plt.ylabel('EEG (mV)')

    plt.suptitle(title)
    plt.show()
from scipy import signal


def spectral_analysis(eeg):
    dt = brainstate.environ.get_dt()

    # Compute power spectrum
    fs = 1000 / float(dt / u.ms)  # Sampling frequency in Hz
    eeg_signal = np.array(u.get_magnitude(eeg[1000:, 0]))  # Discard transient, ensure numpy array
    f, Pxx = signal.welch(eeg_signal, fs=fs, nperseg=2048)

    fig, axes = plt.subplots(1, 2, figsize=(12, 4))

    # Power spectrum
    axes[0].semilogy(f, Pxx)
    axes[0].set_xlabel('Frequency (Hz)')
    axes[0].set_ylabel('Power Spectral Density')
    axes[0].set_title('EEG Power Spectrum')
    axes[0].set_xlim([0, 50])
    axes[0].axvspan(8, 12, alpha=0.3, color='green', label='Alpha band (8-12 Hz)')
    axes[0].legend()

    # Peak frequency
    peak_idx = np.argmax(Pxx[(f > 5) & (f < 30)]) + np.searchsorted(f, 5)
    peak_freq = f[peak_idx]
    axes[0].axvline(peak_freq, color='r', linestyle='--', label=f'Peak: {peak_freq:.1f} Hz')

    # Time-frequency spectrogram
    f_spec, t_spec, Sxx = signal.spectrogram(eeg_signal, fs=fs, nperseg=512, noverlap=256)
    axes[1].pcolormesh(t_spec * 1000, f_spec, 10 * np.log10(Sxx + 1e-10), shading='gouraud', cmap='viridis')
    axes[1].set_ylabel('Frequency (Hz)')
    axes[1].set_xlabel('Time (ms)')
    axes[1].set_title('Spectrogram')
    axes[1].set_ylim([0, 50])

    plt.tight_layout()
    plt.show()

Notes on inputs and noise#

  • Inputs to the JR node (E_inp) are specified in Hz, representing background afferent pulse density.

  • We generate Gaussian white-noise-like inputs using brainstate.random.normal(mean, std_per_step, shape) * u.Hz.

  • To maintain step-size–independent noise intensity, the standard deviation scales as std / sqrt(dt) where dt is in seconds. This follows the usual discretization of a white noise process.

We retrieve dt from brainstate.environ.get_dt() when constructing input arrays and time axes.

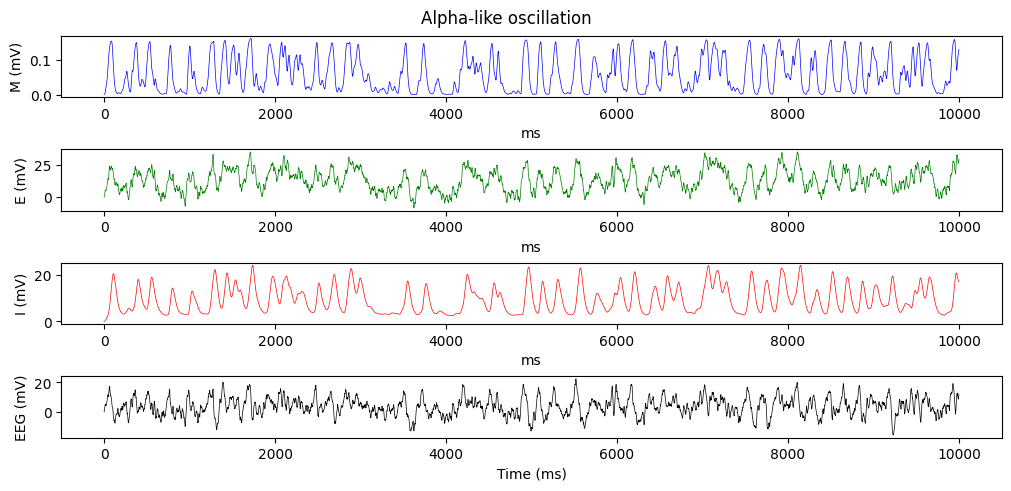

1) Alpha-like baseline oscillation#

A single JR node with default parameters and moderate noisy drive exhibits an alpha-like rhythm (8–12 Hz).

  • Model: brainmass.JansenRitModel(1) builds one node (one cortical column).

  • Initialization: node.init_all_states() sets internal states consistently.

  • Drive: mean 120 Hz with noise SD ≈ 30 Hz per sqrt(second), scaled per time step.

  • Duration: 10 seconds.

# Alpha-like idle rhythm (baseline JR)
node = brainmass.JansenRitStep(1)
node.init_all_states()


def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg


dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(120., 30. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Alpha-like oscillation')
../_images/a994650169e1a4b894edd4095aa86b0d3ffeb83820fc4cd134cdc39e99bdb606.png

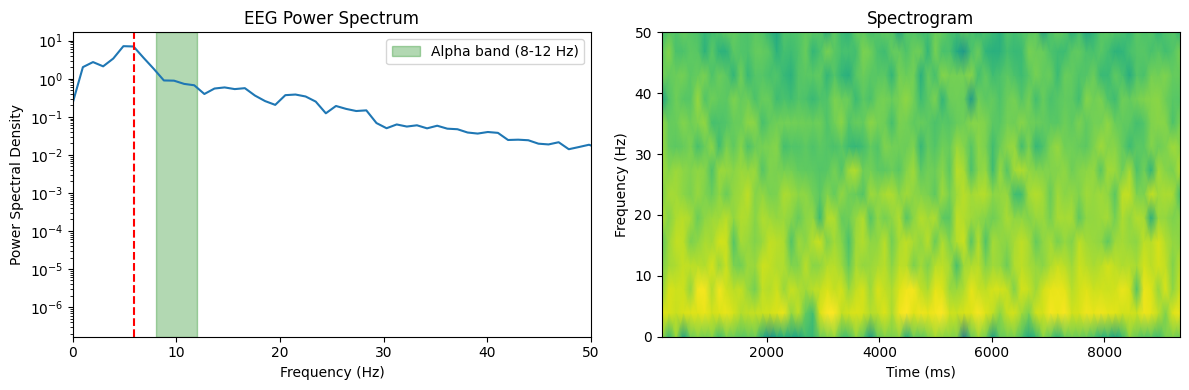

spectral_analysis(data[-1])
../_images/fcc88bf502f1e9b7fe5b8ddbcdaef01b6e3c085af0f50ac04c86ee5ede44714f.png

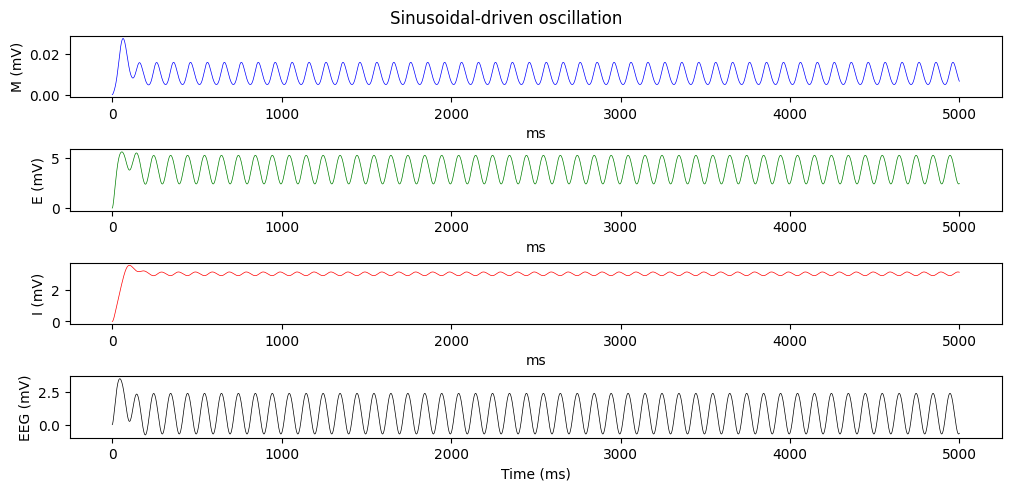

2) Sinusoidally driven/entrained oscillation#

Adding a sinusoidal component to the input can entrain the JR node. Here we drive with a 10 Hz sinusoid around a baseline of ~80 Hz.

  • Drive: inp(t) = 80 + 70 sin(2π f t) Hz with f = 10 Hz.

  • Duration: 5 seconds.

node = brainmass.JansenRitStep(1)
node.init_all_states()
f_drive = 10. * u.Hz


def step_run(i):
    tt = i * dt
    inp = 80 + 70.0 * u.math.sin(2 * u.math.pi * f_drive * tt)
    eeg = node.update(E_inp=inp * u.Hz)
    return node.M.value, node.E.value, node.I.value, eeg


dt = brainstate.environ.get_dt()
indices = np.arange(int(5. * u.second / dt))
data = brainstate.transform.for_loop(step_run, indices)
show(indices * dt, data, title='Sinusoidal-driven oscillation')
../_images/099319b5218bb3cdf01a6e5d619ffa5b7c09e2b7ad5f623ef32d73f4c7c970e2.png

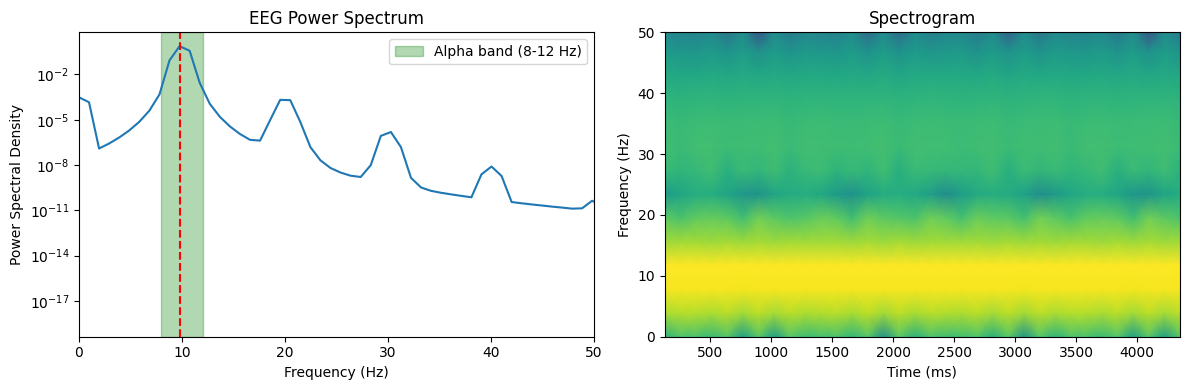

spectral_analysis(data[-1])
../_images/5364f3c0725b3103674343a53b90a4319142ceb8d24380815602833f8259b9f6.png

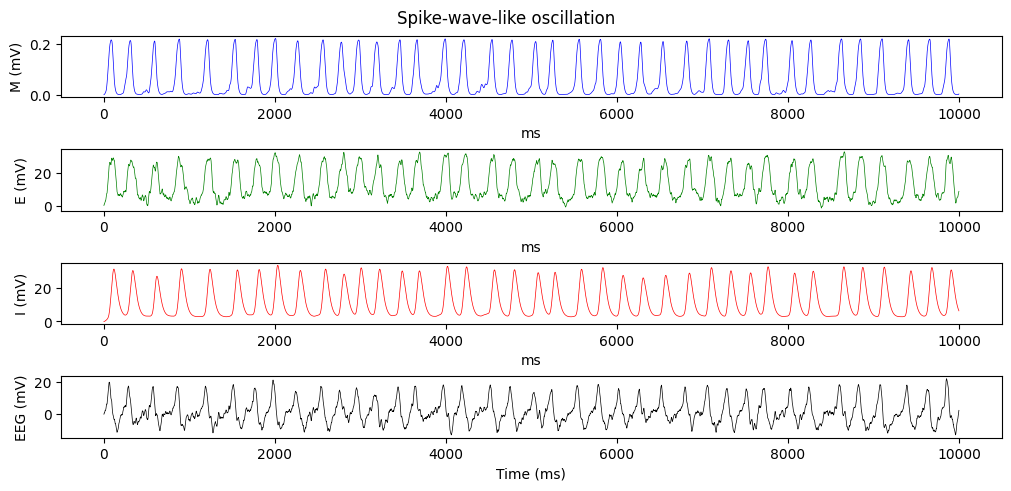

3) Spike–wave-like regime#

Changing synaptic gains and time constants can push the node into a spike–wave-like regime reminiscent of epileptiform dynamics.

  • Gains: increase excitatory gain Ae and reduce inhibitory gain Ai relative to typical JR defaults.

  • Time constants: set inhibitory inverse time constant bi to 40 Hz (slower than the usual 50–100 Hz range), favoring prolonged inhibitory kinetics.

  • Drive: mean 90 Hz with moderate noise.

  • Duration: 10 seconds.

node = brainmass.JansenRitStep(1, Ae=4.5 * u.mV, Ai=18. * u.mV, bi=40. * u.Hz)
node.init_all_states()


def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg


dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(90., 10. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Spike-wave-like oscillation')
../_images/179bb3eca0fef30d60098482427366428ed4870336b531fda04a456da4c36ea9.png

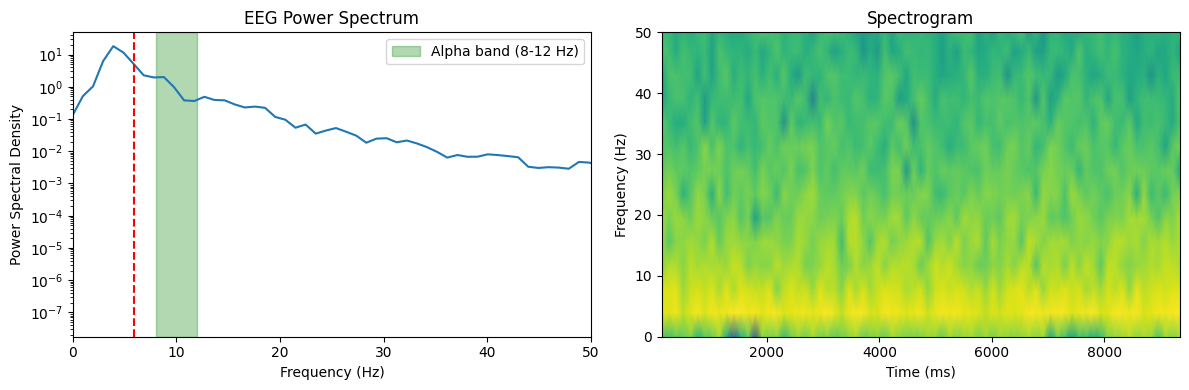

spectral_analysis(data[-1])
../_images/67cfb814b23f77d9d65233058cf6b5c1ad6d63d8ba49ebf83bac3a3220e1a807.png

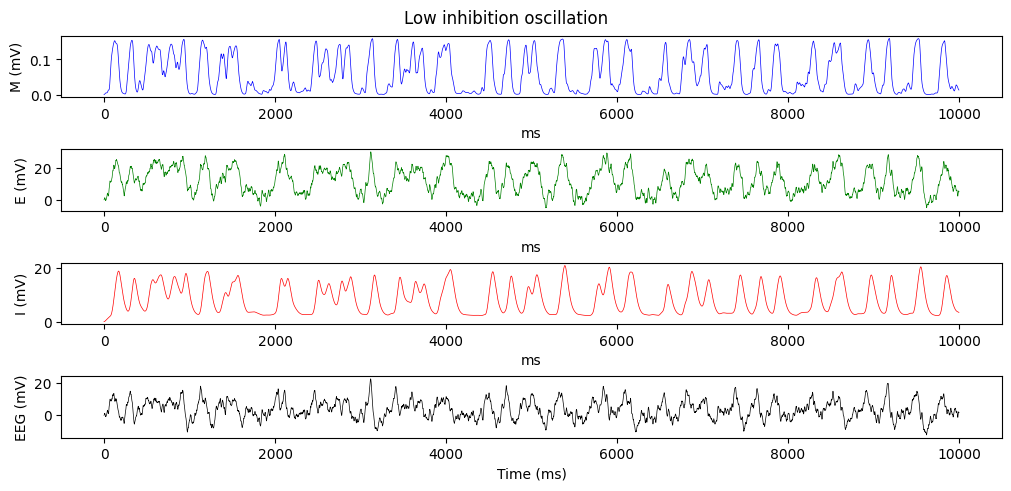

4) Reduced inhibition (disinhibited)#

Lowering inhibitory strength typically increases oscillation amplitude and can shift frequency.

  • Parameters: lower Ai and use bi = 40 Hz.

  • Drive: mean 100 Hz with noise SD ≈ 20 Hz per sqrt(second).

  • Duration: 10 seconds.

node = brainmass.JansenRitStep(1, Ai=15. * u.mV, bi=40. * u.Hz)
node.init_all_states()


def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg


dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(100., 20. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Low inhibition oscillation')
../_images/b730507ff3d7bfa0573468412a34d2548b6b32fd1daac6e566c16dbfcc401c07.png

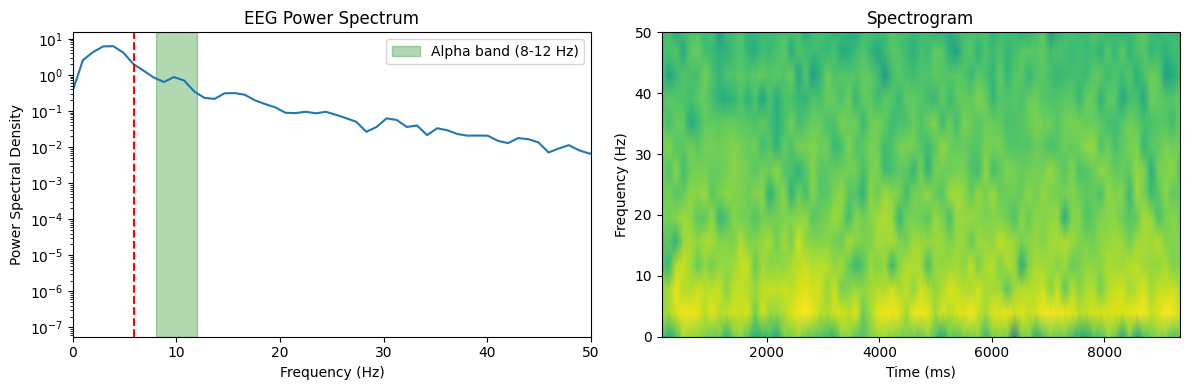

spectral_analysis(data[-1])
../_images/05937c6e4fdf8b8a6d30c6e51175d3c4e923df8609f9532cfc6d41040e0d1036.png

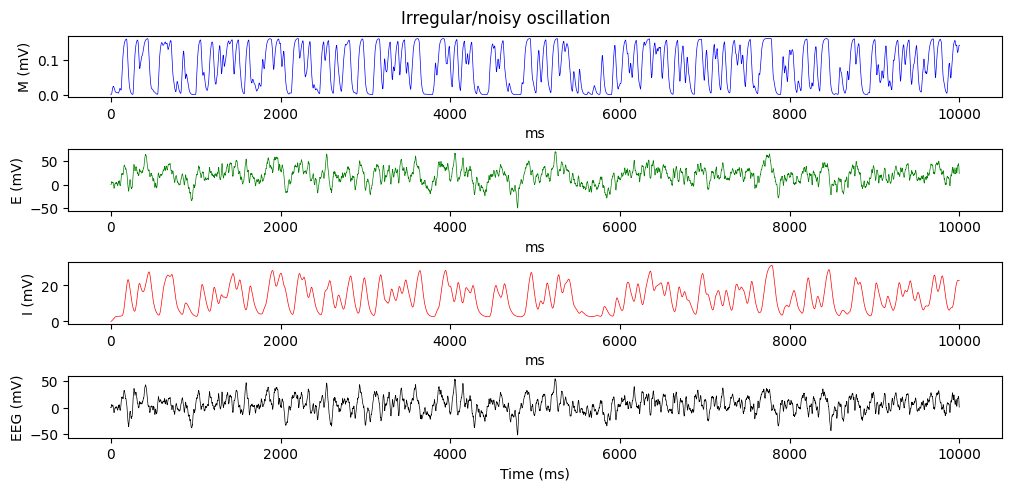

5) Irregular/noisy regime#

Increasing mean drive and noise level yields more irregular, broadband dynamics.

  • Drive: mean 220 Hz with high noise SD ≈ 80 Hz per sqrt(second).

  • Duration: 10 seconds.

node = brainmass.JansenRitStep(1)
node.init_all_states()


def step_run(inp):
    eeg = node.update(E_inp=inp)
    return node.M.value, node.E.value, node.I.value, eeg


dt = brainstate.environ.get_dt()
indices = np.arange(int(10 * u.second / dt))
inputs = brainstate.random.normal(220., 80. / (dt / u.second) ** 0.5, indices.shape) * u.Hz
data = brainstate.transform.for_loop(step_run, inputs)
show(indices * dt, data, title='Irregular/noisy oscillation')
../_images/7354bd5d30686000a9f2182044832a7ba0f5528de5cfff4daaa7916a3c4bf92e.png

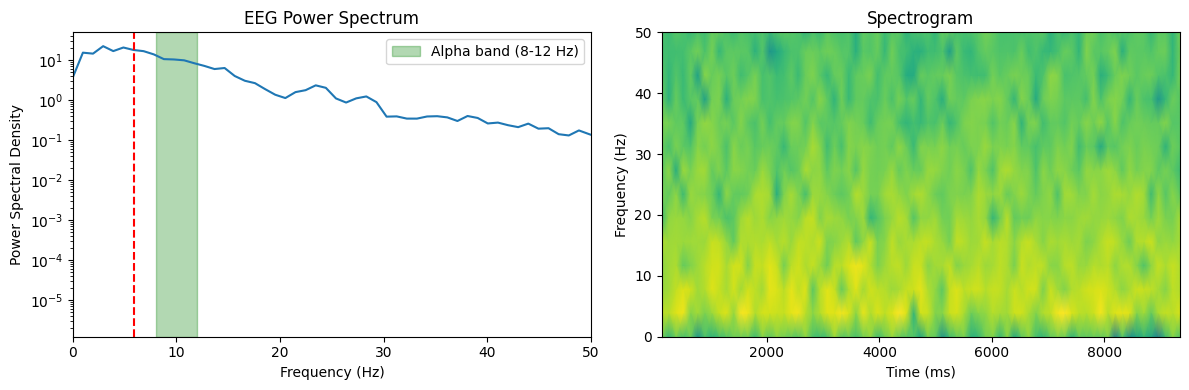

spectral_analysis(data[-1])
../_images/f4e50091ec6b8b928cae8586228658411d276a4fd24c29734c2a11643b5a6ad6.png

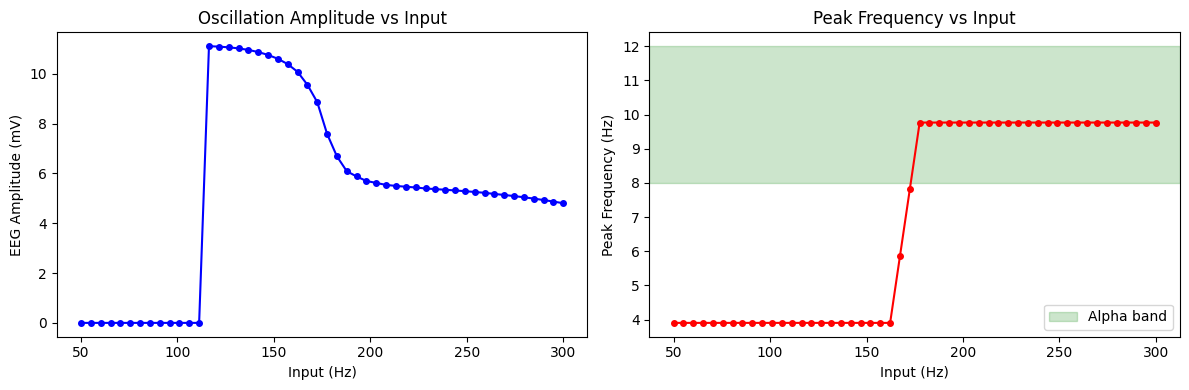

6) Input-Driven Bifurcation#

Sweep external input to reveal different dynamical regimes:

# Input values to sweep
E_inp_values = np.linspace(50, 300, 50) * u.Hz

node = brainmass.JansenRitStep(len(E_inp_values))
node.init_all_states()


def step(i):
    return node.update(E_inp=E_inp_values)


dt = brainstate.environ.get_dt()
indices = np.arange(int(3 * u.second / dt))
eeg = brainstate.transform.for_loop(step, indices)
fs = 1000 / float(dt / u.ms)
peak_freqs = []
amplitudes = []
for i in range(len(E_inp_values)):
    # Analyze steady-state
    eeg_ss = np.array(u.get_magnitude(eeg[2000:, i]))
    amplitudes.append(eeg_ss.max() - eeg_ss.min())

    # Peak frequency
    f, Pxx = signal.welch(eeg_ss, fs=fs, nperseg=1024)
    peak_idx = np.argmax(Pxx[(f > 3) & (f < 40)])
    peak_freqs.append(f[(f > 3) & (f < 40)][peak_idx])

# Plot results
fig, axes = plt.subplots(1, 2, figsize=(12, 4))

axes[0].plot(E_inp_values / u.Hz, amplitudes, 'b-o', markersize=4)
axes[0].set_xlabel('Input (Hz)')
axes[0].set_ylabel('EEG Amplitude (mV)')
axes[0].set_title('Oscillation Amplitude vs Input')

axes[1].plot(E_inp_values / u.Hz, peak_freqs, 'r-o', markersize=4)
axes[1].set_xlabel('Input (Hz)')
axes[1].set_ylabel('Peak Frequency (Hz)')
axes[1].set_title('Peak Frequency vs Input')
axes[1].axhspan(8, 12, alpha=0.2, color='green', label='Alpha band')
axes[1].legend()

plt.tight_layout()
plt.show()
../_images/739f31f454ab5b2068ff2fb8d1623256fc817ab75145ce054e54f8e0d7bd5e47.png

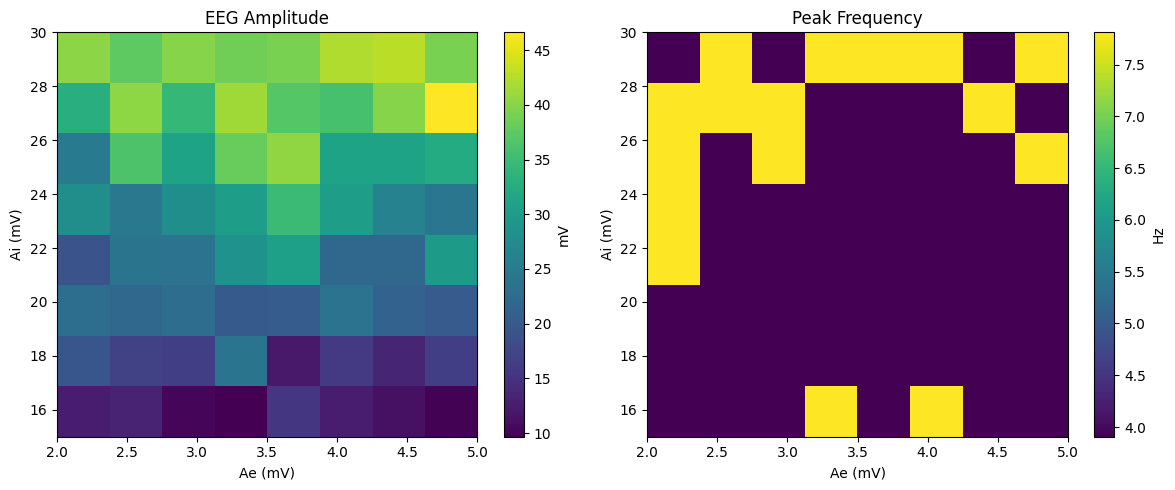

7) E/I Gain Parameter Space#

Explore how excitatory and inhibitory gains affect dynamics:

@brainstate.transform.vmap2
def single_trial(Ae, Ai):
    node = brainmass.JansenRitStep(1, Ae=Ae, Ai=Ai)
    node.init_all_states()

    def step(inp):
        return node.update(E_inp=inp)

    indices = np.arange(int(2 * u.second / dt))
    noise_std = 20. / (float(dt / u.second) ** 0.5)
    inputs = brainstate.random.normal(120., noise_std, indices.shape) * u.Hz
    eeg = brainstate.transform.for_loop(step, inputs)
    return eeg


@brainstate.transform.jit
def multi_trials(Aes, Ais):
    eegs = single_trial(Aes.flatten(), Ais.flatten())
    return u.math.reshape(eegs, (*Aes.shape, -1))


# Parameter grid
Ae_values = np.linspace(2.0, 5.0, 8) * u.mV
Ai_values = np.linspace(15., 30., 8) * u.mV

all_eegs = multi_trials(*u.math.meshgrid(Ae_values, Ai_values, indexing='ij'))

amplitude_grid = np.zeros((len(Ai_values), len(Ae_values)))
freq_grid = np.zeros((len(Ai_values), len(Ae_values)))

fs = 1000 / float(dt / u.ms)
for i, Ai in enumerate(Ai_values):
    for j, Ae in enumerate(Ae_values):
        eeg_ss = np.array(u.get_magnitude(all_eegs[i, j, 1000:]))
        amplitude_grid[i, j] = eeg_ss.max() - eeg_ss.min()

        f, Pxx = signal.welch(eeg_ss, fs=fs, nperseg=512)
        peak_idx = np.argmax(Pxx[(f > 3) & (f < 40)])
        freq_grid[i, j] = f[(f > 3) & (f < 40)][peak_idx]

# Plot
fig, axes = plt.subplots(1, 2, figsize=(12, 5))

im1 = axes[0].imshow(amplitude_grid, aspect='auto', origin='lower',
                     extent=[float(Ae_values[0] / u.mV), float(Ae_values[-1] / u.mV),
                             float(Ai_values[0] / u.mV), float(Ai_values[-1] / u.mV)])
axes[0].set_xlabel('Ae (mV)')
axes[0].set_ylabel('Ai (mV)')
axes[0].set_title('EEG Amplitude')
plt.colorbar(im1, ax=axes[0], label='mV')

im2 = axes[1].imshow(freq_grid, aspect='auto', origin='lower', cmap='viridis',
                     extent=[float(Ae_values[0] / u.mV), float(Ae_values[-1] / u.mV),
                             float(Ai_values[0] / u.mV), float(Ai_values[-1] / u.mV)])
axes[1].set_xlabel('Ae (mV)')
axes[1].set_ylabel('Ai (mV)')
axes[1].set_title('Peak Frequency')
plt.colorbar(im2, ax=axes[1], label='Hz')

plt.tight_layout()
plt.show()
../_images/fcec81b478582dd9f6c6300e399f570e49a3839b8e6ab994d92af1907e7349c4.png

Key Insights#

Regime

Parameters

EEG Character

Alpha

Default

8-12 Hz, regular

Spike-wave

High Ae, low Ai, slow bi

Sharp spikes + slow waves

Disinhibited

Low Ai

High amplitude

Irregular

High input + noise

Broadband

Clinical Relevance#

The Jansen-Rit model has been used to study:

  • Alpha rhythm generation in visual cortex

  • Epileptic spike-wave discharges

  • Evoked potentials (ERP, VEP)

  • Pathological oscillations

References#

  1. Jansen, B. H., & Rit, V. G. (1995). Electroencephalogram and visual evoked potential generation in a mathematical model of coupled cortical columns. Biological Cybernetics, 73(4), 357-366.

  2. David, O., & Friston, K. J. (2003). A neural mass model for MEG/EEG: coupling and neuronal dynamics. NeuroImage, 20(3), 1743-1755.

  3. Wendling, F., Bartolomei, F., Bellanger, J. J., & Chauvel, P. (2002). Epileptic fast activity can be explained by a model of impaired GABAergic dendritic inhibition. European Journal of Neuroscience, 15(9), 1499-1508.

  4. Grimbert, F., & Faugeras, O. (2006). Bifurcation analysis of Jansen’s neural mass model. Neural Computation, 18(12), 3052-3068.
