The Hopf oscillator model

The Hopf model describes the complex-plane motion of membrane potentials x and y of a single neuronal population (or local brain area) with a pair of mutually coupled linear–nonlinear differential equations: when the bifurcation parameter a is negative the origin is a stable focus and the population remains silent, whereas for a>0 the origin loses stability and a limit cycle emerges, so the population oscillates persistently at frequency ω.

import brainmass
import brainstate
import braintools
import brainunit as u
import jax
import matplotlib.pyplot as plt
import numpy as np

brainstate.environ.set(dt=0.1 * u.ms)

Single node simulation

The normal-form (supercritical) Hopf oscillator for a single node can be written in complex form as

\[ \frac{dz}{dt} = (a + i\,\omega) z - \beta \lvert z \rvert^2 z + I_{\text{ext}}(t), \]

where \(z = x + i y\) and \(\lvert z \rvert^2 = x^2 + y^2\). In real coordinates \((x, y)\) this becomes

\[\begin{split} \begin{aligned} \dot x &= (a - \beta r) x - \omega y + I_x(t),\\ \dot y &= (a - \beta r) y + \omega x + I_y(t),\\ r &= x^2 + y^2. \end{aligned} \end{split}\]

Parameters

Parameter	Symbol	Role	Typical Range
Bifurcation	\(a\)	Controls proximity to oscillation onset	-1 to 1
Frequency	\(\omega\)	Angular frequency of oscillation	0.1 to 1.0
Saturation	\(\beta\)	Limits oscillation amplitude	> 0

For \(a > 0\), the limit cycle has radius \(\approx \sqrt{a/\beta}\).

node = brainmass.HopfStep(
    1,  # single node
    a=0.25,
    w=0.2,
    beta=1.0,
    noise_x=brainmass.OUProcess(1, sigma=0.01),
    noise_y=brainmass.OUProcess(1, sigma=0.01),
)
node.init_all_states()


def step_run(i):
    node.update()
    return node.x.value, node.y.value


indices = np.arange(10000)
x_trace, y_trace = brainstate.transform.for_loop(step_run, indices)

t_ms = indices * brainstate.environ.get_dt()

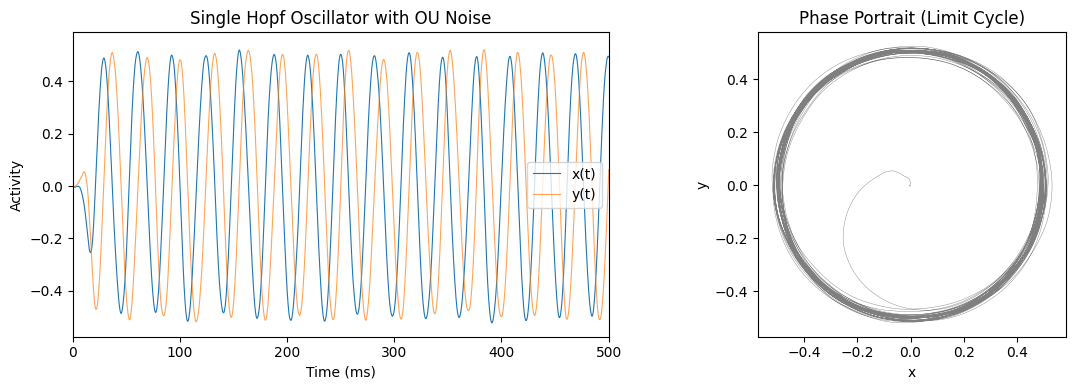

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# Time series
axes[0].plot(t_ms, x_trace[:, 0], label='x(t)', linewidth=0.8)
axes[0].plot(t_ms, y_trace[:, 0], label='y(t)', linewidth=0.8, alpha=0.7)
axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Activity')
axes[0].set_title('Single Hopf Oscillator with OU Noise')
axes[0].legend()
axes[0].set_xlim([0, 500])

# Phase portrait
axes[1].plot(x_trace[:, 0], y_trace[:, 0], 'k-', linewidth=0.3, alpha=0.5)
axes[1].set_xlabel('x')
axes[1].set_ylabel('y')
axes[1].set_title('Phase Portrait (Limit Cycle)')
axes[1].set_aspect('equal')

plt.tight_layout()
plt.show()

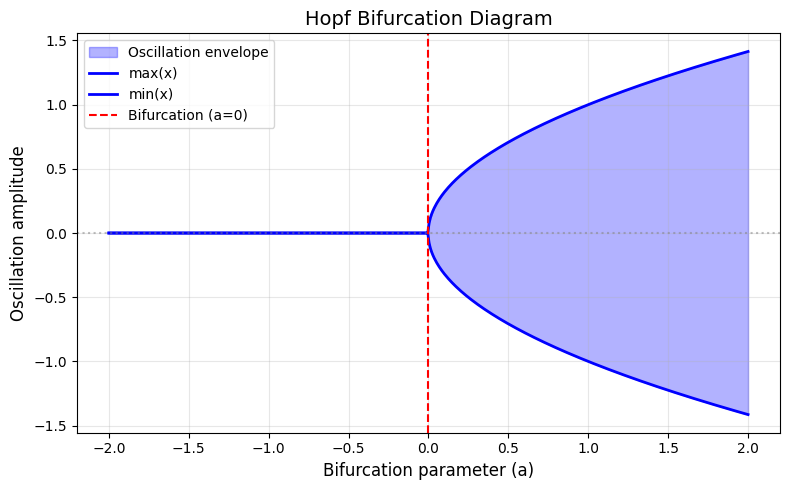

Bifurcation diagram

At the origin \((x,y)=(0,0)\) the linearization has eigenvalues \(\lambda_{\pm} = a \pm i \omega\).

• For \(a < 0\): the origin is a stable focus; trajectories spiral into \((0,0)\).

• For \(a = 0\): a Hopf bifurcation occurs.

• For \(a > 0\): the origin is unstable and a stable limit cycle of radius \(\approx \sqrt{a/\beta}\) emerges (supercritical Hopf). The oscillation frequency is approximately \(\omega\) near onset.

Increasing \(\beta\) decreases the saturated amplitude while leaving the linear frequency set by \(\omega\).

a_vals = np.linspace(-2, 2, 500)  # 500 points

nodes = brainmass.HopfStep(
    a_vals.size,
    a=a_vals,  # 每个节点对应一个 a
    w=0.2,
    beta=1.0,
    init_x=braintools.init.Uniform(0, 1),
    init_y=braintools.init.Uniform(0, 1),
)
nodes.init_all_states()


def step_run(i):
    return nodes.update()


indices = np.arange(20000)
x_trace = brainstate.transform.for_loop(step_run, indices)[0]
x_last = x_trace[-5000:]  # shape (5000, 50)
max_x = x_last.max(axis=0)
min_x = x_last.min(axis=0)

plt.figure(figsize=(8, 5))
plt.fill_between(a_vals, min_x, max_x, alpha=0.3, color='blue', label='Oscillation envelope')
plt.plot(a_vals, max_x, 'b-', lw=2, label='max(x)')
plt.plot(a_vals, min_x, 'b-', lw=2, label='min(x)')
plt.axvline(0.0, ls='--', color='red', label='Bifurcation (a=0)')
plt.axhline(0.0, ls=':', color='gray', alpha=0.5)

plt.xlabel('Bifurcation parameter (a)', fontsize=12)
plt.ylabel('Oscillation amplitude', fontsize=12)
plt.title('Hopf Bifurcation Diagram', fontsize=14)
plt.legend(loc='upper left')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Brain network with diffusive coupling

For \(N\) nodes with states \((x_i, y_i)\) one convenient diffusive coupling is

\[\begin{split} \begin{aligned} \dot x_i &= (a - \beta r_i) x_i - \omega y_i \; + \; K \sum_{j} W_{ij} (x_j - x_i) + I_i^x(t),\\ \dot y_i &= (a - \beta r_i) y_i + \omega x_i \; + \; K \sum_{j} W_{ij} (y_j - y_i) + I_i^y(t),\\ r_i &= x_i^2 + y_i^2, \end{aligned} \end{split}\]

where \(W\) is a connectivity matrix and \(K\) a global coupling gain. In BrainMass this can be assembled using the coupling helpers (DiffusiveCoupling or diffusive_coupling) by prefetching node states and applying the kernel per component.

An alternative is to couple in the complex form, \(z_i = x_i + i y_i\), using a linear term \(K \sum_j W_{ij} (z_j - z_i)\); real and imaginary parts yield the two equations above.

Relation to Kuramoto: In the limit of strongly attracting amplitudes (large \(\beta\) and \(a>0\)), the dynamics reduce approximately to phase-only coupling (Kuramoto-type) on the emergent limit cycle.

Load the human connectome project sample data from Kaggle.

import os.path
import kagglehub

path = kagglehub.dataset_download("oujago/hcp-gw-data-samples")
data = braintools.file.msgpack_load(os.path.join(path, "hcp-data-sample.msgpack"))


print(f"Connectome shape: {data['Cmat'].shape}")
print(f"Distance matrix shape: {data['Dmat'].shape}")

Loading checkpoint from D:\Data\kagglehub\datasets\oujago\hcp-gw-data-samples\versions\1\hcp-data-sample.msgpack
Connectome shape: (80, 80)
Distance matrix shape: (80, 80)

class Network(brainstate.nn.Module):
    def __init__(self, signal_speed=2.):
        super().__init__()

        # connection weight
        conn_weight = data['Cmat'].copy()
        np.fill_diagonal(conn_weight, 0)
        self.conn_weight = conn_weight

        # delay information
        delay_time = data['Dmat'].copy() / signal_speed
        np.fill_diagonal(delay_time, 0)
        delay_time = delay_time * u.ms
        indices_ = np.repeat(
            np.expand_dims(np.arange(conn_weight.shape[1]), 0),
            conn_weight.shape[0],
            axis=0
        )
        delay_index = (delay_time, indices_)

        # nodes
        n_node = conn_weight.shape[1]
        self.n_node = n_node
        self.node = brainmass.HopfStep(
            n_node,
            w=1.0,
            a=0.25,
            init_x=braintools.init.Uniform(0, 0.5),
            init_y=braintools.init.Uniform(0, 0.5),
            noise_x=brainmass.OUProcess(n_node, sigma=0.14, tau=5.0 * u.ms),
            noise_y=brainmass.OUProcess(n_node, sigma=0.14, tau=5.0 * u.ms),
        )

        # couplings
        self.coupling_x = brainmass.DiffusiveCoupling(
            self.node.prefetch_delay('x', delay_index, init=braintools.init.Uniform(0, 0.05)),
            self.node.prefetch('x'),
            conn_weight,
            k=1.0
        )

    def update(self):
        self.node.update(x_inp=self.coupling_x())
        return self.node.x.value, self.node.y.value

    def step_run(self, i):
        return self.update()

# Run the simulation
net = Network()
net.init_all_states()
dt = brainstate.environ.get_dt()
indices = np.arange(0, int(0.5 * u.second // dt))

exes_tuple = brainstate.transform.for_loop(net.step_run, indices)
exes_x = jax.block_until_ready(exes_tuple[0])
exes_y = jax.block_until_ready(exes_tuple[1])

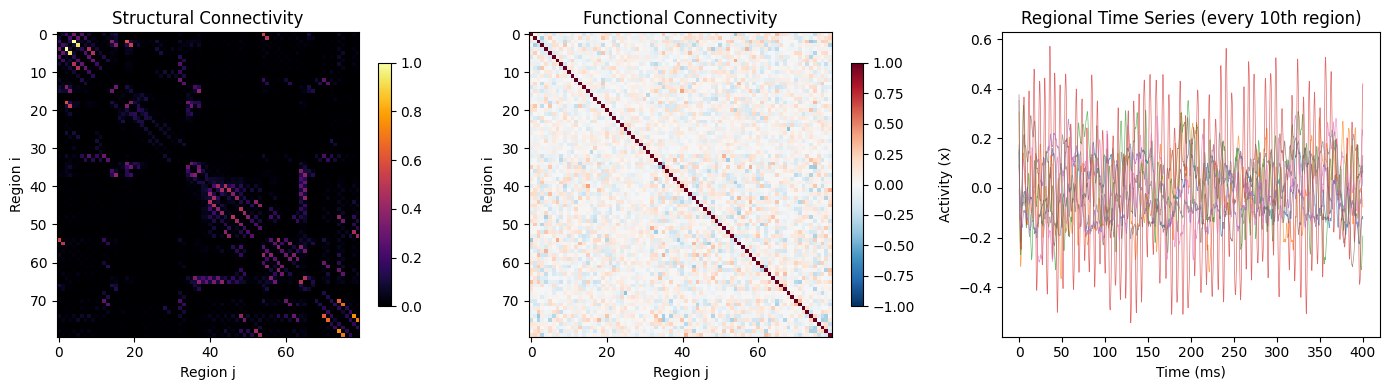

plt.rcParams['image.cmap'] = 'inferno'

fig, axes = plt.subplots(1, 3, figsize=(14, 4))

# Structural connectivity
im0 = axes[0].imshow(net.conn_weight, aspect='auto')
axes[0].set_title('Structural Connectivity')
axes[0].set_xlabel('Region j')
axes[0].set_ylabel('Region i')
plt.colorbar(im0, ax=axes[0], shrink=0.8)

# Functional connectivity (from simulated data)
fc = braintools.metric.functional_connectivity(exes_x)
im1 = axes[1].imshow(fc, aspect='auto', vmin=-1, vmax=1, cmap='RdBu_r')
axes[1].set_title('Functional Connectivity')
axes[1].set_xlabel('Region j')
axes[1].set_ylabel('Region i')
plt.colorbar(im1, ax=axes[1], shrink=0.8)

# Time series of selected regions
t_ms = indices * dt
axes[2].plot(t_ms, exes_x[:, ::10], alpha=0.7, linewidth=0.5)
axes[2].set_xlabel('Time (ms)')
axes[2].set_ylabel('Activity (x)')
axes[2].set_title('Regional Time Series (every 10th region)')

plt.tight_layout()
plt.show()

Exercises

Exercise 1: Frequency Analysis

The oscillation frequency depends on both \(\omega\) and the coupling. Modify the network to use different \(\omega\) values and observe:

1. How does the dominant frequency change?

2. How does coupling affect frequency?

Hint: Use np.fft.fft to compute the power spectrum.

Exercise 2: Coupling Strength

Explore different coupling strengths:

for k in [0.1, 1.0, 5.0, 10.0]:
    net = HopfNetwork(coupling_strength=k)
    # Run and analyze...

Questions:

1. What happens at very weak coupling?

2. What happens at very strong coupling?

3. How does functional connectivity change with coupling strength?

Exercise 3: Subcritical Regime

Set a=-0.1 (below bifurcation) and observe how noise can induce oscillations even in the subcritical regime. This demonstrates noise-induced oscillations.

References

1. Deco, G., Kringelbach, M. L., Jirsa, V. K., & Ritter, P. (2017). The dynamics of resting fluctuations in the brain: metastability and its dynamical cortical core. Scientific Reports, 7(1), 3095.

2. Kuznetsov, Y. A. (2013). Elements of applied bifurcation theory (Vol. 112). Springer Science & Business Media.

3. Deco, G., et al. (2009). Key role of coupling, delay, and noise in resting brain fluctuations. PNAS, 106(25), 10302-10307.
