Exploring Harmonic Oscillator Network Dynamics

Exploring Harmonic Oscillator Network Dynamics#

A Comprehensive Guide to Coupled Oscillatory Neural Networks#

This tutorial provides an in-depth exploration of HORN (Harmonic Oscillator Recurrent Network), a neural mass model based on coupled damped harmonic oscillators. We’ll build understanding progressively from single oscillators to complex networks, examining how parameters control dynamics and comparing with other oscillator models.

Learning Objectives#

By the end of this tutorial, you will be able to:

Explain the physical and biological foundations of damped harmonic oscillator dynamics
Predict how each parameter (ω, γ, α, v) affects oscillatory behavior
Analyze single oscillator responses to different input patterns (constant, sinusoidal, step)
Distinguish between underdamped, critically damped, and overdamped regimes
Design homogeneous and heterogeneous oscillator networks with desired frequency properties
Implement different coupling patterns (all-to-all, sparse, ring, small-world)
Demonstrate the effects of synaptic delays on network synchronization
Compare HORN with other oscillator models (Hopf, Wilson-Cowan)
Evaluate integration methods and their stability properties
Apply HORN to sequence processing and temporal pattern generation tasks

Imports#

import brainstate
import brainmass
import brainunit as u

import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.gridspec import GridSpec

PART 1: FOUNDATIONS#

Section 1: Background & Theory#

1.1 Introduction to Harmonic Oscillators in Neuroscience#

Oscillatory dynamics are fundamental to brain function, appearing at multiple scales from single neurons to large-scale networks. Neural oscillations in the theta (4-8 Hz), alpha (8-13 Hz), beta (13-30 Hz), and gamma (30-100 Hz) bands play crucial roles in:

Temporal coordination: Synchronizing activity across brain regions
Working memory: Maintaining information through sustained oscillations
Attention: Modulating sensory processing via oscillatory gating
Motor control: Generating rhythmic movement patterns

The harmonic oscillator provides a mathematically tractable framework for modeling these phenomena. Unlike simple threshold-based models, oscillators naturally capture:

Intrinsic rhythmicity: Self-sustained periodic activity
Resonance: Enhanced response to inputs at specific frequencies
Phase relationships: Temporal coordination between units
Energy dynamics: Conservation and dissipation properties

1.2 From Simple Harmonic Motion to Damped Driven Oscillators#

The evolution of oscillator complexity:

Simple Harmonic Oscillator (SHO):

\[ \frac{d^2x}{dt^2} + \omega^2 x = 0 \]

Perpetual oscillation at natural frequency \(\omega\)
Physically unrealistic (no energy loss)

Damped Harmonic Oscillator:

\[ \frac{d^2x}{dt^2} + 2\gamma\frac{dx}{dt} + \omega^2 x = 0 \]

Damping coefficient \(\gamma\) causes exponential decay
More realistic, but no external drive

Damped Driven Oscillator (HORN):

\[ \frac{d^2x}{dt^2} + 2\gamma\frac{dx}{dt} + \omega^2 x = \alpha \cdot \tanh\left(I(t) + F(x(t), \dot{x}(t))\right) \]

External input \(I(t)\) drives the system
Nonlinear coupling \(F(x, \dot{x})\) enables network interactions
Nonlinear activation \(\tanh\) bounds the driving force

1.3 HORN Equations and Parameters#

The HORN model uses symplectic Euler integration to preserve energy properties:

Velocity update:

\[ y_{t+1} = y_t + h \cdot \left(\alpha \cdot \tanh(I_{t+1} + F_t) - 2\gamma \cdot y_t - \omega^2 \cdot x_t\right) \]

Position update:

\[ x_{t+1} = x_t + h \cdot y_{t+1} \]

Where:

\(x\): Position (analogous to neural population activity)
\(y\): Velocity (rate of change of activity)
\(F_t\): Recurrent feedback from network connections

1.4 Parameter Interpretation#

Parameter	Symbol	Physical Meaning	Neural Interpretation	Default	Typical Range
Natural frequency	\(\omega\)	Intrinsic oscillation rate (rad/timestep)	Preferred rhythm (e.g., theta vs gamma)	\(2\pi/28 \approx 0.224\)	0.1 - 1.0
Damping coefficient	\(\gamma\)	Energy dissipation rate	Membrane leak / inhibitory regulation	0.01	0.001 - 0.1
Input gain	\(\alpha\)	Excitability / responsiveness	Synaptic efficacy / excitability	0.04	0.01 - 0.2
Amplitude feedback	\(v\)	Position-dependent modulation	Activity-dependent gain control	0.0	0.0 - 0.5
Step size	\(h\)	Integration resolution	Temporal discretization	1.0	0.5 - 2.0

Biological Interpretations:

\(\omega\) (Natural Frequency): Analogous to the intrinsic firing rate of a neural population, determined by membrane properties, synaptic time constants, and local circuit architecture. Different brain regions exhibit characteristic frequency bands (e.g., hippocampus theta ~8 Hz).
\(\gamma\) (Damping): Represents energy dissipation mechanisms including:
- Passive membrane leak currents
- Synaptic depression
- Inhibitory feedback
- Higher damping = faster decay to equilibrium
\(\alpha\) (Input Gain): Controls how strongly the population responds to external inputs, analogous to:
- Synaptic conductance strength
- Number of active synapses
- Neuromodulatory state (e.g., acetylcholine increasing excitability)
\(v\) (Amplitude Feedback): Implements activity-dependent gain control, similar to:
- Spike-frequency adaptation
- Short-term synaptic plasticity
- Homeostatic regulation

1.5 Comparison with Other Neural Mass Models#

Model	State Variables	Time Constant	Oscillation Mechanism	Network Interaction
HORN	Position + Velocity	Controlled by \(\gamma\), \(\omega\)	Intrinsic harmonic	Linear coupling in \(F\)
Hopf	Real + Imaginary	Fixed bifurcation parameter	Supercritical bifurcation	Phase coupling
Wilson-Cowan	Excitatory + Inhibitory	Separate \(\tau_E\), \(\tau_I\)	E-I balance	Weighted connectivity
Jansen-Rit	Pyramidal + Excitatory + Inhibitory	Synaptic kernels	E-I feedback loops	Hierarchical

HORN Advantages:

Energy-preserving integration: Symplectic methods maintain Hamiltonian structure
Explicit frequency control: \(\omega\) directly sets oscillation period
Phase-velocity representation: Position-velocity state space enables rich dynamics
Computational efficiency: Simple update rules, suitable for large-scale networks

1.6 Connection to Coupled Oscillatory RNN (coRNN)#

HORN is based on the coRNN framework (Rusch & Mishra, ICLR 2021), which demonstrated that coupled oscillatory networks can:

Learn long-range temporal dependencies
Achieve competitive performance on sequence tasks (sMNIST, pMNIST)
Maintain stable gradients during training (mitigating vanishing/exploding gradients)
Exhibit interpretable dynamics related to oscillatory phase coding

The key insight: second-order dynamics (position + velocity) provide richer representational capacity than first-order models (single state variable).

Section 2: Single Oscillator Dynamics#

We begin by studying a single oscillator to build intuition about fundamental behaviors before scaling to networks.

2.1 Free Oscillation (No Input)#

First, let’s observe how a single oscillator behaves with zero input, starting from an initial displacement.

# Simulation parameters
dt = 1.0  # timestep (ms)
T = 1000.0  # total simulation time (ms)
n_steps = int(T / dt)
times = np.arange(n_steps) * dt

brainstate.environ.set(dt=dt * u.ms)
# Create single HORNStep oscillator with default parameters
model = brainmass.HORNStep(
    1,
    omega=2 * np.pi / 28,  # natural frequency: ~0.224 rad/timestep
    gamma=0.01,  # damping coefficient
    alpha=0.04,  # input gain
    v=0.0,  # no amplitude feedback
)

# Initialize states
model.init_all_states()

# Set initial condition: displaced position, zero velocity
model.x.value = jnp.array([1.0])  # initial position
model.y.value = jnp.array([0.0])  # initial velocity


# Define simulation loop (no input)
def step_free(i):
    inputs = jnp.array([0.0])  # zero input
    model.update(inputs)
    return model.x.value, model.y.value


# Extract position and velocity trajectories
x_trace, y_trace = brainstate.transform.for_loop(step_free, np.arange(n_steps))

# Visualization: Time series and phase portrait
fig = plt.figure(figsize=(15, 10))
gs = GridSpec(2, 2, figure=fig)

# Panel 1: Position over time
ax1 = fig.add_subplot(gs[0, 0])
ax1.plot(times, x_trace, 'b-', linewidth=2, label='Position (x)')
ax1.axhline(0, color='k', linestyle='--', alpha=0.3)
ax1.set_xlabel('Time (ms)')
ax1.set_ylabel('Position')
ax1.set_title('Free Oscillation: Position')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Panel 2: Velocity over time
ax2 = fig.add_subplot(gs[0, 1])
ax2.plot(times, y_trace, 'r-', linewidth=2, label='Velocity (y)')
ax2.axhline(0, color='k', linestyle='--', alpha=0.3)
ax2.set_xlabel('Time (ms)')
ax2.set_ylabel('Velocity')
ax2.set_title('Free Oscillation: Velocity')
ax2.legend()
ax2.grid(True, alpha=0.3)

# Panel 3: Phase portrait (x vs y)
ax4 = fig.add_subplot(gs[1, 0])
ax4.plot(times, x_trace, 'b-', linewidth=2, label='Position (x)')
ax4.plot(times, y_trace, 'r-', linewidth=2, label='Velocity (y)')
ax4.set_xlabel('Time (ms)')
ax4.legend()
ax4.grid(True, alpha=0.3)

ax3 = fig.add_subplot(gs[1, 1])
ax3.plot(x_trace, y_trace, 'purple', linewidth=2, alpha=0.7)
ax3.plot(x_trace[0], y_trace[0], 'go', markersize=10, label='Start')
ax3.plot(x_trace[-1], y_trace[-1], 'ro', markersize=10, label='End')
ax3.plot(0, 0, 'k+', markersize=15, markeredgewidth=2, label='Equilibrium')
ax3.set_xlabel('Position (x)')
ax3.set_ylabel('Velocity (y)')
ax3.set_title('Phase Portrait')
ax3.legend()
ax3.grid(True, alpha=0.3)
ax3.axis('equal')

plt.tight_layout()
plt.show()

print("Observations:")
print("1. Position oscillates with exponentially decaying amplitude (damping)")
print("2. Velocity is 90° out of phase with position (leads by π/2)")
print(f"3. Phase portrait spirals inward toward equilibrium (0, 0)")
print(f"4. Approximate period: {28 * dt:.1f} ms (set by ω = 2π/28)")

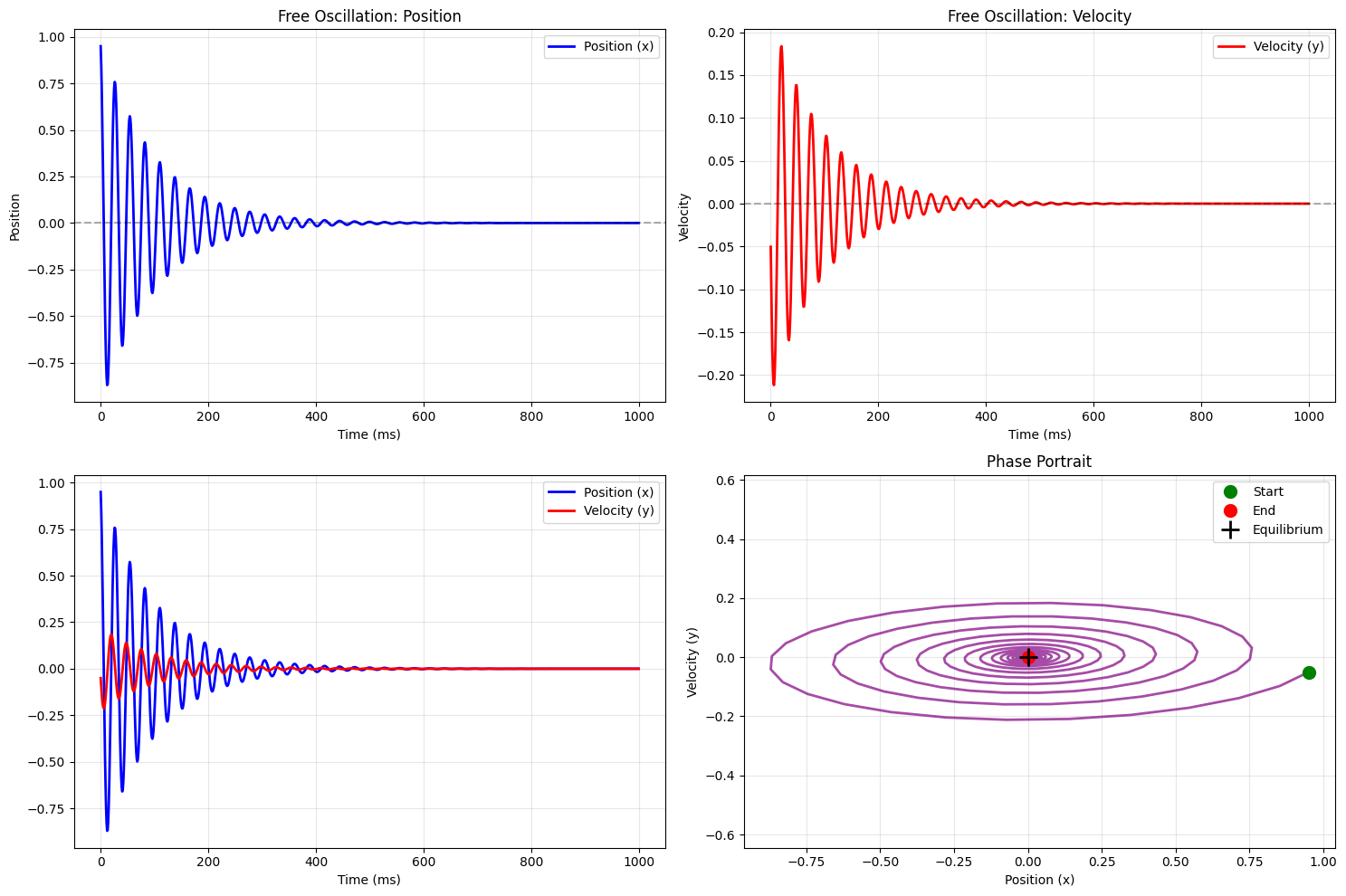

../_images/7f491113a2e3f30d7a27f8eede9ea1d5ce86d0afe040405971ac75a0d57b6ace.png

Observations:
Position oscillates with exponentially decaying amplitude (damping)
Velocity is 90° out of phase with position (leads by π/2)
Phase portrait spirals inward toward equilibrium (0, 0)
Approximate period: 28.0 ms (set by ω = 2π/28)

2.2.1 Constant Input#

2.2 Driven Oscillation#

Now let’s examine how the oscillator responds to different types of external inputs.

# Reset and apply constant input
model.init_all_states()
model.x.value = jnp.array([0.0])
model.y.value = jnp.array([0.0])

constant_input = 1.0  # constant drive


def step_inp(i):
    model.update(jnp.array([constant_input]))
    return model.x.value, model.y.value


x_const, y_const = brainstate.transform.for_loop(step_inp, np.arange(n_steps))

2.2.2 Sinusoidal Input (Resonance)#

# Reset and apply sinusoidal input at natural frequency
model.init_all_states()
model.x.value = jnp.array([0.0])
model.y.value = jnp.array([0.0])

omega_natural = 2 * np.pi / 28
sine_input = 0.5 * np.sin(omega_natural * np.arange(n_steps) * dt)


def step_inp2(i):
    sine_inp = 0.5 * jnp.sin(omega_natural * i * dt)
    model.update(sine_inp)
    return model.x.value, model.y.value


x_sine, y_sine = brainstate.transform.for_loop(step_inp2, np.arange(n_steps))

2.2.3 Step Input (Transient Response)#

# Reset and apply step input
model.init_all_states()
model.x.value = jnp.array([0.0])
model.y.value = jnp.array([0.0])

step_input = np.zeros(n_steps)
step_input[200:] = 1.0  # step at t=20ms


def step_inp3(inp):
    model.update(inp)
    return model.x.value, model.y.value


x_step, y_step = brainstate.transform.for_loop(step_inp3, step_input)

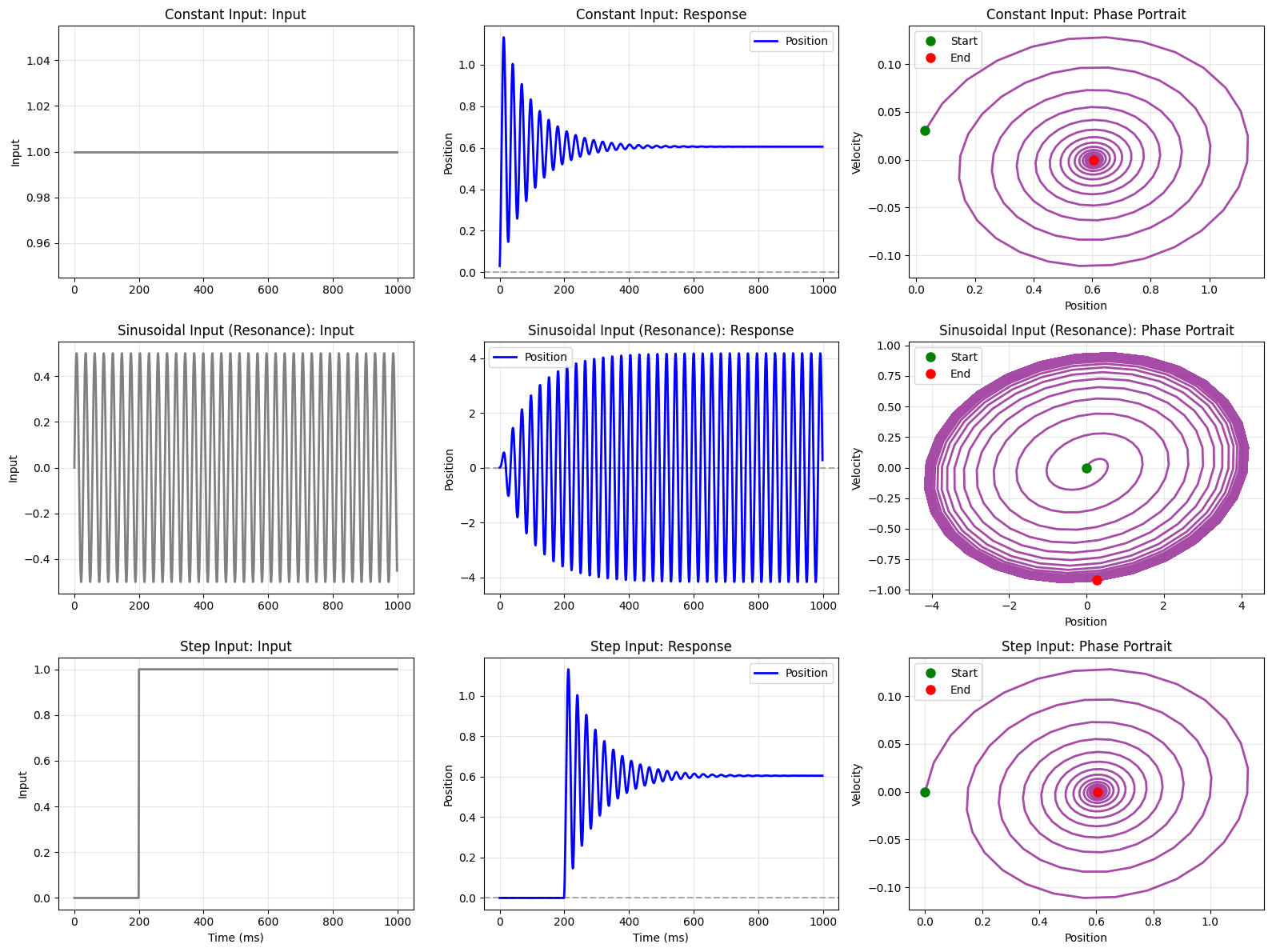

# Visualization: Compare different input types
fig, axes = plt.subplots(3, 3, figsize=(16, 12))

input_types = [
    ('Constant Input', [constant_input] * n_steps, x_const, y_const),
    ('Sinusoidal Input (Resonance)', sine_input, x_sine, y_sine),
    ('Step Input', step_input, x_step, y_step)
]

for row, (title, inp, x, y) in enumerate(input_types):
    # Input
    axes[row, 0].plot(times, inp, 'gray', linewidth=2)
    axes[row, 0].set_ylabel('Input')
    axes[row, 0].set_title(f'{title}: Input')
    axes[row, 0].grid(True, alpha=0.3)
    if row == 2:
        axes[row, 0].set_xlabel('Time (ms)')

    # Response (position)
    axes[row, 1].plot(times, x, 'b-', linewidth=2, label='Position')
    axes[row, 1].axhline(0, color='k', linestyle='--', alpha=0.3)
    axes[row, 1].set_ylabel('Position')
    axes[row, 1].set_title(f'{title}: Response')
    axes[row, 1].grid(True, alpha=0.3)
    axes[row, 1].legend()
    if row == 2:
        axes[row, 1].set_xlabel('Time (ms)')

    # Phase portrait
    axes[row, 2].plot(x, y, 'purple', linewidth=2, alpha=0.7)
    axes[row, 2].plot(x[0], y[0], 'go', markersize=8, label='Start')
    axes[row, 2].plot(x[-1], y[-1], 'ro', markersize=8, label='End')
    axes[row, 2].set_xlabel('Position')
    axes[row, 2].set_ylabel('Velocity')
    axes[row, 2].set_title(f'{title}: Phase Portrait')
    axes[row, 2].grid(True, alpha=0.3)
    axes[row, 2].legend()

plt.tight_layout()
plt.show()

print("Key Observations:")
print("1. Constant Input: Oscillates around non-zero equilibrium (offset by input)")
print("2. Sinusoidal Input: Resonance amplifies response when input frequency matches ω")
print("3. Step Input: Transient oscillations before settling to new equilibrium")

../_images/dd68b37b0a218537dd7fb6379d5d3497b2181910dd4d2ba0de0fa32002843942.png

Key Observations:
Constant Input: Oscillates around non-zero equilibrium (offset by input)
Sinusoidal Input: Resonance amplifies response when input frequency matches ω
Step Input: Transient oscillations before settling to new equilibrium

PART 2: PARAMETER EXPLORATION#

Now we systematically explore how each parameter controls oscillator behavior.

Section 3: Natural Frequency (ω)#

The natural frequency \(\omega\) determines the intrinsic oscillation rate of the system.

# Sweep omega values
omega_values = np.linspace(0.1, 1.0, 10)
T_sweep = 500.0
n_steps_sweep = int(T_sweep / dt)
times_sweep = np.arange(n_steps_sweep) * dt
n_neuron = len(omega_values)

model_omega = brainmass.HORNStep(
    len(omega_values),
    omega=omega_values,
    gamma=0.01,
    alpha=0.04,
    v=0.0,
)
model_omega.init_all_states()
model_omega.x.value = jnp.full(n_neuron, 1.0)
model_omega.y.value = jnp.full(n_neuron, 0.0)


def step(i):
    model_omega.update(0.)
    return model_omega.x.value


omega_traces = brainstate.transform.for_loop(step, np.arange(n_steps_sweep))
omega_traces = np.array(omega_traces).T

from scipy.signal import find_peaks

# Visualization: Omega sweep
fig, axes = plt.subplots(1, 2, figsize=(15, 5))

# Panel 1: Overlaid time series
cmap = plt.cm.viridis
for i, omega in enumerate(omega_values):
    color = cmap(i / len(omega_values))
    axes[0].plot(
        times_sweep,
        omega_traces[i],
        color=color,
        linewidth=1.5,
        alpha=0.7,
        label=f'ω={omega:.2f}'
    )
axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Position')
axes[0].set_title('Effect of Natural Frequency (ω)')
axes[0].legend(ncol=2, fontsize=8, loc='upper right')
axes[0].grid(True, alpha=0.3)

# Panel 2: Period vs omega
periods = []
for i, trace in enumerate(omega_traces):
    # Find peaks to estimate period
    peaks, _ = find_peaks(trace, height=0.1)
    if len(peaks) > 1:
        avg_period = np.mean(np.diff(peaks)) * dt
        periods.append(avg_period)
    else:
        periods.append(np.nan)
periods = np.array(periods)
theoretical_periods = 2 * np.pi / omega_values * dt

axes[1].plot(omega_values, periods, 'bo-', linewidth=2, markersize=8, label='Measured')
axes[1].plot(omega_values, theoretical_periods, 'r--', linewidth=2, label='Theoretical (2π/ω)')
axes[1].set_xlabel('Natural Frequency ω (rad/timestep)')
axes[1].set_ylabel('Oscillation Period (ms)')
axes[1].set_title('Period vs Natural Frequency')
axes[1].legend()
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Key Findings:")
print(f"1. Higher ω → faster oscillations (shorter period)")
print(f"2. Relationship is inversely proportional: Period ≈ 2π/ω")
print(f"3. Measured periods match theoretical predictions")

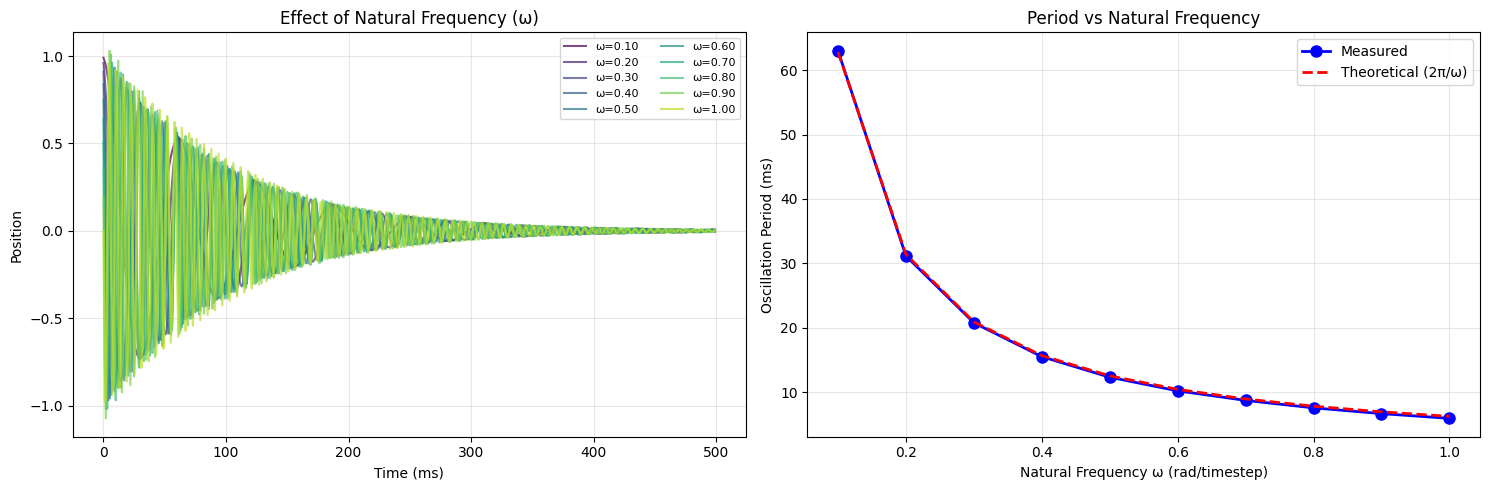

../_images/78c898b48c6f1b75cf6a9dd3ae53e576ee3d2f5e442980db1250c89a624183e8.png

Key Findings:
Higher ω → faster oscillations (shorter period)
Relationship is inversely proportional: Period ≈ 2π/ω
Measured periods match theoretical predictions

Section 4: Damping Coefficient (γ)#

Damping controls how quickly oscillations decay to equilibrium.

# Sweep gamma values
gamma_values = np.logspace(-3, -0.5, 8)  # 0.001 to ~0.316
n_neuron = len(gamma_values)

model_gamma = brainmass.HORNStep(
    len(gamma_values),
    omega=0.224,
    gamma=gamma_values,
    alpha=0.04,
    v=0.0,
)
model_gamma.init_all_states()
model_gamma.x.value = jnp.full(n_neuron, 1.0)
model_gamma.y.value = jnp.full(n_neuron, 0.0)


def step(i):
    model_gamma.update(0.)
    return model_gamma.x.value


n_time = int(8e2 / dt)
gamma_traces = brainstate.transform.for_loop(step, np.arange(n_time))
gamma_traces = np.array(gamma_traces).T

# Visualization: Gamma sweep
fig, axes = plt.subplots(1, 2, figsize=(15, 5))

# Panel 1: Overlaid time series
cmap = plt.cm.plasma
for i, gamma in enumerate(gamma_values):
    color = cmap(i / len(gamma_values))
    axes[0].plot(
        np.arange(n_time) * dt,
        gamma_traces[i],
        color=color,
        linewidth=2,
        alpha=0.8,
        label=f'γ={gamma:.3f}',
    )
axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Position')
axes[0].set_title('Effect of Damping Coefficient (γ)')
axes[0].legend(ncol=2, fontsize=8)
axes[0].grid(True, alpha=0.3)

# Panel 2: Decay rate analysis
decay_rates = []
for trace in gamma_traces:
    # Fit exponential decay to amplitude envelope
    peaks, _ = find_peaks(np.abs(trace))
    if len(peaks) > 3:
        peak_times = peaks * dt
        peak_amplitudes = np.abs(trace[peaks])
        # Fit log(amplitude) = -decay_rate * t + const
        coeffs = np.polyfit(peak_times, np.log(peak_amplitudes + 1e-10), 1)
        decay_rates.append(-coeffs[0])  # negative slope
    else:
        decay_rates.append(np.nan)

decay_rates = np.array(decay_rates)

axes[1].plot(gamma_values, decay_rates, 'mo-', linewidth=2, markersize=8, label='Measured decay rate')
axes[1].plot(gamma_values, 2 * gamma_values / dt, 'k--', linewidth=2, label='Expected (2γ/dt)')
axes[1].set_xlabel('Damping Coefficient γ')
axes[1].set_ylabel('Decay Rate (1/ms)')
axes[1].set_title('Decay Rate vs Damping')
axes[1].set_xscale('log')
axes[1].legend()
axes[1].grid(True, alpha=0.3, which='both')

plt.tight_layout()
plt.show()

# Classify damping regimes
omega = 0.224
gamma_critical = omega  # critical damping when γ = ω

print("Damping Regimes:")
print(f"Critical damping: γ_c = ω = {gamma_critical:.3f}")
print(f"Underdamped: γ < {gamma_critical:.3f} (oscillatory decay)")
print(f"Critically damped: γ ≈ {gamma_critical:.3f} (fastest non-oscillatory decay)")
print(f"Overdamped: γ > {gamma_critical:.3f} (slow non-oscillatory decay)")
print(f"\nMost gamma values tested are underdamped (typical for neural oscillations)")

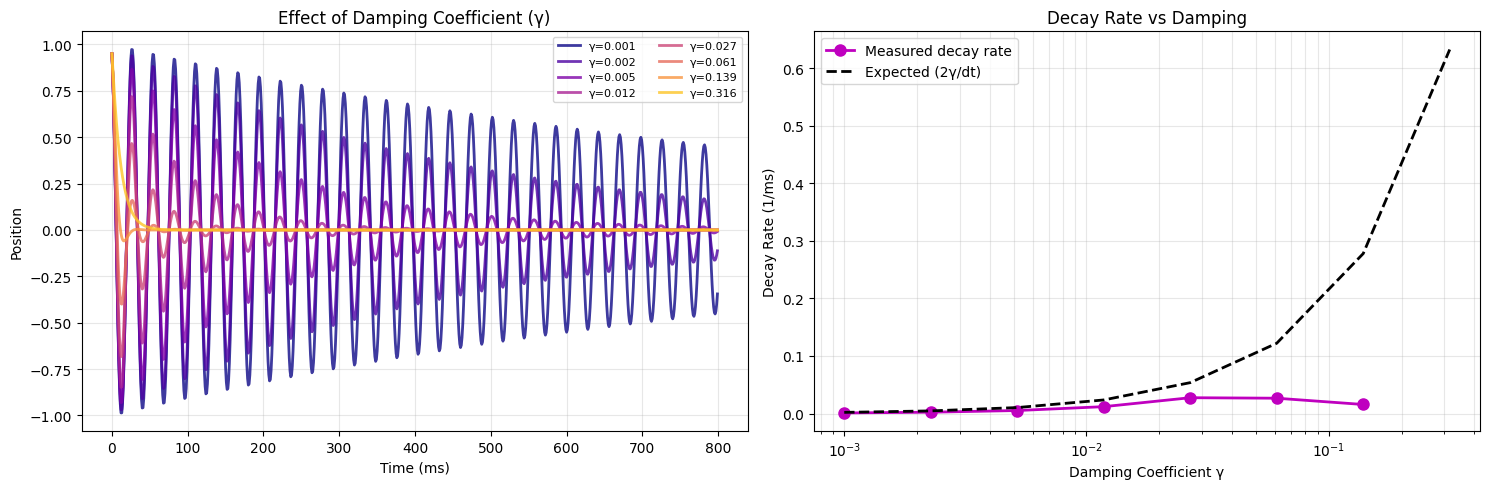

../_images/83e2140c4c425b171c2e72c31c1076c9f2b66e5391b09240967801306063b0c8.png

Damping Regimes:
Critical damping: γ_c = ω = 0.224
Underdamped: γ < 0.224 (oscillatory decay)
Critically damped: γ ≈ 0.224 (fastest non-oscillatory decay)
Overdamped: γ > 0.224 (slow non-oscillatory decay)

Most gamma values tested are underdamped (typical for neural oscillations)

Section 5: Excitability (α)#

The excitability parameter \(\alpha\) controls how strongly the oscillator responds to inputs.

# Sweep alpha values
alpha_values = np.linspace(0.01, 0.2, 10)
n_neuron = len(alpha_values)

model_alpha = brainmass.HORNStep(
    len(alpha_values),
    omega=0.224,
    gamma=0.01,
    alpha=alpha_values,
    v=0.0,
)
model_alpha.init_all_states()
model_alpha.x.value = jnp.full(n_neuron, 1.0)
model_alpha.y.value = jnp.full(n_neuron, 0.0)

# Apply constant input to see gain effect
test_input = 1.0


def step(i):
    model_alpha.update(test_input)
    return model_alpha.x.value


alpha_traces = brainstate.transform.for_loop(step, np.arange(n_steps_sweep))
alpha_traces = np.array(alpha_traces).T

# Visualization: Alpha sweep
fig, axes = plt.subplots(1, 2, figsize=(15, 5))

# Panel 1: Overlaid time series
cmap = plt.cm.coolwarm
for i, alpha in enumerate(alpha_values):
    color = cmap(i / len(alpha_values))
    axes[0].plot(times_sweep, alpha_traces[i], color=color,
                 linewidth=2, alpha=0.8, label=f'α={alpha:.3f}')
axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Position')
axes[0].set_title(f'Effect of Excitability (α) with Input={test_input}')
axes[0].legend(ncol=2, fontsize=8)
axes[0].grid(True, alpha=0.3)

# Panel 2: Response amplitude vs alpha (gain curve)
steady_state_amplitudes = []
for trace in alpha_traces:
    # Take mean of last 20% of simulation (steady state)
    steady_idx = int(0.8 * len(trace))
    steady_amplitude = np.mean(np.abs(trace[steady_idx:]))
    steady_state_amplitudes.append(steady_amplitude)

steady_state_amplitudes = np.array(steady_state_amplitudes)

axes[1].plot(alpha_values, steady_state_amplitudes, 'ro-', linewidth=2, markersize=8)
axes[1].set_xlabel('Excitability α')
axes[1].set_ylabel('Steady-State Response Amplitude')
axes[1].set_title('Gain Curve: Response vs Excitability')
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Key Findings:")
print(f"1. Higher α → larger response amplitude (increased gain)")
print(f"2. Relationship is approximately linear for small α")
print(f"3. Excitability controls input sensitivity without affecting frequency")
print(f"4. Neural interpretation: α represents synaptic efficacy/neuromodulation")

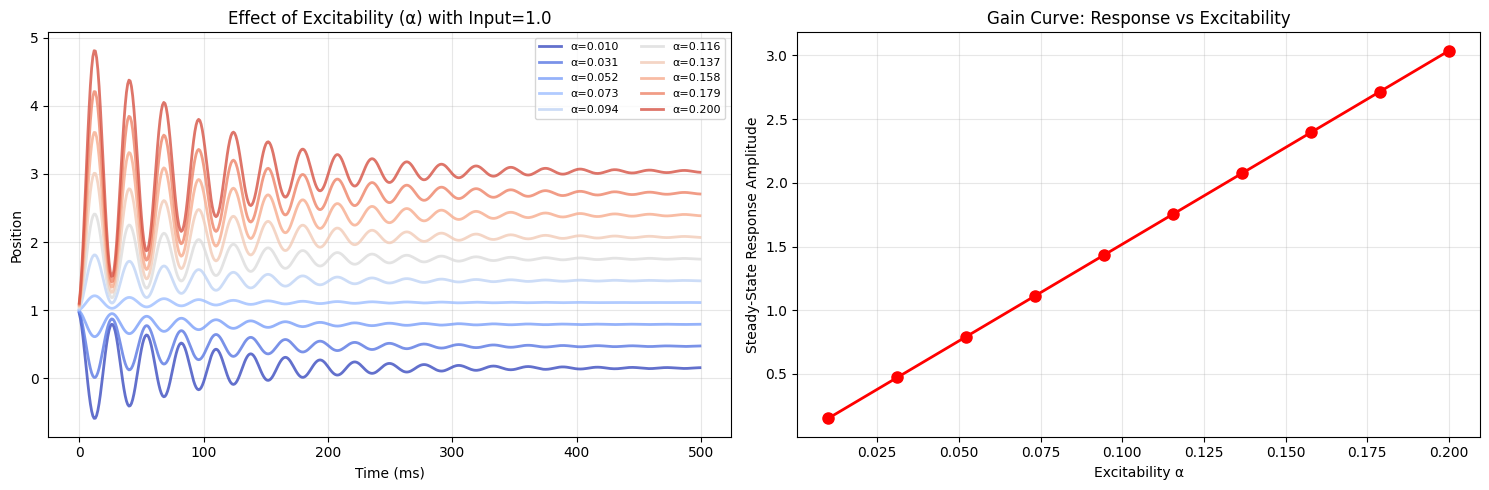

../_images/c604b782ced1d08bafbe7deb74b5157d7beb30fe3d49460ac4f426a25d595107.png

Key Findings:
Higher α → larger response amplitude (increased gain)
Relationship is approximately linear for small α
Excitability controls input sensitivity without affecting frequency
Neural interpretation: α represents synaptic efficacy/neuromodulation

Section 6: Amplitude Feedback (v)#

The amplitude feedback parameter \(v\) provides position-dependent modulation, implementing activity-dependent gain control.

@brainstate.transform.jit
def simulate_v(v_values):
    model_v = brainmass.HORNStep(
        len(v_values),
        omega=0.224,
        gamma=0.01,
        alpha=0.04,
        v=v_values,
    )
    model_v.init_all_states()
    model_v.x.value = jnp.full(len(v_values), 1.0)
    model_v.y.value = jnp.full(len(v_values), 0.0)

    def step(i):
        model_v.update(0.0)
        return model_v.x.value, model_v.y.value

    return brainstate.transform.for_loop(step, np.arange(n_steps_sweep))

# Sweep v values
v_values = np.linspace(0.0, 0.3, 7)
v_traces = np.array(simulate_v(v_values)[0]).T

# Visualization: v sweep
fig, axes = plt.subplots(1, 2, figsize=(15, 5))

# Panel 1: Overlaid time series
cmap = plt.cm.inferno
for i, v in enumerate(v_values):
    color = cmap(i / len(v_values))
    axes[0].plot(times_sweep, v_traces[i], color=color,
                 linewidth=2, alpha=0.8, label=f'v={v:.2f}')

axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Position')
axes[0].set_title('Effect of Amplitude Feedback (v)')
axes[0].legend(ncol=2, fontsize=8)
axes[0].grid(True, alpha=0.3)

# Panel 2: Phase portraits comparing v=0 and v=0.2
v_test = [0.0, 0.2]
x_list, y_list = simulate_v(jnp.asarray(v_test))
for idx, v in enumerate(v_test):
    color = 'blue' if v == 0.0 else 'red'
    axes[1].plot(
        x_list[:, idx],
        y_list[:, idx],
        color=color,
        linewidth=2,
        alpha=0.7,
        label=f'v={v}'
    )
axes[1].set_xlabel('Position (x)')
axes[1].set_ylabel('Velocity (y)')
axes[1].set_title('Phase Portrait Comparison')
axes[1].legend()
axes[1].grid(True, alpha=0.3)
axes[1].axis('equal')

plt.tight_layout()
plt.show()

print("Key Findings:")
print(f"1. Positive v modifies decay rate and can stabilize/destabilize oscillations")
print(f"2. v=0: Standard damped oscillation (baseline)")
print(f"3. Small v: Modified effective damping")
print(f"4. Larger v values can lead to different dynamical regimes")
print(f"5. Neural interpretation: Activity-dependent adaptation (e.g., spike-frequency adaptation)")

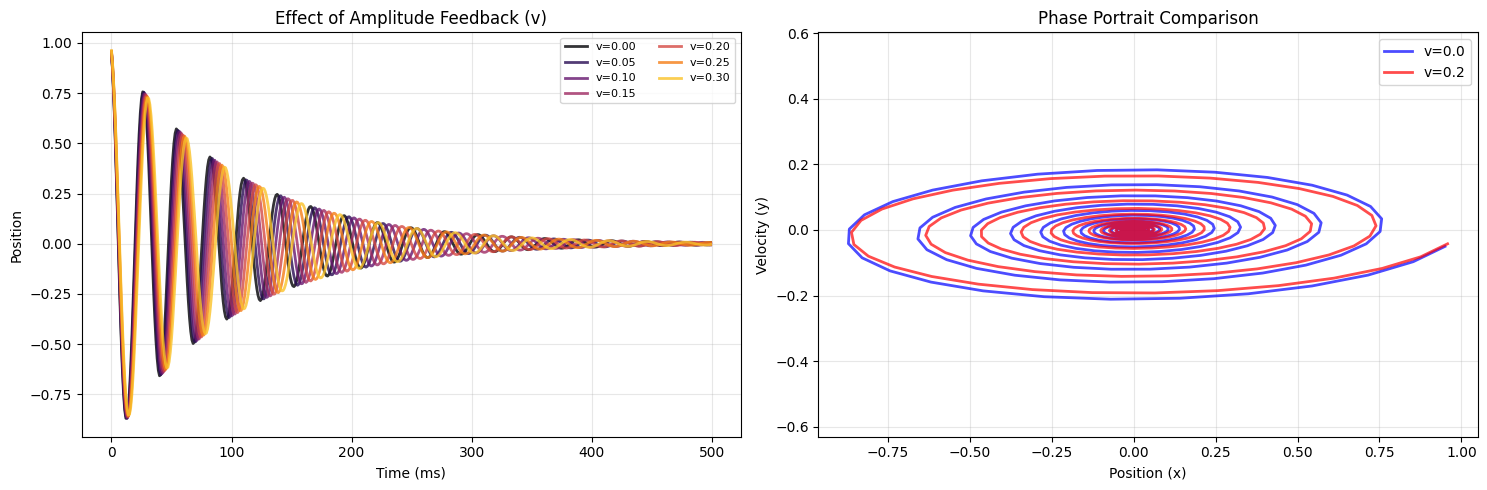

../_images/85674e0260058dc776f6bd85406be58773476354b0cfedbdabcab005182e8708.png

Key Findings:
Positive v modifies decay rate and can stabilize/destabilize oscillations
v=0: Standard damped oscillation (baseline)
Small v: Modified effective damping
Larger v values can lead to different dynamical regimes
Neural interpretation: Activity-dependent adaptation (e.g., spike-frequency adaptation)

PART 3: NETWORK DYNAMICS#

Now we scale from single oscillators to networks, exploring coupling patterns and emergent collective behaviors.

Section 7: Homogeneous Network#

We start with a network of identical oscillators to understand baseline collective dynamics and the effects of coupling.

# Network parameters
N_units = 16
T_net = 1000.0
n_steps_net = int(T_net / dt)
times_net = np.arange(n_steps_net) * dt

# Homogeneous network: all oscillators identical (no coupling first)
model_homo = brainmass.HORNStep(
    N_units,
    omega=0.224,
    gamma=0.01,
    alpha=0.04,
    v=0.0,
)
model_homo.init_all_states()

# Random initial conditions
np.random.seed(42)
model_homo.x.value = jnp.array(np.random.randn(N_units) * 0.5)
model_homo.y.value = jnp.array(np.random.randn(N_units) * 0.1)


# Simulate without coupling
def step(i):
    model_homo.update(0.)
    return model_homo.x.value


x_homo_uncoupled = brainstate.transform.for_loop(step, times_net)
x_homo_uncoupled = np.array(x_homo_uncoupled)

print(f"Simulated {N_units} uncoupled oscillators for {T_net} ms")

Simulated 16 uncoupled oscillators for 1000.0 ms

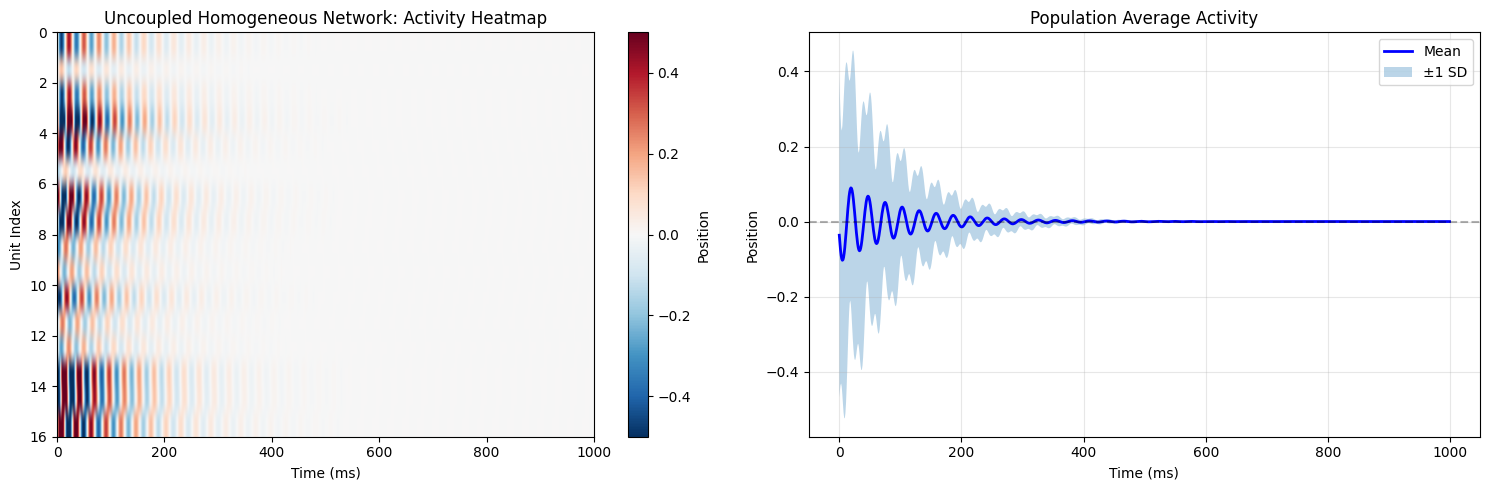

# Visualization: Homogeneous network activity
fig, axes = plt.subplots(1, 2, figsize=(15, 5))

# Panel 1: Raster plot (heatmap)
im = axes[0].imshow(x_homo_uncoupled.T, aspect='auto', cmap='RdBu_r',
                    extent=[0, T_net, N_units, 0], vmin=-0.5, vmax=0.5)
axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Unit Index')
axes[0].set_title('Uncoupled Homogeneous Network: Activity Heatmap')
plt.colorbar(im, ax=axes[0], label='Position')

# Panel 2: Mean activity across all units
mean_activity = np.mean(x_homo_uncoupled, axis=1)
std_activity = np.std(x_homo_uncoupled, axis=1)

axes[1].plot(times_net, mean_activity, 'b-', linewidth=2, label='Mean')
axes[1].fill_between(times_net, mean_activity - std_activity,
                     mean_activity + std_activity, alpha=0.3, label='±1 SD')
axes[1].axhline(0, color='k', linestyle='--', alpha=0.3)
axes[1].set_xlabel('Time (ms)')
axes[1].set_ylabel('Position')
axes[1].set_title('Population Average Activity')
axes[1].legend()
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Observations:")
print(f"1. All oscillators have same intrinsic frequency (identical parameters)")
print(f"2. Random initial conditions → different phases")
print(f"3. Without coupling, units oscillate independently")
print(f"4. Population mean ~ 0 due to phase cancellation")

../_images/2c1dd126479ae20c58e3589bbffd9e3c5e8f6394cd40b6a4d0f71bc46cb69a85.png

Observations:
All oscillators have same intrinsic frequency (identical parameters)
Random initial conditions → different phases
Without coupling, units oscillate independently
Population mean ~ 0 due to phase cancellation

Section 8: Heterogeneous Network#

Real neural populations exhibit heterogeneity in their intrinsic properties. Let’s explore networks with distributed parameters.

# Create heterogeneous network with distributed omega and gamma values
np.random.seed(123)
omega_dist = np.random.uniform(0.15, 0.35, N_units)  # Frequency distribution
gamma_dist = np.random.uniform(0.005, 0.015, N_units)  # Damping distribution

model_hetero = brainmass.HORNStep(
    N_units,
    omega=omega_dist,
    gamma=gamma_dist,
    alpha=0.04,
    v=0.0,
)

model_hetero.init_all_states()
model_hetero.x.value = jnp.array(np.random.randn(N_units) * 0.5)
model_hetero.y.value = jnp.array(np.random.randn(N_units) * 0.1)

# Simulate without coupling
def step(i):
    model_hetero.update(0.)
    return model_hetero.x.value


x_hetero = brainstate.transform.for_loop(step, np.arange(n_steps_net))
x_hetero = np.array(x_hetero)

print(f"Simulated heterogeneous network:")
print(f"  Omega range: [{omega_dist.min():.3f}, {omega_dist.max():.3f}] rad/timestep")
print(f"  Gamma range: [{gamma_dist.min():.3f}, {gamma_dist.max():.3f}]")

Simulated heterogeneous network:
  Omega range: [0.162, 0.346] rad/timestep
  Gamma range: [0.006, 0.013]

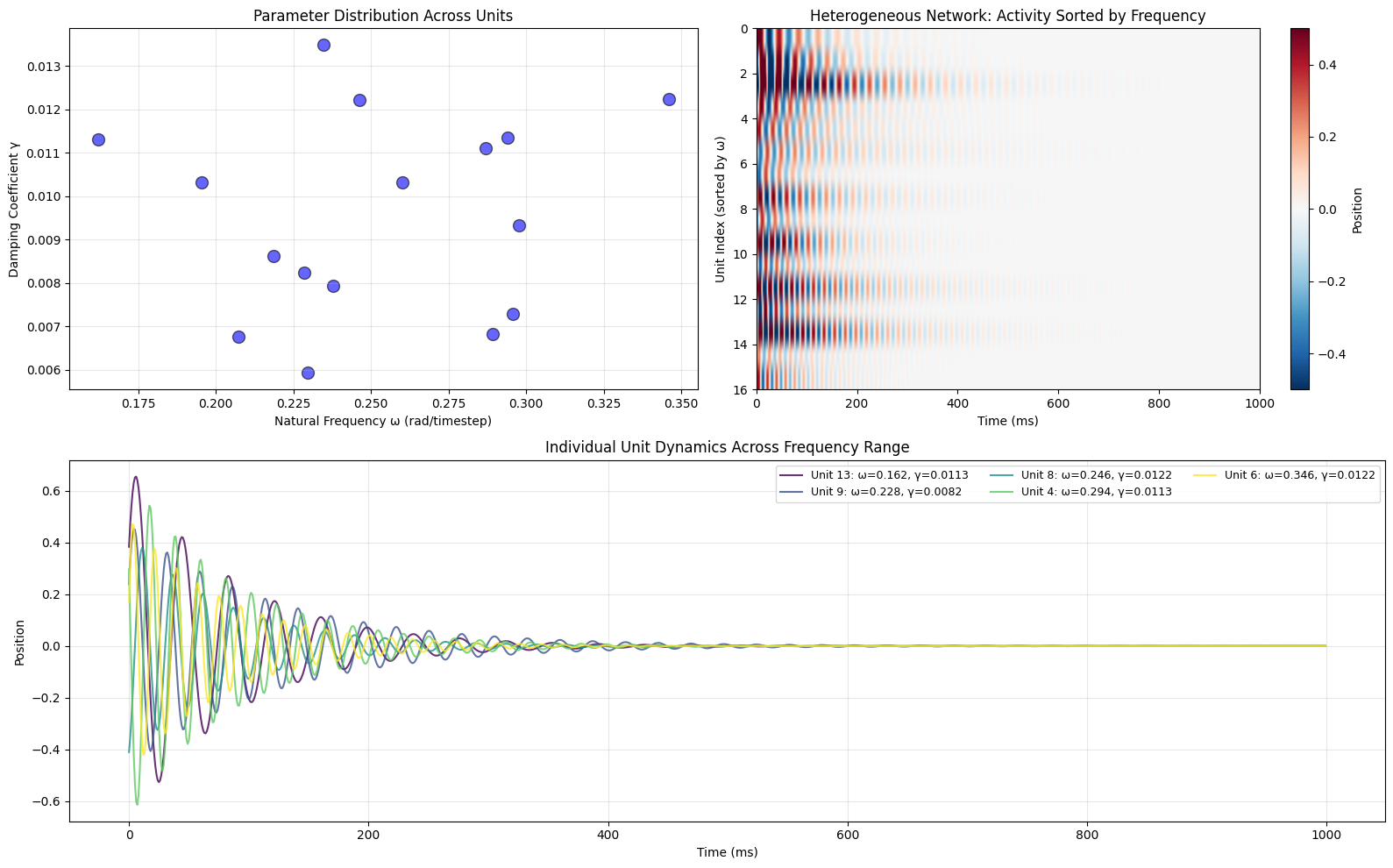

# Visualization: Heterogeneous network
fig = plt.figure(figsize=(16, 10))
gs = GridSpec(2, 2, figure=fig)

# Panel 1: Parameter distributions
ax1 = fig.add_subplot(gs[0, 0])
ax1.scatter(omega_dist, gamma_dist, c='blue', s=100, alpha=0.6, edgecolors='black')
ax1.set_xlabel('Natural Frequency ω (rad/timestep)')
ax1.set_ylabel('Damping Coefficient γ')
ax1.set_title('Parameter Distribution Across Units')
ax1.grid(True, alpha=0.3)

# Panel 2: Activity heatmap sorted by omega
ax2 = fig.add_subplot(gs[0, 1])
sorted_idx = np.argsort(omega_dist)
im = ax2.imshow(x_hetero[:, sorted_idx].T,
                aspect='auto',
                cmap='RdBu_r',
                extent=[0, T_net, N_units, 0],
                vmin=-0.5,
                vmax=0.5)
ax2.set_xlabel('Time (ms)')
ax2.set_ylabel('Unit Index (sorted by ω)')
ax2.set_title('Heterogeneous Network: Activity Sorted by Frequency')
plt.colorbar(im, ax=ax2, label='Position')

# Panel 3: Individual traces for units with different omega
ax3 = fig.add_subplot(gs[1, :])
# Select 5 units spanning the omega range
selected_units = sorted_idx[[0, 4, 8, 12, 15]]
colors = plt.cm.viridis(np.linspace(0, 1, 5))

for idx, unit in enumerate(selected_units):
    ax3.plot(times_net, x_hetero[:, unit], color=colors[idx],
             linewidth=1.5, alpha=0.8,
             label=f'Unit {unit}: ω={omega_dist[unit]:.3f}, γ={gamma_dist[unit]:.4f}')

ax3.set_xlabel('Time (ms)')
ax3.set_ylabel('Position')
ax3.set_title('Individual Unit Dynamics Across Frequency Range')
ax3.legend(ncol=3, fontsize=9)
ax3.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Key Observations:")
print(f"1. Units with different ω oscillate at different frequencies")
print(f"2. Frequency clustering visible in sorted heatmap (diagonal stripes)")
print(f"3. Units with similar ω show correlated activity patterns")
print(f"4. Heterogeneity increases richness of network dynamics")
print(f"5. Relevant for modeling diverse neural populations")

../_images/006b87fd355d9472e883b1284d65fd8b72a72dee09d418bc1282c62e2ee7ce7b.png

Key Observations:
Units with different ω oscillate at different frequencies
Frequency clustering visible in sorted heatmap (diagonal stripes)
Units with similar ω show correlated activity patterns
Heterogeneity increases richness of network dynamics
Relevant for modeling diverse neural populations

References:#

Rusch T K, Mishra S. “Coupled Oscillatory Recurrent Neural Network (coRNN): An accurate and (gradient) stable architecture for learning long time dependencies.” ICLR 2021.
Buzsáki G, Draguhn A. “Neuronal oscillations in cortical networks.” Science 304.5679 (2004): 1926-1929.
Breakspear M. “Dynamic models of large-scale brain activity.” Nature Neuroscience 20.3 (2017): 340-352.
Goldstein H, Poole C, Safko J. Classical Mechanics (3rd ed.). Addison Wesley, 2002.
