Comparing 2D Oscillators

Comparing 2D Oscillators#

A systematic comparison of Hopf, Stuart-Landau, and Van der Pol oscillators.

Learning Objectives#

By the end of this tutorial, you will be able to:

Compare the mathematical formulations of three fundamental oscillators
Distinguish between harmonic and relaxation oscillations in phase space
Choose the appropriate oscillator model for different neuroscience applications
Understand how bifurcation parameters control oscillation properties

Background / Theory#

The Three Oscillators#

All three oscillators are two-dimensional dynamical systems with state variables \((x, y)\), but they differ fundamentally in their nonlinearity:

Oscillator	Equations	Nonlinearity Type
Hopf	\(\dot{x} = (a - \beta r^2)x - \omega y\)	Amplitude saturation
Stuart-Landau	\(\dot{x} = (a - r^2)x - \omega y\)	Amplitude saturation (\(\beta=1\))
Van der Pol	\(\dot{x} = \mu(x - x^3/3 - y)\)	Nonlinear damping

Key Properties#

Property	Hopf	Stuart-Landau	Van der Pol
Bifurcation parameter	\(a\)	\(a\)	Always oscillates (\(\mu > 0\))
Limit cycle amplitude	\(\sqrt{a/\beta}\)	\(\sqrt{a}\)	\(\approx 2\) (fixed)
Waveform	Sinusoidal	Sinusoidal	Relaxation (high \(\mu\))
Phase portrait	Circular	Circular	Distorted
Subcritical regime	\(a < 0\)	\(a < 0\)	N/A

When to Use Each#

Application	Recommended Oscillator
Amplitude-tunable rhythms	Hopf or Stuart-Landau
Canonical Hopf normal form	Stuart-Landau
Flexible amplitude control	Hopf (with \(\beta\))
Bursting/spiking neurons	Van der Pol
Slow-fast dynamics	Van der Pol (high \(\mu\))

Implementation#

Step 1: Setup and Imports#

import brainunit as u
import matplotlib.pyplot as plt
import numpy as np

import brainmass
import brainstate

# Set simulation time step
brainstate.environ.set(dt=0.1 * u.ms)

# Plotting settings
plt.rcParams['figure.dpi'] = 100
plt.rcParams['font.size'] = 10

def simulate_oscillator(model, n_steps=3000, init_x=0.5, init_y=0.0):
    """Simulate an oscillator and return time, x, y trajectories."""
    model.init_all_states()
    model.x.value = np.array([init_x])
    model.y.value = np.array([init_y])

    def step(i):
        model.update()
        return model.x.value, model.y.value

    x, y = brainstate.transform.for_loop(step, np.arange(n_steps))
    t = np.arange(n_steps) * brainstate.environ.get_dt()
    return t, x.flatten(), y.flatten()

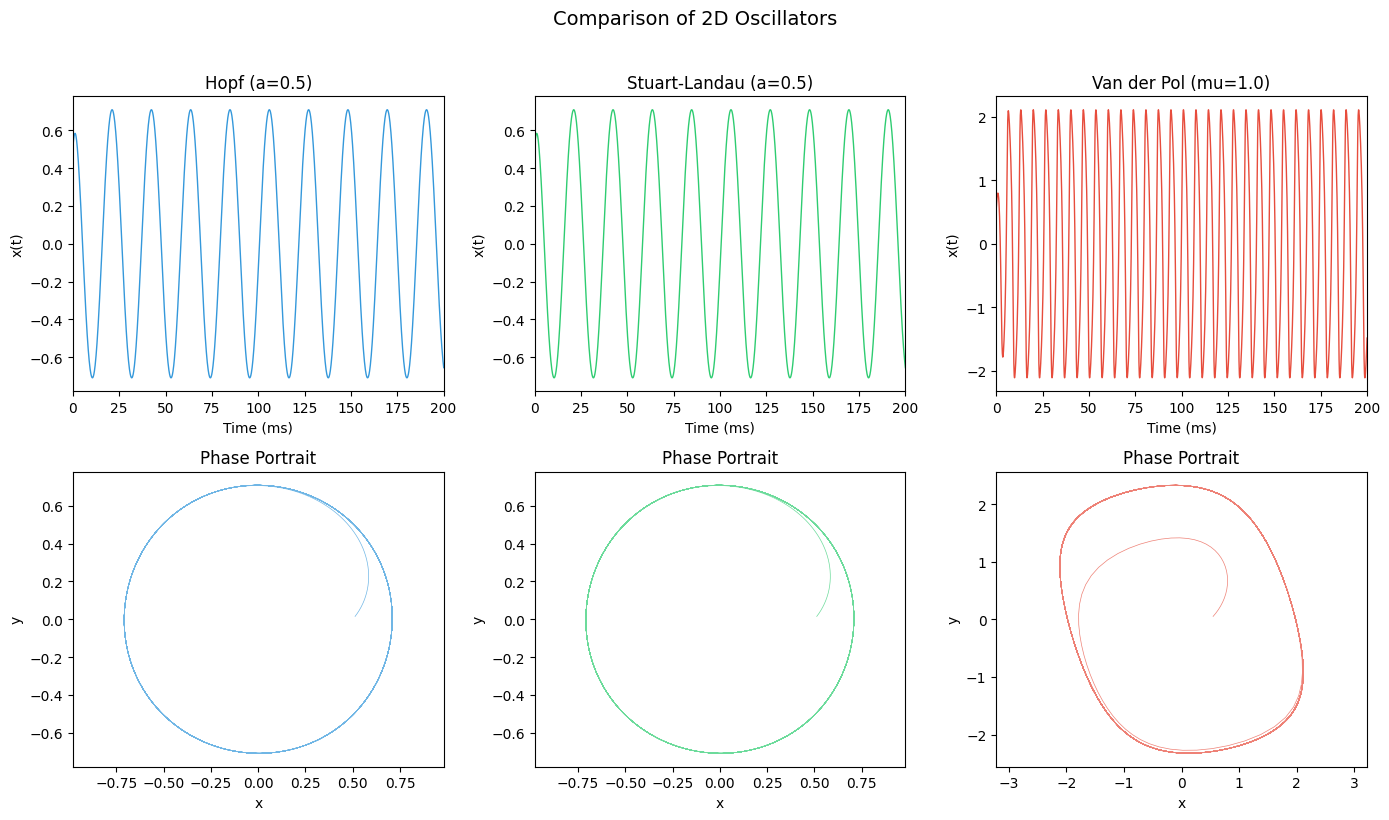

Step 2: Direct Comparison#

Simulate all three oscillators with comparable parameters:

# Create oscillators
hopf = brainmass.HopfStep(1, a=0.5, w=0.3, beta=1.0)
stuart_landau = brainmass.StuartLandauStep(1, a=0.5, w=0.3)
van_der_pol = brainmass.VanDerPolStep(1, mu=1.0)

# Simulate
t_hopf, x_hopf, y_hopf = simulate_oscillator(hopf)
t_sl, x_sl, y_sl = simulate_oscillator(stuart_landau)
t_vdp, x_vdp, y_vdp = simulate_oscillator(van_der_pol)

fig, axes = plt.subplots(2, 3, figsize=(14, 8))

# Colors
colors = ['#3498db', '#2ecc71', '#e74c3c']
titles = ['Hopf (a=0.5)', 'Stuart-Landau (a=0.5)', 'Van der Pol (mu=1.0)']
data = [(t_hopf, x_hopf, y_hopf), (t_sl, x_sl, y_sl), (t_vdp, x_vdp, y_vdp)]

for col, (t, x, y) in enumerate(data):
    # Time series (top row)
    axes[0, col].plot(t, x, color=colors[col], linewidth=1)
    axes[0, col].set_xlabel('Time (ms)')
    axes[0, col].set_ylabel('x(t)')
    axes[0, col].set_title(titles[col])
    axes[0, col].set_xlim([0, 200])

    # Phase portrait (bottom row)
    axes[1, col].plot(x, y, color=colors[col], linewidth=0.5, alpha=0.7)
    axes[1, col].set_xlabel('x')
    axes[1, col].set_ylabel('y')
    axes[1, col].set_title('Phase Portrait')
    axes[1, col].set_aspect('equal', adjustable='datalim')

plt.suptitle('Comparison of 2D Oscillators', fontsize=14, y=1.02)
plt.tight_layout()
plt.show()

../_images/329094d6dd1d5a9ef29ca0d4f1db6dfb5e8a6fcb67e13b8bd9438e12455b05d1.png

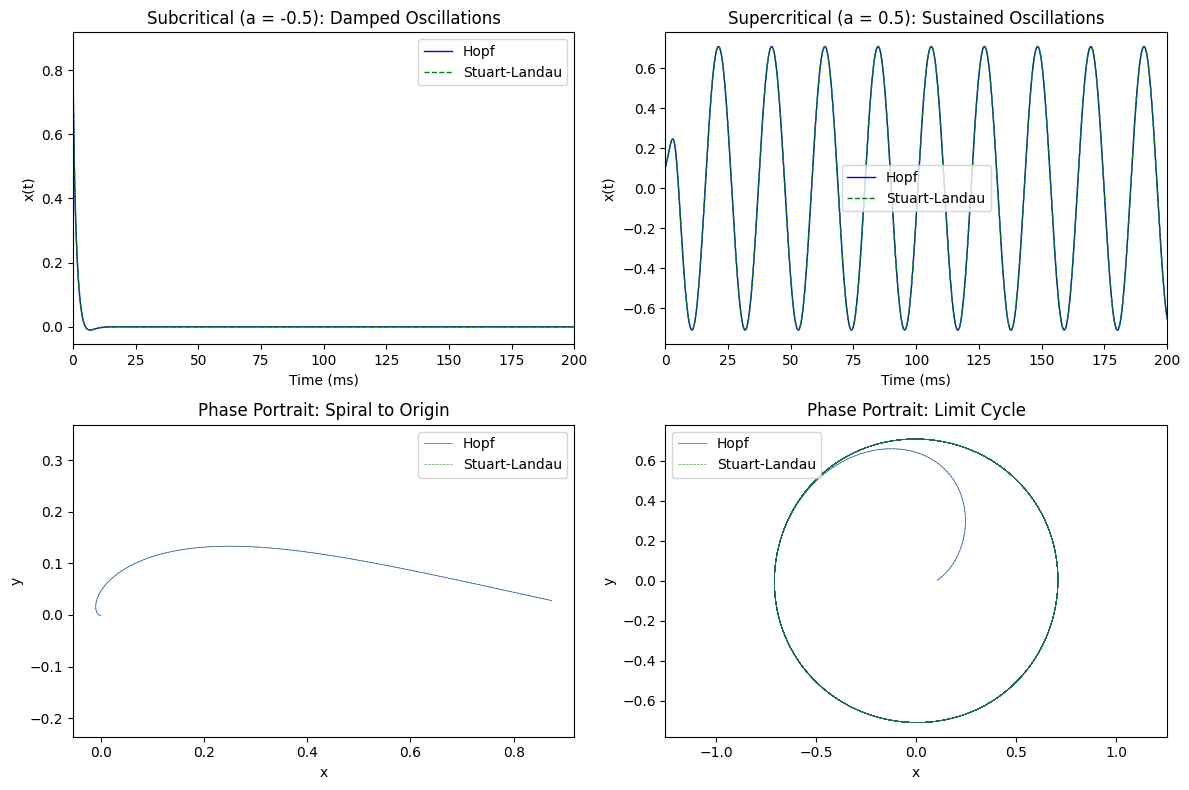

Step 3: Subcritical vs Supercritical Regimes#

Compare damped and sustained oscillation regimes:

fig, axes = plt.subplots(2, 2, figsize=(12, 8))

# Subcritical (a < 0) - damped oscillations
hopf_sub = brainmass.HopfStep(1, a=-0.5, w=0.3, beta=1.0)
sl_sub = brainmass.StuartLandauStep(1, a=-0.5, w=0.3)

t_h_sub, x_h_sub, y_h_sub = simulate_oscillator(hopf_sub, init_x=1.0)
t_s_sub, x_s_sub, y_s_sub = simulate_oscillator(sl_sub, init_x=1.0)

# Supercritical (a > 0) - sustained oscillations
hopf_sup = brainmass.HopfStep(1, a=0.5, w=0.3, beta=1.0)
sl_sup = brainmass.StuartLandauStep(1, a=0.5, w=0.3)

t_h_sup, x_h_sup, y_h_sup = simulate_oscillator(hopf_sup, init_x=0.1)
t_s_sup, x_s_sup, y_s_sup = simulate_oscillator(sl_sup, init_x=0.1)

# Plot subcritical
axes[0, 0].plot(t_h_sub, x_h_sub, 'b-', label='Hopf', linewidth=1)
axes[0, 0].plot(t_s_sub, x_s_sub, 'g--', label='Stuart-Landau', linewidth=1)
axes[0, 0].set_xlabel('Time (ms)')
axes[0, 0].set_ylabel('x(t)')
axes[0, 0].set_title('Subcritical (a = -0.5): Damped Oscillations')
axes[0, 0].legend()
axes[0, 0].set_xlim([0, 200])

axes[1, 0].plot(x_h_sub, y_h_sub, 'b-', label='Hopf', linewidth=0.5, alpha=0.7)
axes[1, 0].plot(x_s_sub, y_s_sub, 'g--', label='Stuart-Landau', linewidth=0.5, alpha=0.7)
axes[1, 0].set_xlabel('x')
axes[1, 0].set_ylabel('y')
axes[1, 0].set_title('Phase Portrait: Spiral to Origin')
axes[1, 0].legend()
axes[1, 0].set_aspect('equal', adjustable='datalim')

# Plot supercritical
axes[0, 1].plot(t_h_sup, x_h_sup, 'b-', label='Hopf', linewidth=1)
axes[0, 1].plot(t_s_sup, x_s_sup, 'g--', label='Stuart-Landau', linewidth=1)
axes[0, 1].set_xlabel('Time (ms)')
axes[0, 1].set_ylabel('x(t)')
axes[0, 1].set_title('Supercritical (a = 0.5): Sustained Oscillations')
axes[0, 1].legend()
axes[0, 1].set_xlim([0, 200])

axes[1, 1].plot(x_h_sup, y_h_sup, 'b-', label='Hopf', linewidth=0.5, alpha=0.7)
axes[1, 1].plot(x_s_sup, y_s_sup, 'g--', label='Stuart-Landau', linewidth=0.5, alpha=0.7)
axes[1, 1].set_xlabel('x')
axes[1, 1].set_ylabel('y')
axes[1, 1].set_title('Phase Portrait: Limit Cycle')
axes[1, 1].legend()
axes[1, 1].set_aspect('equal', adjustable='datalim')

plt.tight_layout()
plt.show()

../_images/22e440af6562ccae75737197e47bb3d56ae05aaf4c130ef994370f62a7e32d0a.png

Step 4: Van der Pol - Transition to Relaxation Oscillations#

Explore how \(\mu\) affects the waveform:

mu_values = [0.2, 1.0, 3.0, 8.0]
colors = plt.cm.plasma(np.linspace(0.2, 0.9, len(mu_values)))

fig, axes = plt.subplots(2, len(mu_values), figsize=(16, 6))

for idx, (mu, color) in enumerate(zip(mu_values, colors)):
    vdp = brainmass.VanDerPolStep(1, mu=mu)
    t, x, y = simulate_oscillator(vdp, n_steps=5000)

    # Time series (show steady state)
    axes[0, idx].plot(t[-2000:], x[-2000:], color=color, linewidth=1)
    axes[0, idx].set_xlabel('Time (ms)')
    if idx == 0:
        axes[0, idx].set_ylabel('x(t)')
    axes[0, idx].set_title(f'$\\mu$ = {mu}')

    # Phase portrait
    axes[1, idx].plot(x[-2000:], y[-2000:], color=color, linewidth=0.5, alpha=0.7)
    axes[1, idx].set_xlabel('x')
    if idx == 0:
        axes[1, idx].set_ylabel('y')

plt.suptitle('Van der Pol: Harmonic to Relaxation Transition', fontsize=14, y=1.02)
plt.tight_layout()
plt.show()

Step 5: Waveform Shape Comparison#

Overlay normalized waveforms to highlight shape differences:

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# Create oscillators with similar frequencies
hopf = brainmass.HopfStep(1, a=1.0, w=0.5, beta=1.0)
vdp_low = brainmass.VanDerPolStep(1, mu=0.5)
vdp_high = brainmass.VanDerPolStep(1, mu=5.0)

t_h, x_h, _ = simulate_oscillator(hopf, n_steps=3000)
t_vl, x_vl, _ = simulate_oscillator(vdp_low, n_steps=3000)
t_vh, x_vh, _ = simulate_oscillator(vdp_high, n_steps=3000)


# Normalize for comparison
def normalize(x):
    x = x[-1000:]  # Steady state
    return (x - x.mean()) / (x.max() - x.min())


x_h_norm = normalize(x_h)
x_vl_norm = normalize(x_vl)
x_vh_norm = normalize(x_vh)

# One cycle comparison
n_samples = 150
axes[0].plot(np.linspace(0, 1, n_samples), x_h_norm[:n_samples], 'b-', label='Hopf (sinusoidal)', linewidth=2)
axes[0].plot(np.linspace(0, 1, n_samples), x_vl_norm[:n_samples], 'g--', label='VdP (mu=0.5)', linewidth=2)
axes[0].set_xlabel('Normalized Period')
axes[0].set_ylabel('Normalized Amplitude')
axes[0].set_title('Hopf vs Low-mu Van der Pol')
axes[0].legend()

# Add reference sine wave
t_ref = np.linspace(0, 2 * np.pi, n_samples)
axes[0].plot(np.linspace(0, 1, n_samples), 0.5 * np.sin(t_ref), 'k:', alpha=0.5, label='Pure sine')

# Relaxation comparison
axes[1].plot(np.linspace(0, 1, n_samples), x_h_norm[:n_samples], 'b-', label='Hopf (sinusoidal)', linewidth=2)
axes[1].plot(np.linspace(0, 1, n_samples), x_vh_norm[:n_samples], 'r-', label='VdP (mu=5.0, relaxation)', linewidth=2)
axes[1].set_xlabel('Normalized Period')
axes[1].set_ylabel('Normalized Amplitude')
axes[1].set_title('Hopf vs High-mu Van der Pol')
axes[1].legend()

plt.tight_layout()
plt.show()

Step 6: Amplitude Control Comparison#

Compare how each oscillator’s amplitude responds to parameter changes:

fig, axes = plt.subplots(1, 3, figsize=(14, 4))

# Hopf: vary a
a_values = np.linspace(0.1, 2.0, 10)
hopf_amplitudes = []
for a in a_values:
    model = brainmass.HopfStep(1, a=a, w=0.3, beta=1.0)
    _, x, _ = simulate_oscillator(model, n_steps=2000)
    hopf_amplitudes.append((x[-500:].max() - x[-500:].min()) / 2)

axes[0].plot(a_values, hopf_amplitudes, 'bo-', linewidth=2, markersize=6)
axes[0].plot(a_values, np.sqrt(a_values), 'r--', linewidth=2, label=r'$\sqrt{a}$ (theory)')
axes[0].set_xlabel('a')
axes[0].set_ylabel('Amplitude')
axes[0].set_title('Hopf: Amplitude vs a')
axes[0].legend()

# Stuart-Landau: same as Hopf with beta=1
sl_amplitudes = []
for a in a_values:
    model = brainmass.StuartLandauStep(1, a=a, w=0.3)
    _, x, _ = simulate_oscillator(model, n_steps=2000)
    sl_amplitudes.append((x[-500:].max() - x[-500:].min()) / 2)

axes[1].plot(a_values, sl_amplitudes, 'go-', linewidth=2, markersize=6)
axes[1].plot(a_values, np.sqrt(a_values), 'r--', linewidth=2, label=r'$\sqrt{a}$ (theory)')
axes[1].set_xlabel('a')
axes[1].set_ylabel('Amplitude')
axes[1].set_title('Stuart-Landau: Amplitude vs a')
axes[1].legend()

# Van der Pol: amplitude is roughly fixed (~2)
mu_values = np.linspace(0.5, 10, 10)
vdp_amplitudes = []
for mu in mu_values:
    model = brainmass.VanDerPolStep(1, mu=mu)
    _, x, _ = simulate_oscillator(model, n_steps=5000)
    vdp_amplitudes.append((x[-1000:].max() - x[-1000:].min()) / 2)

axes[2].plot(mu_values, vdp_amplitudes, 'ro-', linewidth=2, markersize=6)
axes[2].axhline(2.0, color='k', linestyle='--', label='~2 (theoretical)')
axes[2].set_xlabel(r'$\mu$')
axes[2].set_ylabel('Amplitude')
axes[2].set_title(r'Van der Pol: Amplitude vs $\mu$')
axes[2].legend()

plt.tight_layout()
plt.show()

Step 7: Frequency Analysis#

Compare spectral properties:

from scipy import signal

fig, axes = plt.subplots(1, 3, figsize=(14, 4))

# Create oscillators
hopf = brainmass.HopfStep(1, a=1.0, w=0.5, beta=1.0)
vdp_low = brainmass.VanDerPolStep(1, mu=0.5)
vdp_high = brainmass.VanDerPolStep(1, mu=5.0)

models = [hopf, vdp_low, vdp_high]
titles = ['Hopf (sinusoidal)', 'VdP (mu=0.5)', 'VdP (mu=5.0, relaxation)']
colors = ['#3498db', '#2ecc71', '#e74c3c']

dt_ms = float(brainstate.environ.get_dt() / u.ms)
fs = 1000 / dt_ms  # Sampling frequency in Hz

for idx, (model, title, color) in enumerate(zip(models, titles, colors)):
    t, x, _ = simulate_oscillator(model, n_steps=10000)
    x_ss = x[-5000:]  # Steady state

    # Power spectrum
    f, Pxx = signal.welch(x_ss, fs=fs, nperseg=1024)

    axes[idx].semilogy(f, Pxx, color=color, linewidth=2)
    axes[idx].set_xlabel('Frequency (Hz)')
    axes[idx].set_ylabel('Power')
    axes[idx].set_title(title)
    axes[idx].set_xlim([0, 200])

    # Mark harmonics
    peak_idx = np.argmax(Pxx[f < 100])
    f_peak = f[peak_idx]
    axes[idx].axvline(f_peak, color='red', linestyle='--', alpha=0.5, label=f'f0={f_peak:.1f} Hz')
    axes[idx].legend()

plt.suptitle('Power Spectra: Harmonic Content', fontsize=14, y=1.02)
plt.tight_layout()
plt.show()

Step 8: Summary Table#

Summary Table#

Property	Hopf Oscillator	Stuart-Landau	Van der Pol
Bifurcation parameter	\(a\)	\(a\)	Always oscillates for \(\mu > 0\)
Limit cycle amplitude	\(\sqrt{a/\beta}\)	\(\sqrt{a}\)	\(\approx 2\) (fixed)
Waveform shape	Sinusoidal	Sinusoidal	Relaxation (at high \(\mu\))
Phase portrait	Circular	Circular	Distorted
Nonlinearity source	Amplitude saturation	Amplitude saturation	Nonlinear damping
Neuroscience use	Neural oscillators	Phase amplitude coupling	Bursting neurons

Exercises#

Exercise 1: Hopf Beta Parameter#

Explore how the \(\beta\) parameter in Hopf affects amplitude:

beta_values = [0.5, 1.0, 2.0, 4.0]
# With fixed a=1.0, the amplitude should be sqrt(a/beta)
# Verify this relationship numerically

Exercise 2: Phase Response#

Apply a brief perturbation to each oscillator and compare recovery:

# At t=500ms, add a perturbation to x
# How quickly does each oscillator return to the limit cycle?

Exercise 3: Noise Sensitivity#

Add OU noise to each oscillator and compare variability:

noise = brainmass.OUProcess(1, sigma=0.1, tau=10.0 * u.ms)
# Question: Which oscillator is most robust to noise?

Summary#

In this tutorial, you learned:

Three fundamental oscillators: Hopf, Stuart-Landau, and Van der Pol
Harmonic vs relaxation oscillations: Different nonlinearity sources
Amplitude control: \(\sqrt{a/\beta}\) for Hopf, \(\sqrt{a}\) for Stuart-Landau, fixed for Van der Pol
Parameter regimes: Subcritical (damped) vs supercritical (sustained)

Key Insights#

Need	Best Choice
Tunable amplitude rhythms	Hopf or Stuart-Landau
Canonical bifurcation analysis	Stuart-Landau
Sharp spike-like waveforms	Van der Pol (high \(\mu\))
Slow-fast neural dynamics	Van der Pol

Relationship to Neural Models#

Hopf/Stuart-Landau: Model neural oscillations with controllable power
Van der Pol: Closely related to FitzHugh-Nagumo (Tutorial 014)
All three can be extended to networks with coupling

References#

Strogatz, S. H. (2015). Nonlinear Dynamics and Chaos. Westview Press. (Chapters 7-8)
Izhikevich, E. M. (2007). Dynamical Systems in Neuroscience. MIT Press. (Chapter 4)
van der Pol, B. (1926). On relaxation-oscillations. The London, Edinburgh, and Dublin Philosophical Magazine, 2(11), 978-992.
Stuart, J. T. (1960). On the non-linear mechanics of wave disturbances. Journal of Fluid Mechanics, 9(3), 353-370.
