The QIF Mean-Field Model

The QIF Mean-Field Model#

An exact mean-field reduction of spiking neural populations using the Montbrio-Pazo-Roxin framework.

Learning Objectives#

By the end of this tutorial, you will be able to:

Understand the QIF mean-field reduction and why it’s exact
Explain the role of the Lorentzian distribution of excitabilities
Simulate population firing rate and mean membrane potential dynamics
Analyze bifurcations in the QIF model as a function of external input

Background / Theory#

From Spiking Neurons to Mean Fields#

Most neural mass models (Wilson-Cowan, Jansen-Rit) are phenomenological - they capture qualitative features but aren’t derived from spiking neuron dynamics.

The Quadratic Integrate-and-Fire (QIF) mean-field model is different: it’s an exact reduction of a population of QIF neurons with heterogeneous excitabilities.

The Montbrio-Pazo-Roxin Reduction#

Consider \(N\) all-to-all coupled QIF neurons:

\[ \tau \dot{V}_j = V_j^2 + \eta_j + I(t) + J\tau r(t) \]

where \(\eta_j\) is drawn from a Lorentzian distribution with mean \(\bar{\eta}\) and width \(\Delta\).

Remarkably, in the limit \(N \to \infty\), this reduces exactly to:

\[\begin{split} \begin{aligned} \tau\dot{r} &= \frac{\Delta}{\pi} + 2\tau r v \\ \tau\dot{v} &= v^2 + \bar{\eta} + I(t) + J\tau r - (\pi\tau r)^2 \end{aligned} \end{split}\]

where:

\(r\): Population firing rate
\(v\): Mean membrane potential

Key Parameters#

Parameter	Symbol	Description
Time constant	\(\tau\)	Membrane time constant
Mean excitability	\(\bar{\eta}\)	Center of Lorentzian distribution
Heterogeneity	\(\Delta\)	Width of Lorentzian (HWHM)
Coupling	\(J\)	Recurrent synaptic strength

Why Is This Important?#

Exact reduction: No approximations needed (unlike firing rate models)
Captures heterogeneity: The \(\Delta\) parameter models neuron-to-neuron variability
Biophysically grounded: Directly relates to spiking neuron properties
Low-dimensional: Only 2 variables describe the entire population

Implementation#

Step 1: Setup and Imports#

import brainstate
import brainunit as u
import matplotlib.pyplot as plt
import numpy as np

import brainmass

# Set simulation time step
brainstate.environ.set(dt=0.01 * u.ms)  # Fine timestep for accuracy

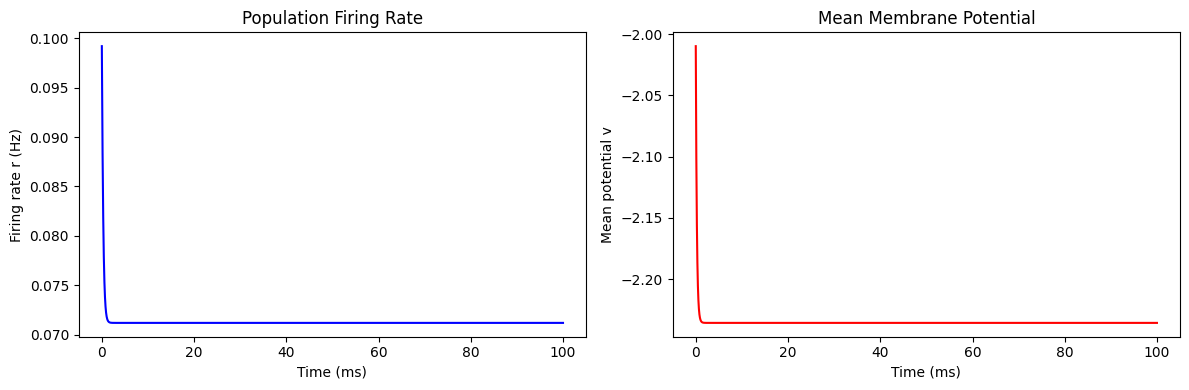

Step 2: Single Population Simulation#

Create a QIF population and observe its dynamics:

# Create QIF model
model = brainmass.MontbrioPazoRoxinStep(
    in_size=1,  # single population
    tau=1.0 * u.ms,  # time constant
    eta=-5.0,  # mean excitability (negative = subthreshold)
    delta=1.0 * u.Hz,  # heterogeneity (Lorentzian width)
    J=15.0,  # recurrent coupling strength
)

# Initialize states
brainstate.nn.init_all_states(model)

# Set non-zero initial firing rate
model.r.value = np.array([0.1]) * u.Hz
model.v.value = np.array([-2.0])

print(f"tau = {model.tau.value()}")
print(f"eta = {model.eta.value()}")
print(f"delta = {model.delta.value()}")
print(f"J = {model.J.value()}")

tau = 1. ms
eta = -5.0
delta = 1. Hz
J = 15.0

# Define simulation step
def step_run(i):
    with brainstate.environ.context(i=i, t=i * brainstate.environ.get_dt()):
        r = model.update()
        return model.r.value, model.v.value


# Run simulation (100 ms)
n_steps = int(100 * u.ms / brainstate.environ.get_dt())
indices = np.arange(n_steps)
r_trace, v_trace = brainstate.transform.for_loop(step_run, indices)

t_ms = indices * brainstate.environ.get_dt()

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# Firing rate
axes[0].plot(t_ms, r_trace[:, 0], 'b-', linewidth=1.5)
axes[0].set_xlabel('Time (ms)')
axes[0].set_ylabel('Firing rate r (Hz)')
axes[0].set_title('Population Firing Rate')

# Mean membrane potential
axes[1].plot(t_ms, v_trace[:, 0], 'r-', linewidth=1.5)
axes[1].set_xlabel('Time (ms)')
axes[1].set_ylabel('Mean potential v')
axes[1].set_title('Mean Membrane Potential')

plt.tight_layout()
plt.show()

../_images/603a89da633beb154c5b8afd5e42347a778b4aae08b8caea3934084a0ee3a479.png

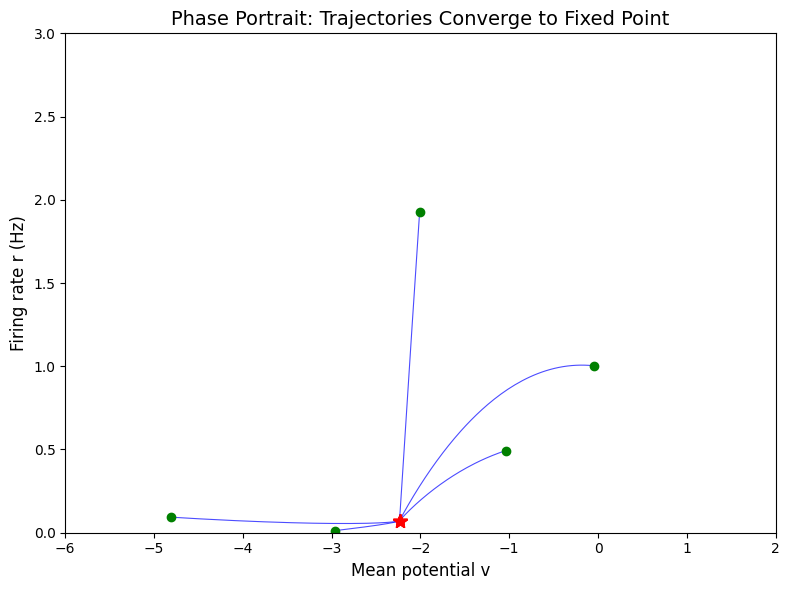

Step 3: Phase Portrait#

The (r, v) phase space reveals the attractor structure:

# Run multiple trajectories with different initial conditions
fig, ax = plt.subplots(figsize=(8, 6))

init_conditions = [
    (0.01, -3.0),
    (0.5, -1.0),
    (1.0, 0.0),
    (0.1, -5.0),
    (2.0, -2.0),
]

for r0, v0 in init_conditions:
    model = brainmass.MontbrioPazoRoxinStep(in_size=1, tau=1.0 * u.ms, eta=-5.0, delta=1.0 * u.Hz, J=15.0)
    brainstate.nn.init_all_states(model)
    model.r.value = np.array([r0]) * u.Hz
    model.v.value = np.array([v0])


    def step(i):
        with brainstate.environ.context(i=i, t=i * brainstate.environ.get_dt()):
            model.update()
            return model.r.value, model.v.value


    r, v = brainstate.transform.for_loop(step, np.arange(int(50 * u.ms / brainstate.environ.get_dt())))

    ax.plot(v[:, 0], r[:, 0], 'b-', linewidth=0.8, alpha=0.7)
    ax.plot(v[0, 0], float(r[0, 0] / u.Hz), 'go', markersize=6)
    ax.plot(v[-1, 0], float(r[-1, 0] / u.Hz), 'r*', markersize=10)

ax.set_xlabel('Mean potential v', fontsize=12)
ax.set_ylabel('Firing rate r (Hz)', fontsize=12)
ax.set_title('Phase Portrait: Trajectories Converge to Fixed Point', fontsize=14)
ax.set_xlim([-6, 2])
ax.set_ylim([0, 3])
plt.tight_layout()
plt.show()

../_images/07f0decfec77846082c2ff55e1c2385ca9fc39cddb8097a9f2c6845ca55416ba.png

Step 4: Response to External Input#

The QIF model responds to external input \(I(t)\):

# Create model with noise for realism
model = brainmass.MontbrioPazoRoxinStep(
    in_size=1,
    tau=1.0 * u.ms,
    eta=-5.0,
    delta=1.0 * u.Hz,
    J=15.0,
    noise_r=brainmass.OUProcess(1, sigma=0.1 * u.Hz, tau=1.0 * u.ms),
)
model.init_all_states()


# External input: step function
def get_input(t):
    """Step input at t=50ms"""
    return u.math.where(t > 50. * u.ms, 5.0, 0.0)


def step_run(i):
    t = i * brainstate.environ.get_dt()
    v_inp = get_input(t)
    with brainstate.environ.context(i=i, t=t):
        model.update(v_inp=v_inp)
        return model.r.value, model.v.value


# Simulate
n_steps = int(150 * u.ms / brainstate.environ.get_dt())
r_trace, v_trace = brainstate.transform.for_loop(step_run, np.arange(n_steps))
t_ms = np.arange(n_steps) * brainstate.environ.get_dt()

fig, axes = plt.subplots(3, 1, figsize=(10, 8), sharex=True)

# External input
input_trace = [get_input(t) for t in t_ms]
axes[0].plot(t_ms, input_trace, 'k-', linewidth=2)
axes[0].set_ylabel('External Input')
axes[0].set_title('Step Input Response')
axes[0].axvline(50, color='gray', linestyle='--', alpha=0.5)

# Firing rate
axes[1].plot(t_ms, r_trace[:, 0], 'b-', linewidth=1)
axes[1].set_ylabel('Firing rate (Hz)')
axes[1].axvline(50, color='gray', linestyle='--', alpha=0.5)

# Mean potential
axes[2].plot(t_ms, v_trace[:, 0], 'r-', linewidth=1)
axes[2].set_xlabel('Time (ms)')
axes[2].set_ylabel('Mean potential v')
axes[2].axvline(50, color='gray', linestyle='--', alpha=0.5)

plt.tight_layout()
plt.show()

Step 5: Bifurcation Analysis#

Let’s explore how the steady-state firing rate depends on mean excitability \(\bar{\eta}\):

# Sweep eta values
eta_values = np.linspace(-10, 5, 50)
steady_r = []
steady_v = []

for eta_val in eta_values:
    model = brainmass.MontbrioPazoRoxinStep(
        in_size=1,
        tau=1.0 * u.ms,
        eta=eta_val,
        delta=1.0 * u.Hz,
        J=15.0,
    )
    brainstate.nn.init_all_states(model)
    model.r.value = np.array([0.1]) * u.Hz
    model.v.value = np.array([-1.0])


    # Run to steady state
    def step(i):
        with brainstate.environ.context(i=i, t=i * brainstate.environ.get_dt()):
            model.update()
            return model.r.value, model.v.value


    r, v = brainstate.transform.for_loop(step, np.arange(int(100 * u.ms / brainstate.environ.get_dt())))

    # Take final value (steady state)
    steady_r.append(float(r[-1, 0] / u.Hz))
    steady_v.append(v[-1, 0])

steady_r = np.array(steady_r)
steady_v = np.array(steady_v)

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# r vs eta
axes[0].plot(eta_values, steady_r, 'b-', linewidth=2)
axes[0].axhline(0, color='gray', linestyle='--', alpha=0.5)
axes[0].axvline(0, color='gray', linestyle='--', alpha=0.5)
axes[0].set_xlabel(r'Mean excitability $\bar{\eta}$', fontsize=12)
axes[0].set_ylabel('Steady-state firing rate (Hz)', fontsize=12)
axes[0].set_title('Firing Rate vs Excitability')
axes[0].fill_between(eta_values, 0, steady_r, alpha=0.3)

# v vs eta
axes[1].plot(eta_values, steady_v, 'r-', linewidth=2)
axes[1].axhline(0, color='gray', linestyle='--', alpha=0.5)
axes[1].axvline(0, color='gray', linestyle='--', alpha=0.5)
axes[1].set_xlabel(r'Mean excitability $\bar{\eta}$', fontsize=12)
axes[1].set_ylabel('Steady-state mean potential', fontsize=12)
axes[1].set_title('Mean Potential vs Excitability')

plt.suptitle('QIF Bifurcation Diagram', y=1.02, fontsize=14)
plt.tight_layout()
plt.show()

Step 6: Effect of Heterogeneity (\(\Delta\))#

The parameter \(\Delta\) controls population heterogeneity - how diverse the neurons are:

delta_values = [0.1, 0.5, 1.0, 2.0, 5.0]

fig, axes = plt.subplots(1, len(delta_values), figsize=(15, 3))

for idx, delta_val in enumerate(delta_values):
    model = brainmass.MontbrioPazoRoxinStep(
        in_size=1,
        tau=1.0 * u.ms,
        eta=-5.0,
        delta=delta_val * u.Hz,
        J=15.0,
        noise_r=brainmass.OUProcess(1, sigma=0.1 * u.Hz, tau=1.0 * u.ms),
    )
    brainstate.nn.init_all_states(model)
    model.r.value = np.array([1.0]) * u.Hz
    model.v.value = np.array([-1.0])


    def step(i):
        with brainstate.environ.context(i=i, t=i * brainstate.environ.get_dt()):
            model.update()
            return model.r.value


    r = brainstate.transform.for_loop(step, np.arange(int(100 * u.ms / brainstate.environ.get_dt())))
    t = np.arange(len(r)) * brainstate.environ.get_dt()

    axes[idx].plot(t, r[:, 0], 'b-', linewidth=0.8)
    axes[idx].set_title(f'$\Delta$ = {delta_val} Hz')
    axes[idx].set_xlabel('Time (ms)')
    if idx == 0:
        axes[idx].set_ylabel('Firing rate (Hz)')

plt.suptitle('Effect of Population Heterogeneity', y=1.02, fontsize=14)
plt.tight_layout()
plt.show()

Exercises#

Exercise 1: Oscillatory Regime#

The QIF model can exhibit oscillations under certain parameter regimes. Try:

model = brainmass.MontbrioPazoRoxinStep(
    in_size=1,
    tau=1.0 * u.ms,
    eta=5.0,     # Increase eta
    delta=0.5 * u.Hz,  # Reduce heterogeneity
    J=20.0,      # Strong coupling
)

Questions:

Can you find oscillatory dynamics?
What parameter combinations lead to oscillations?

Exercise 2: Multiple Populations#

Create E and I populations:

# Excitatory population
E = brainmass.MontbrioPazoRoxinStep(1, eta=-3.0, J=15.0)
# Inhibitory population
I = brainmass.MontbrioPazoRoxinStep(1, eta=-3.0, J=10.0)

Couple them and observe E-I dynamics.

Exercise 3: Lorentzian Distribution#

Visualize the Lorentzian distribution of excitabilities:

def lorentzian(eta, eta_bar, delta):
    return delta / (np.pi * ((eta - eta_bar)**2 + delta**2))

How does \(\Delta\) affect the distribution shape?

Summary#

In this tutorial, you learned:

QIF mean-field model: An exact reduction of spiking neuron populations
Lorentzian heterogeneity: The \(\Delta\) parameter captures neuron diversity
Two state variables: Population rate \(r\) and mean potential \(v\)
Bifurcation behavior: Transition from low to high firing states

Key Insights#

Exact reduction: Unlike phenomenological models, QIF is mathematically exact
Heterogeneity matters: \(\Delta\) captures realistic neuronal diversity
Computational efficiency: 2 ODEs vs thousands of spiking neurons

Comparison with Other Models#

Model	Type	Basis	Heterogeneity
Wilson-Cowan	Phenomenological	Firing rate	None
Jansen-Rit	Phenomenological	PSP	None
QIF	Exact mean-field	Spiking neurons	Lorentzian

References#

Montbrio, E., Pazo, D., & Roxin, A. (2015). Macroscopic description for networks of spiking neurons. Physical Review X, 5(2), 021028.
Gast, R., Schmidt, H., & Knosche, T. R. (2020). A mean-field description of bursting dynamics in spiking neural networks with short-term adaptation. Neural Computation, 32(9), 1615-1634.
Coombes, S., & Byrne, A. (2019). Next generation neural mass models. Lecture Notes in Nonlinear Dynamics in Computational Neuroscience.
