Comprehensive Wilson-Cowan Model Variants: Simulation & Comparison

Comprehensive Wilson-Cowan Model Variants: Simulation & Comparison#

This notebook provides a comprehensive overview and comparison of all 11 Wilson-Cowan model variants available in the BrainMass library.

Variant Reference Table#

Variant

Key Feature

States

Use Case

WilsonCowanStep

Saturation terms

2 (E,I)

General purpose modeling

WilsonCowanNoSaturationStep

No saturation

2 (E,I)

Simplified dynamics

WilsonCowanSymmetricStep

Unified E/I params

2 (E,I)

Parameter reduction

WilsonCowanSimplifiedStep

2 weights only

2 (E,I)

Pedagogical demonstrations

WilsonCowanLinearStep

ReLU activation

2 (E,I)

Optimization/learning tasks

WilsonCowanDivisiveStep

Gain modulation

2 (E,I)

Visual cortex normalization

WilsonCowanDivisiveInputStep

Input division

2 (E,I)

Contrast normalization

WilsonCowanDelayedStep

Connection delays

2 (E,I)

Network with transmission delays

WilsonCowanAdaptiveStep

Adaptation currents

4 (E,I,aE,aI)

Fatigue/habituation modeling

WilsonCowanThreePopulationStep

Modulatory neurons

3 (E,I,M)

Attention/arousal/neuromodulation

Part 1: Setup and Imports#

import sys

sys.path.append(r'D:\codes\projects\brainmass')
sys.path.append(r'D:\codes\projects\brainstate')

import brainmass
import brainstate
import brainunit as u
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.gridspec import GridSpec

# Set integration time step
brainstate.environ.set(dt=0.1 * u.ms)

# Plotting configuration
plt.rcParams['figure.dpi'] = 100
plt.rcParams['font.size'] = 10

# Color scheme
E_COLOR = '#3498db'  # Blue for Excitation
I_COLOR = '#e74c3c'  # Red for Inhibition
M_COLOR = '#2ecc71'  # Green for Modulator
A_COLOR = '#f39c12'  # Orange for Adaptation

print("✅ All imports successful!")
print(f"   BrainState dt: {brainstate.environ.get_dt()}")

✅ All imports successful!
   BrainState dt: 0.1 ms

Part 2: Individual Variant Demonstrations#

We’ll demonstrate each of the 11 Wilson-Cowan variants individually, showing their unique characteristics.

2.1: WilsonCowanStep (Standard)#

The standard Wilson-Cowan model with saturation terms.

Mathematical Formulation:

\[\tau_E \frac{dr_E}{dt} = -r_E(t) + [1 - r \, r_E(t)] F_E(w_{EE} r_E(t) - w_{EI} r_I(t) + I_E(t))\]
\[\tau_I \frac{dr_I}{dt} = -r_I(t) + [1 - r \, r_I(t)] F_I(w_{IE} r_E(t) - w_{II} r_I(t) + I_I(t))\]

where \(F_j(x) = \frac{1}{1 + e^{-a_j (x - \theta_j)}} - \frac{1}{1 + e^{a_j \theta_j}}\)

Key Features:

  • Saturation term \((1 - r \cdot r_E)\) limits maximum activity

  • Sigmoid transfer function with adjustable gain and threshold

  • 11 parameters total

  • Most versatile variant for general modeling

# Create model
model_standard = brainmass.WilsonCowanStep(
    1,  # Single node
    tau_E=1.0 * u.ms,
    tau_I=1.0 * u.ms,
    a_E=1.2,
    theta_E=2.8,
    a_I=1.0,
    theta_I=4.0,
    wEE=12.,
    wEI=13.,
    wIE=4.,
    wII=11.,
    r=1.
)
model_standard.init_all_states()

# Define simulation
duration = 500 * u.ms
n_steps = int(duration / brainstate.environ.get_dt())
indices = np.arange(n_steps)


# Input: Step function at t=100ms
def step_run(i):
    t = i * brainstate.environ.get_dt()
    inp = u.math.where(t > 100 * u.ms, 2.0, 0.5)  # JAX-compatible conditional
    model_standard.update(rE_inp=inp, rI_inp=0.0)
    return model_standard.rE.value, model_standard.rI.value


# Run simulation
rE_std, rI_std = brainstate.transform.for_loop(step_run, indices)
time = indices * brainstate.environ.get_dt()

# Visualize
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 4))

# Time series
ax1.plot(time, rE_std[:, 0], color=E_COLOR, linewidth=2, label='Excitation (E)')
ax1.plot(time, rI_std[:, 0], color=I_COLOR, linewidth=2, label='Inhibition (I)')
ax1.axvline(100, color='gray', linestyle='--', alpha=0.5, label='Input step')
ax1.set_xlabel('Time (ms)', fontsize=11)
ax1.set_ylabel('Activity', fontsize=11)
ax1.set_title('WilsonCowanStep - Time Series', fontsize=12, fontweight='bold')
ax1.legend(fontsize=10)
ax1.grid(True, alpha=0.3)

# Phase portrait
ax2.plot(rE_std[:, 0], rI_std[:, 0], 'k-', linewidth=1.5, alpha=0.7)
ax2.plot(rE_std[0, 0], rI_std[0, 0], 'go', markersize=10, label='Start', zorder=5)
ax2.plot(rE_std[-1, 0], rI_std[-1, 0], 'r*', markersize=14, label='End', zorder=5)
ax2.set_xlabel('E activity', fontsize=11)
ax2.set_ylabel('I activity', fontsize=11)
ax2.set_title('Phase Portrait', fontsize=12, fontweight='bold')
ax2.legend(fontsize=10)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Observations:")
print(f"  - Peak E activity: {rE_std[:, 0].max():.3f}")
print(f"  - Steady-state E: {rE_std[-100:, 0].mean():.3f}")
print(f"  - Response shows typical transient dynamics with saturation")

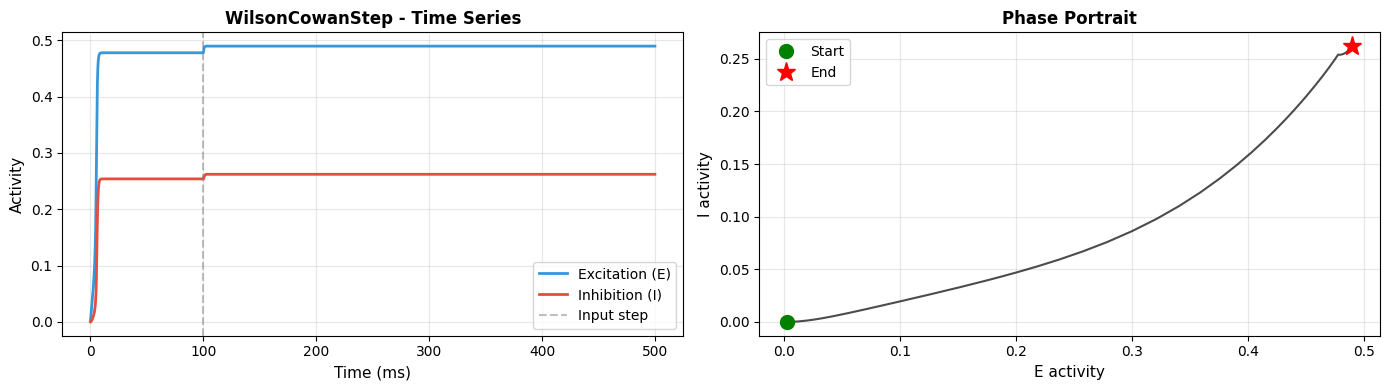

../_images/036d8acc5322c991aa11b98c3cec56028e93254743005dc62f5f39bab5cd4148.png
Observations:
  - Peak E activity: 0.489
  - Steady-state E: 0.489
  - Response shows typical transient dynamics with saturation

2.2: WilsonCowanNoSaturationStep#

Wilson-Cowan model without saturation terms - simpler dynamics.

Mathematical Formulation:

\[\tau_E \frac{dr_E}{dt} = -r_E(t) + F_E(w_{EE} r_E(t) - w_{EI} r_I(t) + I_E(t))\]
\[\tau_I \frac{dr_I}{dt} = -r_I(t) + F_I(w_{IE} r_E(t) - w_{II} r_I(t) + I_I(t))\]

Key Features:

  • No saturation term - activities can grow larger

  • Simpler mathematical form

  • 10 parameters (one less than standard)

  • Faster computation, but less biologically realistic

# Create model
model_nosat = brainmass.WilsonCowanNoSaturationStep(
    1,  # Single node
    tau_E=1.0 * u.ms,
    tau_I=1.0 * u.ms,
    a_E=1.2,
    theta_E=2.8,
    a_I=1.0,
    theta_I=4.0,
    wEE=12.,
    wEI=13.,
    wIE=4.,
    wII=11.
)
model_nosat.init_all_states()


# Run simulation
def step_run_nosat(i):
    t = i * brainstate.environ.get_dt()
    inp = u.math.where(t > 100 * u.ms, 2.0, 0.5)
    model_nosat.update(rE_inp=inp, rI_inp=0.0)
    return model_nosat.rE.value, model_nosat.rI.value


rE_nosat, rI_nosat = brainstate.transform.for_loop(step_run_nosat, indices)

# Visualize
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 4))

# Time series
ax1.plot(time, rE_nosat[:, 0], color=E_COLOR, linewidth=2, label='Excitation (E)')
ax1.plot(time, rI_nosat[:, 0], color=I_COLOR, linewidth=2, label='Inhibition (I)')
ax1.axvline(100, color='gray', linestyle='--', alpha=0.5, label='Input step')
ax1.set_xlabel('Time (ms)', fontsize=11)
ax1.set_ylabel('Activity', fontsize=11)
ax1.set_title('WilsonCowanNoSaturationStep - Time Series', fontsize=12, fontweight='bold')
ax1.legend(fontsize=10)
ax1.grid(True, alpha=0.3)

# Phase portrait
ax2.plot(rE_nosat[:, 0], rI_nosat[:, 0], 'k-', linewidth=1.5, alpha=0.7)
ax2.plot(rE_nosat[0, 0], rI_nosat[0, 0], 'go', markersize=10, label='Start', zorder=5)
ax2.plot(rE_nosat[-1, 0], rI_nosat[-1, 0], 'r*', markersize=14, label='End', zorder=5)
ax2.set_xlabel('E activity', fontsize=11)
ax2.set_ylabel('I activity', fontsize=11)
ax2.set_title('Phase Portrait', fontsize=12, fontweight='bold')
ax2.legend(fontsize=10)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Observations:")
print(f"  - Peak E activity: {rE_nosat[:, 0].max():.3f}")
print(f"  - Steady-state E: {rE_nosat[-100:, 0].mean():.3f}")
print(f"  - Without saturation, activities can reach higher values")

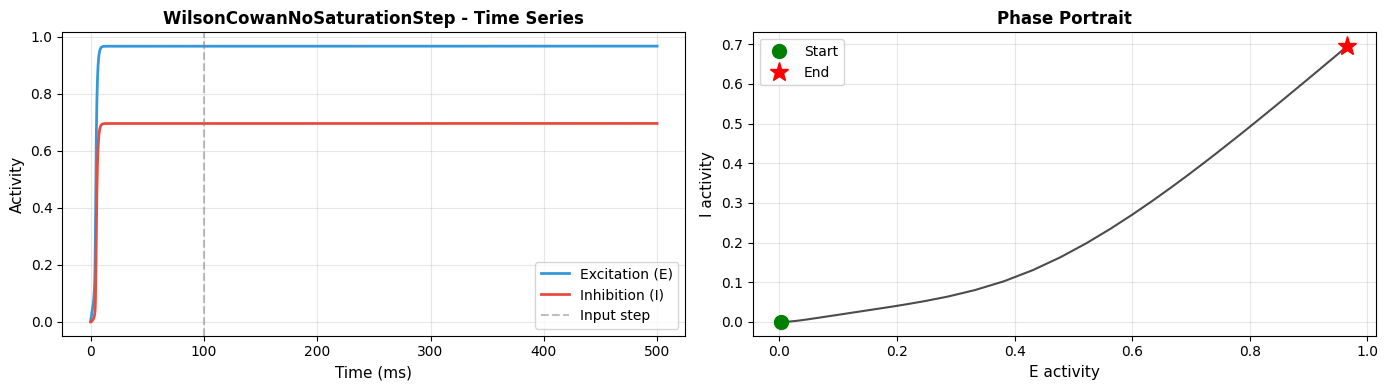

../_images/f155ebce6037a2a17f90ccc5c9534250529ec6747bf8630e3df0c5af1156356a.png
Observations:
  - Peak E activity: 0.966
  - Steady-state E: 0.966
  - Without saturation, activities can reach higher values

2.3: WilsonCowanSymmetricStep#

Symmetric variant with unified E/I parameters - reduces parameter space.

Mathematical Formulation:

\[\tau \frac{dr_E}{dt} = -r_E(t) + [1 - r \, r_E(t)] F(w_{EE} r_E(t) - w_{EI} r_I(t) + I_E(t))\]
\[\tau \frac{dr_I}{dt} = -r_I(t) + [1 - r \, r_I(t)] F(w_{IE} r_E(t) - w_{II} r_I(t) + I_I(t))\]

where both E and I use the same \(\tau\), \(a\), and \(\theta\) parameters.

Key Features:

  • Unified time constant and transfer function parameters

  • 8 parameters (vs 11 for standard)

  • Simplifies parameter fitting

  • Good for pedagogical demonstrations

# Create model with unified parameters
model_sym = brainmass.WilsonCowanSymmetricStep(
    1,  # Single node
    tau=1.0 * u.ms,  # Unified time constant
    a=1.2,  # Unified gain
    theta=2.8,  # Unified threshold
    wEE=12.,
    wEI=13.,
    wIE=4.,
    wII=11.,
    r=1.
)
model_sym.init_all_states()


# Run simulation
def step_run_sym(i):
    t = i * brainstate.environ.get_dt()
    inp = u.math.where(t > 100 * u.ms, 2.0, 0.5)
    model_sym.update(rE_inp=inp, rI_inp=0.0)
    return model_sym.rE.value, model_sym.rI.value


rE_sym, rI_sym = brainstate.transform.for_loop(step_run_sym, indices)

# Visualize
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 4))

# Time series
ax1.plot(time, rE_sym[:, 0], color=E_COLOR, linewidth=2, label='Excitation (E)')
ax1.plot(time, rI_sym[:, 0], color=I_COLOR, linewidth=2, label='Inhibition (I)')
ax1.axvline(100, color='gray', linestyle='--', alpha=0.5, label='Input step')
ax1.set_xlabel('Time (ms)', fontsize=11)
ax1.set_ylabel('Activity', fontsize=11)
ax1.set_title('WilsonCowanSymmetricStep - Time Series', fontsize=12, fontweight='bold')
ax1.legend(fontsize=10)
ax1.grid(True, alpha=0.3)

# Phase portrait
ax2.plot(rE_sym[:, 0], rI_sym[:, 0], 'k-', linewidth=1.5, alpha=0.7)
ax2.plot(rE_sym[0, 0], rI_sym[0, 0], 'go', markersize=10, label='Start', zorder=5)
ax2.plot(rE_sym[-1, 0], rI_sym[-1, 0], 'r*', markersize=14, label='End', zorder=5)
ax2.set_xlabel('E activity', fontsize=11)
ax2.set_ylabel('I activity', fontsize=11)
ax2.set_title('Phase Portrait', fontsize=12, fontweight='bold')
ax2.legend(fontsize=10)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Observations:")
print(f"  - Peak E activity: {rE_sym[:, 0].max():.3f}")
print(f"  - Steady-state E: {rE_sym[-100:, 0].mean():.3f}")
print(f"  - Unified parameters simplify the model while maintaining core dynamics")

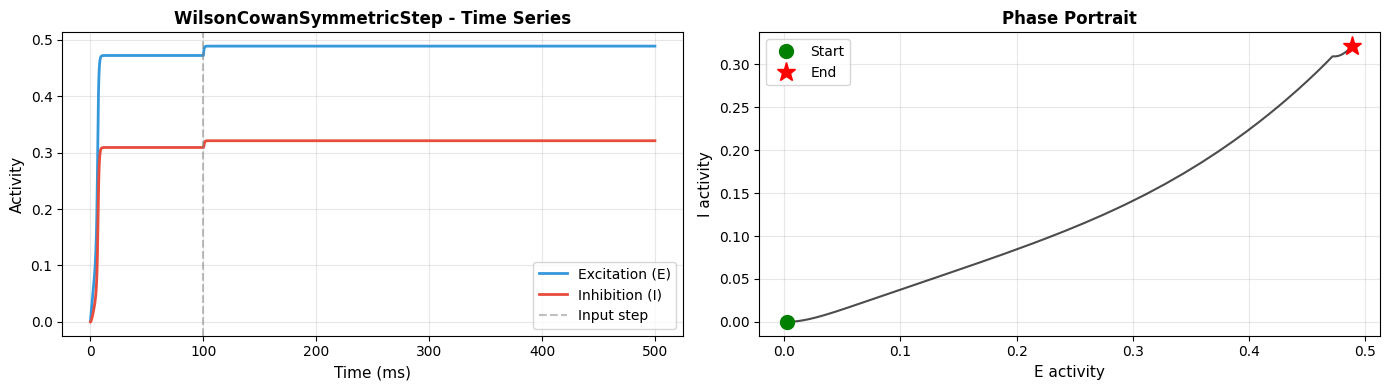

../_images/d3aadbe4d7bd5dbbe71cab51274dea66868d69a781d955688ce2440aa2d71b8d.png
Observations:
  - Peak E activity: 0.489
  - Steady-state E: 0.489
  - Unified parameters simplify the model while maintaining core dynamics

2.4: WilsonCowanDivisiveStep (Gain Modulation)#

NEW VARIANT - Divisive normalization through gain modulation.

Mathematical Formulation:

\[\tau_E \frac{dr_E}{dt} = -r_E(t) + \frac{1 - r \, r_E(t)}{\sigma_E + w_{EI} r_I(t)} F_E(w_{EE} r_E(t) - w_{EI} r_I(t) + I_E(t))\]
\[\tau_I \frac{dr_I}{dt} = -r_I(t) + \frac{1 - r \, r_I(t)}{\sigma_I + w_{IE} r_E(t)} F_I(w_{IE} r_E(t) - w_{II} r_I(t) + I_I(t))\]

Key Features:

  • Divisive normalization through gain modulation

  • Inhibition divides the gain of the transfer function

  • Models contrast normalization in visual cortex

  • Parameters: \(\sigma_E\), \(\sigma_I\) control normalization strength

# Create divisive gain modulation model
model_div = brainmass.WilsonCowanDivisiveStep(
    1,  # Single node
    tau_E=1.0 * u.ms,
    tau_I=1.0 * u.ms,
    a_E=1.2,
    theta_E=2.8,
    a_I=1.0,
    theta_I=4.0,
    wEE=6.,  # Reduced weights for stability
    wEI=6.5,
    wIE=2.,
    wII=5.5,
    sigma_E=1.,  # Normalization strength
    sigma_I=1.,
    r=1.
)
model_div.init_all_states()


# Run simulation
def step_run_div(i):
    t = i * brainstate.environ.get_dt()
    inp = u.math.where(t > 100 * u.ms, 2.0, 0.5)
    model_div.update(rE_inp=inp, rI_inp=0.0)
    return model_div.rE.value, model_div.rI.value


rE_div, rI_div = brainstate.transform.for_loop(step_run_div, indices)

# Visualize
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 4))

# Time series
ax1.plot(time, rE_div[:, 0], color=E_COLOR, linewidth=2, label='Excitation (E)')
ax1.plot(time, rI_div[:, 0], color=I_COLOR, linewidth=2, label='Inhibition (I)')
ax1.axvline(100, color='gray', linestyle='--', alpha=0.5, label='Input step')
ax1.set_xlabel('Time (ms)', fontsize=11)
ax1.set_ylabel('Activity', fontsize=11)
ax1.set_title('WilsonCowanDivisiveStep - Time Series', fontsize=12, fontweight='bold')
ax1.legend(fontsize=10)
ax1.grid(True, alpha=0.3)

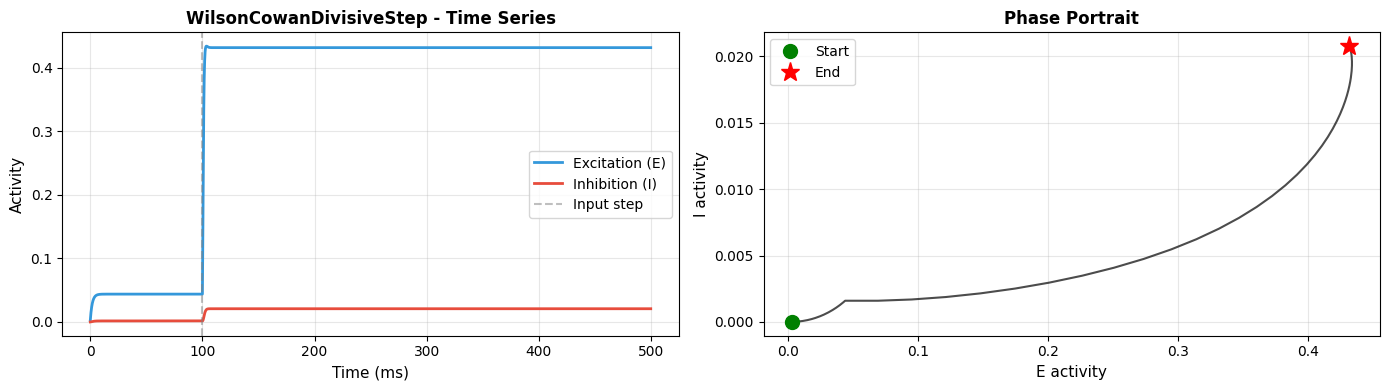

# Phase portrait
ax2.plot(rE_div[:, 0], rI_div[:, 0], 'k-', linewidth=1.5, alpha=0.7)
ax2.plot(rE_div[0, 0], rI_div[0, 0], 'go', markersize=10, label='Start', zorder=5)
ax2.plot(rE_div[-1, 0], rI_div[-1, 0], 'r*', markersize=14, label='End', zorder=5)
ax2.set_xlabel('E activity', fontsize=11)
ax2.set_ylabel('I activity', fontsize=11)
ax2.set_title('Phase Portrait', fontsize=12, fontweight='bold')
ax2.legend(fontsize=10)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Observations:")
print(f"  - Peak E activity: {rE_div[:, 0].max():.3f}")
print(f"  - Steady-state E: {rE_div[-100:, 0].mean():.3f}")
print(f"  - Divisive normalization suppresses responses when inhibition is high")
print(f"  - Models contrast normalization effects seen in visual cortex")
../_images/f482264f8fb6469ffedb472c0ecfad0b6e864b21897573a14ed386e4e26a2ee9.png
Observations:
  - Peak E activity: 0.434
  - Steady-state E: 0.432
  - Divisive normalization suppresses responses when inhibition is high
  - Models contrast normalization effects seen in visual cortex

2.5: WilsonCowanAdaptiveStep (Spike-Frequency Adaptation)#

NEW VARIANT - 4-state system with adaptation currents.

Mathematical Formulation:

\[\tau_E \frac{dr_E}{dt} = -r_E(t) + [1 - r \, r_E(t)] F_E(w_{EE} r_E(t) - w_{EI} r_I(t) - a_E(t) + I_E(t))\]
\[\tau_I \frac{dr_I}{dt} = -r_I(t) + [1 - r \, r_I(t)] F_I(w_{IE} r_E(t) - w_{II} r_I(t) - a_I(t) + I_I(t))\]
\[\tau_{aE} \frac{da_E}{dt} = -a_E(t) + b_E r_E(t)\]
\[\tau_{aI} \frac{da_I}{dt} = -a_I(t) + b_I r_I(t)\]

Key Features:

  • 4 dynamical states: \(r_E\), \(r_I\), \(a_E\), \(a_I\)

  • Adaptation currents build up with activity and suppress responses

  • Models neural fatigue and habituation

  • Slow time constants (\(\tau_a\)) capture long-term adaptation

# Create adaptive model
model_adapt = brainmass.WilsonCowanAdaptiveStep(
    1,  # Single node
    tau_E=1.0 * u.ms,
    tau_I=1.0 * u.ms,
    tau_aE=50.0 * u.ms,  # Slow adaptation for E
    tau_aI=50.0 * u.ms,  # Slow adaptation for I
    b_E=0.5,  # Adaptation strength E
    b_I=0.3,  # Adaptation strength I
    a_E=1.2,
    theta_E=2.8,
    a_I=1.0,
    theta_I=4.0,
    wEE=12.,
    wEI=13.,
    wIE=4.,
    wII=11.,
    r=1.
)
model_adapt.init_all_states()


# Run simulation with longer input period to see adaptation
def step_run_adapt(i):
    t = i * brainstate.environ.get_dt()
    # Sustained input from 100-400ms
    inp = u.math.where((t > 100 * u.ms) & (t < 400 * u.ms), 2.0, 0.5)
    model_adapt.update(rE_inp=inp, rI_inp=0.0)
    return model_adapt.rE.value, model_adapt.rI.value, model_adapt.aE.value, model_adapt.aI.value


rE_adapt, rI_adapt, aE_adapt, aI_adapt = brainstate.transform.for_loop(step_run_adapt, indices)

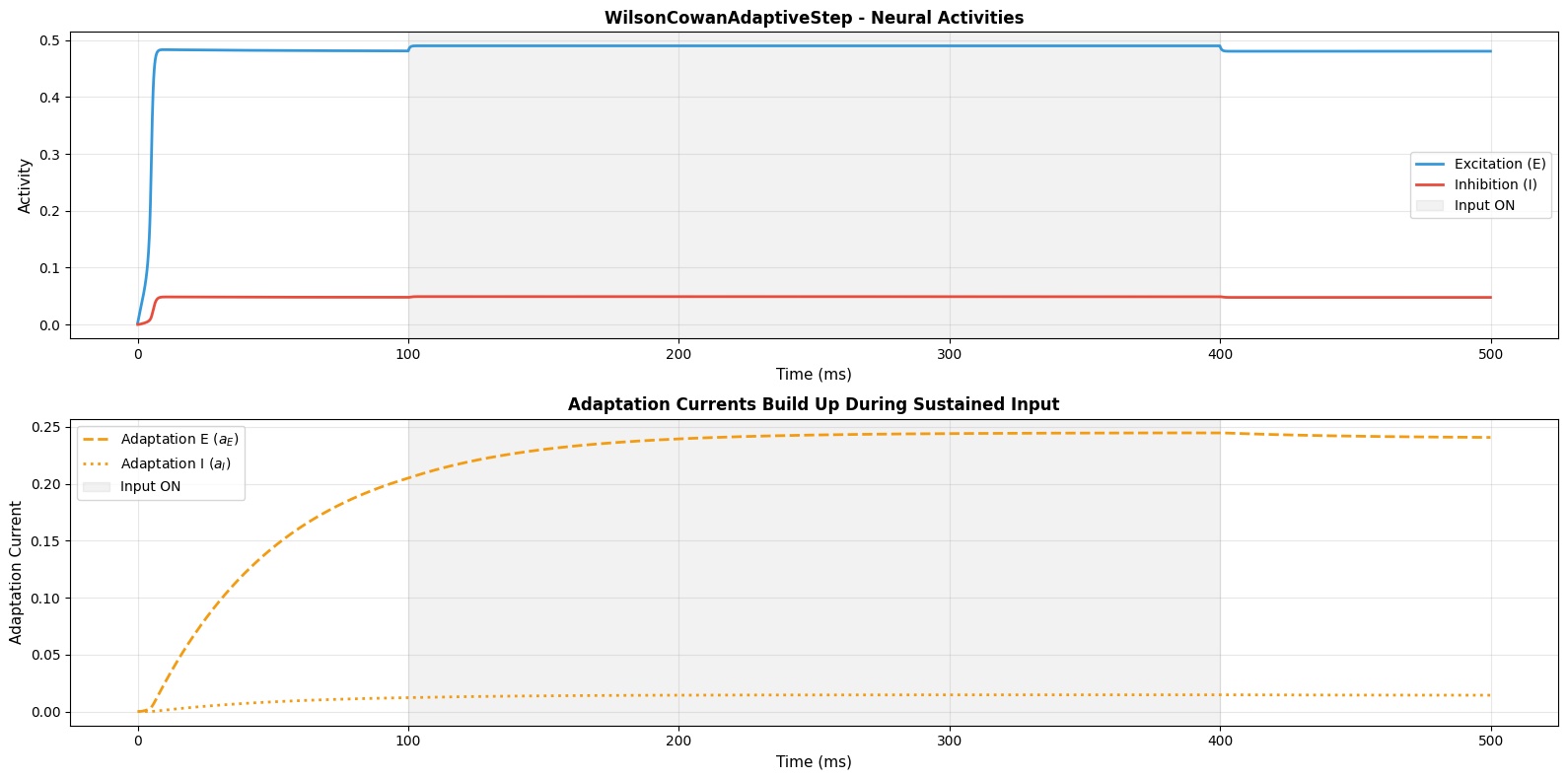

# Visualize all 4 states
fig = plt.figure(figsize=(16, 8))
gs = GridSpec(2, 2, figure=fig)

# Time series of activities
ax1 = fig.add_subplot(gs[0, :])
ax1.plot(time, rE_adapt[:, 0], color=E_COLOR, linewidth=2, label='Excitation (E)')
ax1.plot(time, rI_adapt[:, 0], color=I_COLOR, linewidth=2, label='Inhibition (I)')
ax1.axvspan(100, 400, color='gray', alpha=0.1, label='Input ON')
ax1.set_xlabel('Time (ms)', fontsize=11)
ax1.set_ylabel('Activity', fontsize=11)
ax1.set_title('WilsonCowanAdaptiveStep - Neural Activities', fontsize=12, fontweight='bold')
ax1.legend(fontsize=10)
ax1.grid(True, alpha=0.3)

# Time series of adaptation currents
ax2 = fig.add_subplot(gs[1, :])
ax2.plot(time, aE_adapt[:, 0], color=A_COLOR, linewidth=2, label='Adaptation E ($a_E$)', linestyle='--')
ax2.plot(time, aI_adapt[:, 0], color=A_COLOR, linewidth=2, label='Adaptation I ($a_I$)', linestyle=':')
ax2.axvspan(100, 400, color='gray', alpha=0.1, label='Input ON')
ax2.set_xlabel('Time (ms)', fontsize=11)
ax2.set_ylabel('Adaptation Current', fontsize=11)
ax2.set_title('Adaptation Currents Build Up During Sustained Input', fontsize=12, fontweight='bold')
ax2.legend(fontsize=10)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("Observations:")
print(f"  - Peak E activity: {rE_adapt[:, 0].max():.3f} (at t={time[np.argmax(rE_adapt[:, 0])]:.1f})")
print(f"  - Max adaptation: {aE_adapt[:, 0].max():.3f}")
print(f"  - Adaptation builds up during sustained input, reducing responses")
print(f"  - After input turns off, adaptation slowly decays")
print(f"  - Models neural fatigue and habituation phenomena")
../_images/60aaeaa072a29910d60fe52bb56a0927781ec2acb8f3fb2e507dc9d76fe60320.png

2.6: WilsonCowanThreePopulationStep (E-I-M Model)#

NEW VARIANT - Three-population model with modulatory neurons.

Mathematical Formulation:

\[\tau_E \frac{dr_E}{dt} = -r_E(t) + [1 - r \, r_E(t)] F_E(w_{EE} r_E(t) - w_{EI} r_I(t) + w_{EM} r_M(t) + I_E(t))\]
\[\tau_I \frac{dr_I}{dt} = -r_I(t) + [1 - r \, r_I(t)] F_I(w_{IE} r_E(t) - w_{II} r_I(t) + w_{IM} r_M(t) + I_I(t))\]
\[\tau_M \frac{dr_M}{dt} = -r_M(t) + [1 - r \, r_M(t)] F_M(w_{ME} r_E(t) - w_{MI} r_I(t) + w_{MM} r_M(t) + I_M(t))\]

Key Features:

  • 3 interacting populations: Excitatory, Inhibitory, Modulatory

  • Modulator enhances both E and I populations (\(w_{EM}\), \(w_{IM}\))

  • Models attention, arousal, and neuromodulation

  • Can simulate cholinergic, dopaminergic, or other modulatory effects

# Create three-population model
model_3pop = brainmass.WilsonCowanThreePopulationStep(
    1,  # Single node
    tau_E=1.0 * u.ms,
    tau_I=1.0 * u.ms,
    tau_M=2.0 * u.ms,  # Modulator dynamics
    a_E=1.2,
    theta_E=2.8,
    a_I=1.0,
    theta_I=4.0,
    a_M=1.0,
    theta_M=3.0,
    # E-I connections
    wEE=12.,
    wEI=13.,
    wIE=4.,
    wII=11.,
    # Modulator → E/I connections
    wEM=4.,  # M enhances E
    wIM=2.,  # M enhances I
    # E/I → Modulator connections
    wME=8.,  # E drives M
    wMI=6.,  # I inhibits M
    wMM=2.,  # M self-excitation
    r=1.
)
model_3pop.init_all_states()


# Run simulation with modulator activation
def step_run_3pop(i):
    t = i * brainstate.environ.get_dt()
    inp_E = u.math.where(t > 100 * u.ms, 2.0, 0.5)
    # Activate modulator from 250-500ms
    inp_M = u.math.where((t > 250 * u.ms) & (t < 500 * u.ms), 3.0, 0.0)
    model_3pop.update(rE_inp=inp_E, rI_inp=0.0, rM_inp=inp_M)
    return model_3pop.rE.value, model_3pop.rI.value, model_3pop.rM.value


rE_3pop, rI_3pop, rM_3pop = brainstate.transform.for_loop(step_run_3pop, indices)

# Visualize
fig, axes = plt.subplots(2, 2, figsize=(16, 10))

# Time series of all 3 populations
ax1 = axes[0, 0]
ax1.plot(time, rE_3pop[:, 0], color=E_COLOR, linewidth=2, label='Excitation (E)')
ax1.plot(time, rI_3pop[:, 0], color=I_COLOR, linewidth=2, label='Inhibition (I)')
ax1.plot(time, rM_3pop[:, 0], color=M_COLOR, linewidth=2, label='Modulator (M)')
ax1.axvspan(100, 500, color='lightblue', alpha=0.1, label='E input ON')
ax1.axvspan(250, 500, color='lightgreen', alpha=0.2, label='M input ON')
ax1.set_xlabel('Time (ms)', fontsize=11)
ax1.set_ylabel('Activity', fontsize=11)
ax1.set_title('Three Populations Time Series', fontsize=12, fontweight='bold')
ax1.legend(fontsize=9)
ax1.grid(True, alpha=0.3)

# E-I phase portrait
ax2 = axes[0, 1]
# Color-code by M activity
scatter = ax2.scatter(rE_3pop[:, 0], rI_3pop[:, 0], c=rM_3pop[:, 0],
                      cmap='Greens', s=10, alpha=0.6)
ax2.plot(rE_3pop[0, 0], rI_3pop[0, 0], 'go', markersize=10, label='Start', zorder=5)
ax2.plot(rE_3pop[-1, 0], rI_3pop[-1, 0], 'r*', markersize=14, label='End', zorder=5)
cbar = plt.colorbar(scatter, ax=ax2)
cbar.set_label('M activity', fontsize=10)
ax2.set_xlabel('E activity', fontsize=11)
ax2.set_ylabel('I activity', fontsize=11)
ax2.set_title('E-I Phase Portrait (colored by M)', fontsize=12, fontweight='bold')
ax2.legend(fontsize=9)
ax2.grid(True, alpha=0.3)

# 3D phase space
ax3 = fig.add_subplot(2, 2, 3, projection='3d')
ax3.plot(rE_3pop[:, 0], rI_3pop[:, 0], rM_3pop[:, 0], 'k-', linewidth=1.5, alpha=0.7)
ax3.scatter(rE_3pop[0, 0], rI_3pop[0, 0], rM_3pop[0, 0],
            color='green', s=100, marker='o', label='Start', zorder=10)
ax3.scatter(rE_3pop[-1, 0], rI_3pop[-1, 0], rM_3pop[-1, 0],
            color='red', s=150, marker='*', label='End', zorder=10)
ax3.set_xlabel('E activity', fontsize=10)
ax3.set_ylabel('I activity', fontsize=10)
ax3.set_zlabel('M activity', fontsize=10)
ax3.set_title('3D Phase Space (E-I-M)', fontsize=12, fontweight='bold')
ax3.legend(fontsize=9)

# Modulator effect comparison
ax4 = axes[1, 1]
t_pre = (time >= 100 * u.ms) & (time < 250 * u.ms)  # Before M activation
t_post = (time >= 250 * u.ms) & (time < 400 * u.ms)  # During M activation
E_pre_mean = rE_3pop[t_pre, 0].mean()
E_post_mean = rE_3pop[t_post, 0].mean()
ax4.bar(['Before M\nActivation', 'During M\nActivation'],
        [E_pre_mean, E_post_mean],
        color=[E_COLOR, M_COLOR], alpha=0.7, edgecolor='black', linewidth=2)
ax4.set_ylabel('Mean E Activity', fontsize=11)
ax4.set_title('Modulatory Enhancement Effect', fontsize=12, fontweight='bold')
ax4.grid(True, alpha=0.3, axis='y')
for i, v in enumerate([E_pre_mean, E_post_mean]):
    ax4.text(i, v + 0.02, f'{v:.3f}', ha='center', fontsize=10, fontweight='bold')

plt.tight_layout()
plt.show()

print("Observations:")
print(f"  - Mean E before modulation: {E_pre_mean:.3f}")
print(f"  - Mean E during modulation: {E_post_mean:.3f}")
print(f"  - Enhancement: {((E_post_mean / E_pre_mean - 1) * 100):.1f}%")
print(f"  - Modulator enhances both E and I responses")
print(f"  - Models attention, arousal, and neuromodulatory effects")

Part 3: Side-by-Side Comparison of All Variants#

Now we’ll compare all variants with identical input to see how they differ in their responses.

# Create all variants with compatible parameters
print("Creating all 11 Wilson-Cowan variants...")

# Common parameters for fair comparison
common_params = {
    'tau_E': 1.0 * u.ms,
    'tau_I': 1.0 * u.ms,
    'a_E': 1.2,
    'theta_E': 2.8,
    'a_I': 1.0,
    'theta_I': 4.0,
}

# Create all models
models = {}

# 1. Standard
models['Standard'] = brainmass.WilsonCowanStep(
    1, **common_params, wEE=12., wEI=13., wIE=4., wII=11., r=1.
)

# 2. No Saturation
models['NoSaturation'] = brainmass.WilsonCowanNoSaturationStep(
    1, **common_params, wEE=12., wEI=13., wIE=4., wII=11.
)

# 3. Symmetric (uses unified params)
models['Symmetric'] = brainmass.WilsonCowanSymmetricStep(
    1, tau=1.0 * u.ms, a=1.2, theta=2.8, wEE=12., wEI=13., wIE=4., wII=11., r=1.
)

# 4. Simplified
models['Simplified'] = brainmass.WilsonCowanSimplifiedStep(
    1, **common_params, w_exc=12., w_inh=11., r=1.
)

# 5. Linear
models['Linear'] = brainmass.WilsonCowanLinearStep(
    1, tau_E=1.0 * u.ms, tau_I=1.0 * u.ms, wEE=12., wEI=13., wIE=4., wII=11.
)

# 6. Divisive (Gain)
models['Divisive (Gain)'] = brainmass.WilsonCowanDivisiveStep(
    1, **common_params, wEE=6., wEI=6.5, wIE=2., wII=5.5, sigma_E=1., sigma_I=1., r=1.
)

# 7. Divisive (Input)
models['Divisive (Input)'] = brainmass.WilsonCowanDivisiveInputStep(
    1, **common_params, wEE=6., wEI=6.5, wIE=2., wII=5.5, sigma_E=1., sigma_I=1., r=1.
)

# 8. Delayed
models['Delayed'] = brainmass.WilsonCowanDelayedStep(
    1, **common_params, wEE=12., wEI=13., wIE=4., wII=11., r=1.,
    delay_EE=0.5 * u.ms, delay_IE=0.5 * u.ms, delay_EI=0.5 * u.ms, delay_II=0.5 * u.ms
)

# 9. Adaptive
models['Adaptive'] = brainmass.WilsonCowanAdaptiveStep(
    1, **common_params, wEE=12., wEI=13., wIE=4., wII=11., r=1.,
    tau_aE=50. * u.ms, tau_aI=50. * u.ms, b_E=0.3, b_I=0.2
)

# 10. Three-Population
models['ThreePopulation'] = brainmass.WilsonCowanThreePopulationStep(
    1, **common_params, a_M=1.0, theta_M=3.0, tau_M=2.0 * u.ms, r=1.,
    wEE=12., wEI=13., wIE=4., wII=11.,
    wEM=2., wIM=1., wME=4., wMI=3., wMM=1.
)

# Initialize all models
for name, model in models.items():
    model.init_all_states()

print(f"✅ Created {len(models)} variants\n")

# Simulate all variants with identical input
duration = 500 * u.ms
n_steps = int(duration / brainstate.environ.get_dt())
indices = np.arange(n_steps)
time = indices * brainstate.environ.get_dt()

results = {}

for name, model in models.items():
    print(f"Simulating {name}...", end=' ')


    def sim_func(i):
        t = i * brainstate.environ.get_dt()
        inp = u.math.where(t > 100 * u.ms, 2.0, 0.5)
        model.update(rE_inp=inp, rI_inp=0.0)
        return model.rE.value, model.rI.value


    rE, rI = brainstate.transform.for_loop(sim_func, indices)
    results[name] = (rE, rI)

    # Re-initialize for next simulation
    model.init_all_states()

    print("✓")

print("\n✅ All simulations complete!")

# Plot all variants in a grid
fig, axes = plt.subplots(4, 3, figsize=(18, 16))
axes = axes.flatten()

for idx, (name, (rE, rI)) in enumerate(results.items()):
    ax = axes[idx]

    # Plot E and I
    ax.plot(time, rE[:, 0], color=E_COLOR, linewidth=2, label='E', alpha=0.9)
    ax.plot(time, rI[:, 0], color=I_COLOR, linewidth=2, label='I', alpha=0.9)
    ax.axvline(100, color='gray', linestyle='--', alpha=0.4, linewidth=1)

    # Format
    ax.set_title(name, fontsize=12, fontweight='bold', pad=8)
    ax.set_xlabel('Time (ms)', fontsize=10)
    ax.set_ylabel('Activity', fontsize=10)
    ax.legend(loc='upper right', fontsize=9, framealpha=0.9)
    ax.grid(True, alpha=0.3, linewidth=0.5)
    ax.set_xlim([0, 500])

    # Add metrics as text
    peak_E = rE[:, 0].max()
    ss_E = rE[-100:, 0].mean()
    ax.text(
        0.02, 0.98,
        f'Peak: {peak_E:.2f}\nSS: {ss_E:.2f}',
        transform=ax.transAxes, fontsize=8, verticalalignment='top',
        bbox=dict(boxstyle='round', facecolor='white', alpha=0.7)
    )

# Hide extra subplots (we have 10 variants but 12 subplot positions)
for idx in range(len(results), len(axes)):
    axes[idx].axis('off')

plt.suptitle('Side-by-Side Comparison: All Wilson-Cowan Variants\n(Identical Step Input)',
             fontsize=16, fontweight='bold', y=0.995)
plt.tight_layout()
plt.show()

print("\n📊 Comparison Summary:")
print("=" * 70)
print(f"{'Variant':<20} {'Peak E':<12} {'Steady-State E':<15} {'Rise Time'}")
print("-" * 70)

for name, (rE, rI) in results.items():
    peak_E = rE[:, 0].max()
    ss_E = rE[-100:, 0].mean()

    # Find rise time (time to 90% of final value)
    target = ss_E * 0.9
    rise_idx = np.where(rE[:, 0] > target)[0]
    rise_time = time[rise_idx[0]] if len(rise_idx) > 0 else 0

    print(f"{name:<20} {peak_E:>10.3f}   {ss_E:>13.3f}   {rise_time:>8.1f} ms")

print("=" * 70)

Part 4: Choosing the Right Variant - Decision Guide#

Decision Tree#

What is your primary goal?

┌─ General exploratory modeling or teaching
│  └─> WilsonCowanStep (Standard) - Most versatile
│
├─ Need simpler/faster computation
│  └─> WilsonCowanNoSaturationStep - Simpler dynamics
│
├─ Reduce parameter space for fitting
│  └─> WilsonCowanSymmetricStep - Fewer parameters
│
├─ Pedagogical demonstrations
│  └─> WilsonCowanSimplifiedStep - Minimal complexity
│
├─ Optimization/gradient-based learning
│  └─> WilsonCowanLinearStep - ReLU activation
│
├─ Model visual cortex normalization
│  ├─> Gain control: WilsonCowanDivisiveStep
│  └─> Input normalization: WilsonCowanDivisiveInputStep
│
├─ Include realistic axonal delays
│  └─> WilsonCowanDelayedStep - Connection delays
│
├─ Model neural fatigue/habituation
│  └─> WilsonCowanAdaptiveStep - Adaptation currents
│
└─ Model attention/arousal/neuromodulation
   └─> WilsonCowanThreePopulationStep - Modulatory neurons

Feature Comparison Table#

Feature

Standard

NoSat

Sym

Simp

Linear

DivG

DivI

Delay

Adapt

3Pop

States

2

2

2

2

2

2

2

2

4

3

Parameters

11

10

8

9

7

13

13

15

15

18

Nonlinear

✓

✓

✓

✓

✗

✓

✓

✓

✓

✓

Delays

✗

✗

✗

✗

✗

✗

✗

✓

✗

✗

Adaptation

✗

✗

✗

✗

✗

✗

✗

✗

✓

✗

Modulation

✗

✗

✗

✗

✗

✗

✗

✗

✗

✓

Normalization

✗

✗

✗

✗

✗

✓

✓

✗

✗

✗

Complexity

Med

Low

Low

Low

Low

Med

Med

Med

High

High

Stability

Good

Good

Good

Good

Good

Med

Med

Med

Good

Good

Use Case Recommendations#

Cognitive Neuroscience:

  • Working memory: Standard or Adaptive (for fatigue effects)

  • Attention: ThreePopulation (modulator = attention signal)

  • Decision making: Standard or Symmetric

Sensory Processing:

  • Visual cortex V1: Divisive variants (contrast normalization)

  • Auditory cortex: Standard or NoSaturation

  • Somatosensory: Standard

Network Modeling:

  • Large-scale brain networks: Delayed (realistic transmission delays)

  • Small local circuits: Standard or Simplified

  • Whole-brain models: Standard or Linear (for speed)

Machine Learning:

  • Training recurrent networks: Linear (gradient-friendly)

  • Reservoir computing: Standard or NoSaturation

  • Neuromorphic computing: Adaptive or ThreePopulation

Clinical Applications:

  • Epilepsy modeling: Standard (captures seizure dynamics)

  • Fatigue/habituation: Adaptive

  • Arousal disorders: ThreePopulation

References#

Original Wilson-Cowan Model:

  • Wilson, H. R., & Cowan, J. D. (1972). Excitatory and inhibitory interactions in localized populations of model neurons. Biophysical Journal, 12(1), 1-24.

Divisive Normalization:

  • Carandini, M., & Heeger, D. J. (2012). Normalization as a canonical neural computation. Nature Reviews Neuroscience, 13(1), 51-62.

  • Heeger, D. J. (1992). Normalization of cell responses in cat striate cortex. Visual Neuroscience, 9(2), 181-197.

Spike-Frequency Adaptation:

  • Benda, J., & Herz, A. V. (2003). A universal model for spike-frequency adaptation. Neural Computation, 15(11), 2523-2564.

  • Wang, X. J. (1998). Calcium coding and adaptive temporal computation in cortical pyramidal neurons. Journal of Neurophysiology, 79(3), 1549-1566.

Delay Models:

  • Robinson, P. A., Rennie, C. J., & Wright, J. J. (1997). Propagation and stability of waves of electrical activity in the cerebral cortex. Physical Review E, 56(1), 826.

  • Jirsa, V. K., & Haken, H. (1996). Field theory of electromagnetic brain activity. Physical Review Letters, 77(5), 960.

Neuromodulation:

  • Deco, G., Ponce-Alvarez, A., Mantini, D., Romani, G. L., Hagmann, P., & Corbetta, M. (2013). Resting-state functional connectivity emerges from structurally and dynamically shaped slow linear fluctuations. Journal of Neuroscience, 33(27), 11239-11252.

  • Shine, J. M. (2019). Neuromodulatory influences on integration and segregation in the brain. Trends in Cognitive Sciences, 23(7), 572-583.
