Grid-cell theta sweep

Grid-cell theta sweep#

This experiment tests whether theta modulation and firing-rate adaptation can generate alternating direction and position sweeps in a coupled head-direction and grid-cell model motivated by published mechanisms.

Prompt#

Develop a firing-rate model in which an internal direction signal organizes subsecond spatial sweeps during open-field navigation. Build a theta-modulated head-direction ring attractor with local recurrent excitation, global inhibition, sensory anchoring to the animal’s head direction, and slow firing-rate adaptation. Couple it through a conjunctive direction-by-grid transformation to one or more two-dimensional toroidal grid-cell attractors. The projection must convert the direction-ring state into a spatially shifted input rather than impose a decoded trajectory directly.

Simulate straight runs, changes in running speed, and turning in a two-dimensional arena. Decode internal direction and grid-cell position within individual theta cycles. Determine whether firing-rate adaptation and theta modulation generate sweeps that alternate left and right across successive cycles, and whether direction and position sweeps remain aligned. Report the model and analysis definitions, matched controls, quantitative summaries, and a trajectory with 10 decoded sweep vectors.

Agent decision path#

  1. Classify the direction ring and grid sheets as aggregate firing-rate populations owned by brainmass.

  2. Implement a custom direction-grid step because the public model catalogue has no matching ring-torus composition.

  3. Store activation, rate, and adaptation in BrainState HiddenState objects.

  4. Convert the distributed direction-ring state into spatially shifted toroidal input before decoding either population.

  5. Wrap each complete time rollout in jit and for_loop, then map the adaptation scan with vmap.

  6. Keep time, theta frequency, speed, heading, position, and grid scale explicit with brainunit.

  7. Compare straight, speed-change, and turning protocols with matched no-adaptation, no-theta, and no-coupling controls.

  8. Measure adjacent-cycle alternation, a cycle-order shuffle null, ring-grid alignment, and exactly 10 trajectory vectors.

Result#

Straight-run direction sweeps alternate with score 0.959 versus a shuffled mean of 0.469 (p = 0.00025). Grid sweeps alternate with score 0.939 and align with the direction ring at cosine 0.990–0.991. Removing adaptation or theta abolishes alternation; removing the conjunctive projection preserves ring alternation but abolishes grid alternation.

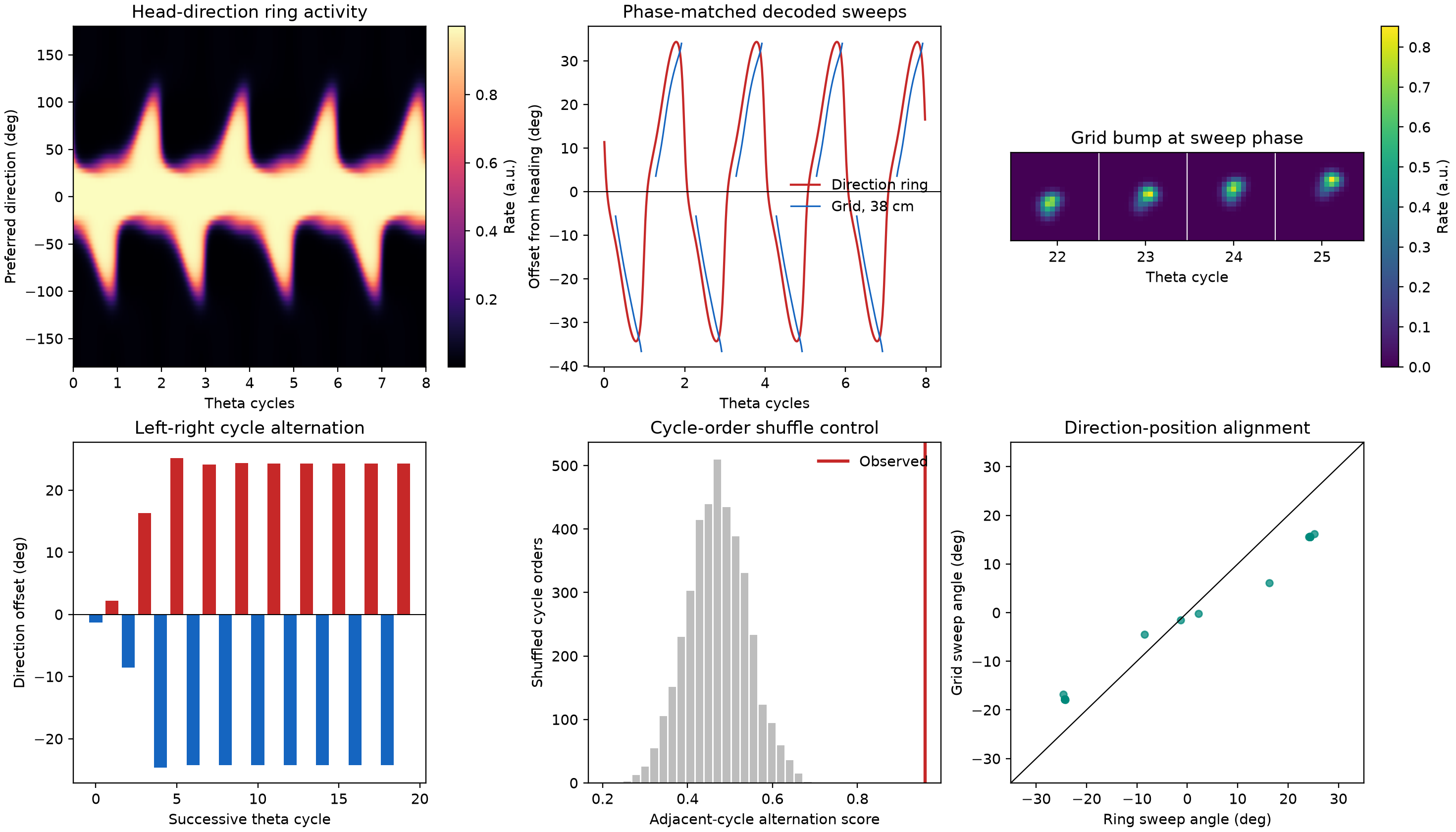

Theta-sweep result panels show alternating head-direction activity, matched direction and grid sweep angles, grid bumps across successive theta cycles, a cycle-order shuffle control, and close direction-position alignment.

Fig. 12 The shuffle test distinguishes ordered left-right alternation from the same cycle angles in random order, while matched ablations identify the adaptation-theta interaction and conjunctive projection as separate mechanism requirements.#

With-BrainX skill/Without skill comparison#

With BrainX skill

Source captured · benchmark pending

Preserve the equations, matched initialization, theta-phase decoder, shuffle test, and mechanism controls when measuring execution and code generation.

Without BrainX skill

Matched run not collected

Compare only after the baseline implements a distributed direction-to-grid projection rather than commanding a decoded trajectory directly.
