Sequence Modeling with RNNs and Transformers#
In this tutorial, we’ll build sequence models for tasks like text generation and time series prediction using RNNs, LSTMs, and attention mechanisms.
Learning Objectives#
By the end of this tutorial, you will be able to:
Build RNN and LSTM models for sequence tasks
Implement attention mechanisms
Create a simple Transformer architecture
Train models for text generation
Handle variable-length sequences
Implement teacher forcing and sampling strategies

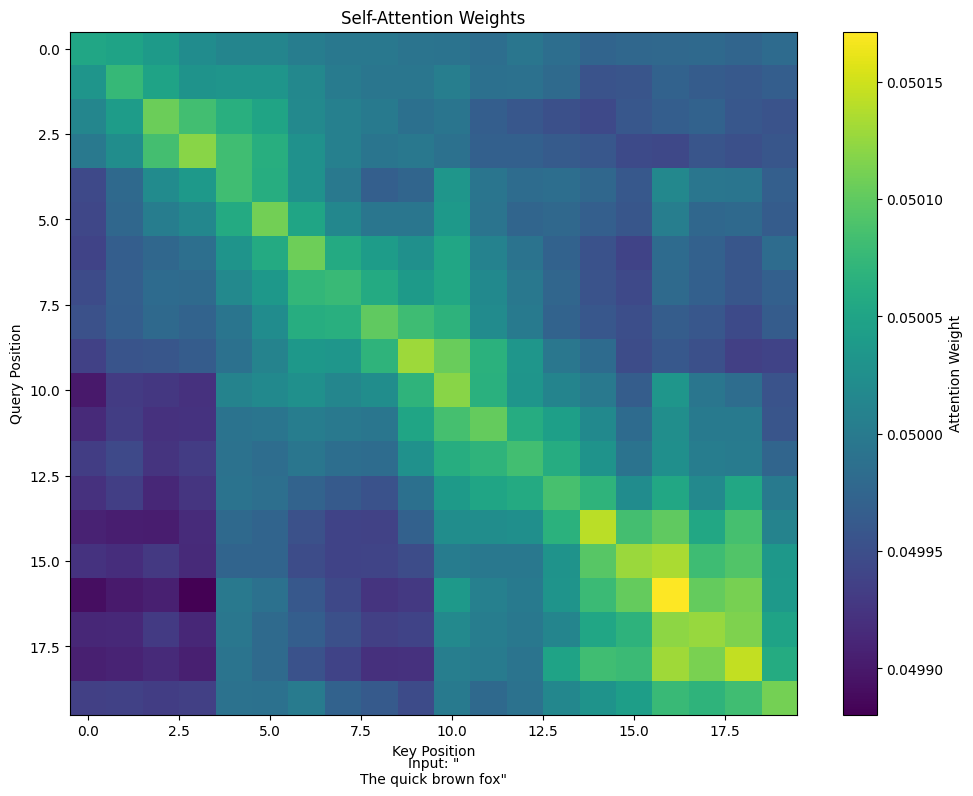

Visualize attention weights
What We’ll Build#
We’ll create:
Character-level language model with RNN/LSTM
Attention-based sequence-to-sequence model
Simple Transformer for sequence modeling
Text generation pipeline
import brainstate
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
# Set random seed
brainstate.random.seed(42)
print(f"JAX devices: {jax.devices()}")
JAX devices: [CpuDevice(id=0)]
1. Dataset Preparation: Character-Level Text#
# Sample text data
sample_text = """
The quick brown fox jumps over the lazy dog. The quick brown fox jumps over the lazy dog.
Neural networks are powerful tools for machine learning. Neural networks learn patterns from data.
Deep learning has revolutionized artificial intelligence. Deep learning uses multiple layers.
Transformers have become the dominant architecture for NLP. Transformers use attention mechanisms.
Attention is all you need for sequence modeling. Attention helps models focus on relevant information.
Recurrent neural networks process sequences step by step. RNNs maintain hidden states across time.
LSTMs solve the vanishing gradient problem in RNNs. LSTMs use gates to control information flow.
""" * 2 # Optimized data size for quick demo
class CharacterTokenizer:
"""Simple character-level tokenizer."""
def __init__(self, text: str):
# Get unique characters
self.chars = sorted(list(set(text)))
self.vocab_size = len(self.chars)
# Create mappings
self.char_to_idx = {ch: i for i, ch in enumerate(self.chars)}
self.idx_to_char = {i: ch for i, ch in enumerate(self.chars)}
def encode(self, text: str) -> np.ndarray:
"""Convert text to indices."""
return np.array([self.char_to_idx[ch] for ch in text])
def decode(self, indices: np.ndarray) -> str:
"""Convert indices to text."""
return ''.join([self.idx_to_char[int(idx)] for idx in indices])
# Create tokenizer
tokenizer = CharacterTokenizer(sample_text)
encoded_text = tokenizer.encode(sample_text)
print(f"Vocabulary size: {tokenizer.vocab_size}")
print(f"Characters: {''.join(tokenizer.chars[:20])}...")
print(f"\nOriginal text length: {len(sample_text)}")
print(f"Encoded length: {len(encoded_text)}")
print(f"\nSample encoding: {encoded_text[:20]}")
print(f"Decoded: {tokenizer.decode(encoded_text[:20])}")
Vocabulary size: 38
Characters:
.ADLMNPRSTabcdefgh...
Original text length: 1364
Encoded length: 1364
Sample encoding: [ 0 11 19 16 1 28 32 20 14 22 1 13 29 26 34 25 1 17 26 35]
Decoded:
The quick brown fox
Create Training Sequences#
def create_sequences(data, seq_length):
"""Create input-target pairs for sequence prediction.
Args:
data: Encoded text data
seq_length: Length of input sequences
Returns:
inputs: Array of shape (n_sequences, seq_length)
targets: Array of shape (n_sequences, seq_length)
"""
inputs = []
targets = []
for i in range(len(data) - seq_length):
inputs.append(data[i:i+seq_length])
targets.append(data[i+1:i+seq_length+1])
return np.array(inputs), np.array(targets)
# Create sequences
seq_length = 20
X, y = create_sequences(encoded_text, seq_length)
# Split into train/val
split_idx = int(0.8 * len(X))
X_train, X_val = X[:split_idx], X[split_idx:]
y_train, y_val = y[:split_idx], y[split_idx:]
print(f"Training sequences: {X_train.shape}")
print(f"Validation sequences: {X_val.shape}")
print(f"\nExample sequence:")
print(f"Input: {tokenizer.decode(X_train[0])}")
print(f"Target: {tokenizer.decode(y_train[0])}")
Training sequences: (1075, 20)
Validation sequences: (269, 20)
Example sequence:
Input:
The quick brown fox
Target: The quick brown fox
2. RNN Language Model#
class RNNLanguageModel(brainstate.nn.Module):
"""Simple RNN for character-level language modeling."""
def __init__(self, vocab_size, embedding_dim=64, hidden_dim=128):
super().__init__()
self.vocab_size = vocab_size
self.hidden_dim = hidden_dim
# Embedding layer
self.embedding = brainstate.ParamState(
brainstate.random.randn(vocab_size, embedding_dim) * 0.1
)
# RNN cell
self.rnn_cell = brainstate.nn.ValinaRNNCell(num_in=embedding_dim, num_out=hidden_dim)
# Output projection
self.fc_out = brainstate.nn.Linear(hidden_dim, vocab_size)
def __call__(self, x, hidden=None):
"""Forward pass.
Args:
x: Input indices of shape (batch, seq_len)
hidden: Initial hidden state
Returns:
logits: Output logits of shape (batch, seq_len, vocab_size)
hidden: Final hidden state
"""
batch_size, seq_len = x.shape
# Initialize hidden state if not provided
self.rnn_cell.init_state(batch_size=batch_size)
# Embed input
embedded = self.embedding.value[x] # (batch, seq_len, embedding_dim)
# Process sequence
outputs = []
for t in range(seq_len):
hidden = self.rnn_cell.update(embedded[:, t, :])
outputs.append(hidden)
# Stack outputs
outputs = jnp.stack(outputs, axis=1) # (batch, seq_len, hidden_dim)
# Project to vocabulary
logits = jax.vmap(self.fc_out)(outputs) # (batch, seq_len, vocab_size)
return logits, hidden
# Create model
rnn_model = RNNLanguageModel(
vocab_size=tokenizer.vocab_size,
embedding_dim=64,
hidden_dim=128
)
# Test forward pass
test_input = jnp.array(X_train[:4])
test_logits, test_hidden = rnn_model(test_input)
print(f"Input shape: {test_input.shape}")
print(f"Logits shape: {test_logits.shape}")
print(f"Hidden shape: {test_hidden.shape}")
# Count parameters
# n_params = sum(p.value.size for p in rnn_model.states(brainstate.ParamState).values())
n_params = 0
for p in rnn_model.states(brainstate.ParamState).values():
if isinstance(p.value,dict):
for v in p.value.values():
n_params +=v.size
else:
n_params += p.value.size
print(f"\nTotal parameters: {n_params:,}")
Input shape: (4, 20)
Logits shape: (4, 20, 38)
Hidden shape: (4, 128)
Total parameters: 32,038
3. LSTM Language Model#
class LSTMLanguageModel(brainstate.nn.Module):
"""LSTM for character-level language modeling."""
def __init__(self, vocab_size, embedding_dim=64, hidden_dim=128):
super().__init__()
self.vocab_size = vocab_size
self.hidden_dim = hidden_dim
# Embedding layer
self.embedding = brainstate.ParamState(
brainstate.random.randn(vocab_size, embedding_dim) * 0.1
)
# LSTM cell
self.lstm_cell = brainstate.nn.LSTMCell(num_in=embedding_dim, num_out=hidden_dim)
# Output projection
self.fc_out = brainstate.nn.Linear(hidden_dim, vocab_size)
def __call__(self, x, state=None):
"""Forward pass.
Args:
x: Input indices of shape (batch, seq_len)
state: Initial (hidden, cell) state tuple
Returns:
logits: Output logits of shape (batch, seq_len, vocab_size)
state: Final (hidden, cell) state
"""
batch_size, seq_len = x.shape
# Initialize LSTM cell state
self.lstm_cell.init_state(batch_size=batch_size)
# Embed input
embedded = self.embedding.value[x] # (batch, seq_len, embedding_dim)
# Process sequence
outputs = []
for t in range(seq_len):
hidden = self.lstm_cell.update(embedded[:, t, :])
outputs.append(hidden)
# Stack outputs
outputs = jnp.stack(outputs, axis=1) # (batch, seq_len, hidden_dim)
# Project to vocabulary
logits = jax.vmap(self.fc_out)(outputs) # (batch, seq_len, vocab_size)
return logits, (self.lstm_cell.h.value, self.lstm_cell.c.value)
# Create LSTM model
lstm_model = LSTMLanguageModel(
vocab_size=tokenizer.vocab_size,
embedding_dim=64,
hidden_dim=128
)
# Test forward pass
test_logits, test_state = lstm_model(test_input)
print(f"Input shape: {test_input.shape}")
print(f"Logits shape: {test_logits.shape}")
print(f"Hidden state shape: {test_state[0].shape}")
print(f"Cell state shape: {test_state[1].shape}")
# n_params = sum(p.value.size for p in lstm_model.states(brainstate.ParamState).values())
n_params = 0
for p in lstm_model.states(brainstate.ParamState).values():
if isinstance(p.value,dict):
for v in p.value.values():
n_params +=v.size
else:
n_params += p.value.size
print(f"\nTotal parameters: {n_params:,}")
Input shape: (4, 20)
Logits shape: (4, 20, 38)
Hidden state shape: (4, 128)
Cell state shape: (4, 128)
Total parameters: 106,150
4. Training Setup#
def cross_entropy_loss(logits, targets):
"""Compute cross-entropy loss for sequences.
Args:
logits: Predicted logits of shape (batch, seq_len, vocab_size)
targets: True indices of shape (batch, seq_len)
Returns:
Scalar loss value
"""
batch_size, seq_len, vocab_size = logits.shape
# Reshape for easier computation
logits_flat = logits.reshape(-1, vocab_size)
targets_flat = targets.reshape(-1)
# One-hot encode targets
one_hot = jax.nn.one_hot(targets_flat, vocab_size)
# Compute log probabilities
log_probs = jax.nn.log_softmax(logits_flat, axis=-1)
# Compute loss
loss = -jnp.mean(jnp.sum(one_hot * log_probs, axis=-1))
return loss
def perplexity(loss):
"""Compute perplexity from loss."""
return jnp.exp(loss)
def train_step(model, x_batch, y_batch, learning_rate=0.001):
"""Perform one training step."""
with brainstate.environ.context(fit=True):
def loss_fn():
logits, _ = model(jnp.array(x_batch))
return cross_entropy_loss(logits, jnp.array(y_batch))
# Compute gradients
grads,loss = brainstate.transform.grad(
loss_fn,
model.states(brainstate.ParamState),
return_value=True
)()
# Update parameters
for name, param_state in model.states(brainstate.ParamState).items():
grad_value = grads[name]
# Handle nested dict structure
if isinstance(param_state.value, dict):
for key in param_state.value.keys():
param_state.value[key] -= learning_rate * grad_value[key]
else:
param_state.value -= learning_rate * grad_value
return float(loss)
def eval_step(model, x_batch, y_batch):
"""Perform one evaluation step."""
with brainstate.environ.context(fit=False):
logits, _ = model(jnp.array(x_batch))
loss = cross_entropy_loss(logits, jnp.array(y_batch))
return float(loss)
# Test training step
batch_size = 32
x_batch = X_train[:batch_size]
y_batch = y_train[:batch_size]
initial_loss = eval_step(lstm_model, x_batch, y_batch)
print(f"Initial loss: {initial_loss:.4f}")
print(f"Initial perplexity: {perplexity(initial_loss):.2f}")
Initial loss: 3.6380
Initial perplexity: 38.02

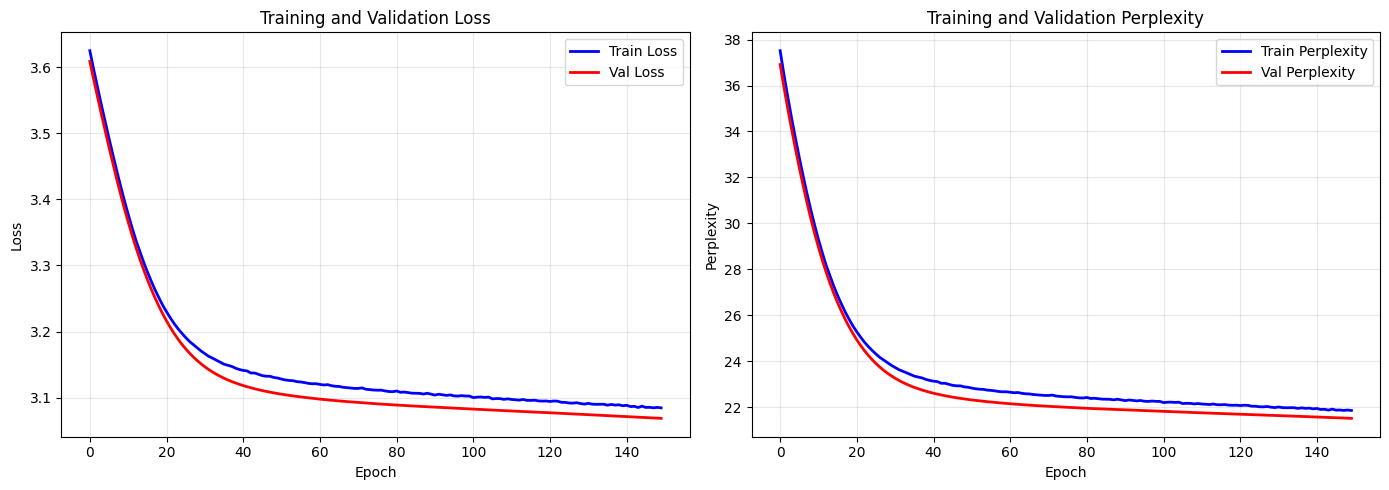

5. Train LSTM Model#
def train_epoch(model, X, y, batch_size, learning_rate):
"""Train for one epoch."""
losses = []
n_samples = len(X)
# Shuffle data
indices = np.random.permutation(n_samples)
for start_idx in range(0, n_samples, batch_size):
end_idx = min(start_idx + batch_size, n_samples)
batch_indices = indices[start_idx:end_idx]
x_batch = X[batch_indices]
y_batch = y[batch_indices]
loss = train_step(model, x_batch, y_batch, learning_rate)
losses.append(loss)
return np.mean(losses)
def evaluate(model, X, y, batch_size):
"""Evaluate model."""
losses = []
n_samples = len(X)
for start_idx in range(0, n_samples, batch_size):
end_idx = min(start_idx + batch_size, n_samples)
x_batch = X[start_idx:end_idx]
y_batch = y[start_idx:end_idx]
loss = eval_step(model, x_batch, y_batch)
losses.append(loss)
return np.mean(losses)
# Training configuration
config = {
'num_epochs': 150,
'batch_size': 32,
'learning_rate': 0.01,
}
# Create fresh model
model = LSTMLanguageModel(
vocab_size=tokenizer.vocab_size,
embedding_dim=32,
hidden_dim=64
)
# Training loop
history = {'train_loss': [], 'val_loss': []}
print("Training LSTM Language Model")
print("=" * 60)
for epoch in range(config['num_epochs']):
# Train
train_loss = train_epoch(
model, X_train, y_train,
config['batch_size'],
config['learning_rate']
)
# Validate
val_loss = evaluate(model, X_val, y_val, config['batch_size'])
# Record history
history['train_loss'].append(train_loss)
history['val_loss'].append(val_loss)
# Print progress
if epoch % 5 == 0 or epoch == config['num_epochs'] - 1:
print(f"Epoch {epoch:3d}: "
f"train_loss={train_loss:.4f} (ppl={perplexity(train_loss):.2f}), "
f"val_loss={val_loss:.4f} (ppl={perplexity(val_loss):.2f})")
print("=" * 60)
print("Training completed!")
Training LSTM Language Model
============================================================
Epoch 0: train_loss=3.6247 (ppl=37.51), val_loss=3.6086 (ppl=36.92)
Epoch 5: train_loss=3.4922 (ppl=32.86), val_loss=3.4787 (ppl=32.42)
Epoch 10: train_loss=3.3774 (ppl=29.29), val_loss=3.3657 (ppl=28.95)
Epoch 15: train_loss=3.2904 (ppl=26.85), val_loss=3.2788 (ppl=26.54)
Epoch 20: train_loss=3.2301 (ppl=25.28), val_loss=3.2162 (ppl=24.93)
Epoch 25: train_loss=3.1910 (ppl=24.31), val_loss=3.1740 (ppl=23.90)
Epoch 30: train_loss=3.1667 (ppl=23.73), val_loss=3.1468 (ppl=23.26)
Epoch 35: train_loss=3.1507 (ppl=23.35), val_loss=3.1296 (ppl=22.86)
Epoch 40: train_loss=3.1413 (ppl=23.13), val_loss=3.1184 (ppl=22.61)
Epoch 45: train_loss=3.1334 (ppl=22.95), val_loss=3.1108 (ppl=22.44)
Epoch 50: train_loss=3.1282 (ppl=22.83), val_loss=3.1054 (ppl=22.32)
Epoch 55: train_loss=3.1239 (ppl=22.73), val_loss=3.1013 (ppl=22.23)
Epoch 60: train_loss=3.1202 (ppl=22.65), val_loss=3.0980 (ppl=22.15)
Epoch 65: train_loss=3.1171 (ppl=22.58), val_loss=3.0952 (ppl=22.09)
Epoch 70: train_loss=3.1141 (ppl=22.51), val_loss=3.0929 (ppl=22.04)
Epoch 75: train_loss=3.1114 (ppl=22.45), val_loss=3.0908 (ppl=22.00)
Epoch 80: train_loss=3.1102 (ppl=22.43), val_loss=3.0890 (ppl=21.96)
Epoch 85: train_loss=3.1069 (ppl=22.35), val_loss=3.0873 (ppl=21.92)
Epoch 90: train_loss=3.1041 (ppl=22.29), val_loss=3.0857 (ppl=21.88)
Epoch 95: train_loss=3.1028 (ppl=22.26), val_loss=3.0842 (ppl=21.85)
Epoch 100: train_loss=3.1003 (ppl=22.20), val_loss=3.0829 (ppl=21.82)
Epoch 105: train_loss=3.0983 (ppl=22.16), val_loss=3.0815 (ppl=21.79)
Epoch 110: train_loss=3.0975 (ppl=22.14), val_loss=3.0800 (ppl=21.76)
Epoch 115: train_loss=3.0960 (ppl=22.11), val_loss=3.0786 (ppl=21.73)
Epoch 120: train_loss=3.0944 (ppl=22.07), val_loss=3.0773 (ppl=21.70)
Epoch 125: train_loss=3.0921 (ppl=22.02), val_loss=3.0760 (ppl=21.67)
Epoch 130: train_loss=3.0916 (ppl=22.01), val_loss=3.0745 (ppl=21.64)
Epoch 135: train_loss=3.0888 (ppl=21.95), val_loss=3.0730 (ppl=21.61)
Epoch 140: train_loss=3.0886 (ppl=21.95), val_loss=3.0716 (ppl=21.58)
Epoch 145: train_loss=3.0854 (ppl=21.88), val_loss=3.0701 (ppl=21.54)
Epoch 149: train_loss=3.0847 (ppl=21.86), val_loss=3.0689 (ppl=21.52)
============================================================
Training completed!
Visualize Training#
# Plot training curves
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
epochs = range(len(history['train_loss']))
# Loss
ax1.plot(epochs, history['train_loss'], 'b-', label='Train Loss', linewidth=2)
ax1.plot(epochs, history['val_loss'], 'r-', label='Val Loss', linewidth=2)
ax1.set_xlabel('Epoch')
ax1.set_ylabel('Loss')
ax1.set_title('Training and Validation Loss')
ax1.legend()
ax1.grid(True, alpha=0.3)
# Perplexity
train_ppl = [perplexity(loss) for loss in history['train_loss']]
val_ppl = [perplexity(loss) for loss in history['val_loss']]
ax2.plot(epochs, train_ppl, 'b-', label='Train Perplexity', linewidth=2)
ax2.plot(epochs, val_ppl, 'r-', label='Val Perplexity', linewidth=2)
ax2.set_xlabel('Epoch')
ax2.set_ylabel('Perplexity')
ax2.set_title('Training and Validation Perplexity')
ax2.legend()
ax2.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
6. Text Generation#
def generate_text(model, start_text, length=100, temperature=1.0):
"""Generate text using the trained model.
Args:
model: Trained language model
start_text: Starting string
length: Number of characters to generate
temperature: Sampling temperature (higher = more random)
Returns:
Generated text string
"""
# Encode start text
current_seq = tokenizer.encode(start_text)
generated = list(current_seq)
with brainstate.environ.context(fit=False):
state = None
for _ in range(length):
# Prepare input (last seq_length characters)
input_seq = current_seq[-seq_length:]
input_seq = jnp.array(input_seq).reshape(1, -1)
# Pad if necessary
if input_seq.shape[1] < seq_length:
pad_length = seq_length - input_seq.shape[1]
padding = jnp.zeros((1, pad_length), dtype=jnp.int32)
input_seq = jnp.concatenate([padding, input_seq], axis=1)
# Get predictions
logits, state = model(input_seq, state)
# Get last time step
last_logits = logits[0, -1, :] / temperature
# Sample from distribution
probs = jax.nn.softmax(last_logits)
next_idx = np.random.choice(len(probs), p=np.array(probs))
# Append to sequence
generated.append(next_idx)
current_seq = np.append(current_seq, next_idx)
return tokenizer.decode(np.array(generated))
# Generate samples with different temperatures
start_text = "The "
temperatures = [0.5, 1.0]
print("\nGenerated Text Samples:")
print("=" * 70)
for temp in temperatures:
generated = generate_text(model, start_text, length=100, temperature=temp)
print(f"\nTemperature = {temp}:")
print(generated)
print("-" * 70)
Generated Text Samples:
======================================================================
Temperature = 0.5:
The mso aseool eelr aor eefcne e metelnoaeor eirm ioea imroep oehrss ll eenis ln nicue ie coai
o r
----------------------------------------------------------------------
Temperature = 1.0:
The cao e aLrmsylu i tktandlscijnr l.Ni aiaestlxo posime nu..esmisNuurdee. nv n mg erTibttoolrwur sml
----------------------------------------------------------------------
7. Attention Mechanism#
class ScaledDotProductAttention(brainstate.nn.Module):
"""Scaled dot-product attention mechanism."""
def __init__(self, dim):
super().__init__()
self.scale = jnp.sqrt(dim)
def __call__(self, query, key, value, mask=None):
"""Compute attention.
Args:
query: Query tensor of shape (batch, seq_len_q, dim)
key: Key tensor of shape (batch, seq_len_k, dim)
value: Value tensor of shape (batch, seq_len_v, dim)
mask: Optional mask
Returns:
output: Attended values
attention_weights: Attention weights
"""
# Compute attention scores
scores = jnp.matmul(query, key.transpose(0, 2, 1)) / self.scale
# Apply mask if provided
if mask is not None:
scores = jnp.where(mask, scores, -1e9)
# Compute attention weights
attention_weights = jax.nn.softmax(scores, axis=-1)
# Apply attention to values
output = jnp.matmul(attention_weights, value)
return output, attention_weights
class AttentionLSTM(brainstate.nn.Module):
"""LSTM with self-attention."""
def __init__(self, vocab_size, embedding_dim=64, hidden_dim=128):
super().__init__()
self.vocab_size = vocab_size
self.hidden_dim = hidden_dim
# Embedding
self.embedding = brainstate.ParamState(
brainstate.random.randn(vocab_size, embedding_dim) * 0.1
)
# LSTM
self.lstm_cell = brainstate.nn.LSTMCell(num_in=embedding_dim, num_out=hidden_dim)
# Attention
self.attention = ScaledDotProductAttention(hidden_dim)
# Output
self.fc_out = brainstate.nn.Linear(hidden_dim * 2, vocab_size)
def __call__(self, x):
"""Forward pass with attention."""
batch_size, seq_len = x.shape
# Embed
embedded = self.embedding.value[x]
# LSTM processing
self.lstm_cell.init_state(batch_size=batch_size)
lstm_outputs = []
for t in range(seq_len):
hidden = self.lstm_cell.update(embedded[:, t, :])
lstm_outputs.append(hidden)
lstm_outputs = jnp.stack(lstm_outputs, axis=1)
# Self-attention
attended, attn_weights = self.attention(
lstm_outputs, lstm_outputs, lstm_outputs
)
# Concatenate LSTM output and attended output
combined = jnp.concatenate([lstm_outputs, attended], axis=-1)
# Output projection
logits = jax.vmap(self.fc_out)(combined)
return logits, attn_weights
# Create attention model
attn_model = AttentionLSTM(
vocab_size=tokenizer.vocab_size,
embedding_dim=64,
hidden_dim=128
)
# Test
test_logits, test_attn = attn_model(test_input)
print(f"Logits shape: {test_logits.shape}")
print(f"Attention weights shape: {test_attn.shape}")
n_params = 0
for p in attn_model.states(brainstate.ParamState).values():
if isinstance(p.value, dict):
for v in p.value.values():
n_params += v.size
else:
n_params += p.value.size
print(f"\nTotal parameters: {n_params:,}")
Logits shape: (4, 20, 38)
Attention weights shape: (4, 20, 20)
Total parameters: 111,014
Visualize Attention#
# Get attention weights for a sample
sample_input = jnp.array(X_train[0:1]) # Single sequence
with brainstate.environ.context(fit=False):
_, attn_weights = attn_model(sample_input)
# Plot attention heatmap
plt.figure(figsize=(10, 8))
plt.imshow(attn_weights[0], cmap='viridis', aspect='auto')
plt.colorbar(label='Attention Weight')
plt.xlabel('Key Position')
plt.ylabel('Query Position')
plt.title('Self-Attention Weights')
# Add text labels
input_text = tokenizer.decode(X_train[0])
plt.text(0.5, -0.1, f'Input: "{input_text}"',
transform=plt.gca().transAxes, ha='center')
plt.tight_layout()
plt.show()
8. Simple Transformer Block#
class TransformerBlock(brainstate.nn.Module):
"""Simple Transformer block with self-attention and feed-forward."""
def __init__(self, dim, num_heads=4, ff_dim=256):
super().__init__()
self.dim = dim
self.num_heads = num_heads
# Multi-head attention (simplified)
self.attention = ScaledDotProductAttention(dim)
# Layer normalization
self.ln1 = brainstate.nn.LayerNorm([dim])
self.ln2 = brainstate.nn.LayerNorm([dim])
# Feed-forward network
self.ff1 = brainstate.nn.Linear(dim, ff_dim)
self.ff2 = brainstate.nn.Linear(ff_dim, dim)
def __call__(self, x, mask=None):
"""Forward pass.
Args:
x: Input of shape (batch, seq_len, dim)
mask: Optional attention mask
Returns:
Output of same shape as input
"""
# Self-attention with residual
attn_out, _ = self.attention(x, x, x, mask)
x = self.ln1(x + attn_out)
# Feed-forward with residual
ff_out = self.ff2(jax.nn.relu(self.ff1(x)))
x = self.ln2(x + ff_out)
return x
class SimpleTransformer(brainstate.nn.Module):
"""Simple Transformer for sequence modeling."""
def __init__(self, vocab_size, dim=128, num_layers=2, num_heads=4):
super().__init__()
self.vocab_size = vocab_size
self.dim = dim
# Embedding
self.embedding = brainstate.ParamState(
brainstate.random.randn(vocab_size, dim) * 0.1
)
# Transformer blocks
self.blocks = []
for i in range(num_layers):
block = TransformerBlock(dim, num_heads, ff_dim=dim*4)
self.blocks.append(block)
setattr(self, f'block_{i}', block)
# Output
self.fc_out = brainstate.nn.Linear(dim, vocab_size)
def __call__(self, x):
"""Forward pass."""
# Embed
x = self.embedding.value[x]
# Transformer blocks
for block in self.blocks:
x = block(x)
# Output projection
logits = jax.vmap(self.fc_out)(x)
return logits
# Create Transformer
transformer = SimpleTransformer(
vocab_size=tokenizer.vocab_size,
dim=128,
num_layers=2,
num_heads=4
)
# Test
test_logits = transformer(test_input)
print(f"Input shape: {test_input.shape}")
print(f"Output shape: {test_logits.shape}")
n_params = 0
for p in transformer.states(brainstate.ParamState).values():
if isinstance(p.value, dict):
for v in p.value.values():
n_params += v.size
else:
n_params += p.value.size
print(f"\nTotal parameters: {n_params:,}")
Input shape: (4, 20)
Output shape: (4, 20, 38)
Total parameters: 274,214
Next Steps#
In the next tutorial, we’ll explore:
Brain-Inspired Computing: Spiking neural networks
Neurodynamics and biological models
Plasticity and learning rules
Event-driven computation
