Variational Autoencoder (VAE) on MNIST#

This tutorial demonstrates how to build and train a Variational Autoencoder (VAE) using BrainState. VAEs are powerful generative models that learn to encode data into a latent space and decode it back, enabling both reconstruction and generation of new samples.

Learning Objectives#

By the end of this tutorial, you will:

  • Understand the theory behind Variational Autoencoders

  • Build encoder and decoder networks in BrainState

  • Implement the VAE loss function (reconstruction + KL divergence)

  • Train a VAE on MNIST dataset

  • Generate new handwritten digits

  • Visualize the latent space

What is a Variational Autoencoder?#

A VAE consists of two main components:

  1. Encoder: Maps input data x to latent representation z

    • Outputs mean μ and standard deviation σ of latent distribution

    • Uses reparameterization trick: z = μ + σ * ε, where ε ~ N(0,1)

  2. Decoder: Reconstructs input from latent code z

    • Maps z back to data space

    • Outputs reconstruction x̂

Loss Function:

Loss = Reconstruction Loss + β * KL Divergence

  • Reconstruction Loss: How well we reconstruct the input

  • KL Divergence: Regularizes latent space to be close to N(0,1)

Setup and Imports#

import typing as tp

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import optax  # For loss functions
import os
os.environ['HF_ENDPOINT'] = 'https://mirrors.tuna.tsinghua.edu.cn/huggingface'
from datasets import load_dataset

import brainstate
import braintools

# Set random seed for reproducibility
np.random.seed(42)
brainstate.random.seed(42)

Configuration and Dataset#

Hyperparameters#

# Model configuration
latent_size = 32          # Dimension of latent space
hidden_size = 256         # Hidden layer size
image_shape = (28, 28)    # MNIST image shape

# Training configuration
batch_size = 64
steps_per_epoch = 200
epochs = 20
learning_rate = 1e-3
kl_weight = 0.1           # β parameter for KL divergence

print(f"Configuration:")
print(f"  Latent dimension: {latent_size}")
print(f"  Hidden size: {hidden_size}")
print(f"  Batch size: {batch_size}")
print(f"  Epochs: {epochs}")

Configuration:
  Latent dimension: 32
  Hidden size: 256
  Batch size: 64
  Epochs: 20

Load and Preprocess MNIST Dataset#

# Load MNIST dataset
print("Loading MNIST dataset...")
dataset = load_dataset('mnist')

# Convert to numpy arrays
X_train = np.array(np.stack(dataset['train']['image']), dtype=np.uint8)
X_test = np.array(np.stack(dataset['test']['image']), dtype=np.uint8)

# Binarize data (threshold at 0)
X_train = (X_train > 0).astype(jnp.float32)
X_test = (X_test > 0).astype(jnp.float32)

print(f"\nDataset loaded:")
print(f"  Training samples: {X_train.shape[0]}")
print(f"  Test samples: {X_test.shape[0]}")
print(f"  Image shape: {X_train.shape[1:]}")

Loading MNIST dataset...

Dataset loaded:
  Training samples: 60000
  Test samples: 10000
  Image shape: (28, 28)

# Visualize some samples
fig, axes = plt.subplots(2, 5, figsize=(12, 5))
for i, ax in enumerate(axes.flat):
    ax.imshow(X_train[i], cmap='gray')
    ax.axis('off')
plt.suptitle('Sample Training Images (Binarized)', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()
../../_images/3377f4a62fe7110cee810de22e6e53bfdf065f3f726513290a5d925e4c79b9ba.png

Building the VAE#

Custom State for Loss Tracking#

We’ll create a custom state type to track the KL divergence loss within the encoder:

class Loss(brainstate.State):
    """Custom state for tracking loss components."""
    pass

Encoder Network#

The encoder maps images to latent distributions:

class Encoder(brainstate.nn.Module):
    """Encoder network for VAE.

    Maps input images to latent distribution parameters (mean and std).
    """

    def __init__(self, din: int, dmid: int, dout: int):
        super().__init__()

        # Shared hidden layer
        self.linear1 = brainstate.nn.Linear(din, dmid)

        # Separate heads for mean and log-variance
        self.linear_mean = brainstate.nn.Linear(dmid, dout)
        self.linear_std = brainstate.nn.Linear(dmid, dout)

    def __call__(self, x: jax.Array) -> jax.Array:
        """Encode input to latent representation.

        Args:
            x: Input images [batch, height, width]

        Returns:
            z: Latent codes [batch, latent_dim]
        """
        # Flatten input
        x = x.reshape((x.shape[0], -1))

        # Shared hidden layer with ReLU
        x = self.linear1(x)
        x = jax.nn.relu(x)

        # Compute mean and std of latent distribution
        mean = self.linear_mean(x)
        log_std = self.linear_std(x)
        std = jnp.exp(log_std)  # Ensure std > 0

        # Compute KL divergence: KL(N(μ,σ²) || N(0,1))
        # KL = 0.5 * (μ² + σ² - log(σ²) - 1)
        kl_loss = 0.5 * jnp.mean(
            -jnp.log(std ** 2) - 1.0 + std ** 2 + mean ** 2,
            axis=-1
        )

        # Store KL loss in state for later retrieval
        self.kl_loss = Loss(jnp.mean(kl_loss))

        # Reparameterization trick: z = μ + σ * ε, where ε ~ N(0,1)
        epsilon = brainstate.random.normal(size=mean.shape)
        z = mean + std * epsilon

        return z

Decoder Network#

The decoder reconstructs images from latent codes:

class Decoder(brainstate.nn.Module):
    """Decoder network for VAE.

    Maps latent codes back to image space.
    """

    def __init__(self, din: int, dmid: int, dout: int):
        super().__init__()

        self.linear1 = brainstate.nn.Linear(din, dmid)
        self.linear2 = brainstate.nn.Linear(dmid, dout)

    def __call__(self, z: jax.Array) -> jax.Array:
        """Decode latent code to reconstruction.

        Args:
            z: Latent codes [batch, latent_dim]

        Returns:
            logits: Reconstruction logits [batch, height * width]
        """
        # Hidden layer with ReLU
        z = self.linear1(z)
        z = jax.nn.relu(z)

        # Output layer (logits for binary cross-entropy)
        logits = self.linear2(z)

        return logits

Complete VAE Model#

Combine encoder and decoder:

class VAE(brainstate.nn.Module):
    """Variational Autoencoder.

    Combines encoder and decoder for generative modeling.
    """

    def __init__(
        self,
        din: int,
        hidden_size: int,
        latent_size: int,
        output_shape: tp.Sequence[int],
    ):
        super().__init__()

        self.output_shape = output_shape

        # Create encoder and decoder
        self.encoder = Encoder(din, hidden_size, latent_size)
        self.decoder = Decoder(
            latent_size,
            hidden_size,
            int(np.prod(output_shape))
        )

    def __call__(self, x: jax.Array) -> jax.Array:
        """Forward pass: encode then decode.

        Args:
            x: Input images [batch, height, width]

        Returns:
            logits: Reconstruction logits [batch, height, width]
        """
        # Encode to latent space
        z = self.encoder(x)

        # Decode to reconstruction
        logits = self.decoder(z)

        # Reshape to image dimensions
        logits = jnp.reshape(logits, (-1, *self.output_shape))

        return logits

    def generate(self, z: jax.Array) -> jax.Array:
        """Generate images from latent codes.

        Args:
            z: Latent codes [batch, latent_dim]

        Returns:
            images: Generated images [batch, height, width]
        """
        logits = self.decoder(z)
        logits = jnp.reshape(logits, (-1, *self.output_shape))

        # Apply sigmoid to get probabilities
        return jax.nn.sigmoid(logits)

Create Model and Optimizer#

# Create VAE model
model = VAE(
    din=int(np.prod(image_shape)),
    hidden_size=hidden_size,
    latent_size=latent_size,
    output_shape=image_shape,
)

# Create Adam optimizer
optimizer = braintools.optim.Adam(lr=learning_rate)
optimizer.register_trainable_weights(model.states(brainstate.ParamState))

print("Model created successfully!")
print(f"\nModel architecture:")
print(f"  Input: {np.prod(image_shape)} -> Encoder -> Latent: {latent_size}")
print(f"  Latent: {latent_size} -> Decoder -> Output: {np.prod(image_shape)}")
print(f"\nTotal parameters: {sum(x.size for x in jax.tree.leaves(model.states(brainstate.ParamState).to_dict_values())):,}")

Model created successfully!

Model architecture:
  Input: 784 -> Encoder -> Latent: 32
  Latent: 32 -> Decoder -> Output: 784

Total parameters: 427,344

Training the VAE#

Define Training Step#

The loss function combines reconstruction loss and KL divergence:

@brainstate.transform.jit
def train_step(x: jax.Array):
    """Perform one training step.

    Args:
        x: Batch of images [batch, height, width]

    Returns:
        loss: Total loss value
    """
    def loss_fn():
        # Forward pass
        logits = model(x)

        # Collect KL losses from encoder
        losses = brainstate.graph.treefy_states(model, Loss)
        kl_loss = sum(jax.tree_util.tree_leaves(losses), 0.0)

        # Reconstruction loss (binary cross-entropy)
        reconstruction_loss = jnp.mean(
            optax.sigmoid_binary_cross_entropy(logits, x)
        )

        # Total loss = reconstruction + β * KL
        total_loss = reconstruction_loss + kl_weight * kl_loss

        return total_loss

    # Compute gradients and update
    grads, loss = brainstate.transform.grad(
        loss_fn,
        optimizer.param_states.to_pytree(),
        return_value=True
    )()

    optimizer.update(grads)

    return loss

Helper Functions for Evaluation#

@brainstate.transform.jit
def forward(x: jax.Array) -> jax.Array:
    """Forward pass with sigmoid activation."""
    return jax.nn.sigmoid(model(x))


@brainstate.transform.jit
def sample(z: jax.Array) -> jax.Array:
    """Generate samples from latent codes."""
    return model.generate(z)

Run Training Loop#

print("Starting training...\n")

loss_history = []

for epoch in range(epochs):
    epoch_losses = []

    for step in range(steps_per_epoch):
        # Sample random batch
        idxs = np.random.randint(0, len(X_train), size=(batch_size,))
        x_batch = X_train[idxs]

        # Train step
        loss = train_step(x_batch)
        epoch_losses.append(np.asarray(loss))

    # Log progress
    avg_loss = np.mean(epoch_losses)
    loss_history.append(avg_loss)
    print(f'Epoch {epoch + 1:2d}/{epochs}: Loss = {avg_loss:.4f}')

print("\nTraining complete!")

Starting training...

Epoch  1/20: Loss = 0.3331
Epoch  2/20: Loss = 0.2323
Epoch  3/20: Loss = 0.2125
Epoch  4/20: Loss = 0.2023
Epoch  5/20: Loss = 0.1945
Epoch  6/20: Loss = 0.1883
Epoch  7/20: Loss = 0.1838
Epoch  8/20: Loss = 0.1802
Epoch  9/20: Loss = 0.1770
Epoch 10/20: Loss = 0.1750
Epoch 11/20: Loss = 0.1728
Epoch 12/20: Loss = 0.1710
Epoch 13/20: Loss = 0.1699
Epoch 14/20: Loss = 0.1687
Epoch 15/20: Loss = 0.1675
Epoch 16/20: Loss = 0.1672
Epoch 17/20: Loss = 0.1658
Epoch 18/20: Loss = 0.1651
Epoch 19/20: Loss = 0.1647
Epoch 20/20: Loss = 0.1635

Training complete!

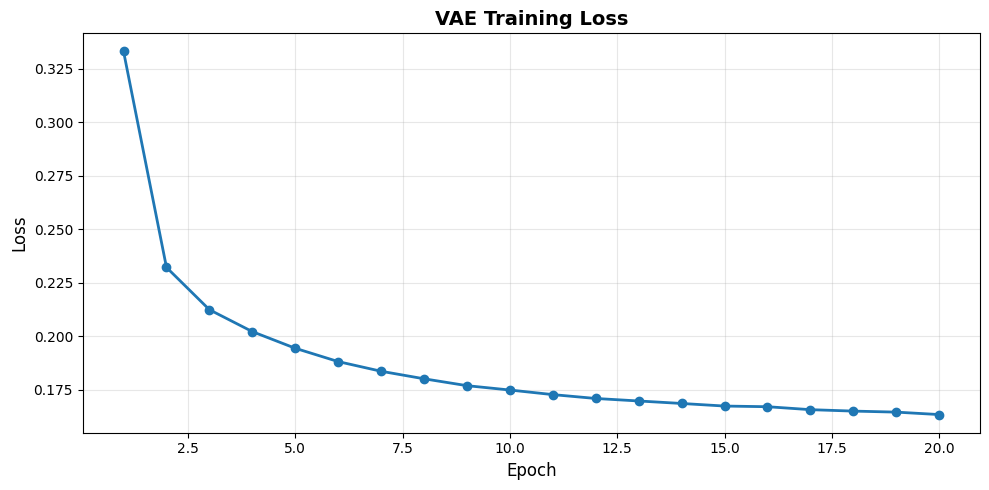

Visualize Training Progress#

plt.figure(figsize=(10, 5))
plt.plot(range(1, epochs + 1), loss_history, marker='o', linewidth=2, markersize=6)
plt.xlabel('Epoch', fontsize=12)
plt.ylabel('Loss', fontsize=12)
plt.title('VAE Training Loss', fontsize=14, fontweight='bold')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
../../_images/98702362827a38b165ecdd0e73a2798f62f7724b0f7a7414a6520e46ce7b8f4b.png

Evaluation and Visualization#

Reconstruction Quality#

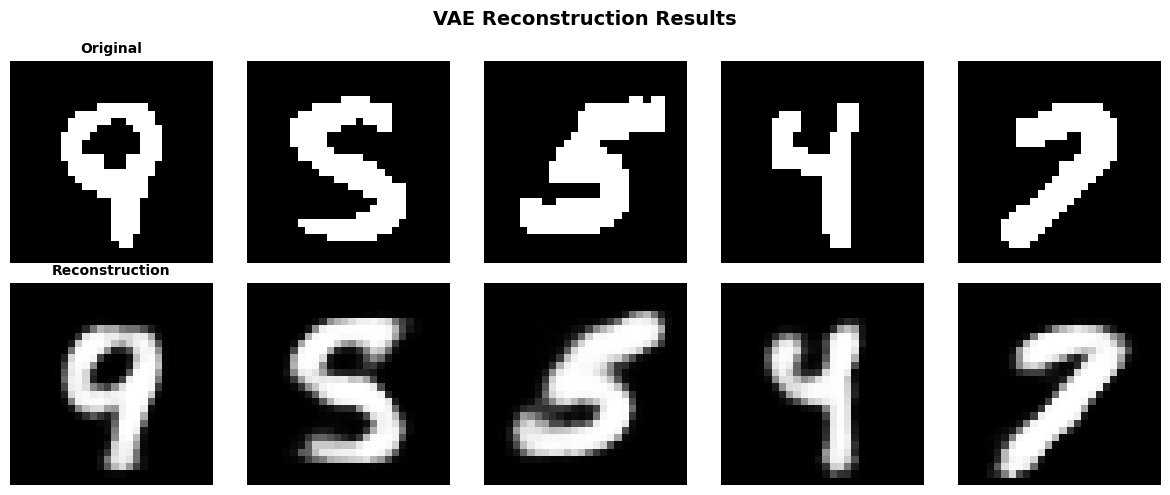

Let’s see how well the VAE reconstructs test images:

# Get random test samples
num_samples = 5
idxs = np.random.randint(0, len(X_test), size=(num_samples,))
x_sample = X_test[idxs]

# Get reconstructions
y_pred = forward(x_sample)

# Plot original vs reconstruction
fig, axes = plt.subplots(2, num_samples, figsize=(12, 5))

for i in range(num_samples):
    # Original
    axes[0, i].imshow(x_sample[i], cmap='gray')
    axes[0, i].axis('off')
    if i == 0:
        axes[0, i].set_title('Original', fontsize=10, fontweight='bold')

    # Reconstruction
    axes[1, i].imshow(y_pred[i], cmap='gray')
    axes[1, i].axis('off')
    if i == 0:
        axes[1, i].set_title('Reconstruction', fontsize=10, fontweight='bold')

plt.suptitle('VAE Reconstruction Results', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()
../../_images/8d33009381bf4564a1e51a1bbbbb1c8963fc0c68d9be070006856b93ac8f355e.png

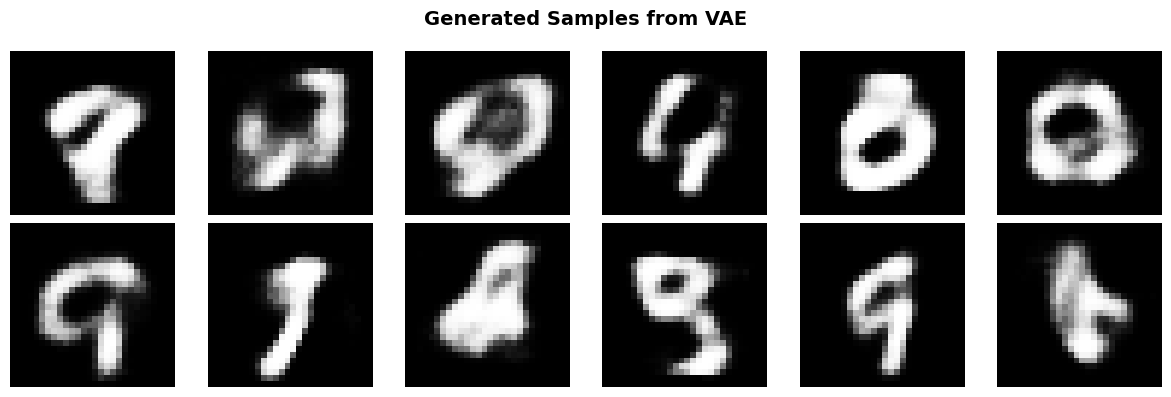

Generate New Samples#

Sample from the latent space to generate new digits:

# Sample latent codes from standard normal distribution
z_samples = np.random.normal(scale=1.0, size=(12, latent_size))
samples = sample(z_samples)

# Plot generated samples
fig, axes = plt.subplots(2, 6, figsize=(12, 4))

for i, ax in enumerate(axes.flat):
    if i < len(samples):
        ax.imshow(samples[i], cmap='gray')
    ax.axis('off')

plt.suptitle('Generated Samples from VAE', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()
../../_images/8a3ae7932b0223145bb600160771ce0ea2934ffe88804390fc91e0b6a91687b8.png

Latent Space Interpolation#

Interpolate between two digits in latent space:

# Get two random samples
idx1, idx2 = np.random.randint(0, len(X_test), size=2)
x1, x2 = X_test[idx1:idx1+1], X_test[idx2:idx2+1]

# Encode to latent space (using the mean, no sampling)
# We'll do this by calling encoder directly
z1 = model.encoder(x1)
z2 = model.encoder(x2)

# Interpolate in latent space
n_steps = 10
alphas = np.linspace(0, 1, n_steps)
z_interp = jnp.array([alpha * z2 + (1 - alpha) * z1 for alpha in alphas]).squeeze()

# Decode interpolated latent codes
samples_interp = sample(z_interp)

# Plot interpolation
fig, axes = plt.subplots(1, n_steps, figsize=(15, 2))

for i, ax in enumerate(axes):
    ax.imshow(samples_interp[i], cmap='gray')
    ax.axis('off')
    if i == 0:
        ax.set_title('Start', fontsize=9)
    elif i == n_steps - 1:
        ax.set_title('End', fontsize=9)

plt.suptitle('Latent Space Interpolation', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()

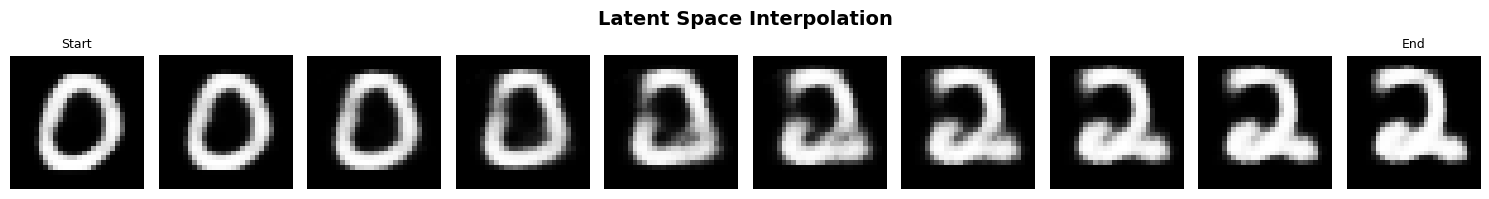

../../_images/c432b4451a22f4e564cc2eb09be940904d0832be684f597e1c2a6eabbf37a68b.png

Key Concepts Summary#

VAE Architecture#

  1. Encoder:

    • Maps input to latent distribution parameters (μ, σ)

    • Uses reparameterization trick for backpropagation

    • Computes KL divergence as regularization

  2. Decoder:

    • Maps latent codes to reconstructions

    • Outputs logits (before sigmoid)

    • Enables generation from random samples

  3. Loss Function:

    • Reconstruction: Binary cross-entropy between input and output

    • KL Divergence: Regularizes latent space to N(0,1)

    • β-VAE: Weight parameter controls trade-off

BrainState Features Used#

  1. Custom State Types: Loss state for tracking KL divergence

  2. State Management: Automatic handling via lifted transforms

  3. JIT Compilation: Fast training with brainstate.transform.jit

  4. Automatic Differentiation: Gradients with brainstate.transform.grad

  5. Optimizers: Adam from BrainTools

Applications of VAEs#

  • Image Generation: Creating new, realistic images

  • Data Compression: Compact latent representations

  • Anomaly Detection: Identifying outliers via reconstruction error

  • Semi-Supervised Learning: Using latent structure

  • Drug Discovery: Molecular generation and optimization

Exercises#

Try these to deepen your understanding:

  1. Experiment with β:

    • Try different values of kl_weight (0.01, 0.1, 1.0)

    • Observe effect on reconstruction vs. generation quality

  2. Increase Latent Dimension:

    • Change latent_size to 64 or 128

    • Compare reconstruction quality and training time

  3. Convolutional VAE:

    • Replace linear layers with convolutional layers

    • Use brainstate.nn.Conv2d and brainstate.nn.ConvTranspose2d

  4. Conditional VAE:

    • Add digit labels as input to encoder and decoder

    • Generate specific digits on demand

  5. Disentangled Representations:

    • Implement β-VAE with high β (β > 1)

    • Visualize individual latent dimensions

Next Steps#

Now that you’ve built a VAE, explore:

  1. Advanced Generative Models: GANs, diffusion models

  2. Sequence Modeling: VAEs for time-series data

  3. Brain-Inspired Models: Spiking VAEs

  4. Model Deployment: Save and serve trained VAEs

References#
