Region and Locset Filters

This notebook is intentionally small-step: prepare a few morphology presets, define a small set of visualization knobs, then use short calls to show what each filter expression selects.

The most important split is:

• Region filters select branch intervals and are used by Cell.paint(...).

• Locset filters select branch-local points and are used by Cell.place(...).

Before the filters themselves, we first make the visualization level and CV policy explicit so every plot is easy to adjust.

import os
os.environ.setdefault('JAX_PLATFORMS', 'cpu')
os.environ.setdefault('PYVISTA_OFF_SCREEN', 'true')
os.environ.setdefault('MPLBACKEND', 'Agg')

from collections import Counter
from pathlib import Path
import warnings

import matplotlib.pyplot as plt
import brainunit as u
import braincell
import braincell.mech as mech
from braincell import Morphology, Cell, CVPerBranch
from braincell.filter import (
    AllRegion,
    EmptyRegion,
    BranchSlice,
    BranchInFilter,
    BranchRangeFilter,
    AtLocation,
    RootLocation,
    BranchPoints,
    Terminals,
    UniformSamples,
    RandomSamples,
    at,
    branch_in,
    branch_range,
)

warnings.filterwarnings(
    'ignore',
    message=r'from_points\(\) produced .* zero-length segment',
)

plt.rcParams['figure.dpi'] = 120

1. Prepare Morphology Presets

The examples move from a tiny tree to richer real morphologies. Later code cells only refer to these variables.

repo_root = Path(braincell.__file__).resolve().parents[1]
morpho_dir = repo_root / 'data' / 'morphology'

morph_simple = Morphology.from_swc(morpho_dir / 'example_tree.swc')
morph_io = Morphology.from_swc(morpho_dir / 'io.swc')
morph_pc = Morphology.from_asc(morpho_dir / 'pc.asc')

MORPH_PRESETS = {
    'morph_simple': morph_simple,
    'morph_io': morph_io,
    'morph_pc': morph_pc,
}


def describe_morph(name, morph):
    type_count = dict(sorted(Counter(branch.type for branch in morph.branches).items()))
    print(f'{name:<12} branches={len(morph.branches):>4}  root={morph.root.name:<10}  types={type_count}')


for name, morph in MORPH_PRESETS.items():
    describe_morph(name, morph)

Warning: no DISPLAY environment variable.
--No graphics will be displayed.

morph_simple branches=   9  root=soma        types={'axon': 2, 'basal_dendrite': 6, 'soma': 1}
morph_io     branches=  31  root=soma        types={'basal_dendrite': 25, 'soma': 6}
morph_pc     branches= 461  root=soma        types={'dendrite': 460, 'soma': 1}

2. Visualization Knobs and Display Helpers

Cell.vis_topology(...) can render the same selection at three topology levels:

• level='node': runtime point-tree view. Attachment points, CV midpoints, and branch terminal points can all be visible.

• level='cv': one node per control volume. This is the default for region examples in this notebook because it shows partial branch coverage clearly.

• level='branch': one node per morphology branch. This is compact and useful for branch metadata filters. Locsets cannot be drawn at branch level.

The CV view depends on the control-volume policy. Here the global default is CVPerBranch(cv_per_branch=2), meaning each branch is split into two CVs for the visualization cell. Change the constants below and rerun later cells to compare different settings.

Each compare_regions(...) / compare_locsets(...) call also accepts per-panel overrides, so one row can compare different level, layout, cv_per_branch, or even different morphologies.

CELL_CACHE = {}
MORPH_NAMES = {id(morph): name for name, morph in MORPH_PRESETS.items()}
COLORS = ('#ef4444', '#0ea5e9', '#22c55e', '#f59e0b', '#a855f7', '#14b8a6')

# Global plot defaults. Change these and rerun later cells when comparing views.
DEFAULT_MORPH = morph_simple
DEFAULT_REGION_LEVEL = 'cv'
DEFAULT_REGION_LAYOUT = 'twopi'
DEFAULT_LOCSET_LEVEL = 'node'
DEFAULT_LOCSET_LAYOUT = 'kamada_kawai'
DEFAULT_CV_PER_BRANCH = 2
DEFAULT_LAYOUT_SCALE = 1.5
DEFAULT_PANEL_WIDTH = 3.8
DEFAULT_PANEL_HEIGHT = 3.4


def morph_name(morph):
    return MORPH_NAMES.get(id(morph), 'morph')


def resolve_morph(morph):
    if morph is None:
        return DEFAULT_MORPH
    if isinstance(morph, str):
        return MORPH_PRESETS[morph]
    return morph


def get_cell(morph, *, cv_per_branch=None):
    cv_per_branch = DEFAULT_CV_PER_BRANCH if cv_per_branch is None else cv_per_branch
    key = (id(morph), int(cv_per_branch))
    if key not in CELL_CACHE:
        cell = Cell(morph, cv_policy=CVPerBranch(cv_per_branch=int(cv_per_branch)))
        cell.init_state()
        CELL_CACHE[key] = cell
    return CELL_CACHE[key]


def _spec_from_item(item, *, default_morph, default_level, default_layout, default_cv_per_branch, default_layout_scale):
    if isinstance(item, dict):
        spec = dict(item)
    else:
        label, expr = item
        spec = {'label': label, 'expr': expr}
    spec['morph'] = resolve_morph(spec.get('morph', default_morph))
    spec['level'] = spec.get('level', default_level)
    spec['layout'] = spec.get('layout', default_layout)
    spec['preset'] = spec.get('preset', None)
    spec['layout_scale'] = spec.get('layout_scale', default_layout_scale)
    spec['cv_per_branch'] = spec.get('cv_per_branch', default_cv_per_branch)
    return spec


def _topology_kwargs(spec, *, ax, highlight_color):
    kwargs = {
        'level': spec['level'],
        'highlight_color': highlight_color,
        'node_color': '#d1d5db',
        'edge_color': '#e5e7eb',
        'root_color': '#000000',
        'ax': ax,
        'show': False,
    }
    if spec.get('layout') is not None:
        kwargs['layout'] = spec['layout']
    if spec.get('preset') is not None:
        kwargs['preset'] = spec['preset']
    if spec.get('layout_scale') is not None:
        kwargs['layout_scale'] = spec['layout_scale']
    return kwargs


def _plot_title(spec):
    return f"{spec['label']}\n{morph_name(spec['morph'])} | {spec['level']} | cv={spec['cv_per_branch']}"


def compare_regions(
    morph=None,
    labeled_exprs=(),
    *,
    level=None,
    layout=None,
    cv_per_branch=None,
    layout_scale=None,
    width=None,
    height=None,
):
    base_morph = resolve_morph(morph)
    base_level = DEFAULT_REGION_LEVEL if level is None else level
    base_layout = DEFAULT_REGION_LAYOUT if layout is None else layout
    base_cv_per_branch = DEFAULT_CV_PER_BRANCH if cv_per_branch is None else cv_per_branch
    base_layout_scale = DEFAULT_LAYOUT_SCALE if layout_scale is None else layout_scale
    specs = [
        _spec_from_item(
            item,
            default_morph=base_morph,
            default_level=base_level,
            default_layout=base_layout,
            default_cv_per_branch=base_cv_per_branch,
            default_layout_scale=base_layout_scale,
        )
        for item in labeled_exprs
    ]
    width = DEFAULT_PANEL_WIDTH if width is None else width
    height = DEFAULT_PANEL_HEIGHT if height is None else height

    fig, axes = plt.subplots(1, len(specs), figsize=(width * len(specs), height))
    axes = [axes] if len(specs) == 1 else list(axes)

    print(
        'compare_regions defaults:',
        f'morph={morph_name(base_morph)}',
        f'level={base_level}',
        f'layout={base_layout}',
        f'cv_per_branch={base_cv_per_branch}',
    )
    for index, spec in enumerate(specs):
        spec_morph = spec['morph']
        expr = spec['expr']
        mask = spec_morph.select(expr)
        print(
            f"  {spec['label']:<28}",
            f"morph={morph_name(spec_morph):<12}",
            f"level={spec['level']:<6}",
            f"layout={str(spec['layout'] or spec['preset']):<12}",
            f"cv_per_branch={spec['cv_per_branch']:<2}",
            f"intervals={len(mask.intervals):>4}",
            f"sample={mask.intervals[:4]}",
        )
        cell = get_cell(spec_morph, cv_per_branch=spec['cv_per_branch'])
        kwargs = _topology_kwargs(spec, ax=axes[index], highlight_color=COLORS[index % len(COLORS)])
        kwargs['region'] = expr
        kwargs['coverage_mode'] = spec.get('coverage_mode', 'fraction')
        cell.vis_topology(**kwargs)
        axes[index].set_title(_plot_title(spec), fontsize=9)
    plt.tight_layout()
    plt.show()


def compare_locsets(
    morph=None,
    labeled_exprs=(),
    *,
    level=None,
    layout=None,
    cv_per_branch=None,
    layout_scale=None,
    width=None,
    height=None,
):
    base_morph = resolve_morph(morph)
    base_level = DEFAULT_LOCSET_LEVEL if level is None else level
    base_layout = DEFAULT_LOCSET_LAYOUT if layout is None else layout
    base_cv_per_branch = DEFAULT_CV_PER_BRANCH if cv_per_branch is None else cv_per_branch
    base_layout_scale = DEFAULT_LAYOUT_SCALE if layout_scale is None else layout_scale
    specs = [
        _spec_from_item(
            item,
            default_morph=base_morph,
            default_level=base_level,
            default_layout=base_layout,
            default_cv_per_branch=base_cv_per_branch,
            default_layout_scale=base_layout_scale,
        )
        for item in labeled_exprs
    ]
    width = DEFAULT_PANEL_WIDTH if width is None else width
    height = DEFAULT_PANEL_HEIGHT if height is None else height

    fig, axes = plt.subplots(1, len(specs), figsize=(width * len(specs), height))
    axes = [axes] if len(specs) == 1 else list(axes)

    print(
        'compare_locsets defaults:',
        f'morph={morph_name(base_morph)}',
        f'level={base_level}',
        f'layout={base_layout}',
        f'cv_per_branch={base_cv_per_branch}',
    )
    for index, spec in enumerate(specs):
        if spec['level'] == 'branch':
            raise ValueError("Locsets can be visualized with level='node' or level='cv', not level='branch'.")
        spec_morph = spec['morph']
        expr = spec['expr']
        mask = spec_morph.select(expr)
        print(
            f"  {spec['label']:<28}",
            f"morph={morph_name(spec_morph):<12}",
            f"level={spec['level']:<6}",
            f"layout={str(spec['layout'] or spec['preset']):<12}",
            f"cv_per_branch={spec['cv_per_branch']:<2}",
            f"points={len(mask.points):>4}",
            f"sample={mask.display_names[:4]}",
        )
        cell = get_cell(spec_morph, cv_per_branch=spec['cv_per_branch'])
        kwargs = _topology_kwargs(spec, ax=axes[index], highlight_color=COLORS[index % len(COLORS)])
        kwargs['locset'] = expr
        cell.vis_topology(**kwargs)
        axes[index].set_title(_plot_title(spec), fontsize=9)
    plt.tight_layout()
    plt.show()

2.1 One Region, Different Views

This first example keeps the filter fixed and changes the display settings. It shows why level and cv_per_branch matter before we start comparing filter logic.

same_region = BranchSlice(branch_index=3, prox=0.10, dist=0.80)

compare_regions(
    morph_simple,
    [
        {'label': 'node view', 'expr': same_region, 'level': 'node', 'preset': 'dendrotweaks', 'layout': None},
        {'label': 'cv, 1 per branch', 'expr': same_region, 'level': 'cv', 'layout': 'twopi', 'cv_per_branch': 1},
        {'label': 'cv, 2 per branch', 'expr': same_region, 'level': 'cv', 'layout': 'twopi', 'cv_per_branch': 2},
        {'label': 'branch view', 'expr': same_region, 'level': 'branch', 'layout': 'dot'},
    ],
)

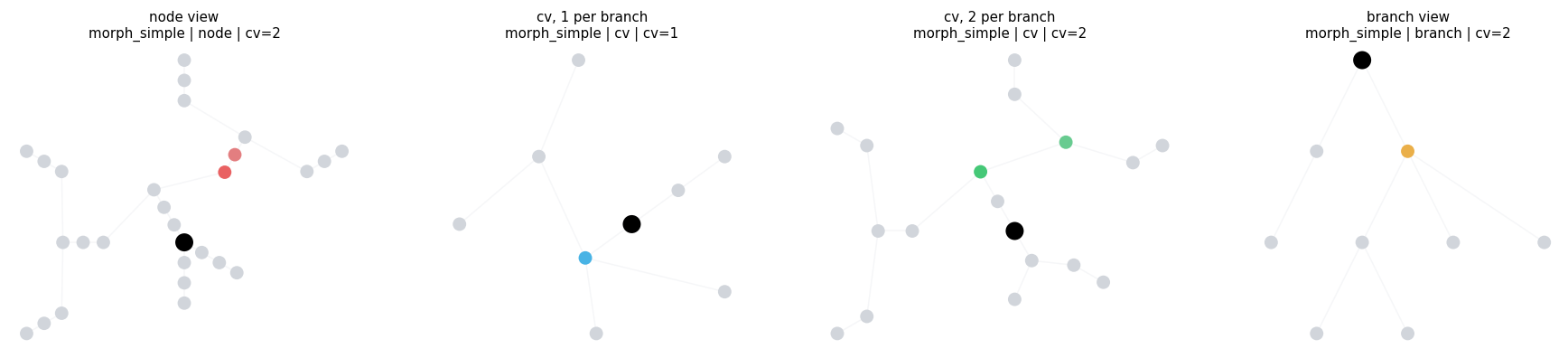

compare_regions defaults: morph=morph_simple level=cv layout=twopi cv_per_branch=2
  node view                    morph=morph_simple level=node   layout=dendrotweaks cv_per_branch=2  intervals=   1 sample=((3, 0.1, 0.8),)
  cv, 1 per branch             morph=morph_simple level=cv     layout=twopi        cv_per_branch=1  intervals=   1 sample=((3, 0.1, 0.8),)
  cv, 2 per branch             morph=morph_simple level=cv     layout=twopi        cv_per_branch=2  intervals=   1 sample=((3, 0.1, 0.8),)
  branch view                  morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   1 sample=((3, 0.1, 0.8),)

3. Region Filters

A region is a set of continuous branch intervals: (branch_id, prox, dist).

Start with the small morphology so every selection is easy to inspect.

3.1 Explicit Regions

Use AllRegion, EmptyRegion, and BranchSlice when you already know the branch ids and normalized coordinates.

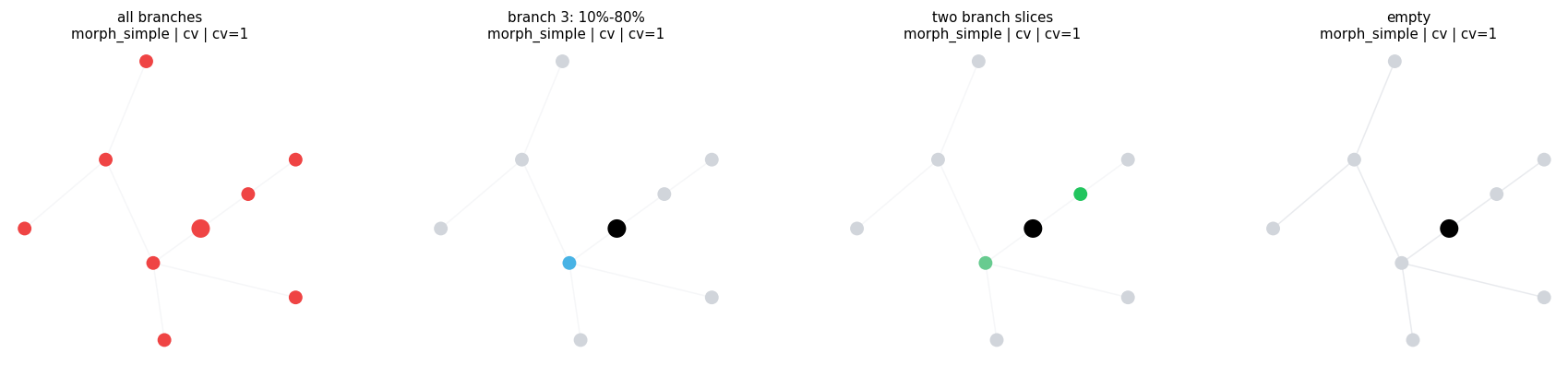

compare_regions(
    morph_simple,
    [
        ('all branches', AllRegion()),
        ('branch 3: 10%-80%', BranchSlice(branch_index=3, prox=0.10, dist=0.80)),
        ('two branch slices', BranchSlice(branch_index=[1, 3], prox=[0.0, 0.20], dist=[1.0, 0.80])),
        ('empty', EmptyRegion()),
    ],
    level='cv',
    layout='twopi',
    cv_per_branch=1,
)

compare_regions defaults: morph=morph_simple level=cv layout=twopi cv_per_branch=1
  all branches                 morph=morph_simple level=cv     layout=twopi        cv_per_branch=1  intervals=   9 sample=((0, 0.0, 1.0), (1, 0.0, 1.0), (2, 0.0, 1.0), (3, 0.0, 1.0))
  branch 3: 10%-80%            morph=morph_simple level=cv     layout=twopi        cv_per_branch=1  intervals=   1 sample=((3, 0.1, 0.8),)
  two branch slices            morph=morph_simple level=cv     layout=twopi        cv_per_branch=1  intervals=   2 sample=((1, 0.0, 1.0), (3, 0.2, 0.8))
  empty                        morph=morph_simple level=cv     layout=twopi        cv_per_branch=1  intervals=   0 sample=()

3.2 Branch Metadata Predicates

Use branch_in(...) when the rule is equality or membership over branch metadata / topology.

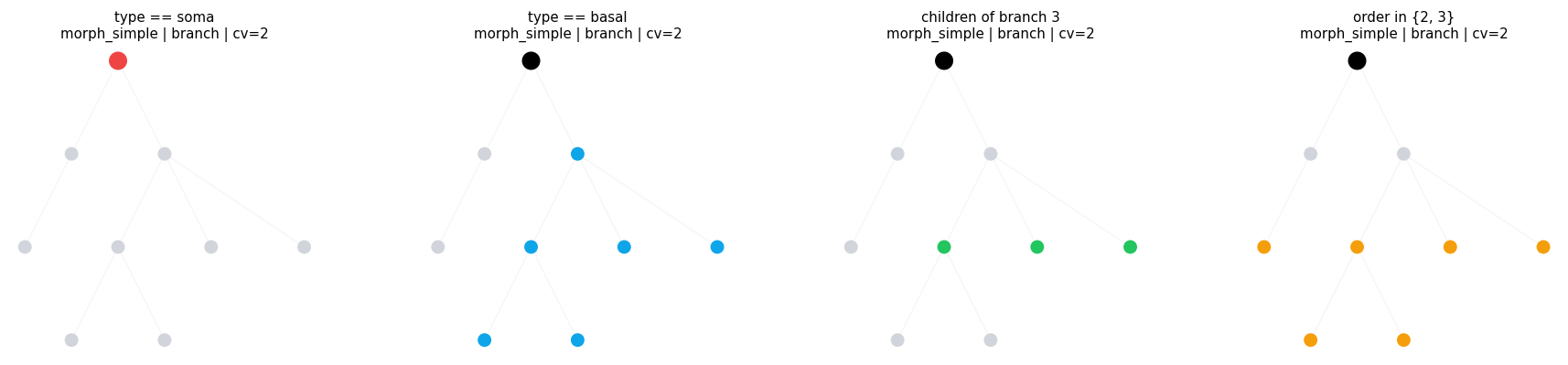

compare_regions(
    morph_simple,
    [
        ('type == soma', branch_in('type', 'soma')),
        ('type == basal', branch_in('type', 'basal_dendrite')),
        ('children of branch 3', branch_in('parent_id', {3})),
        ('order in {2, 3}', branch_in('branch_order', {2, 3})),
    ],
    level='branch',
    layout='dot',
)

compare_regions defaults: morph=morph_simple level=branch layout=dot cv_per_branch=2
  type == soma                 morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   1 sample=((0, 0.0, 1.0),)
  type == basal                morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   6 sample=((3, 0.0, 1.0), (4, 0.0, 1.0), (5, 0.0, 1.0), (6, 0.0, 1.0))
  children of branch 3         morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   3 sample=((4, 0.0, 1.0), (7, 0.0, 1.0), (8, 0.0, 1.0))
  order in {2, 3}              morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   6 sample=((2, 0.0, 1.0), (4, 0.0, 1.0), (5, 0.0, 1.0), (6, 0.0, 1.0))

3.3 Numeric and Quantity Ranges

Use branch_range(...) for numeric topology values and unit-carrying branch metrics.

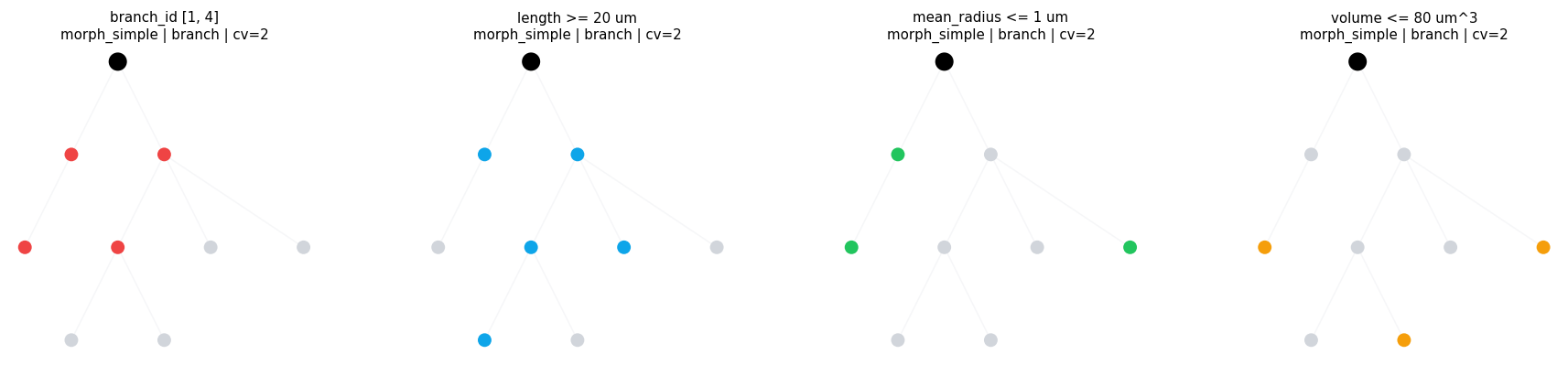

compare_regions(
    morph_simple,
    [
        ('branch_id [1, 4]', branch_range('branch_id', (1, 4), closed='both')),
        ('length >= 20 um', branch_range('length', (20.0 * u.um, None), closed='left')),
        ('mean_radius <= 1 um', branch_range('mean_radius', (None, 1.0 * u.um), closed='right')),
        ('volume <= 80 um^3', branch_range('volume', (None, 80.0 * (u.um ** 3)), closed='right')),
    ],
    level='branch',
    layout='dot',
)

compare_regions defaults: morph=morph_simple level=branch layout=dot cv_per_branch=2
  branch_id [1, 4]             morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   4 sample=((1, 0.0, 1.0), (2, 0.0, 1.0), (3, 0.0, 1.0), (4, 0.0, 1.0))
  length >= 20 um              morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   5 sample=((1, 0.0, 1.0), (3, 0.0, 1.0), (4, 0.0, 1.0), (5, 0.0, 1.0))
  mean_radius <= 1 um          morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   3 sample=((1, 0.0, 1.0), (2, 0.0, 1.0), (8, 0.0, 1.0))
  volume <= 80 um^3            morph=morph_simple level=branch layout=dot          cv_per_branch=2  intervals=   3 sample=((2, 0.0, 1.0), (6, 0.0, 1.0), (8, 0.0, 1.0))

3.4 Region Set Algebra

Region expressions compose with union, intersection, difference, and complement.

left = BranchSlice(branch_index=3, prox=0.00, dist=0.60)
right = BranchSlice(branch_index=3, prox=0.40, dist=1.00)
exclude = BranchSlice(branch_index=[1, 3], prox=[0.00, 0.20], dist=[1.00, 0.80])

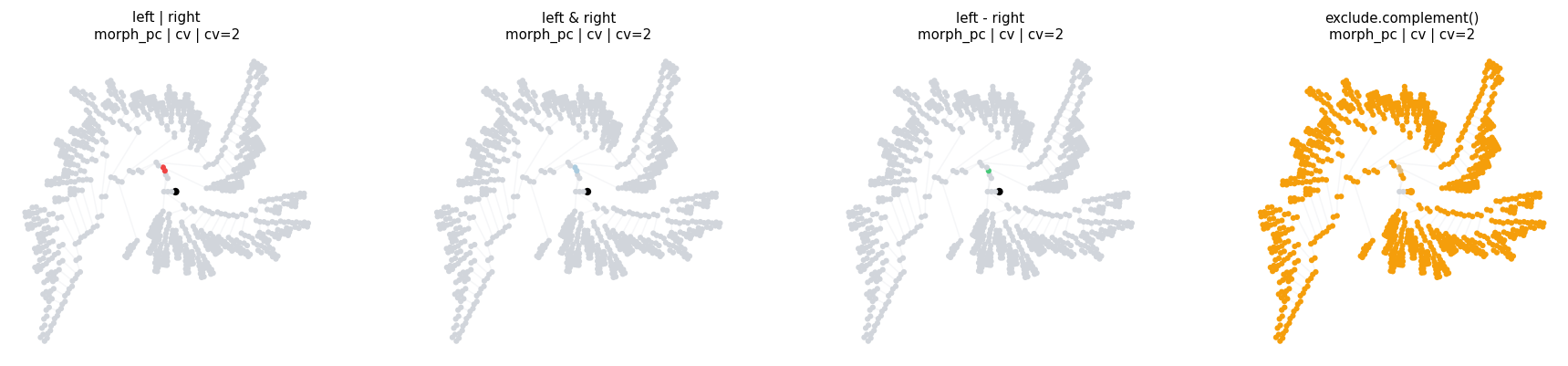

compare_regions(
    morph_pc,
    [
        ('left | right', left | right),
        ('left & right', left & right),
        ('left - right', left - right),
        ('exclude.complement()', exclude.complement()),
    ],
    level='cv',
    layout='twopi',
    cv_per_branch=2,
)

compare_regions defaults: morph=morph_pc level=cv layout=twopi cv_per_branch=2
  left | right                 morph=morph_pc     level=cv     layout=twopi        cv_per_branch=2  intervals=   1 sample=((3, 0.0, 1.0),)

  left & right                 morph=morph_pc     level=cv     layout=twopi        cv_per_branch=2  intervals=   1 sample=((3, 0.4, 0.6),)
  left - right                 morph=morph_pc     level=cv     layout=twopi        cv_per_branch=2  intervals=   1 sample=((3, 0.0, 0.4),)
  exclude.complement()         morph=morph_pc     level=cv     layout=twopi        cv_per_branch=2  intervals= 461 sample=((0, 0.0, 1.0), (2, 0.0, 1.0), (3, 0.0, 0.2), (3, 0.8, 1.0))

3.5 Same Logic on morph_io

Once the filter expression is clear, the same calls work on a richer morphology.

basal = branch_in('type', 'basal_dendrite')
long = branch_range('length', (100.0 * u.um, None), closed='left')
mid_order = branch_range('branch_order', (2, 4), closed='left')

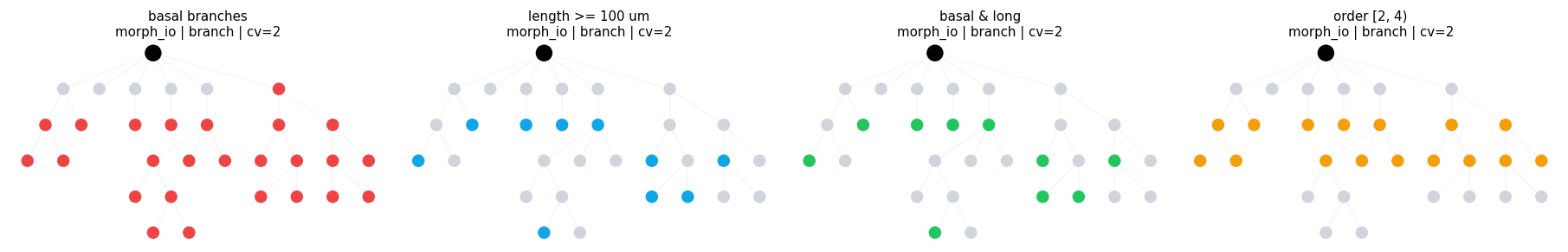

compare_regions(
    morph_io,
    [
        ('basal branches', basal),
        ('length >= 100 um', long),
        ('basal & long', basal & long),
        ('order [2, 4)', mid_order),
    ],
    level='branch',
    layout='dot',
)

compare_regions defaults: morph=morph_io level=branch layout=dot cv_per_branch=2
  basal branches               morph=morph_io     level=branch layout=dot          cv_per_branch=2  intervals=  25 sample=((6, 0.0, 1.0), (7, 0.0, 1.0), (8, 0.0, 1.0), (9, 0.0, 1.0))

  length >= 100 um             morph=morph_io     level=branch layout=dot          cv_per_branch=2  intervals=  10 sample=((8, 0.0, 1.0), (10, 0.0, 1.0), (11, 0.0, 1.0), (13, 0.0, 1.0))
  basal & long                 morph=morph_io     level=branch layout=dot          cv_per_branch=2  intervals=  10 sample=((8, 0.0, 1.0), (10, 0.0, 1.0), (11, 0.0, 1.0), (13, 0.0, 1.0))
  order [2, 4)                 morph=morph_io     level=branch layout=dot          cv_per_branch=2  intervals=  16 sample=((7, 0.0, 1.0), (8, 0.0, 1.0), (9, 0.0, 1.0), (12, 0.0, 1.0))

3.6 Same Logic on morph_pc

On a larger morphology, use the same small vocabulary: metadata predicates, metric ranges, and set algebra.

deep = branch_range('branch_order', (6, 8), closed='left')
short = branch_range('length', (None, 5.0 * u.um), closed='right')
thin = branch_range('mean_radius', (None, 0.5 * u.um), closed='right')

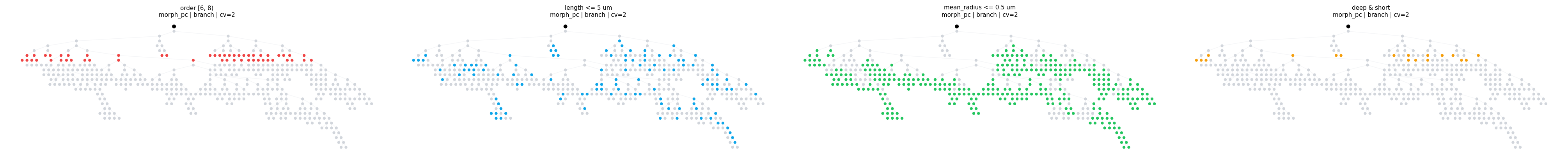

compare_regions(
    morph_pc,
    [
        ('order [6, 8)', deep),
        ('length <= 5 um', short),
        ('mean_radius <= 0.5 um', thin),
        ('deep & short', deep & short),
    ],
    level='branch',
    layout='dot',
    width=8.4,
    height=10.0,
)

compare_regions defaults: morph=morph_pc level=branch layout=dot cv_per_branch=2
  order [6, 8)                 morph=morph_pc     level=branch layout=dot          cv_per_branch=2  intervals=  52 sample=((6, 0.0, 1.0), (7, 0.0, 1.0), (8, 0.0, 1.0), (9, 0.0, 1.0))
  length <= 5 um               morph=morph_pc     level=branch layout=dot          cv_per_branch=2  intervals= 113 sample=((7, 0.0, 1.0), (8, 0.0, 1.0), (9, 0.0, 1.0), (10, 0.0, 1.0))
  mean_radius <= 0.5 um        morph=morph_pc     level=branch layout=dot          cv_per_branch=2  intervals= 328 sample=((5, 0.0, 1.0), (6, 0.0, 1.0), (7, 0.0, 1.0), (8, 0.0, 1.0))
  deep & short                 morph=morph_pc     level=branch layout=dot          cv_per_branch=2  intervals=  18 sample=((7, 0.0, 1.0), (8, 0.0, 1.0), (9, 0.0, 1.0), (10, 0.0, 1.0))

4. Locset Filters

A locset is a set of points: (branch_id, x).

Locsets are separate from regions because they mark point-process sites instead of continuous branch intervals.

4.1 Direct Point Selectors

Use direct locsets when you know the exact site or want built-in structural points.

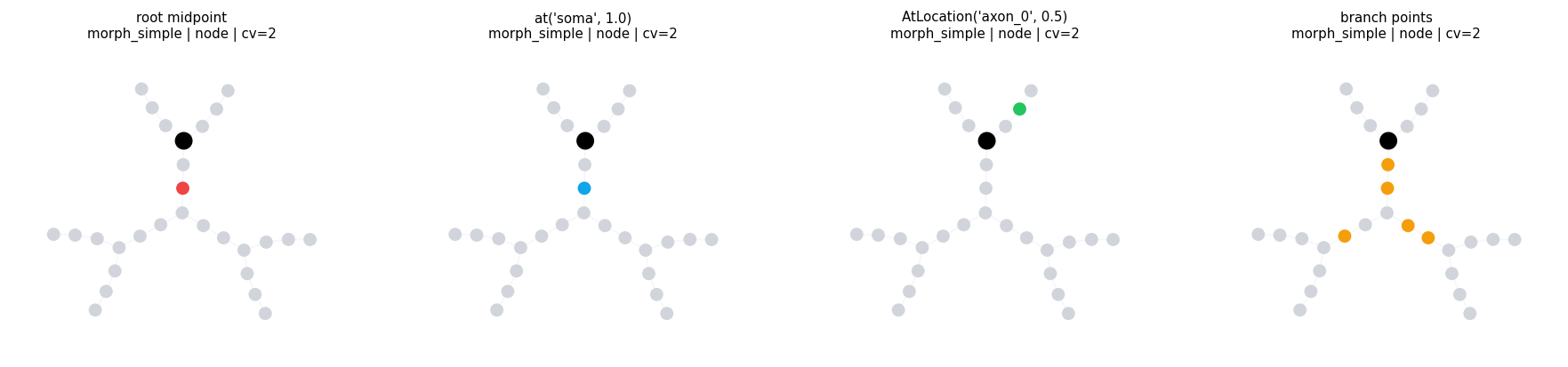

compare_locsets(
    morph_simple,
    [
        ('root midpoint', RootLocation(x=0.5)),
        ("at('soma', 1.0)", at('soma', 1.0)),
        ("AtLocation('axon_0', 0.5)", AtLocation(branch='axon_0', x=0.5)),
        ('branch points', BranchPoints()),
    ],
    level='node',
    layout='kamada_kawai',
)

compare_locsets defaults: morph=morph_simple level=node layout=kamada_kawai cv_per_branch=2
  root midpoint                morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   1 sample=('soma(0.5)',)
  at('soma', 1.0)              morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   1 sample=('soma(1)',)
  AtLocation('axon_0', 0.5)    morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   1 sample=('axon_0(0.5)',)
  branch points                morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   5 sample=('soma(0)', 'soma(1)', 'basal_dendrite_0(0)', 'basal_dendrite_0(1)')

4.2 Structural Locsets and Set Algebra

Locsets also compose with union, intersection, and difference.

branch_points = BranchPoints()
terminals = Terminals()
first_terminal = morph_simple.select(terminals).points[0]

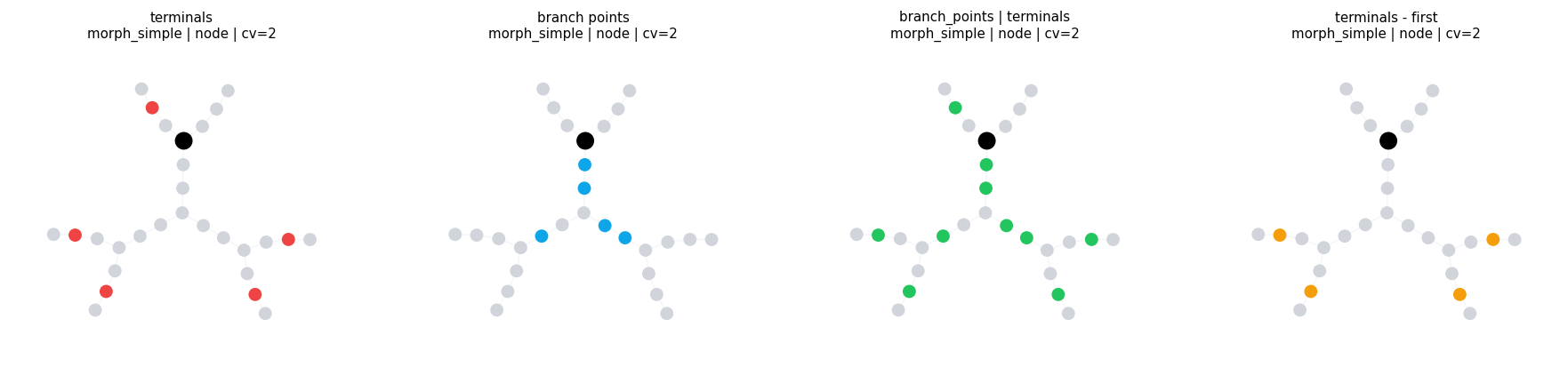

compare_locsets(
    morph_simple,
    [
        ('terminals', terminals),
        ('branch points', branch_points),
        ('branch_points | terminals', branch_points | terminals),
        ('terminals - first', terminals - at(first_terminal[0], first_terminal[1])),
    ],
    level='node',
    layout='kamada_kawai',
)

compare_locsets defaults: morph=morph_simple level=node layout=kamada_kawai cv_per_branch=2
  terminals                    morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   5 sample=('axon_1(1)', 'basal_dendrite_2(1)', 'basal_dendrite_3(1)', 'basal_dendrite_4(1)')
  branch points                morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   5 sample=('soma(0)', 'soma(1)', 'basal_dendrite_0(0)', 'basal_dendrite_0(1)')
  branch_points | terminals    morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=  10 sample=('soma(0)', 'soma(1)', 'axon_1(1)', 'basal_dendrite_0(0)')
  terminals - first            morph=morph_simple level=node   layout=kamada_kawai cv_per_branch=2  points=   4 sample=('basal_dendrite_2(1)', 'basal_dendrite_3(1)', 'basal_dendrite_4(1)', 'basal_dendrite_5(1)')

4.3 Sampling Points from a Region

UniformSamples and RandomSamples take a region expression, then choose points inside it.

sampling_region = branch_range('branch_order', (1, None), closed='left')
uniform = UniformSamples(region=sampling_region, count=8)
random_a = RandomSamples(region=sampling_region, count=8, seed=7)
random_b = RandomSamples(region=sampling_region, count=8, seed=7)

print('same random seed gives same points:', morph_io.select(random_a).points == morph_io.select(random_b).points)
print()

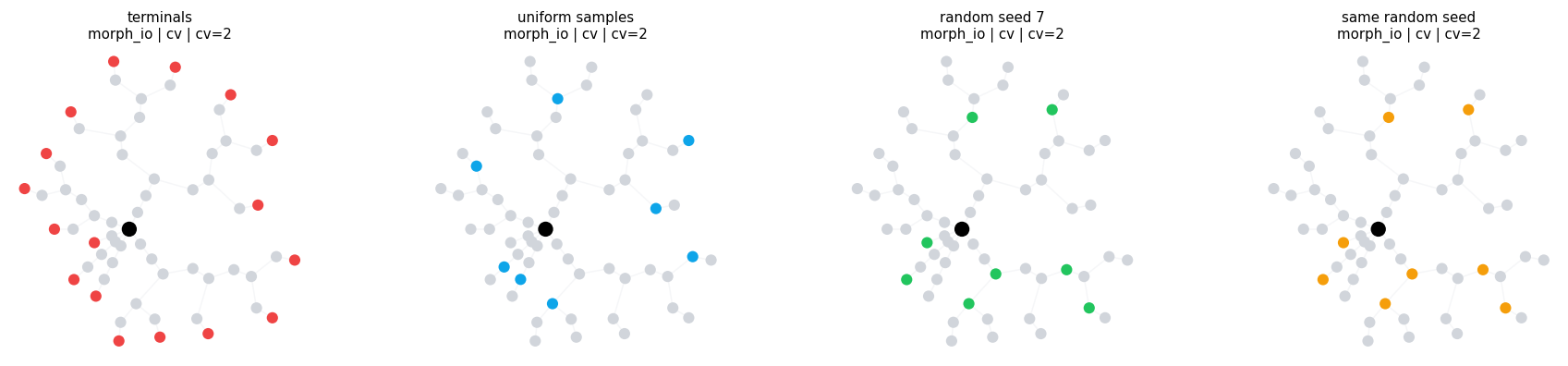

compare_locsets(
    morph_io,
    [
        ('terminals', Terminals()),
        ('uniform samples', uniform),
        ('random seed 7', random_a),
        ('same random seed', random_b),
    ],
    level='cv',
    layout='twopi',
)

same random seed gives same points: True

compare_locsets defaults: morph=morph_io level=cv layout=twopi cv_per_branch=2
  terminals                    morph=morph_io     level=cv     layout=twopi        cv_per_branch=2  points=  17 sample=('soma_1(1)', 'basal_dendrite_2(1)', 'basal_dendrite_4(1)', 'basal_dendrite_5(1)')
  uniform samples              morph=morph_io     level=cv     layout=twopi        cv_per_branch=2  points=   8 sample=('basal_dendrite_2(0.405)', 'basal_dendrite_4(0.537347)', 'basal_dendrite_7(0.548927)', 'basal_dendrite_12(0.435744)')
  random seed 7                morph=morph_io     level=cv     layout=twopi        cv_per_branch=2  points=   8 sample=('soma_1(0.504548)', 'basal_dendrite_5(0.278426)', 'basal_dendrite_7(0.25487)', 'basal_dendrite_15(0.797069)')
  same random seed             morph=morph_io     level=cv     layout=twopi        cv_per_branch=2  points=   8 sample=('soma_1(0.504548)', 'basal_dendrite_5(0.278426)', 'basal_dendrite_7(0.25487)', 'basal_dendrite_15(0.797069)')

4.4 Locsets on morph_pc

The same locset calls work on the larger morphology. The filter logic stays small; only the morphology changes.

pc_sampling_region = branch_range('branch_order', (6, 8), closed='left')

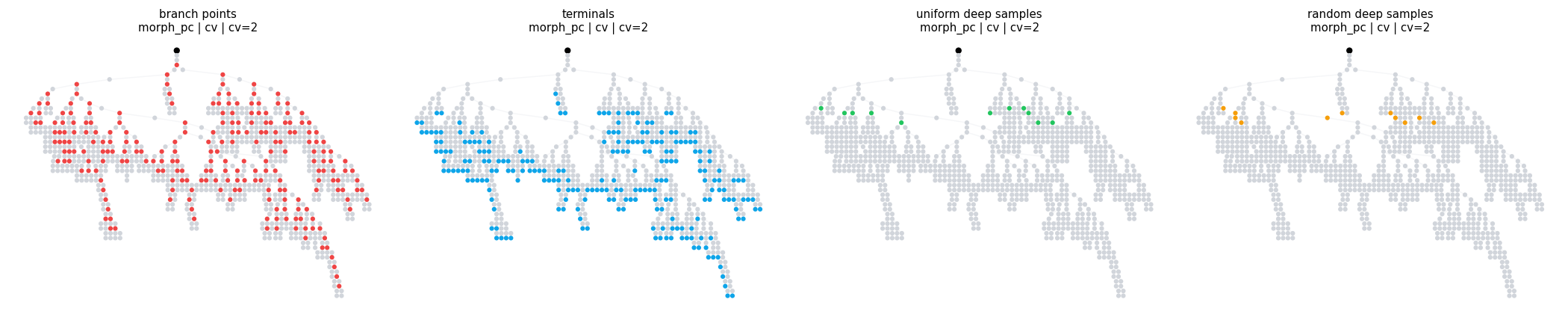

compare_locsets(
    morph_pc,
    [
        ('branch points', BranchPoints()),
        ('terminals', Terminals()),
        ('uniform deep samples', UniformSamples(region=pc_sampling_region, count=12)),
        ('random deep samples', RandomSamples(region=pc_sampling_region, count=12, seed=3)),
    ],
    level='cv',
    layout='dot',
    width=4.4,
    height=4.0,
)

compare_locsets defaults: morph=morph_pc level=cv layout=dot cv_per_branch=2

  branch points                morph=morph_pc     level=cv     layout=dot          cv_per_branch=2  points= 228 sample=('dendrite_0(1)', 'dendrite_1(1)', 'dendrite_2(1)', 'dendrite_3(1)')
  terminals                    morph=morph_pc     level=cv     layout=dot          cv_per_branch=2  points= 229 sample=('dendrite_6(1)', 'dendrite_7(1)', 'dendrite_10(1)', 'dendrite_11(1)')
  uniform deep samples         morph=morph_pc     level=cv     layout=dot          cv_per_branch=2  points=  12 sample=('dendrite_8(0.333287)', 'dendrite_20(0.845796)', 'dendrite_80(0.793563)', 'dendrite_88(0.921427)')
  random deep samples          morph=morph_pc     level=cv     layout=dot          cv_per_branch=2  points=  12 sample=('dendrite_17(0.284201)', 'dendrite_17(0.430628)', 'dendrite_20(0.97346)', 'dendrite_26(0.292721)')

5. Filters as Cell Inputs

The same expressions are the user-facing handles for mechanism placement.

cell = Cell(morph_simple, cv_policy=CVPerBranch(cv_per_branch=2))
axon_region = branch_in('type', 'axon')
probe_site = RootLocation(0.5)

cell.paint(
    axon_region,
    mech.Channel('IL', g_max=0.03 * (u.mS / u.cm ** 2), E=-65.0 * u.mV),
)
cell.place(probe_site, mech.StateProbe())
cell.init_state()

print(cell)
print('painted region intervals:', morph_simple.select(axon_region).intervals)
print('probe site points      :', morph_simple.select(probe_site).display_names)

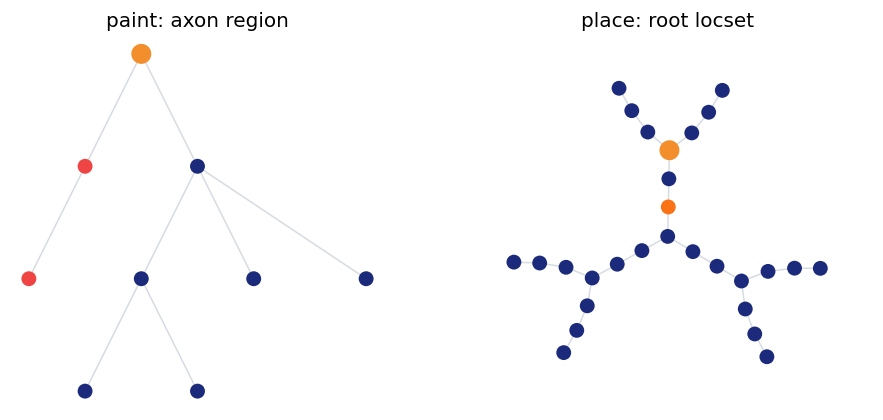

fig, axes = plt.subplots(1, 2, figsize=(8.0, 3.6))
cell.vis_topology(level='branch', layout='dot', region=axon_region, ax=axes[0], show=False)
axes[0].set_title('paint: axon region')
cell.vis_topology(level='node', layout='kamada_kawai', layout_scale=1.5, locset=probe_site, ax=axes[1], show=False, highlight_color='#f97316')
axes[1].set_title('place: root locset')
plt.tight_layout()
plt.show()

Cell(root='soma', n_cv=18, n_point=28, initialized=True)
painted region intervals: ((1, 0.0, 1.0), (2, 0.0, 1.0))
probe site points      : ('soma(0.5)',)

6. Quick Reference

Plot configuration lives in the global constants near the top of the notebook. You can also override per panel with dictionaries:

compare_regions(
    morph_simple,
    [
        {'label': 'cv view', 'expr': expr, 'level': 'cv', 'layout': 'twopi', 'cv_per_branch': 2},
        {'label': 'branch view', 'expr': expr, 'level': 'branch', 'layout': 'dot'},
    ],
)

Implemented region selectors:

API	Use when
AllRegion() / EmptyRegion()	select all / no branch intervals
BranchSlice(...)	select explicit (branch_id, prox, dist) intervals
branch_in(property, values)	match branch metadata, topology, or scalar metric values
branch_range(property, bounds, closed=...)	filter numeric or brainunit quantity-valued branch properties
`left	right, left & right, left - right, expr.complement()`

Supported scalar branch properties:

• metadata / topology: branch_id, name, type, parent_id, n_children, branch_order, n_tapers

• geometry metrics: length, mean_radius, area, volume

Implemented locset selectors:

API	Use when
RootLocation(x)	choose a point on branch 0
AtLocation(branch, x) / at(branch, x)	choose an explicit branch-local point
BranchPoints()	choose branch-point sites on the parent side
Terminals()	choose terminal branch distal ends
UniformSamples(region, count)	evenly sample points from a region
RandomSamples(region, count, seed)	reproducibly sample random points from a region
`left	right, left & right, left - right`

Exported but not implemented yet: RadiusRangeRegion, TreeDistanceRegion, EuclideanDistanceRegion, SubtreeRegion, RegionAnchors, and StepSamples.
