What you’ll learn / who it’s for (porting / simulation). A NEST network ported to brainpy.state, step for step. We take the Brunel (2000) random balanced network with delta synapses and show the NEST (PyNEST) construction next to the brainpy.state Simulator port — with a parameter-mapping table and the semantic divergences a port must account for.

The NEST code blocks below are shown for reference only (they need a live NEST install); the brainpy.state cells are runnable. Source: examples/nest_like/brunel_delta.py and NEST’s brunel_delta_nest.py.

import jax
jax.config.update('jax_enable_x64', True)
import brainstate
brainstate.environ.set(precision=64)

import numpy as np
import brainunit as u
import braintools
import matplotlib.pyplot as plt
from brainpy import state as bp

An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

Shared parameters#

Both simulators use the identical Brunel knobs. With delta synapses the postsynaptic amplitude is a membrane-voltage jump, so J_ex = J directly — there is no current-to-voltage (ComputePSPnorm) rescaling that the alpha variant needs.

order = 100                          # small for a fast notebook run
g, eta, epsilon = 5.0, 2.0, 0.1
delay = 1.5                          # ms
NE, NI = 4 * order, 1 * order
CE, CI = int(epsilon * NE), int(epsilon * NI)
N_rec = 50
tauMem, CMem, theta, tref = 20.0, 1.0, 20.0, 2.0
J = 0.1                              # mV (delta jump)
J_ex = J
J_in = -g * J_ex
nu_th = theta / (J * CE * tauMem)
p_rate = 1000.0 * (eta * nu_th) * CE

Step 1 — create populations and devices#

NEST (reference):

import nest
nest.SetKernelStatus({'resolution': 0.1})
nest.SetDefaults('iaf_psc_delta', {
    'C_m': CMem, 'tau_m': tauMem, 't_ref': tref,
    'E_L': 0.0, 'V_reset': 0.0, 'V_th': theta})
nodes_ex = nest.Create('iaf_psc_delta', NE)
nodes_in = nest.Create('iaf_psc_delta', NI)
noise = nest.Create('poisson_generator', params={'rate': p_rate})
espikes = nest.Create('spike_recorder')
ispikes = nest.Create('spike_recorder')

brainpy.state (runnable): there is no global kernel — a Simulator owns the populations, devices, and connections, and parameters carry explicit units.

npar = dict(C_m=CMem * u.pF, tau_m=tauMem * u.ms, t_ref=tref * u.ms,
            E_L=0. * u.mV, V_reset=0. * u.mV, V_th=theta * u.mV,
            V_initializer=braintools.init.Constant(0. * u.mV))

sim = bp.Simulator(dt=0.1 * u.ms)
ne = sim.create(bp.iaf_psc_delta, NE, params=npar)
ni = sim.create(bp.iaf_psc_delta, NI, params=npar)
noise = sim.create(bp.poisson_generator, rate=p_rate * u.Hz)
esr = sim.create(bp.spike_recorder)
isr = sim.create(bp.spike_recorder)

Step 2 — connect#

NEST (reference):

nest.Connect(noise, nodes_ex + nodes_in,
             syn_spec={'weight': J_ex, 'delay': delay})
conn_ex = {'rule': 'fixed_indegree', 'indegree': CE}
conn_in = {'rule': 'fixed_indegree', 'indegree': CI}
nest.Connect(nodes_ex, nodes_ex + nodes_in, conn_ex,
             {'weight': J_ex, 'delay': delay})
nest.Connect(nodes_in, nodes_ex + nodes_in, conn_in,
             {'weight': J_in, 'delay': delay})
nest.Connect(nodes_ex[:N_rec], espikes)
nest.Connect(nodes_in[:N_rec], ispikes)

brainpy.state (runnable): connect(src, dst, weight=, delay=, rule=), with ne + ni population algebra and fixed_indegree(K) — the same shape as nest.Connect. The delta weights are voltages in mV.

sim.connect(noise, ne, weight=J_ex * u.mV, delay=delay * u.ms, rule=bp.all_to_all)
sim.connect(noise, ni, weight=J_ex * u.mV, delay=delay * u.ms, rule=bp.all_to_all)
sim.connect(ne, ne + ni, weight=J_ex * u.mV, delay=delay * u.ms,
            rule=bp.fixed_indegree(CE), comm='sparse', allow_multapses=True, seed=1)
sim.connect(ni, ne + ni, weight=J_in * u.mV, delay=delay * u.ms,
            rule=bp.fixed_indegree(CI), comm='sparse', allow_multapses=True, seed=2)
sim.connect(ne[:N_rec], esr)
sim.connect(ni[:N_rec], isr)

Step 3 — simulate and read back#

NEST (reference): nest.Simulate(1000.0), then nest.GetStatus(espikes, 'n_events') → rate.

brainpy.state (runnable): sim.simulate(T) returns a result; read the rate of a combined-population recorder via esr.segments[0].population.

res = sim.simulate(1000. * u.ms)
erate = res.rate(esr.segments[0].population)
irate = res.rate(isr.segments[0].population)
print(f'excitatory rate: {erate:.2f} spks/s')
print(f'inhibitory rate: {irate:.2f} spks/s')

spk = np.asarray(res.spikes(esr.segments[0].population))
ts, ids = np.nonzero(spk > 0)
plt.figure(figsize=(8, 4))
plt.scatter(ts * 0.1, ids, s=1.0, color='k')
plt.xlabel('time (ms)'); plt.ylabel('exc neuron')

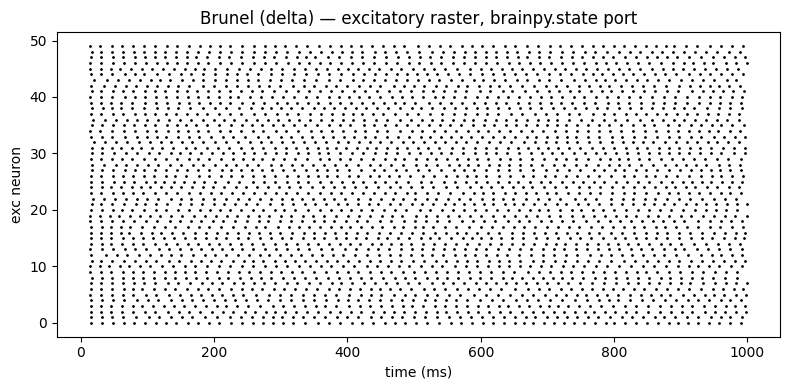

plt.title('Brunel (delta) — excitatory raster, brainpy.state port')
plt.tight_layout()

excitatory rate: 60.56 spks/s
inhibitory rate: 60.18 spks/s
../_images/6d41b600493a7f620bfdb7d4f09daca324c5361303b59d13fef3828947705176.png

Parameter mapping#

NEST

brainpy.state

Note

nest.SetKernelStatus({'resolution': 0.1})

Simulator(dt=0.1 * u.ms)

per-Simulator, no global kernel

nest.Create('iaf_psc_delta', NE)

sim.create(bp.iaf_psc_delta, NE, params=...)

returns a NodeView

'C_m': 1.0 (pF implied)

C_m=1.0 * u.pF

units are explicit

nodes_ex + nodes_in

ne + ni

NodeView concatenation

nodes_ex[:N_rec]

ne[:N_rec]

NodeView slice

{'rule': 'fixed_indegree', 'indegree': CE}

rule=bp.fixed_indegree(CE)

same draw; seed= to reproduce

syn_spec={'weight': J, 'delay': d}

weight=J * u.mV, delay=d * u.ms

delta weight is a voltage (mV)

nest.Simulate(T)

sim.simulate(T * u.ms)

returns a SimulationResult

nest.GetStatus(sr, 'n_events')

res.rate(...) / res.n_events(...)

read from the result

Divergences this port runs into#

  • Delta weights are voltages. With iaf_psc_delta the postsynaptic amplitude is an instantaneous membrane-voltage jump, so weights are mV (J_ex = J), not the pA currents the alpha variant uses.

  • Independent PRNG streams. The Poisson drive and the random fixed_indegree wiring draw from JAX’s PRNG, which diverges sample-by-sample from NEST’s. Parity for Brunel is therefore distributional — the seed-mean firing rate matches within a 5% band (category D), not spike-by-spike. See validation status.

  • Sparse communication. comm='sparse' selects the event-driven backend so large fan-in stays memory-light; allow_multapses=True matches NEST’s fixed_indegree default (repeated edges sum).

For the full catalog — where learning state lives, parameter-location maps, the STDP pairing conventions, and the documented numerical bands — see the semantic divergences.
