Tutorial 4: Advanced Patterns - E-I Networks and Kernel-Based Connectivity#
This tutorial explores biologically-inspired connectivity patterns including excitatory-inhibitory networks and kernel-based receptive fields.
Overview#
We’ll cover:
Excitatory-Inhibitory Networks: Implementing Dale’s principle with separate E and I populations
Kernel-Based Connectivity: Creating receptive field patterns using spatial kernels
Combining Patterns: Building complex networks from multiple connectivity patterns
import brainunit as u
import matplotlib.pyplot as plt
import numpy as np
import braintools.conn as conn
import braintools.visualize as vis
1. Excitatory-Inhibitory Networks#
1.1 Dale’s Principle#
Dale’s principle states that a neuron releases the same neurotransmitter(s) at all of its synapses. This means neurons are either excitatory or inhibitory, never both.
In cortical circuits:
~80% of neurons are excitatory (glutamatergic)
~20% of neurons are inhibitory (GABAergic)
Excitatory connections have positive weights
Inhibitory connections have negative weights
The E-I balance is critical for stable network dynamics
1.2 Creating a Basic E-I Network#
# Create E-I network with 80% excitatory neurons
n_neurons = 500
ei_net = conn.ExcitatoryInhibitory(
exc_ratio=0.8, # 80% excitatory
exc_prob=0.1, # Excitatory connection probability
inh_prob=0.2, # Inhibitory connection probability (higher)
exc_weight=1.0 * u.nS, # Positive excitatory weights
inh_weight=-0.8 * u.nS, # Negative inhibitory weights
seed=42
)
result = ei_net(pre_size=n_neurons, post_size=n_neurons)
print(f"Total connections: {len(result.pre_indices)}")
print(f"Excitatory neurons: {result.metadata['n_excitatory']}")
print(f"Inhibitory neurons: {result.metadata['n_inhibitory']}")
Total connections: 30028
Excitatory neurons: 400
Inhibitory neurons: 100

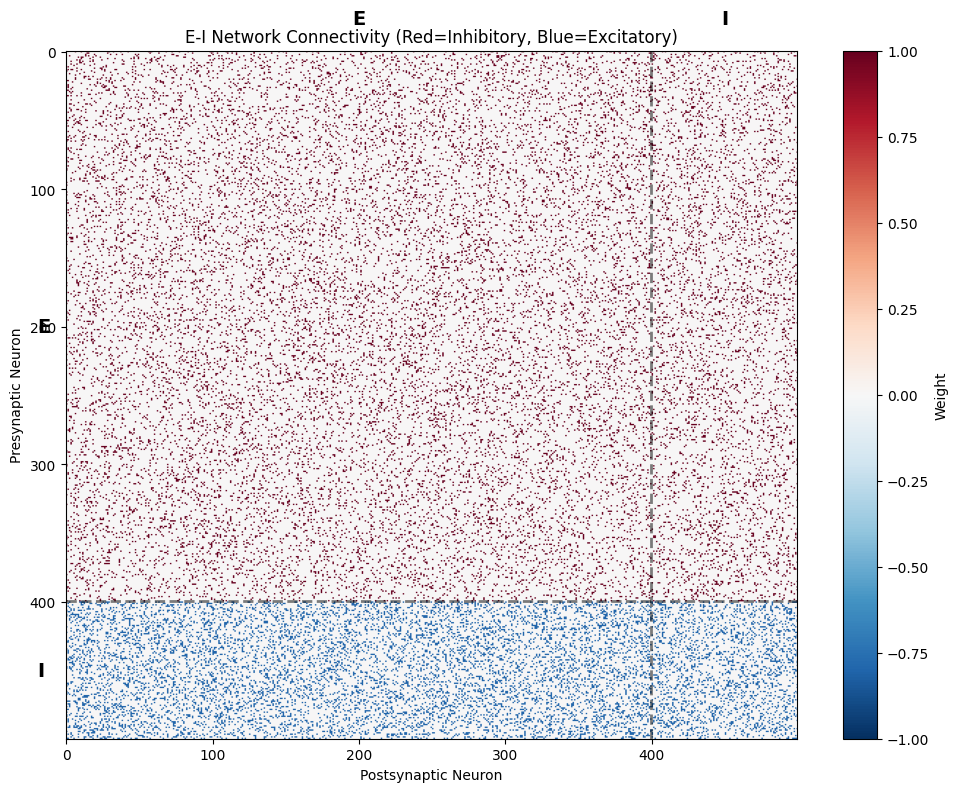

1.3 Visualizing E-I Connectivity Structure#
Let’s visualize the connectivity matrix showing the four connection types:
E→E: Excitatory to Excitatory
E→I: Excitatory to Inhibitory
I→E: Inhibitory to Excitatory
I→I: Inhibitory to Inhibitory
# Create connectivity matrix
conn_mat = np.zeros((n_neurons, n_neurons))
weights_vals = u.Quantity(result.weights).mantissa
conn_mat[result.pre_indices, result.post_indices] = weights_vals
# Visualize with center_zero to highlight positive/negative weights
fig, ax = plt.subplots(figsize=(10, 8))
vis.connectivity_matrix(
conn_mat,
cmap='RdBu_r',
center_zero=True,
show_colorbar=True,
ax=ax,
title='E-I Network Connectivity (Red=Inhibitory, Blue=Excitatory)',
xlabel='Postsynaptic Neuron',
ylabel='Presynaptic Neuron'
)
# Add lines to separate E and I populations
n_exc = result.metadata['n_excitatory']
ax.axhline(y=n_exc - 0.5, color='black', linewidth=2, linestyle='--', alpha=0.5)
ax.axvline(x=n_exc - 0.5, color='black', linewidth=2, linestyle='--', alpha=0.5)
ax.text(n_exc / 2, -20, 'E', ha='center', fontsize=14, fontweight='bold')
ax.text(n_exc + (n_neurons - n_exc) / 2, -20, 'I', ha='center', fontsize=14, fontweight='bold')
ax.text(-20, n_exc / 2, 'E', va='center', fontsize=14, fontweight='bold')
ax.text(-20, n_exc + (n_neurons - n_exc) / 2, 'I', va='center', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()

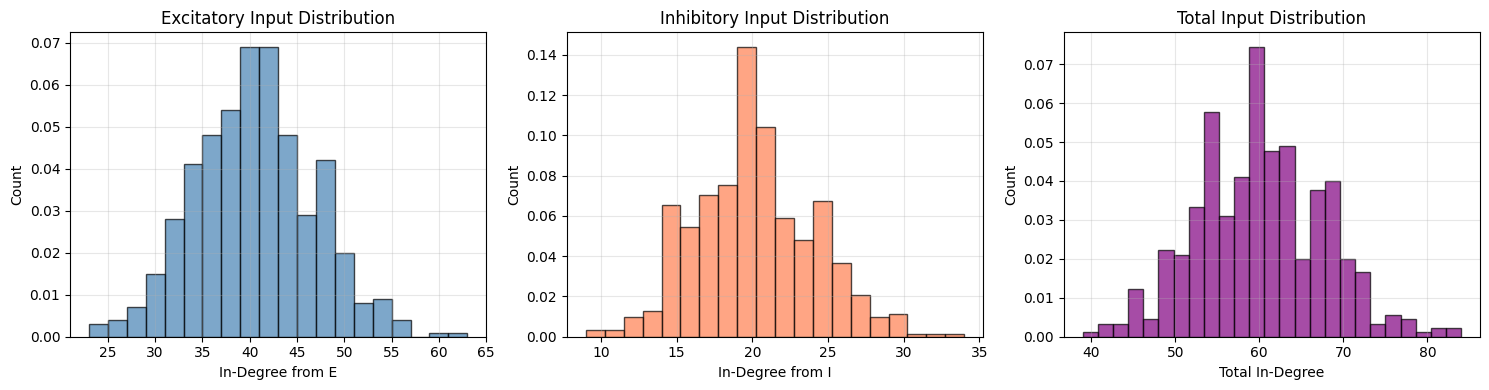

1.4 Analyzing E-I Connection Statistics#
Let’s analyze the degree distributions separately for excitatory and inhibitory neurons.
# Separate excitatory and inhibitory connections
n_exc = result.metadata['n_excitatory']
exc_mask = result.pre_indices < n_exc
inh_mask = result.pre_indices >= n_exc
# Calculate in-degrees from E and I separately
in_degree_from_E = np.bincount(result.post_indices[exc_mask], minlength=n_neurons)
in_degree_from_I = np.bincount(result.post_indices[inh_mask], minlength=n_neurons)
in_degree_total = np.bincount(result.post_indices, minlength=n_neurons)
# Visualize degree distributions
fig, axes = plt.subplots(1, 3, figsize=(15, 4))
vis.distribution_plot(
in_degree_from_E,
bins=20,
alpha=0.7,
colors=['steelblue'],
edgecolor='black',
ax=axes[0],
xlabel='In-Degree from E',
ylabel='Count',
title='Excitatory Input Distribution'
)
vis.distribution_plot(
in_degree_from_I,
bins=20,
alpha=0.7,
colors=['coral'],
edgecolor='black',
ax=axes[1],
xlabel='In-Degree from I',
ylabel='Count',
title='Inhibitory Input Distribution'
)
vis.distribution_plot(
in_degree_total,
bins=25,
alpha=0.7,
colors=['purple'],
edgecolor='black',
ax=axes[2],
xlabel='Total In-Degree',
ylabel='Count',
title='Total Input Distribution'
)
plt.tight_layout()
plt.show()

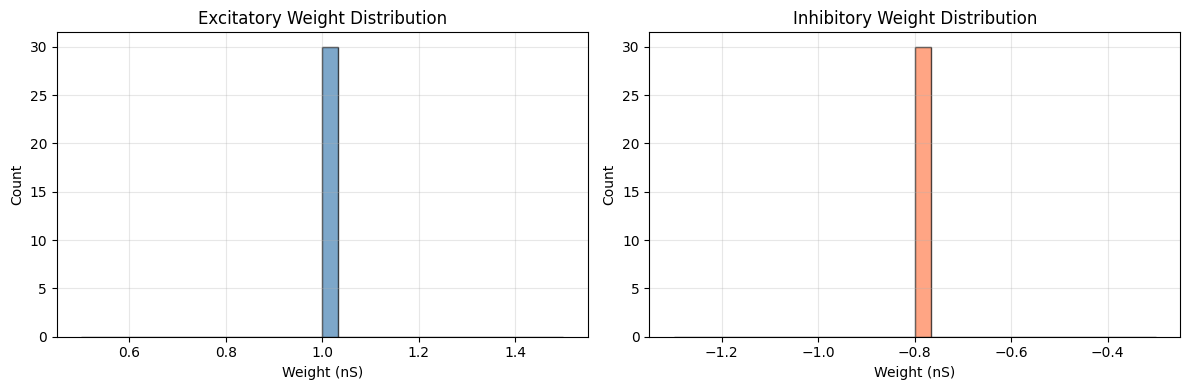

1.5 Weight Distribution Analysis#
# Separate excitatory and inhibitory weights
exc_weights = weights_vals[exc_mask]
inh_weights = weights_vals[inh_mask]
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
vis.distribution_plot(
exc_weights,
bins=30,
alpha=0.7,
colors=['steelblue'],
edgecolor='black',
ax=axes[0],
xlabel='Weight (nS)',
ylabel='Count',
title='Excitatory Weight Distribution'
)
vis.distribution_plot(
inh_weights,
bins=30,
alpha=0.7,
colors=['coral'],
edgecolor='black',
ax=axes[1],
xlabel='Weight (nS)',
ylabel='Count',
title='Inhibitory Weight Distribution'
)
plt.tight_layout()
plt.show()
print(f"E/I weight ratio (magnitude): {np.abs(np.mean(exc_weights) / np.mean(inh_weights)):.2f}")
E/I weight ratio (magnitude): 1.25
2. Kernel-Based Connectivity#
Kernel-based connectivity creates connections weighted by spatial functions, mimicking receptive field structures found in sensory systems.
2.1 Gaussian Kernel#
Gaussian kernels create smooth, radially symmetric receptive fields. Connections closer to the center have stronger weights.
# Create 2D grid of neurons
grid_size = 20
n_neurons_2d = grid_size * grid_size
# Create grid positions
x = np.linspace(0, 1000, grid_size)
y = np.linspace(0, 1000, grid_size)
xx, yy = np.meshgrid(x, y)
positions = np.stack([xx.flatten(), yy.flatten()], axis=1) * u.um
# Create Gaussian kernel connectivity
gaussian = conn.GaussianKernel(
sigma=100 * u.um,
max_distance=300 * u.um,
normalize=True,
weight=5.0 * u.nS,
seed=42
)
result_gaussian = gaussian(
pre_size=n_neurons_2d,
post_size=n_neurons_2d,
pre_positions=positions,
post_positions=positions
)
print(f"Gaussian kernel connections: {len(result_gaussian.pre_indices)}")
print(f"Average connections per neuron: {len(result_gaussian.pre_indices) / n_neurons_2d:.1f}")
Gaussian kernel connections: 20096
Average connections per neuron: 50.2

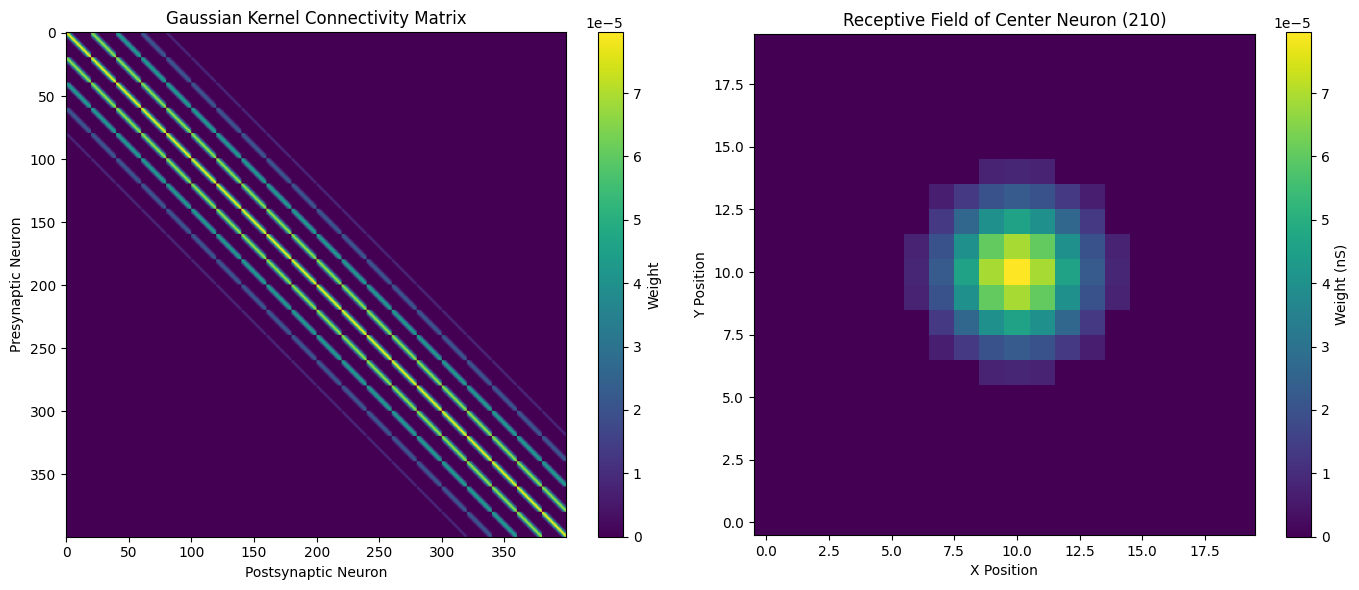

2.2 Visualizing Gaussian Connectivity#
# Create connectivity matrix
conn_mat_gaussian = np.zeros((n_neurons_2d, n_neurons_2d))
weights_gaussian = u.Quantity(result_gaussian.weights).mantissa
conn_mat_gaussian[result_gaussian.pre_indices, result_gaussian.post_indices] = weights_gaussian
fig, axes = plt.subplots(1, 2, figsize=(14, 6))
# Full connectivity matrix
vis.connectivity_matrix(
conn_mat_gaussian,
cmap='viridis',
center_zero=False,
show_colorbar=True,
ax=axes[0],
title='Gaussian Kernel Connectivity Matrix',
xlabel='Postsynaptic Neuron',
ylabel='Presynaptic Neuron'
)
# Receptive field of a single neuron (center neuron)
center_neuron = n_neurons_2d // 2 + grid_size // 2
receptive_field = conn_mat_gaussian[:, center_neuron].reshape(grid_size, grid_size)
im = axes[1].imshow(receptive_field, cmap='viridis', origin='lower')
axes[1].set_title(f'Receptive Field of Center Neuron ({center_neuron})')
axes[1].set_xlabel('X Position')
axes[1].set_ylabel('Y Position')
plt.colorbar(im, ax=axes[1], label='Weight (nS)')
plt.tight_layout()
plt.show()

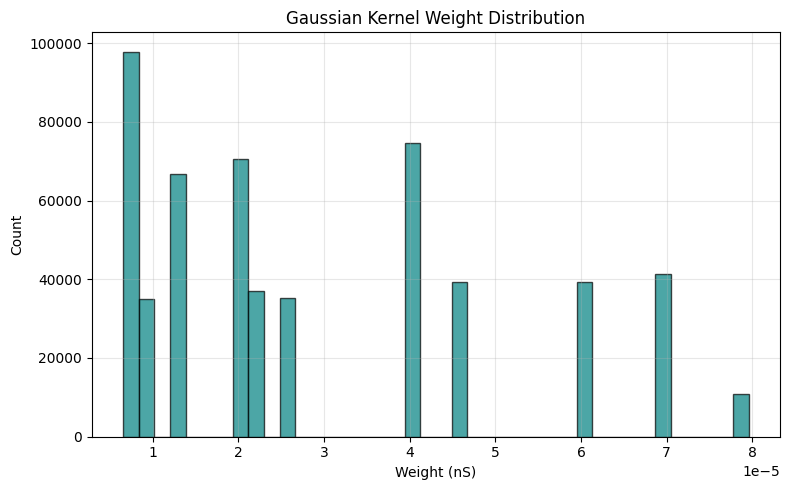

2.3 Weight Distribution for Gaussian Kernel#
# Analyze Gaussian weight distribution
fig, ax = plt.subplots(figsize=(8, 5))
vis.distribution_plot(
weights_gaussian,
bins=40,
alpha=0.7,
colors=['teal'],
edgecolor='black',
ax=ax,
xlabel='Weight (nS)',
ylabel='Count',
title='Gaussian Kernel Weight Distribution'
)
plt.tight_layout()
plt.show()
3. Gabor Kernel for Orientation Selectivity#
Gabor kernels combine Gaussian envelopes with sinusoidal gratings, creating orientation-selective receptive fields similar to V1 simple cells.
# Create Gabor kernel with 45-degree orientation
gabor = conn.GaborKernel(
sigma=80 * u.um,
frequency=0.015, # Cycles per micrometer
theta=np.pi / 4, # 45 degrees
phase=0.0,
max_distance=240 * u.um,
weight=2.0 * u.nS,
seed=42
)
result_gabor = gabor(
pre_size=n_neurons_2d,
post_size=n_neurons_2d,
pre_positions=positions,
post_positions=positions
)
print(f"Gabor kernel connections: {len(result_gabor.pre_indices)}")
print(f"Average connections per neuron: {len(result_gabor.pre_indices) / n_neurons_2d:.1f}")
Gabor kernel connections: 22400
Average connections per neuron: 56.0

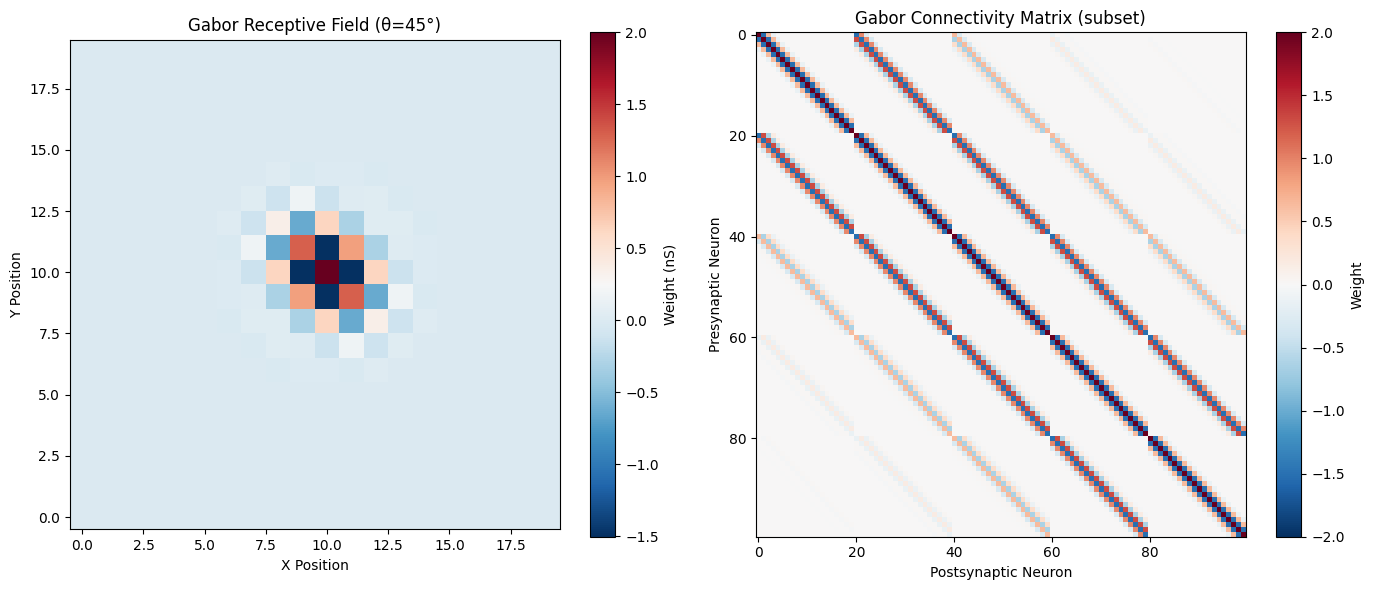

3.1 Visualizing Gabor Receptive Fields#
# Create connectivity matrix
conn_mat_gabor = np.zeros((n_neurons_2d, n_neurons_2d))
weights_gabor = u.Quantity(result_gabor.weights).mantissa
conn_mat_gabor[result_gabor.pre_indices, result_gabor.post_indices] = weights_gabor
fig, axes = plt.subplots(1, 2, figsize=(14, 6))
# Receptive field of center neuron
center_neuron = n_neurons_2d // 2 + grid_size // 2
receptive_field_gabor = conn_mat_gabor[:, center_neuron].reshape(grid_size, grid_size)
im0 = axes[0].imshow(receptive_field_gabor, cmap='RdBu_r', origin='lower')
axes[0].set_title(f'Gabor Receptive Field (θ=45°)')
axes[0].set_xlabel('X Position')
axes[0].set_ylabel('Y Position')
plt.colorbar(im0, ax=axes[0], label='Weight (nS)')
# Show a portion of the connectivity matrix
vis.connectivity_matrix(
conn_mat_gabor[:100, :100],
cmap='RdBu_r',
center_zero=True,
show_colorbar=True,
ax=axes[1],
title='Gabor Connectivity Matrix (subset)',
xlabel='Postsynaptic Neuron',
ylabel='Presynaptic Neuron'
)
plt.tight_layout()
plt.show()

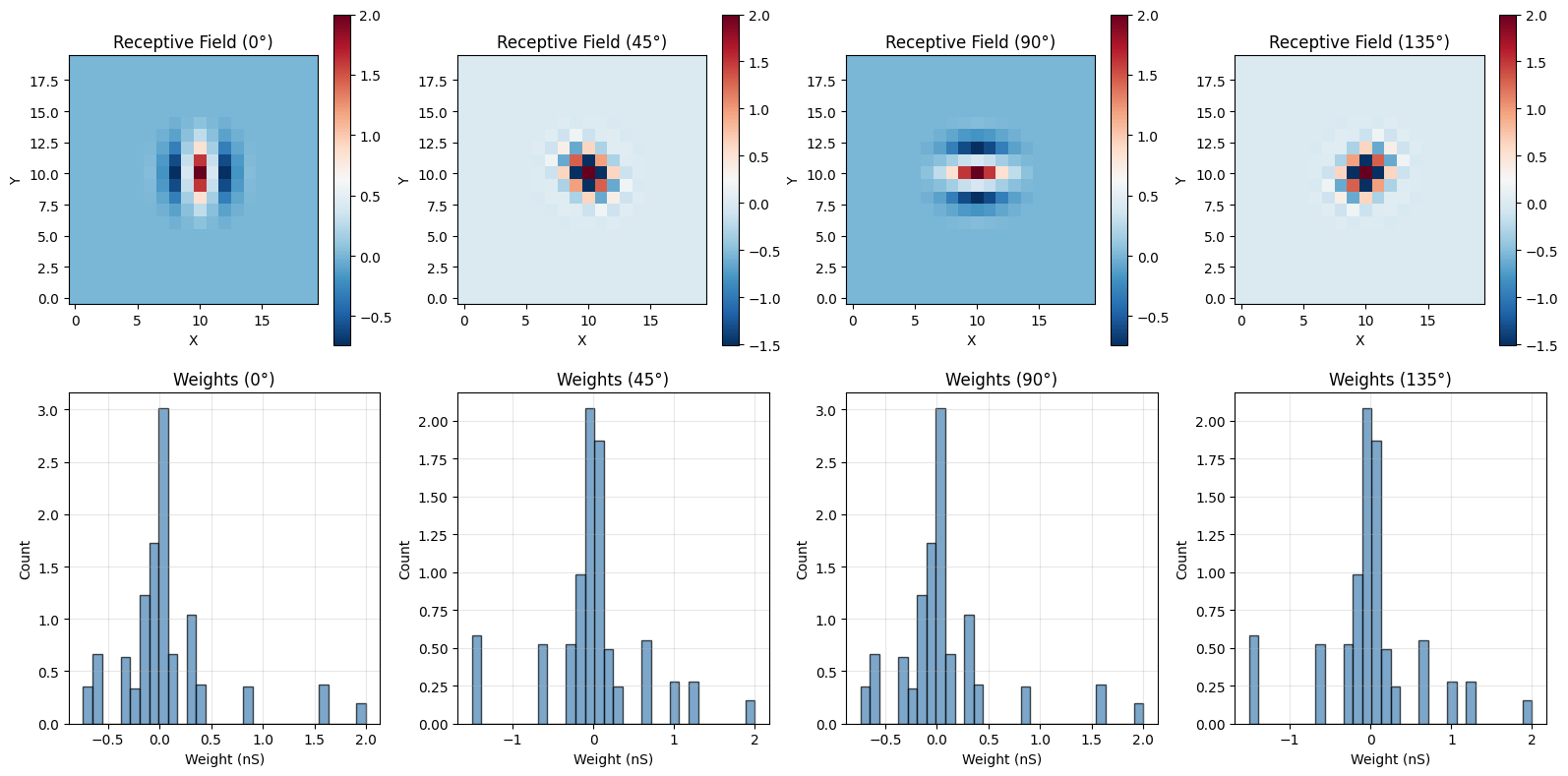

3.2 Comparing Multiple Orientations#
# Create Gabor kernels at different orientations
orientations = [0, np.pi / 4, np.pi / 2, 3 * np.pi / 4]
orientation_names = ['0°', '45°', '90°', '135°']
fig, axes = plt.subplots(2, 4, figsize=(16, 8))
for idx, (theta, name) in enumerate(zip(orientations, orientation_names)):
gabor_oriented = conn.GaborKernel(
sigma=80 * u.um,
frequency=0.015,
theta=theta,
phase=0.0,
max_distance=240 * u.um,
weight=2.0 * u.nS,
seed=42
)
result = gabor_oriented(
pre_size=n_neurons_2d,
post_size=n_neurons_2d,
pre_positions=positions,
post_positions=positions
)
conn_mat = np.zeros((n_neurons_2d, n_neurons_2d))
weights = u.Quantity(result.weights).mantissa
conn_mat[result.pre_indices, result.post_indices] = weights
# Show receptive field
rf = conn_mat[:, center_neuron].reshape(grid_size, grid_size)
im = axes[0, idx].imshow(rf, cmap='RdBu_r', origin='lower')
axes[0, idx].set_title(f'Receptive Field ({name})')
axes[0, idx].set_xlabel('X')
axes[0, idx].set_ylabel('Y')
plt.colorbar(im, ax=axes[0, idx])
# Show weight distribution
vis.distribution_plot(
weights,
bins=30,
alpha=0.7,
colors=['steelblue'],
edgecolor='black',
ax=axes[1, idx],
xlabel='Weight (nS)',
ylabel='Count',
title=f'Weights ({name})'
)
plt.tight_layout()
plt.show()
4. Difference of Gaussians (DoG) Kernel#
DoG kernels create center-surround receptive fields found in retinal ganglion cells and LGN neurons. The center and surround have opposite signs, creating edge detection properties.
# Create DoG kernel with center-surround structure
dog = conn.DoGKernel(
sigma_center=50 * u.um,
sigma_surround=100 * u.um,
amplitude_center=1.0,
amplitude_surround=0.8,
max_distance=300 * u.um,
weight=3.0 * u.nS,
seed=42
)
result_dog = dog(
pre_size=n_neurons_2d,
post_size=n_neurons_2d,
pre_positions=positions,
post_positions=positions
)
print(f"DoG kernel connections: {len(result_dog.pre_indices)}")
print(f"Average connections per neuron: {len(result_dog.pre_indices) / n_neurons_2d:.1f}")
DoG kernel connections: 31240
Average connections per neuron: 78.1

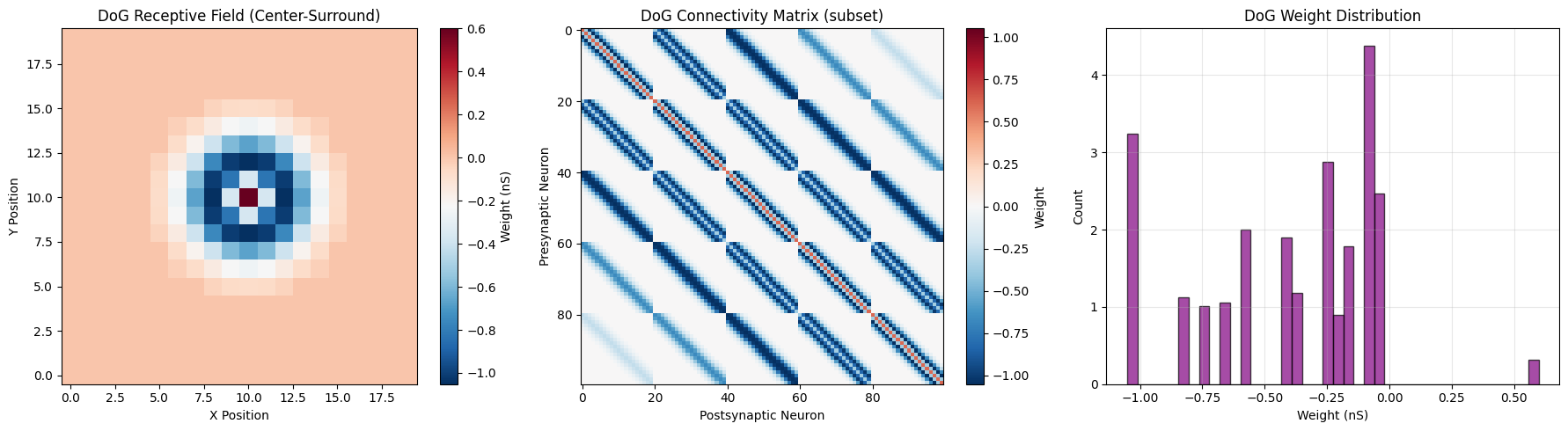

4.1 Visualizing Center-Surround Structure#
# Create connectivity matrix
conn_mat_dog = np.zeros((n_neurons_2d, n_neurons_2d))
weights_dog = u.Quantity(result_dog.weights).mantissa
conn_mat_dog[result_dog.pre_indices, result_dog.post_indices] = weights_dog
fig, axes = plt.subplots(1, 3, figsize=(18, 5))
# Receptive field showing center-surround
center_neuron = n_neurons_2d // 2 + grid_size // 2
receptive_field_dog = conn_mat_dog[:, center_neuron].reshape(grid_size, grid_size)
im0 = axes[0].imshow(receptive_field_dog, cmap='RdBu_r', origin='lower')
axes[0].set_title('DoG Receptive Field (Center-Surround)')
axes[0].set_xlabel('X Position')
axes[0].set_ylabel('Y Position')
plt.colorbar(im0, ax=axes[0], label='Weight (nS)')
# Connectivity matrix
vis.connectivity_matrix(
conn_mat_dog[:100, :100],
cmap='RdBu_r',
center_zero=True,
show_colorbar=True,
ax=axes[1],
title='DoG Connectivity Matrix (subset)',
xlabel='Postsynaptic Neuron',
ylabel='Presynaptic Neuron'
)
# Weight distribution
vis.distribution_plot(
weights_dog,
bins=40,
alpha=0.7,
colors=['purple'],
edgecolor='black',
ax=axes[2],
xlabel='Weight (nS)',
ylabel='Count',
title='DoG Weight Distribution'
)
plt.tight_layout()
plt.show()

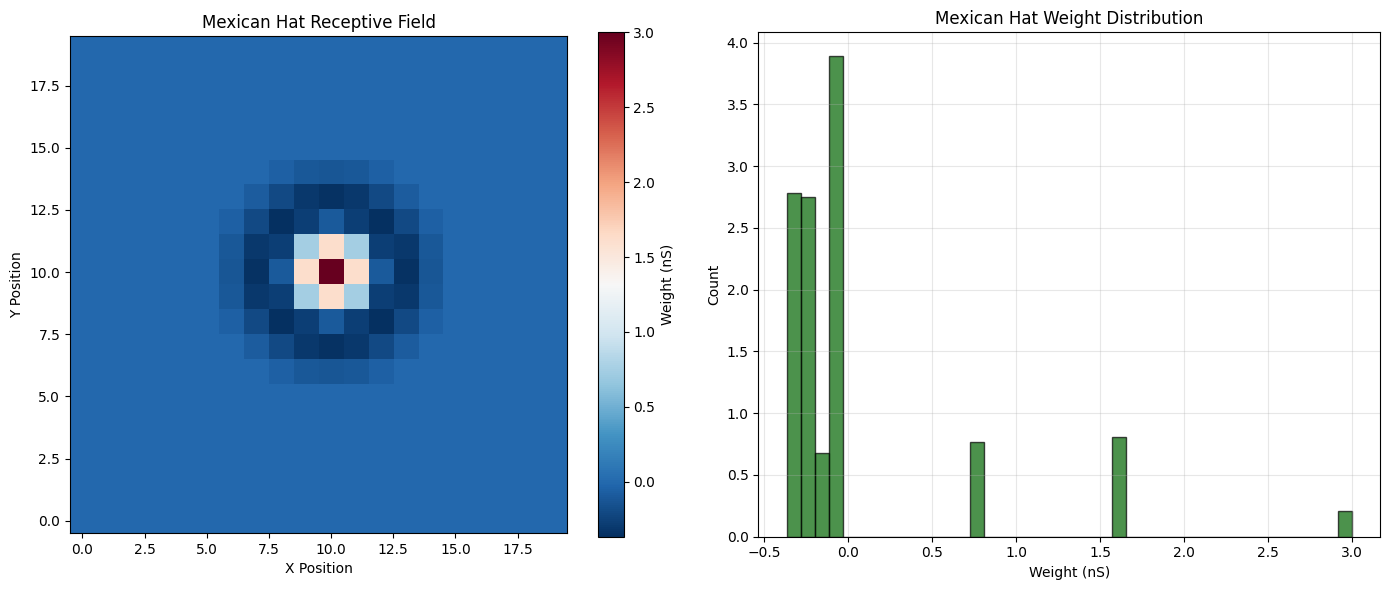

4.2 Mexican Hat (Laplacian of Gaussian)#
The Mexican Hat kernel is a special case of DoG that approximates the Laplacian of Gaussian, creating strong lateral inhibition.
# Create Mexican Hat kernel
mexican = conn.MexicanHat(
sigma=60 * u.um,
max_distance=240 * u.um,
weight=3.0 * u.nS,
seed=42
)
result_mexican = mexican(
pre_size=n_neurons_2d,
post_size=n_neurons_2d,
pre_positions=positions,
post_positions=positions
)
# Visualize
conn_mat_mexican = np.zeros((n_neurons_2d, n_neurons_2d))
weights_mexican = u.Quantity(result_mexican.weights).mantissa
conn_mat_mexican[result_mexican.pre_indices, result_mexican.post_indices] = weights_mexican
fig, axes = plt.subplots(1, 2, figsize=(14, 6))
# Receptive field
rf_mexican = conn_mat_mexican[:, center_neuron].reshape(grid_size, grid_size)
im0 = axes[0].imshow(rf_mexican, cmap='RdBu_r', origin='lower')
axes[0].set_title('Mexican Hat Receptive Field')
axes[0].set_xlabel('X Position')
axes[0].set_ylabel('Y Position')
plt.colorbar(im0, ax=axes[0], label='Weight (nS)')
# Weight distribution
vis.distribution_plot(
weights_mexican,
bins=40,
alpha=0.7,
colors=['darkgreen'],
edgecolor='black',
ax=axes[1],
xlabel='Weight (nS)',
ylabel='Count',
title='Mexican Hat Weight Distribution'
)
plt.tight_layout()
plt.show()
5. Custom Kernels#
You can create arbitrary kernel functions for specialized connectivity patterns.
# Define a custom spiral kernel
def spiral_kernel(x, y):
"""Custom spiral kernel function."""
r = np.sqrt(x ** 2 + y ** 2)
theta = np.arctan2(y, x)
# Spiral pattern: decays with distance, modulated by angle
return np.exp(-r / 100) * np.cos(r / 30 + 3 * theta)
# Create custom kernel connectivity
custom = conn.CustomKernel(
kernel_func=spiral_kernel,
kernel_size=400 * u.um,
threshold=0.1,
weight=2.0 * u.nS,
seed=42
)
result_custom = custom(
pre_size=n_neurons_2d,
post_size=n_neurons_2d,
pre_positions=positions,
post_positions=positions
)
print(f"Custom kernel connections: {len(result_custom.pre_indices)}")
Custom kernel connections: 11990

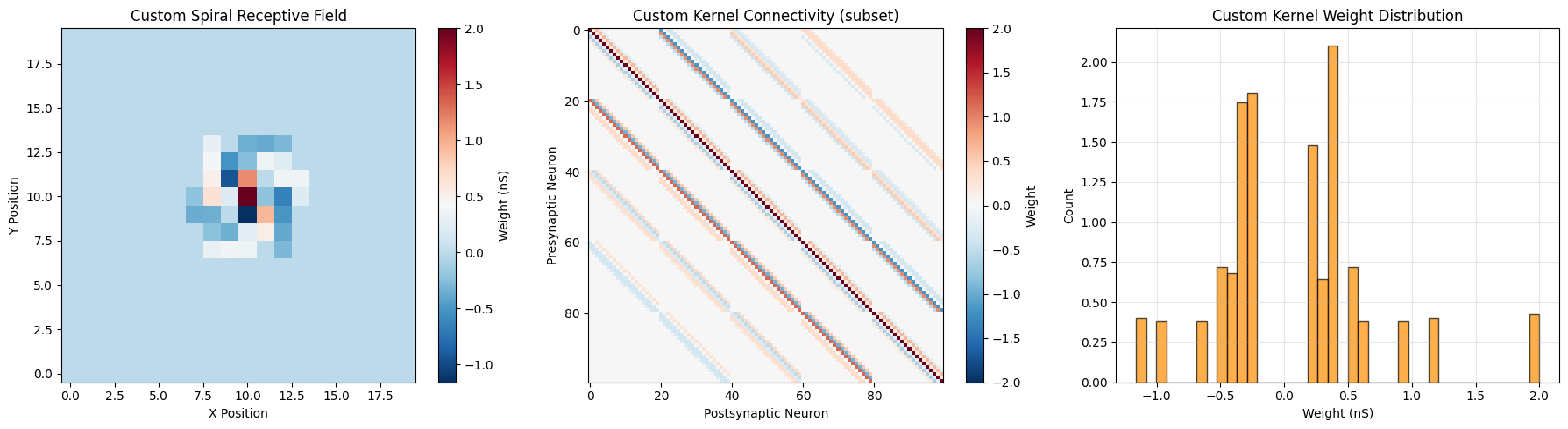

5.1 Visualizing Custom Kernel#
# Create connectivity matrix
conn_mat_custom = np.zeros((n_neurons_2d, n_neurons_2d))
weights_custom = u.Quantity(result_custom.weights).mantissa
conn_mat_custom[result_custom.pre_indices, result_custom.post_indices] = weights_custom
fig, axes = plt.subplots(1, 3, figsize=(18, 5))
# Receptive field
rf_custom = conn_mat_custom[:, center_neuron].reshape(grid_size, grid_size)
im0 = axes[0].imshow(rf_custom, cmap='RdBu_r', origin='lower')
axes[0].set_title('Custom Spiral Receptive Field')
axes[0].set_xlabel('X Position')
axes[0].set_ylabel('Y Position')
plt.colorbar(im0, ax=axes[0], label='Weight (nS)')
# Connectivity matrix
vis.connectivity_matrix(
conn_mat_custom[:100, :100],
cmap='RdBu_r',
center_zero=True,
show_colorbar=True,
ax=axes[1],
title='Custom Kernel Connectivity (subset)',
xlabel='Postsynaptic Neuron',
ylabel='Presynaptic Neuron'
)
# Weight distribution
vis.distribution_plot(
weights_custom,
bins=40,
alpha=0.7,
colors=['darkorange'],
edgecolor='black',
ax=axes[2],
xlabel='Weight (nS)',
ylabel='Count',
title='Custom Kernel Weight Distribution'
)
plt.tight_layout()
plt.show()

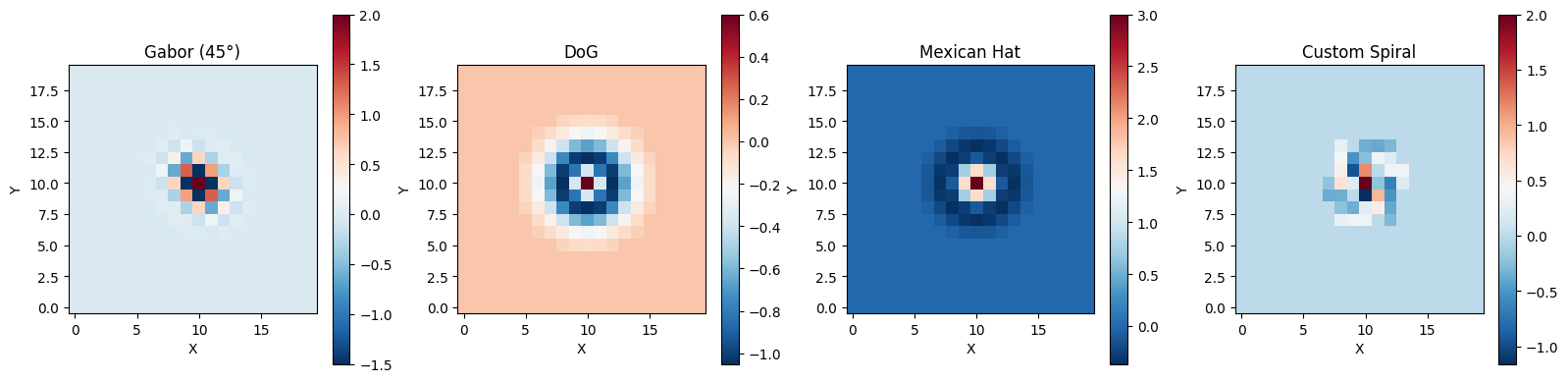

6. Comparing All Kernel Types#
Let’s compare the receptive fields of all kernel types side by side.
# Compare receptive fields
kernels = [
(receptive_field_gabor, 'Gabor (45°)'),
(receptive_field_dog, 'DoG'),
(rf_mexican, 'Mexican Hat'),
(rf_custom, 'Custom Spiral')
]
fig, axes = plt.subplots(1, 4, figsize=(16, 4))
for idx, (rf, name) in enumerate(kernels):
im = axes[idx].imshow(rf, cmap='RdBu_r', origin='lower')
axes[idx].set_title(name)
axes[idx].set_xlabel('X')
axes[idx].set_ylabel('Y')
plt.colorbar(im, ax=axes[idx])
plt.tight_layout()
plt.show()
7. Combining E-I Networks with Kernel Connectivity#
Real neural circuits often combine excitatory-inhibitory structure with spatial organization. Let’s create a network that has both properties.
# Create positions for E-I network
n_combined = 400
positions_combined = np.random.uniform(0, 1000, (n_combined, 2)) * u.um
# First, establish E-I structure
ei_spatial = conn.ExcitatoryInhibitory(
exc_ratio=0.8,
exc_prob=0.0, # Will use kernel instead
inh_prob=0.0, # Will use kernel instead
seed=42
)
# Create separate Gaussian kernels for E and I
# E neurons have broader connectivity
gauss_e = conn.GaussianKernel(
sigma=120 * u.um,
max_distance=360 * u.um,
weight=1.0 * u.nS,
seed=42
)
# I neurons have narrower, stronger connectivity
gauss_i = conn.GaussianKernel(
sigma=60 * u.um,
max_distance=180 * u.um,
weight=-1.2 * u.nS,
seed=43
)
# Generate E connections
n_exc_combined = int(n_combined * 0.8)
result_e = gauss_e(
pre_size=n_exc_combined,
post_size=n_combined,
pre_positions=positions_combined[:n_exc_combined],
post_positions=positions_combined
)
# Generate I connections
result_i = gauss_i(
pre_size=n_combined - n_exc_combined,
post_size=n_combined,
pre_positions=positions_combined[n_exc_combined:],
post_positions=positions_combined
)
# Adjust I indices to account for E neurons
result_i_pre = result_i.pre_indices + n_exc_combined
# Combine both
combined_pre = np.concatenate([result_e.pre_indices, result_i_pre])
combined_post = np.concatenate([result_e.post_indices, result_i.post_indices])
combined_weights = np.concatenate([
u.Quantity(result_e.weights).mantissa,
u.Quantity(result_i.weights).mantissa
])
print(f"Combined E-I spatial network:")
print(f" E connections: {len(result_e.pre_indices)}")
print(f" I connections: {len(result_i.pre_indices)}")
print(f" Total connections: {len(combined_pre)}")
Combined E-I spatial network:
E connections: 23207
I connections: 2593
Total connections: 25800

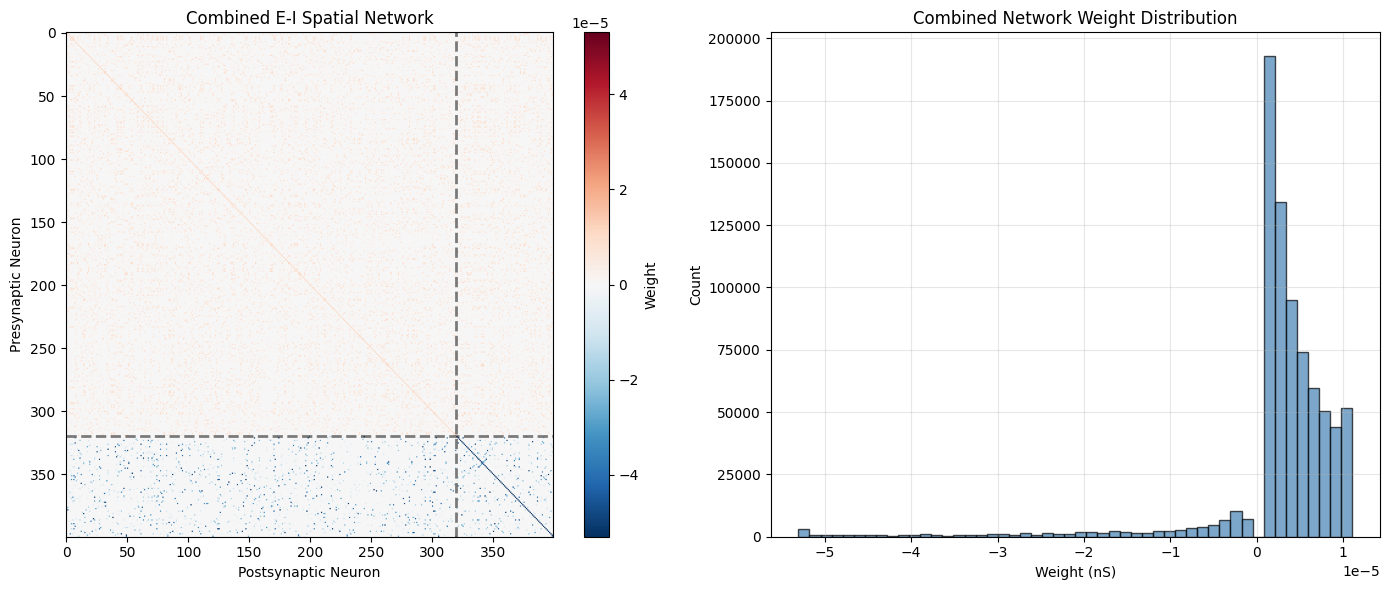

7.1 Visualizing Combined E-I Spatial Network#
# Create connectivity matrix
conn_mat_combined = np.zeros((n_combined, n_combined))
conn_mat_combined[combined_pre, combined_post] = combined_weights
fig, axes = plt.subplots(1, 2, figsize=(14, 6))
# Full connectivity matrix
vis.connectivity_matrix(
conn_mat_combined,
cmap='RdBu_r',
center_zero=True,
show_colorbar=True,
ax=axes[0],
title='Combined E-I Spatial Network',
xlabel='Postsynaptic Neuron',
ylabel='Presynaptic Neuron'
)
# Add separation line
axes[0].axhline(y=n_exc_combined - 0.5, color='black', linewidth=2, linestyle='--', alpha=0.5)
axes[0].axvline(x=n_exc_combined - 0.5, color='black', linewidth=2, linestyle='--', alpha=0.5)
# Weight distribution
vis.distribution_plot(
combined_weights,
bins=50,
alpha=0.7,
colors=['steelblue'],
edgecolor='black',
ax=axes[1],
xlabel='Weight (nS)',
ylabel='Count',
title='Combined Network Weight Distribution'
)
plt.tight_layout()
plt.show()

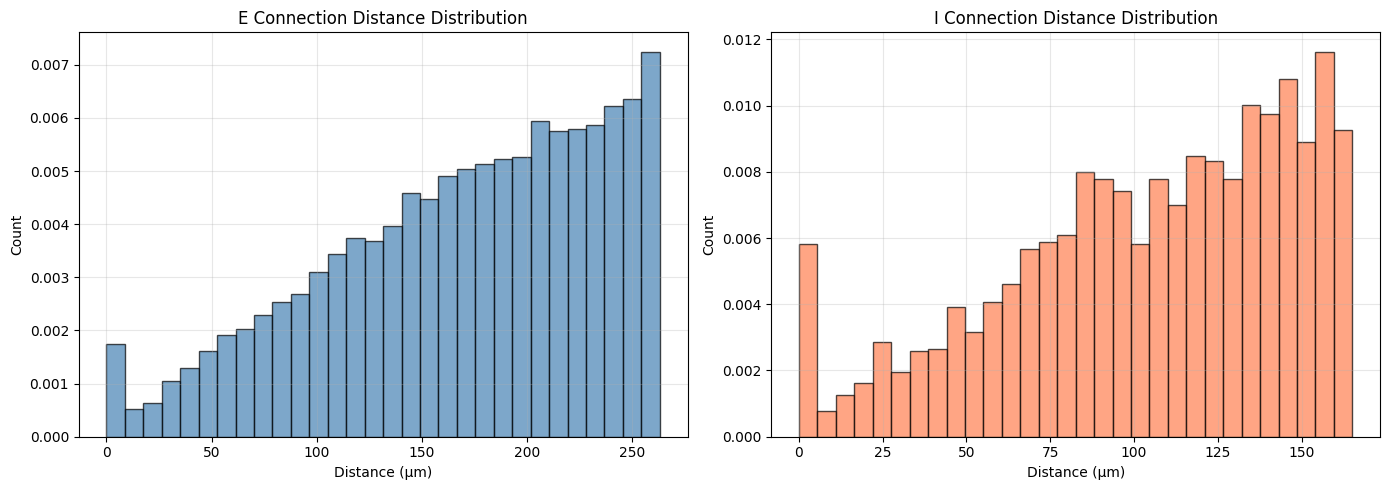

7.2 Spatial Analysis of Combined Network#
# Analyze spatial properties
# Calculate connection distances
pos_vals = u.Quantity(positions_combined).mantissa
distances = np.sqrt(np.sum((pos_vals[combined_pre] - pos_vals[combined_post]) ** 2, axis=1))
# Separate E and I distances
e_mask = combined_pre < n_exc_combined
i_mask = combined_pre >= n_exc_combined
distances_e = distances[e_mask]
distances_i = distances[i_mask]
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
# Distance distributions
vis.distribution_plot(
distances_e,
bins=30,
alpha=0.7,
colors=['steelblue'],
edgecolor='black',
ax=axes[0],
xlabel='Distance (μm)',
ylabel='Count',
title='E Connection Distance Distribution'
)
vis.distribution_plot(
distances_i,
bins=30,
alpha=0.7,
colors=['coral'],
edgecolor='black',
ax=axes[1],
xlabel='Distance (μm)',
ylabel='Count',
title='I Connection Distance Distribution'
)
plt.tight_layout()
plt.show()
print(f"Mean E connection distance: {np.mean(distances_e):.1f} μm")
print(f"Mean I connection distance: {np.mean(distances_i):.1f} μm")
Mean E connection distance: 168.6 μm
Mean I connection distance: 104.1 μm
