class braintools.surrogate.QPseudoSpike(alpha=2.0)#

Judge spiking state with the q-PseudoSpike surrogate function [1].

The q-PseudoSpike surrogate gradient provides a flexible framework for controlling the tail behavior of the gradient function. The parameter q (represented as alpha in the implementation) controls the tail fatness, allowing for various gradient profiles from heavy-tailed to compact support.

The forward function:

\[\begin{split}g(x) = \begin{cases} 1, & x \geq 0 \\ 0, & x < 0 \\ \end{cases}\end{split}\]

The original function:

\[\begin{split}\begin{split}g_{origin}(x) = \begin{cases} \frac{1}{2}(1-\frac{2x}{\alpha-1})^{1-\alpha}, & x < 0 \\ 1 - \frac{1}{2}(1+\frac{2x}{\alpha-1})^{1-\alpha}, & x \geq 0. \end{cases}\end{split}\end{split}\]

Backward gradient:

\[g'(x) = (1+\frac{2|x|}{\alpha-1})^{-\alpha}\]

>>> import jax
>>> import jax.numpy as jnp
>>> import brainstate
>>> import braintools.surrogate as surrogate
>>> import matplotlib.pyplot as plt
>>>
>>> xs = jnp.linspace(-3, 3, 1000)

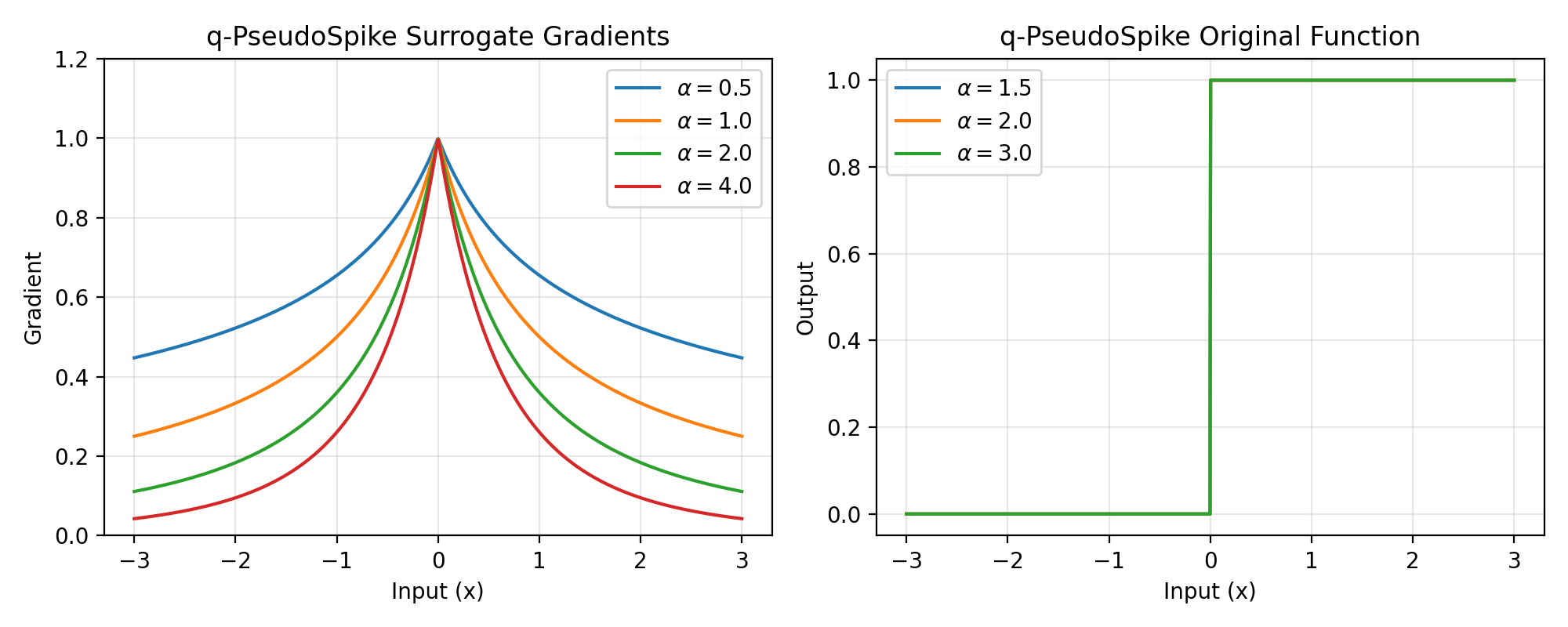

>>> fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 4))
>>>
>>> # Plot gradients for different alpha values
>>> for alpha in [0.5, 1.0, 2.0, 4.0]:
>>>     qps_fn = surrogate.QPseudoSpike(alpha=alpha)
>>>     grads = jax.vmap(jax.grad(qps_fn))(xs)
>>>     ax1.plot(xs, grads, label=rf'$\alpha={alpha}$')
>>>
>>> ax1.set_xlabel('Input (x)')
>>> ax1.set_ylabel('Gradient')
>>> ax1.set_title('q-PseudoSpike Surrogate Gradients')
>>> ax1.legend()
>>> ax1.grid(True, alpha=0.3)
>>> ax1.set_ylim([0, 1.2])
>>>
>>> # Plot the original function for origin=True
>>> for alpha in [1.5, 2.0, 3.0]:
>>>     qps_fn = surrogate.QPseudoSpike(alpha=alpha)
>>>     qps_fn.origin = True
>>>     ys = jax.vmap(qps_fn)(xs)
>>>     ax2.plot(xs, ys, label=rf'$\alpha={alpha}$')
>>>
>>> ax2.set_xlabel('Input (x)')
>>> ax2.set_ylabel('Output')
>>> ax2.set_title('q-PseudoSpike Original Function')
>>> ax2.legend()
>>> ax2.grid(True, alpha=0.3)
>>> plt.tight_layout()
>>> plt.show()

(Source code, png, hires.png, pdf)

../../_images/braintools-surrogate-QPseudoSpike-1.png

Parameters:

alpha (float, optional) –

Parameter to control tail fatness of gradient. Default is 2.0.

alpha < 1: Heavy-tailed gradient (slower decay)
alpha = 1: Exponential-like decay
alpha > 1: Compact support (faster decay)
alpha = 2: Quadratic decay (default)

Examples

>>> import jax
>>> import braintools.surrogate as surrogate
>>>
>>> # Create q-PseudoSpike surrogate function
>>> qps_fn = surrogate.QPseudoSpike(alpha=2.0)
>>>
>>> # Apply to input
>>> x = jax.numpy.array([-1., 0., 1.])
>>> spikes = qps_fn(x)
>>> print(spikes)
[0. 1. 1.]
>>>
>>> # Compute gradients with different tail behaviors
>>> for alpha in [0.5, 2.0, 4.0]:
...     qps_fn = surrogate.QPseudoSpike(alpha=alpha)
...     grad_fn = jax.grad(lambda x: qps_fn(x).sum())
...     grads = grad_fn(jax.numpy.array([0.5]))
...     print(f"alpha={alpha}: gradient={grads[0]:.4f}")
