Tutorial 4: Custom Transformations and Pipelines#
Create bespoke inputs by extending Input, wrapping functional helpers, and composing reusable building blocks.
In this tutorial, we’ll learn how to:
Create custom input classes by subclassing
InputWrap existing functional helpers with modifications
Build complex, reusable input pipelines
Combine multiple input types for sophisticated protocols
import brainstate
import brainunit as u
import jax.numpy as jnp
import numpy as np
import braintools
brainstate.environ.set(dt=0.05 * u.ms)
Subclassing Input#
When you need input patterns that aren’t available in the built-in classes, you can create your own by subclassing Input. The key is implementing the generate() method, which returns the actual current values.
class SigmoidStep(braintools.input.Input):
"""Smoothly rising current based on a logistic curve."""
def __init__(self, amplitude, duration, slope=40.0, center=0.5):
super().__init__(duration)
self.amplitude = amplitude
self.slope = slope
self.center = center
def generate(self):
dt = brainstate.environ.get_dt()
dt_value, time_unit = u.split_mantissa_unit(dt)
total = u.Quantity(self.duration).to(time_unit).mantissa
n_steps = int(np.ceil(total / dt_value))
t = jnp.linspace(0.0, 1.0, n_steps)
curve = self.amplitude / (1.0 + jnp.exp(-self.slope * (t - self.center)))
return curve
# Create and test our custom sigmoid step
sigmoid_input = SigmoidStep(1.0 * u.nA, 200 * u.ms)
custom_waveform = sigmoid_input()
print(f"Waveform shape: {custom_waveform.shape}")
print(f"Min value: {u.math.min(custom_waveform):.3f}")
print(f"Max value: {u.math.max(custom_waveform):.3f}")
# Compare with a regular step
regular_step = braintools.input.Step(1.0 * u.nA, 100 * u.ms, 200 * u.ms)
regular_waveform = regular_step()
# Plot comparison
import matplotlib.pyplot as plt
t = jnp.arange(len(custom_waveform)) * 0.05 # dt = 0.05 ms
plt.figure(figsize=(10, 4))
plt.subplot(1, 2, 1)
plt.plot(t, custom_waveform, 'b-', label='Sigmoid Step')
plt.xlabel('Time (ms)')
plt.ylabel('Current (nA)')
plt.title('Custom Sigmoid Step')
plt.grid(True)
plt.subplot(1, 2, 2)
t_reg = jnp.arange(len(regular_waveform)) * 0.05
plt.plot(t_reg, regular_waveform, 'r-', label='Regular Step')
plt.xlabel('Time (ms)')
plt.ylabel('Current (nA)')
plt.title('Regular Step')
plt.grid(True)
plt.tight_layout()
plt.show()
Wrapping functional helpers#
Sometimes you want to modify existing functional helpers without creating entirely new classes. Wrapper functions provide a clean way to add preprocessing or postprocessing to any input function.
def subtract_baseline(func, baseline):
"""Wrapper that subtracts a baseline from any input function."""
def wrapper(*args, **kwargs):
current = func(*args, **kwargs)
return current - baseline
return wrapper
def add_noise(func, noise_std):
"""Wrapper that adds Gaussian noise to any input function."""
def wrapper(*args, **kwargs):
current = func(*args, **kwargs)
noise = brainstate.random.randn(*current.shape) * noise_std
return current + noise
return wrapper
def scale_and_clip(func, scale_factor, min_val=None, max_val=None):
"""Wrapper that scales and clips any input function."""
def wrapper(*args, **kwargs):
current = func(*args, **kwargs) * scale_factor
if min_val is not None or max_val is not None:
current = u.math.clip(current, min_val, max_val)
return current
return wrapper
# Test the baseline subtraction wrapper
baseline_removed_ramp = subtract_baseline(braintools.input.ramp, 5 * u.pA)
clean_ramp = baseline_removed_ramp(0 * u.pA, 20 * u.pA, 300 * u.ms)
print(f"Original ramp range: 0 to 20 pA")
print(f"Baseline-corrected range: {u.math.min(clean_ramp):.1f} to {u.math.max(clean_ramp):.1f} pA")
# Test noise addition
noisy_ramp = add_noise(braintools.input.ramp, 2 * u.pA)
noisy_current = noisy_ramp(0 * u.pA, 20 * u.pA, 300 * u.ms)
print(f"\nNoisy ramp std: {u.math.std(noisy_current):.2f}")
# Combine multiple wrappers
enhanced_ramp = scale_and_clip(add_noise(braintools.input.ramp, 1 * u.pA), 2.0, 0 * u.pA, 30 * u.pA)
enhanced_current = enhanced_ramp(0 * u.pA, 10 * u.pA, 200 * u.ms)
print(f"Enhanced ramp range: {u.math.min(enhanced_current):.1f} to {u.math.max(enhanced_current):.1f} pA")
Original ramp range: 0 to 20 pA
Baseline-corrected range: -5.0 * pamp to 15.0 * pamp pA
Noisy ramp std: 6.12 * pamp
Enhanced ramp range: 0.0 * pampere to 25.4 * pampere pA
Custom pipelines#
The real power comes from combining multiple input types into sophisticated, reusable pipelines. These can include stochastic components, deterministic patterns, and complex interactions.
def build_protocol(seed=0):
"""Build a complex stimulation protocol combining multiple input types."""
noise = braintools.input.WienerProcess(400 * u.ms, sigma=0.15, seed=seed)
drive = braintools.input.Sinusoidal(0.4, 10 * u.Hz, 400 * u.ms)
gating = braintools.input.Step([0, 1, 0], [0 * u.ms, 150 * u.ms, 350 * u.ms], 400 * u.ms)
return (noise + drive).clip(-1.0, 1.0) * gating.scale(0.5)
def build_ramp_burst_protocol(n_bursts=3,
burst_duration=50 * u.ms,
inter_burst_interval=100 * u.ms):
"""Build a protocol with multiple ramping bursts."""
total_duration = n_bursts * (burst_duration + inter_burst_interval) - inter_burst_interval
# Create timing arrays for bursts
burst_times = []
for i in range(n_bursts):
start = i * (burst_duration + inter_burst_interval)
end = start + burst_duration
burst_times.extend([start, end])
# Create alternating on/off pattern
amplitudes = []
for i in range(n_bursts):
amplitudes.extend([0, 1]) # off, on
amplitudes.append(0) # final off
gating = braintools.input.Step(amplitudes, burst_times, total_duration)
# Create ramping envelope within each burst
ramp_freq = 20 * u.Hz # frequency of ramp oscillation
carrier = braintools.input.Sinusoidal(0.8, ramp_freq, total_duration)
return carrier * gating
# Test the basic protocol
pipeline = build_protocol(seed=21)
print(f"Basic protocol: {pipeline}")
result = pipeline()
print(f"Result shape: {result.shape}")
print(f"Sample values: {result[:10]}")
# Test the burst protocol
burst_protocol = build_ramp_burst_protocol()
burst_result = burst_protocol()
print(f"\nBurst protocol shape: {burst_result.shape}")
print(f"Burst result range: {jnp.min(burst_result):.3f} to {jnp.max(burst_result):.3f}")

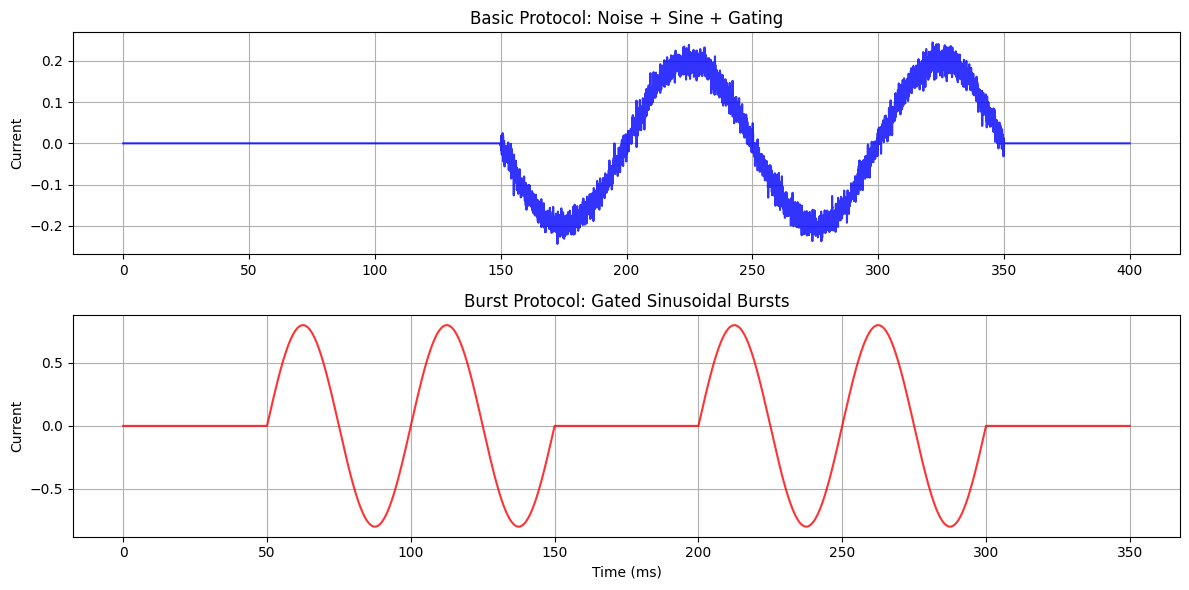

# Visualize both protocols
plt.figure(figsize=(12, 6))
# Basic protocol
plt.subplot(2, 1, 1)
t1 = jnp.arange(len(result)) * 0.05
plt.plot(t1, result, 'b-', alpha=0.8)
plt.title('Basic Protocol: Noise + Sine + Gating')
plt.ylabel('Current')
plt.grid(True)
# Burst protocol
plt.subplot(2, 1, 2)
t2 = jnp.arange(len(burst_result)) * 0.05
plt.plot(t2, burst_result, 'r-', alpha=0.8)
plt.title('Burst Protocol: Gated Sinusoidal Bursts')
plt.xlabel('Time (ms)')
plt.ylabel('Current')
plt.grid(True)
plt.tight_layout()
plt.show()
Basic protocol: <braintools.input._composable_base.Composite object at 0x000002715F0A93D0>
Result shape: (8000,)
Sample values: [-0. -0. 0. -0. 0. -0. 0. 0. 0. 0.]
Burst protocol shape: (7000,)
Burst result range: -0.800 to 0.800
Advanced Pipeline Factories#
For even more flexibility, you can create parametric factories that generate different protocols based on experimental requirements.
# Advanced example: Parametric protocol factory
def create_adaptive_protocol(base_freq=5 * u.Hz, freq_sweep=True,
noise_level=0.1, duration=500 * u.ms):
"""Create an adaptive protocol with optional frequency sweeping."""
if freq_sweep:
# Frequency increases linearly over time
max_freq = base_freq * 3
freq_values = braintools.input.ramp(base_freq, max_freq, duration)
# Create a time-varying sinusoid (chirp-like)
dt = brainstate.environ.get_dt()
dt_value = u.split_mantissa_unit(dt)[0]
total_time = u.Quantity(duration).to(u.ms).mantissa
n_steps = int(np.ceil(total_time / (dt_value * 1000))) # Convert to ms
# Instantaneous phase calculation for varying frequency
phase = u.math.cumsum(freq_values) * dt * 2 * jnp.pi
carrier = u.math.sin(phase)
else:
carrier = braintools.input.Sinusoidal(1.0, base_freq, duration)()
if noise_level > 0:
noise = braintools.input.WienerProcess(duration, sigma=noise_level, seed=42)()
combined = carrier + noise
else:
combined = carrier
return combined
# Test different configurations
configs = [
{'base_freq': 5 * u.Hz, 'freq_sweep': False, 'noise_level': 0},
{'base_freq': 5 * u.Hz, 'freq_sweep': True, 'noise_level': 0},
{'base_freq': 10 * u.Hz, 'freq_sweep': True, 'noise_level': 0.2}
]

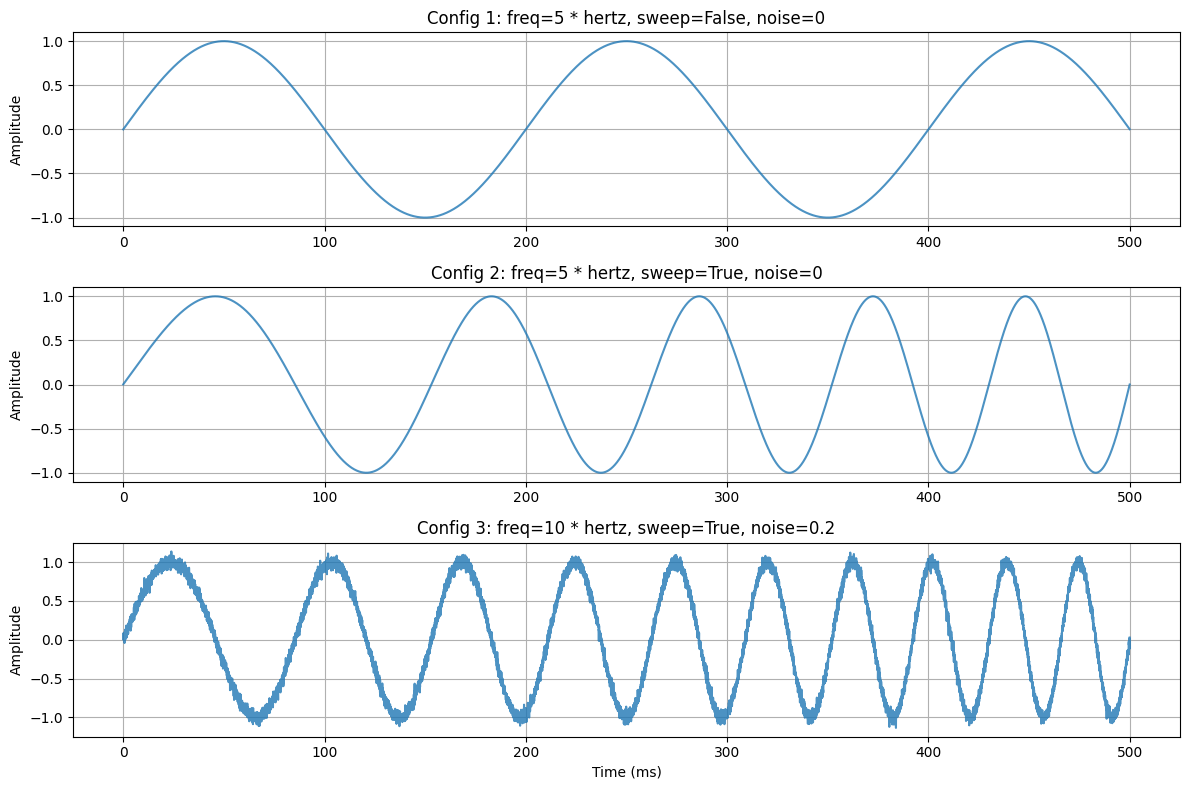

plt.figure(figsize=(12, 8))
for i, config in enumerate(configs):
signal = create_adaptive_protocol(**config)
t = jnp.arange(len(signal)) * 0.05
plt.subplot(3, 1, i + 1)
plt.plot(t, signal, alpha=0.8)
title = f"Config {i + 1}: freq={config['base_freq']}, sweep={config['freq_sweep']}, noise={config['noise_level']}"
plt.title(title)
plt.ylabel('Amplitude')
if i == 2:
plt.xlabel('Time (ms)')
plt.grid(True)
plt.tight_layout()
plt.show()
print("Advanced protocols created successfully!")
Advanced protocols created successfully!
Best Practices and Tips#
When creating custom transformations and pipelines, keep these guidelines in mind:
# Best Practice 1: Always handle units properly
class UnitAwareCustomInput(braintools.input.Input):
"""Example of proper unit handling in custom inputs."""
def __init__(self, amplitude, duration, time_constant=50 * u.ms):
super().__init__(duration)
self.amplitude = amplitude
self.tau = time_constant
def generate(self):
dt = brainstate.environ.get_dt()
dt_value, time_unit = u.split_mantissa_unit(dt)
total = u.Quantity(self.duration).to(time_unit).mantissa
tau_value = u.Quantity(self.tau).to(time_unit).mantissa
n_steps = int(np.ceil(total / dt_value))
t = jnp.arange(n_steps) * dt_value
# Exponential decay
return self.amplitude * jnp.exp(-t / tau_value)
# Best Practice 2: Make pipelines parameterizable and reusable
def create_experimental_protocol(protocol_type='standard', **kwargs):
"""Factory function for different experimental protocols."""
protocols = {
'standard': lambda: build_protocol(**kwargs),
'burst': lambda: build_ramp_burst_protocol(**kwargs),
'adaptive': lambda: create_adaptive_protocol(**kwargs)
}
if protocol_type not in protocols:
raise ValueError(f"Unknown protocol type: {protocol_type}")
return protocols[protocol_type]()
# Best Practice 3: Document your custom components
def documented_wrapper(func, transformation_name):
"""A well-documented wrapper function."""
def wrapper(*args, **kwargs):
# Apply the original function
result = func(*args, **kwargs)
# Add metadata for debugging
if hasattr(result, 'metadata'):
result.metadata['transformation'] = transformation_name
return result
# Preserve original function's docstring
wrapper.__doc__ = f"""
Modified version of {func.__name__} with {transformation_name}.
Original docstring:
{func.__doc__}
"""
wrapper.__name__ = f"{func.__name__}_with_{transformation_name}"
return wrapper
# Test the best practices
unit_aware = UnitAwareCustomInput(2.0 * u.nA, 100 * u.ms, 20 * u.ms)
decay_current = unit_aware()
# Test protocol factory
standard_protocol = create_experimental_protocol('standard', seed=123)
burst_protocol = create_experimental_protocol('burst', n_bursts=2)
# Test documented wrapper
enhanced_ramp = documented_wrapper(braintools.input.ramp, "baseline_correction")
print(f"Enhanced ramp name: {enhanced_ramp.__name__}")
print(f"Has documentation: {enhanced_ramp.__doc__ is not None}")
print("\\nBest practices demonstrated successfully!")
print(f"Decay current range: {u.math.min(decay_current):.3f} to {u.math.max(decay_current):.3f} nA")
Enhanced ramp name: ramp_with_baseline_correction
Has documentation: True
\nBest practices demonstrated successfully!
Decay current range: 0.014 * nampere to 2.000 * nampere nA
Summary#
In this tutorial, you’ve learned how to:
Subclass
Input: Create completely new input types by implementinggenerate()Wrap functions: Modify existing functional helpers with decorators and wrappers
Build pipelines: Combine multiple inputs into complex, reusable protocols
Follow best practices: Handle units properly, make code reusable, and document components
These techniques allow you to create sophisticated experimental protocols tailored to your specific research needs. The composable nature of BrainTools inputs means you can mix and match these approaches to build exactly the stimulation patterns your experiments require.
Key Takeaways:#
Custom
Inputclasses are perfect for novel waveform shapesWrapper functions are ideal for modifying existing behaviors
Pipeline factories provide flexibility for different experimental conditions
Always consider units, reusability, and documentation in your custom code
