Tutorial 6: Spiking Synchronization Metrics

This tutorial demonstrates advanced spike train analysis functions in braintools.metric. We’ll cover:

• Distance Measures: victor_purpura_distance, van_rossum_distance

• Synchrony Indices: spike_train_synchrony, correlation_index

• Advanced Measures: spike_time_tiling_coefficient, phase_locking_value, burst_synchrony_index

These functions provide sophisticated methods for quantifying spike train similarities, synchronization, and temporal relationships.

import jax.numpy as jnp
import numpy as np
import braintools
import matplotlib.pyplot as plt

# Set random seed for reproducibility
np.random.seed(42)

1. Spike Train Distance Measures

Distance measures quantify dissimilarity between spike trains and are essential for spike train clustering and classification.

1.1 Victor-Purpura Distance

The Victor-Purpura distance measures the minimum cost to transform one spike train into another through insertions, deletions, and temporal shifts.

# Create example spike trains
spikes1 = jnp.array([1.0, 2.5, 4.0, 5.5, 7.0])  # Original train
spikes2 = jnp.array([1.1, 2.6, 4.1, 5.6, 7.1])  # Slightly shifted
spikes3 = jnp.array([1.0, 3.0, 6.0])             # Different pattern

print("Victor-Purpura Distance Examples:")
print(f"Same train: {braintools.metric.victor_purpura_distance(spikes1, spikes1):.3f}")
print(f"Slightly shifted: {braintools.metric.victor_purpura_distance(spikes1, spikes2, cost_factor=10.0):.3f}")
print(f"Different pattern: {braintools.metric.victor_purpura_distance(spikes1, spikes3, cost_factor=10.0):.3f}")

# Effect of cost factor
cost_factors = [0.1, 1.0, 5.0, 10.0, 50.0]
distances = []

for cost in cost_factors:
    dist = braintools.metric.victor_purpura_distance(spikes1, spikes2, cost_factor=cost)
    distances.append(dist)

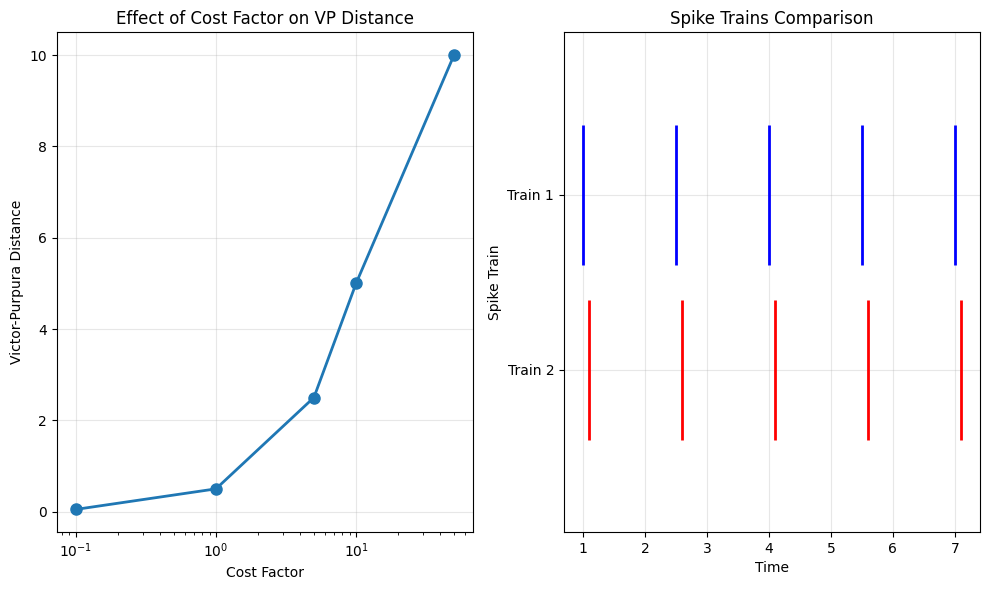

plt.figure(figsize=(10, 6))
plt.subplot(1, 2, 1)
plt.semilogx(cost_factors, distances, 'o-', linewidth=2, markersize=8)
plt.xlabel('Cost Factor')
plt.ylabel('Victor-Purpura Distance')
plt.title('Effect of Cost Factor on VP Distance')
plt.grid(True, alpha=0.3)

# Visualize the spike trains
plt.subplot(1, 2, 2)
plt.eventplot([spikes1, spikes2], lineoffsets=[1, 0], linelengths=0.8, linewidths=2, colors=['blue', 'red'])
plt.ylabel('Spike Train')
plt.xlabel('Time')
plt.title('Spike Trains Comparison')
plt.yticks([0, 1], ['Train 2', 'Train 1'])
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Victor-Purpura Distance Examples:
Same train: 0.000
Slightly shifted: 5.000
Different pattern: 6.000

1.2 van Rossum Distance

The van Rossum distance convolves spike trains with exponential kernels and computes the Euclidean distance between the resulting continuous functions.

# van Rossum distance with different tau values
tau_values = [0.1, 0.5, 1.0, 2.0, 5.0]
vr_distances = []

for tau in tau_values:
    dist = braintools.metric.van_rossum_distance(spikes1, spikes2, tau=tau)
    vr_distances.append(dist)

print("\nvan Rossum Distance Examples:")
print(f"Same train (tau=1.0): {braintools.metric.van_rossum_distance(spikes1, spikes1, tau=1.0):.3f}")
print(f"Shifted train (tau=0.1): {braintools.metric.van_rossum_distance(spikes1, spikes2, tau=0.1):.3f}")
print(f"Shifted train (tau=2.0): {braintools.metric.van_rossum_distance(spikes1, spikes2, tau=2.0):.3f}")

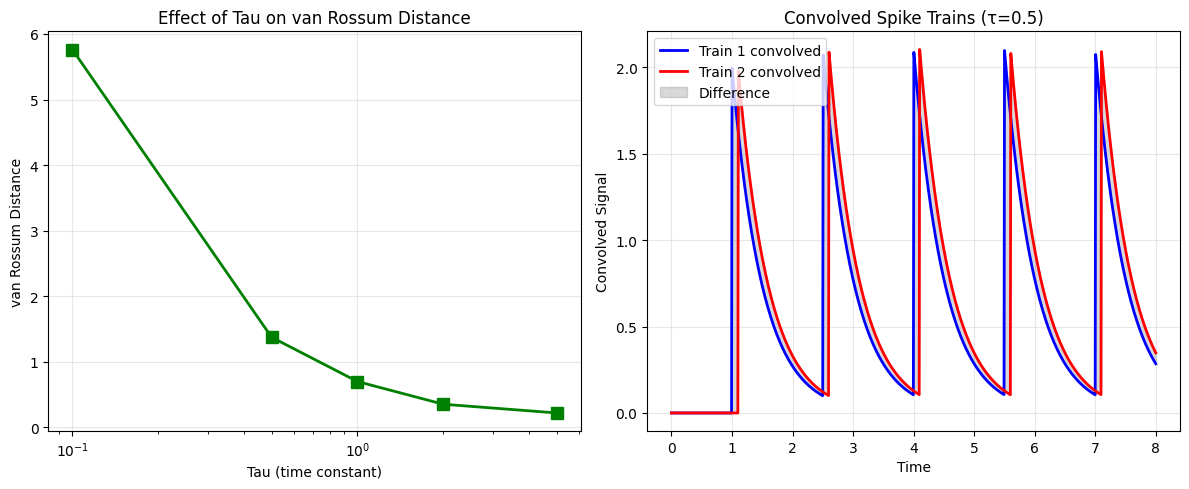

plt.figure(figsize=(12, 5))

plt.subplot(1, 2, 1)
plt.semilogx(tau_values, vr_distances, 's-', linewidth=2, markersize=8, color='green')
plt.xlabel('Tau (time constant)')
plt.ylabel('van Rossum Distance')
plt.title('Effect of Tau on van Rossum Distance')
plt.grid(True, alpha=0.3)

# Show convolved spike trains for visualization
plt.subplot(1, 2, 2)
t = jnp.linspace(0, 8, 1000)
tau_demo = 0.5

# Simple convolution visualization (approximation)
def convolve_demo(spike_times, t, tau):
    signal = jnp.zeros_like(t)
    for spike_time in spike_times:
        kernel = jnp.where(t >= spike_time,
                          (1/tau) * jnp.exp(-(t - spike_time)/tau), 0)
        signal += kernel
    return signal

conv1 = convolve_demo(spikes1, t, tau_demo)
conv2 = convolve_demo(spikes2, t, tau_demo)

plt.plot(t, conv1, 'b-', linewidth=2, label='Train 1 convolved')
plt.plot(t, conv2, 'r-', linewidth=2, label='Train 2 convolved')
plt.fill_between(t, conv1, conv2, alpha=0.3, color='gray', label='Difference')
plt.xlabel('Time')
plt.ylabel('Convolved Signal')
plt.title(f'Convolved Spike Trains (τ={tau_demo})')
plt.legend()
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

van Rossum Distance Examples:
Same train (tau=1.0): 0.000
Shifted train (tau=0.1): 5.763
Shifted train (tau=2.0): 0.353

2. Population Synchrony Measures

These measures quantify synchronization across multiple spike trains simultaneously.

2.1 Spike Train Synchrony

Measures synchronization by counting coincident events within time windows.

# Generate spike data with different synchrony levels
n_neurons = 10
n_time = 1000
dt = 1.0  # ms

# Scenario 1: High synchrony - synchronized bursts
sync_spikes = jnp.zeros((n_time, n_neurons))
burst_times = [200, 400, 600, 800]
for t in burst_times:
    # Add jitter to make it realistic
    for i in range(n_neurons):
        jitter = np.random.randint(-5, 6)  # ±5ms jitter
        spike_time = max(0, min(n_time-1, t + jitter))
        sync_spikes = sync_spikes.at[spike_time, i].set(1)

# Scenario 2: Low synchrony - random spikes
async_spikes = (np.random.random((n_time, n_neurons)) < 0.01).astype(float)

# Scenario 3: Medium synchrony - some synchronized events + noise
medium_spikes = async_spikes.copy()
for t in [300, 700]:
    for i in range(n_neurons//2):  # Only half the neurons participate
        jitter = np.random.randint(-3, 4)
        spike_time = max(0, min(n_time-1, t + jitter))
        medium_spikes[spike_time, i] = 1

# Calculate synchrony for different window sizes
window_sizes = [5.0, 10.0, 20.0, 50.0]
sync_results = {'High Sync': [], 'Medium Sync': [], 'Low Sync': []}

for window in window_sizes:
    sync_high = braintools.metric.spike_train_synchrony(sync_spikes, window_size=window, dt=dt)
    sync_medium = braintools.metric.spike_train_synchrony(medium_spikes, window_size=window, dt=dt)
    sync_low = braintools.metric.spike_train_synchrony(async_spikes, window_size=window, dt=dt)

    sync_results['High Sync'].append(sync_high)
    sync_results['Medium Sync'].append(sync_medium)
    sync_results['Low Sync'].append(sync_low)

print("\nSpike Train Synchrony Results:")
for scenario, values in sync_results.items():
    print(f"{scenario}: {[f'{v:.3f}' for v in values]}")

# Visualize results

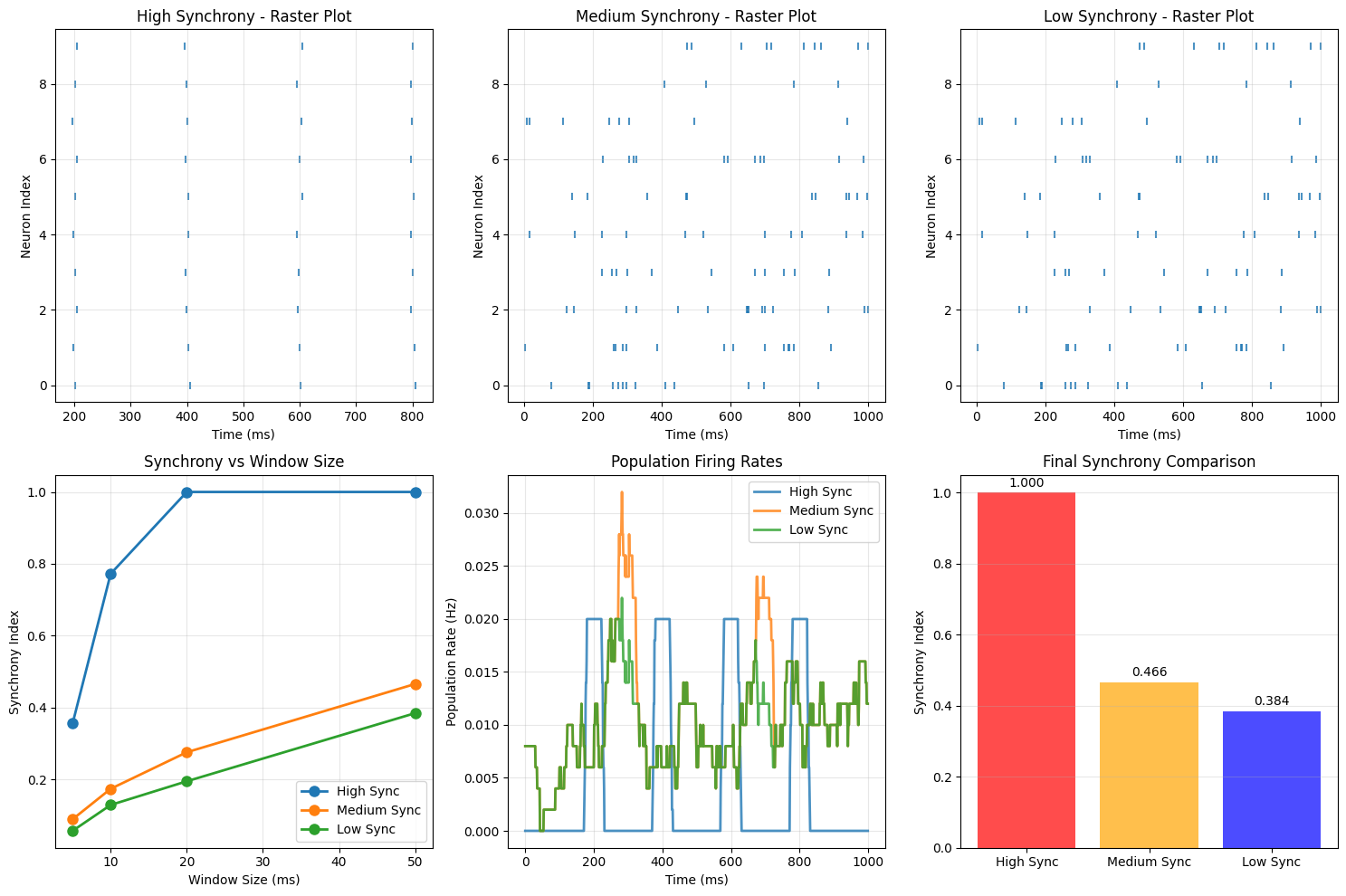

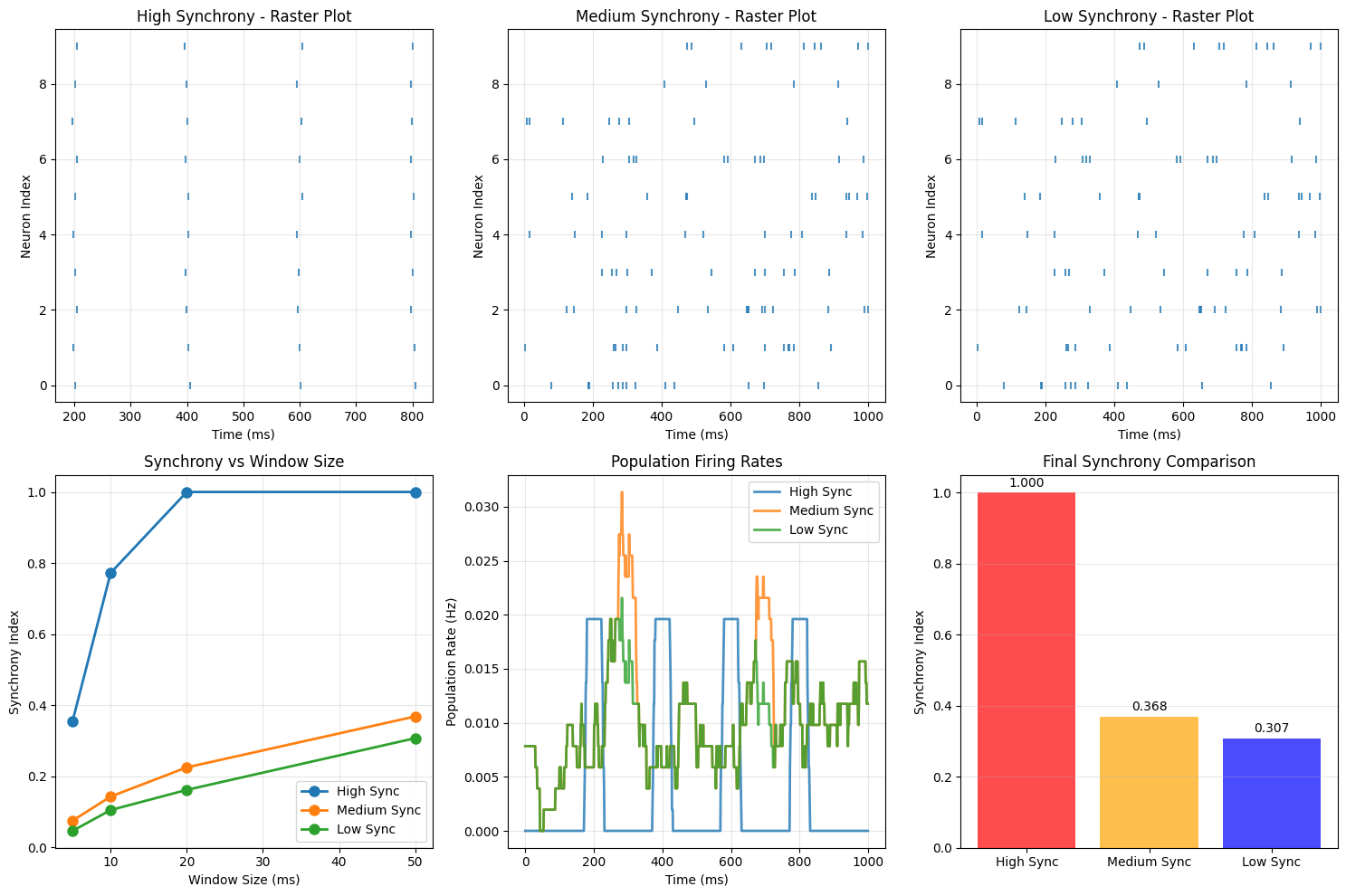

plt.figure(figsize=(15, 10))

# Plot spike rasters
for i, (spikes, title) in enumerate([(sync_spikes, 'High Synchrony'),
                                     (medium_spikes, 'Medium Synchrony'),
                                     (async_spikes, 'Low Synchrony')]):
    plt.subplot(2, 3, i+1)
    neuron_indices, spike_times = braintools.metric.raster_plot(spikes, jnp.arange(n_time) * dt)
    plt.scatter(spike_times, neuron_indices, marker='|', s=30, alpha=0.8)
    plt.xlabel('Time (ms)')
    plt.ylabel('Neuron Index')
    plt.title(f'{title} - Raster Plot')
    plt.grid(True, alpha=0.3)

# Plot synchrony vs window size
plt.subplot(2, 3, 4)
for scenario, values in sync_results.items():
    plt.plot(window_sizes, values, 'o-', linewidth=2, markersize=8, label=scenario)
plt.xlabel('Window Size (ms)')
plt.ylabel('Synchrony Index')
plt.title('Synchrony vs Window Size')
plt.legend()
plt.grid(True, alpha=0.3)

# Plot firing rates
plt.subplot(2, 3, 5)
for spikes, label in [(sync_spikes, 'High'), (medium_spikes, 'Medium'), (async_spikes, 'Low')]:
    firing_rate = braintools.metric.firing_rate(spikes, 50.0, dt)
    times = jnp.arange(len(firing_rate)) * dt
    plt.plot(times, firing_rate, linewidth=2, label=f'{label} Sync', alpha=0.8)
plt.xlabel('Time (ms)')
plt.ylabel('Population Rate (Hz)')
plt.title('Population Firing Rates')
plt.legend()
plt.grid(True, alpha=0.3)

# Summary comparison
plt.subplot(2, 3, 6)
scenarios = list(sync_results.keys())
final_sync = [values[-1] for values in sync_results.values()]  # Use largest window
colors = ['red', 'orange', 'blue']
bars = plt.bar(scenarios, final_sync, color=colors, alpha=0.7)
plt.ylabel('Synchrony Index')
plt.title('Final Synchrony Comparison')
plt.grid(True, alpha=0.3, axis='y')

for bar, value in zip(bars, final_sync):
    plt.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.01,
             f'{value:.3f}', ha='center', va='bottom')

plt.tight_layout()
plt.show()

Spike Train Synchrony Results:
High Sync: ['0.356', '0.772', '1.000', '1.000']
Medium Sync: ['0.089', '0.174', '0.276', '0.466']
Low Sync: ['0.057', '0.129', '0.195', '0.384']

2.2 Correlation Index

Measures synchrony using Pearson correlations between binned spike counts.

# Calculate correlation index for our spike data
window_sizes_ci = [10.0, 25.0, 50.0, 100.0]
ci_results = {'High Sync': [], 'Medium Sync': [], 'Low Sync': []}

for window in window_sizes_ci:
    ci_high = braintools.metric.correlation_index(sync_spikes, window_size=window, dt=dt)
    ci_medium = braintools.metric.correlation_index(medium_spikes, window_size=window, dt=dt)
    ci_low = braintools.metric.correlation_index(async_spikes, window_size=window, dt=dt)

    ci_results['High Sync'].append(ci_high)
    ci_results['Medium Sync'].append(ci_medium)
    ci_results['Low Sync'].append(ci_low)

print("\nCorrelation Index Results:")
for scenario, values in ci_results.items():
    print(f"{scenario}: {[f'{v:.3f}' for v in values]}")

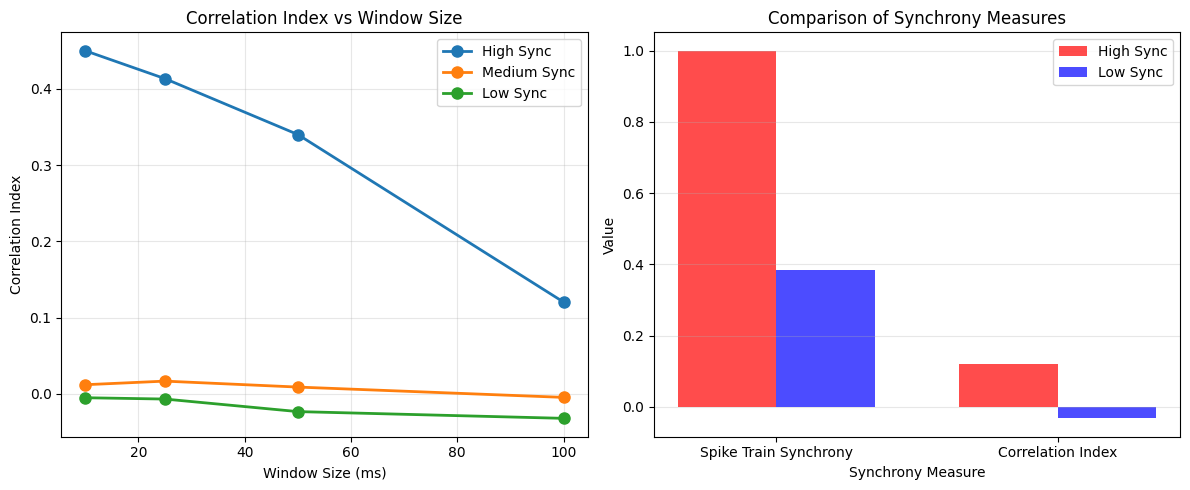

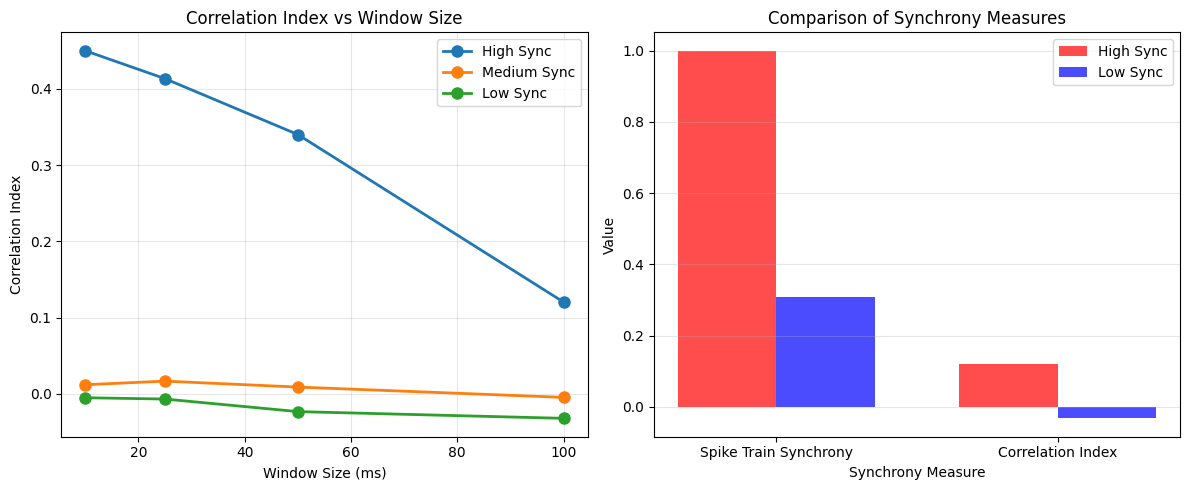

plt.figure(figsize=(12, 5))

plt.subplot(1, 2, 1)
for scenario, values in ci_results.items():
    plt.plot(window_sizes_ci, values, 'o-', linewidth=2, markersize=8, label=scenario)
plt.xlabel('Window Size (ms)')
plt.ylabel('Correlation Index')
plt.title('Correlation Index vs Window Size')
plt.legend()
plt.grid(True, alpha=0.3)

# Compare synchrony measures
plt.subplot(1, 2, 2)
sync_measures = ['Spike Train Synchrony', 'Correlation Index']
high_values = [sync_results['High Sync'][-1], ci_results['High Sync'][-1]]
low_values = [sync_results['Low Sync'][-1], ci_results['Low Sync'][-1]]

x = np.arange(len(sync_measures))
width = 0.35

plt.bar(x - width/2, high_values, width, label='High Sync', color='red', alpha=0.7)
plt.bar(x + width/2, low_values, width, label='Low Sync', color='blue', alpha=0.7)

plt.xlabel('Synchrony Measure')
plt.ylabel('Value')
plt.title('Comparison of Synchrony Measures')
plt.xticks(x, sync_measures)
plt.legend()
plt.grid(True, alpha=0.3, axis='y')

plt.tight_layout()
plt.show()

Correlation Index Results:
High Sync: ['0.450', '0.414', '0.340', '0.120']
Medium Sync: ['0.012', '0.017', '0.009', '-0.005']
Low Sync: ['-0.005', '-0.007', '-0.023', '-0.032']

3. Advanced Synchronization Measures

These measures provide more sophisticated analysis of temporal relationships and specific types of synchronization.

3.1 Spike Time Tiling Coefficient (STTC)

STTC controls for firing rate differences when measuring synchrony.

# Create spike data with different firing rates but similar synchrony
n_neurons = 5
spikes_sttc = jnp.zeros((1000, n_neurons))

# Add synchronized events
sync_times = [100, 300, 500, 700, 900]
for t in sync_times:
    for i in range(n_neurons):
        jitter = np.random.randint(-2, 3)
        spike_time = max(0, min(999, t + jitter))
        spikes_sttc = spikes_sttc.at[spike_time, i].set(1)

# Add different amounts of background activity
for i in range(n_neurons):
    # Different firing rates: 1%, 2%, 3%, 4%, 5%
    bg_rate = (i + 1) * 0.01
    bg_spikes = np.random.random(1000) < bg_rate
    spikes_sttc = spikes_sttc.at[:, i].set(jnp.maximum(spikes_sttc[:, i], bg_spikes))

# Calculate STTC matrix
sttc_matrix = braintools.metric.spike_time_tiling_coefficient(spikes_sttc, dt=1.0, tau=0.01)

print("\nSpike Time Tiling Coefficient Matrix:")
print(f"Shape: {sttc_matrix.shape}")
print(f"Diagonal: {jnp.diag(sttc_matrix)}")
print(f"Mean off-diagonal: {jnp.mean(sttc_matrix[jnp.triu_indices_from(sttc_matrix, k=1)]):.3f}")

# Calculate firing rates for each neuron
firing_rates = jnp.sum(spikes_sttc, axis=0) / (1000 * 1e-3)  # Convert to Hz
print(f"\nFiring rates: {firing_rates} Hz")

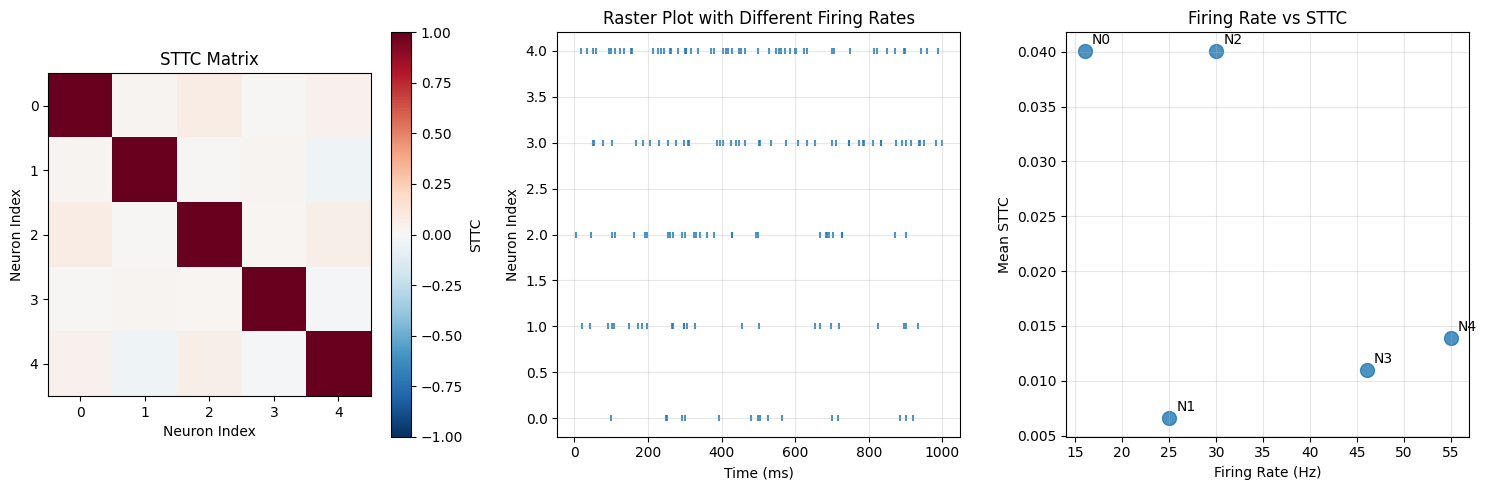

plt.figure(figsize=(15, 5))

# Plot STTC matrix
plt.subplot(1, 3, 1)
im = plt.imshow(sttc_matrix, cmap='RdBu_r', vmin=-1, vmax=1)
plt.colorbar(im, label='STTC')
plt.title('STTC Matrix')
plt.xlabel('Neuron Index')
plt.ylabel('Neuron Index')

# Plot raster
plt.subplot(1, 3, 2)
neuron_indices, spike_times = braintools.metric.raster_plot(spikes_sttc, jnp.arange(1000))
plt.scatter(spike_times, neuron_indices, marker='|', s=20, alpha=0.8)
plt.xlabel('Time (ms)')
plt.ylabel('Neuron Index')
plt.title('Raster Plot with Different Firing Rates')
plt.grid(True, alpha=0.3)

# Plot firing rates vs STTC
plt.subplot(1, 3, 3)
# Extract mean STTC for each neuron (excluding diagonal)
mean_sttc_per_neuron = []
for i in range(n_neurons):
    other_neurons = [j for j in range(n_neurons) if j != i]
    mean_sttc = jnp.mean(sttc_matrix[i, other_neurons])
    mean_sttc_per_neuron.append(mean_sttc)

plt.scatter(firing_rates, mean_sttc_per_neuron, s=100, alpha=0.8)
for i, (fr, sttc) in enumerate(zip(firing_rates, mean_sttc_per_neuron)):
    plt.annotate(f'N{i}', (fr, sttc), xytext=(5, 5), textcoords='offset points')
plt.xlabel('Firing Rate (Hz)')
plt.ylabel('Mean STTC')
plt.title('Firing Rate vs STTC')
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Spike Time Tiling Coefficient Matrix:
Shape: (5, 5)
Diagonal: [1. 1. 1. 1. 1.]
Mean off-diagonal: 0.022

Firing rates: [16. 25. 30. 46. 55.] Hz

3.2 Phase Locking Value (PLV)

PLV measures the consistency of phase relationships between spikes and a reference oscillation.

# Generate phase-locked spike data
n_time = 2000
dt = 0.5  # 0.5 ms resolution
freq = 20.0  # 20 Hz reference frequency
n_neurons = 6

spikes_plv = jnp.zeros((n_time, n_neurons))
times = jnp.arange(n_time) * dt / 1000  # Convert to seconds

# Create neurons with different phase preferences
phase_preferences = jnp.linspace(0, 2*jnp.pi, n_neurons, endpoint=False)
print(f"Phase preferences: {phase_preferences * 180 / jnp.pi} degrees")

# Add phase-locked spikes with some jitter
for cycle in range(int(freq * times[-1])):
    cycle_time = cycle / freq
    for i, phase_pref in enumerate(phase_preferences):
        # Time when this neuron should spike (at its preferred phase)
        preferred_time = cycle_time + phase_pref / (2 * jnp.pi * freq)

        # Add some jitter and probabilistic spiking
        if np.random.random() < 0.8:  # 80% probability of spiking
            jitter = np.random.normal(0, 0.002)  # 2ms std jitter
            actual_time = preferred_time + jitter

            # Convert back to time index
            time_idx = int(actual_time * 1000 / dt)
            if 0 <= time_idx < n_time:
                spikes_plv = spikes_plv.at[time_idx, i].set(1)

# Add some random background spikes
background = (np.random.random((n_time, n_neurons)) < 0.005).astype(float)
spikes_plv = jnp.maximum(spikes_plv, background)

# Calculate PLV
plv_values = braintools.metric.phase_locking_value(spikes_plv, freq, dt / 1000)

print(f"\nPhase Locking Values:")
for i, (plv, phase) in enumerate(zip(plv_values, phase_preferences)):
    print(f"Neuron {i}: PLV = {plv:.3f}, Preferred phase = {phase*180/jnp.pi:.1f}°")

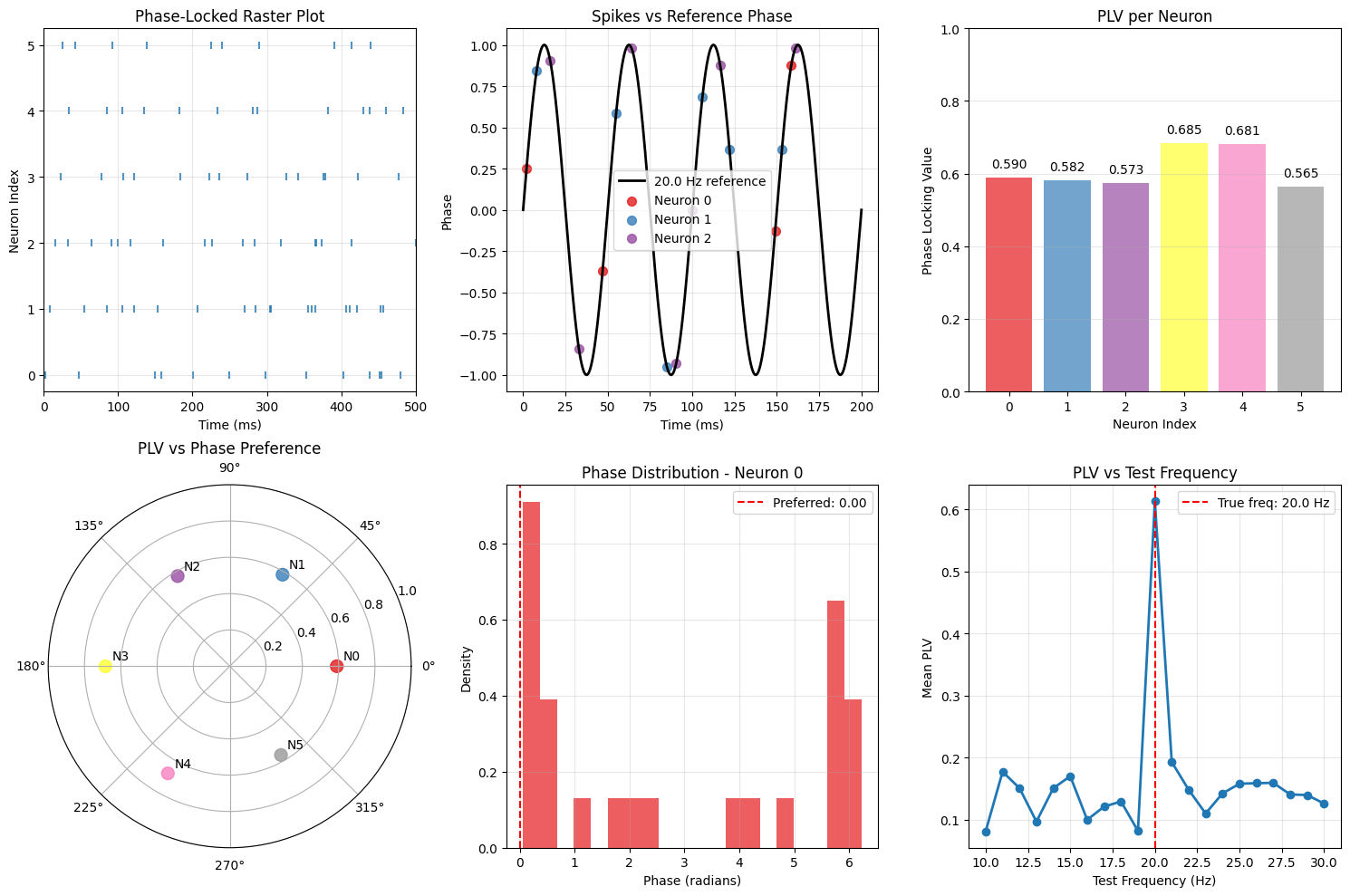

plt.figure(figsize=(15, 10))

# Plot raster with phase information
plt.subplot(2, 3, 1)
neuron_indices, spike_times = braintools.metric.raster_plot(spikes_plv, jnp.arange(n_time) * dt)
plt.scatter(spike_times[:1000], neuron_indices[:1000], marker='|', s=30, alpha=0.8)  # Show first 500ms
plt.xlabel('Time (ms)')
plt.ylabel('Neuron Index')
plt.title('Phase-Locked Raster Plot')
plt.xlim(0, 500)
plt.grid(True, alpha=0.3)

# Plot reference oscillation
plt.subplot(2, 3, 2)
t_ref = jnp.linspace(0, 200, 1000)  # First 200ms
reference_signal = jnp.sin(2 * jnp.pi * freq * t_ref / 1000)
plt.plot(t_ref, reference_signal, 'k-', linewidth=2, label=f'{freq} Hz reference')

# Overlay spike times for first few neurons
colors = plt.cm.Set1(np.linspace(0, 1, n_neurons))
for i in range(min(3, n_neurons)):
    neuron_spikes = spike_times[neuron_indices == i]
    neuron_spikes = neuron_spikes[neuron_spikes <= 200]
    plt.scatter(neuron_spikes, jnp.sin(2 * jnp.pi * freq * neuron_spikes / 1000),
               color=colors[i], s=50, label=f'Neuron {i}', alpha=0.8)

plt.xlabel('Time (ms)')
plt.ylabel('Phase')
plt.title('Spikes vs Reference Phase')
plt.legend()
plt.grid(True, alpha=0.3)

# Plot PLV values
plt.subplot(2, 3, 3)
bars = plt.bar(range(n_neurons), plv_values, color=colors, alpha=0.7)
plt.xlabel('Neuron Index')
plt.ylabel('Phase Locking Value')
plt.title('PLV per Neuron')
plt.ylim(0, 1)
plt.grid(True, alpha=0.3, axis='y')

for bar, plv in zip(bars, plv_values):
    plt.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.02,
             f'{plv:.3f}', ha='center', va='bottom')

# Polar plot of phase preferences vs PLV
plt.subplot(2, 3, 4, projection='polar')
plt.scatter(phase_preferences, plv_values, c=colors, s=100, alpha=0.8)
for i, (angle, r) in enumerate(zip(phase_preferences, plv_values)):
    plt.annotate(f'N{i}', (angle, r), xytext=(5, 5), textcoords='offset points')
plt.ylim(0, 1)
plt.title('PLV vs Phase Preference')

# Phase histogram for one neuron
plt.subplot(2, 3, 5)
neuron_idx = 0
neuron_spike_times = spike_times[neuron_indices == neuron_idx] / 1000  # Convert to seconds
spike_phases = (2 * jnp.pi * freq * neuron_spike_times) % (2 * jnp.pi)

plt.hist(spike_phases, bins=20, alpha=0.7, density=True, color=colors[neuron_idx])
plt.xlabel('Phase (radians)')
plt.ylabel('Density')
plt.title(f'Phase Distribution - Neuron {neuron_idx}')
plt.axvline(phase_preferences[neuron_idx], color='red', linestyle='--',
           label=f'Preferred: {phase_preferences[neuron_idx]:.2f}')
plt.legend()
plt.grid(True, alpha=0.3)

# PLV vs frequency (sensitivity analysis)
plt.subplot(2, 3, 6)
test_freqs = jnp.linspace(10, 30, 21)
plv_vs_freq = []

for test_freq in test_freqs:
    test_plv = braintools.metric.phase_locking_value(spikes_plv, test_freq, dt / 1000)
    plv_vs_freq.append(jnp.mean(test_plv))

plt.plot(test_freqs, plv_vs_freq, 'o-', linewidth=2, markersize=6)
plt.axvline(freq, color='red', linestyle='--', label=f'True freq: {freq} Hz')
plt.xlabel('Test Frequency (Hz)')
plt.ylabel('Mean PLV')
plt.title('PLV vs Test Frequency')
plt.legend()
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Phase preferences: [  0.  60. 120. 180. 240. 300.] degrees

Phase Locking Values:
Neuron 0: PLV = 0.590, Preferred phase = 0.0°
Neuron 1: PLV = 0.582, Preferred phase = 60.0°
Neuron 2: PLV = 0.573, Preferred phase = 120.0°
Neuron 3: PLV = 0.685, Preferred phase = 180.0°
Neuron 4: PLV = 0.681, Preferred phase = 240.0°
Neuron 5: PLV = 0.565, Preferred phase = 300.0°

3.3 Burst Synchrony Index

Identifies and quantifies synchronization of burst events across neurons.

# Generate data with burst patterns
n_time = 2000
n_neurons = 8
dt = 1.0  # ms

spikes_burst = jnp.zeros((n_time, n_neurons))

# Define burst parameters
burst_duration = 20  # ms
burst_frequency = 100  # Hz during burst
burst_times = [200, 600, 1000, 1400, 1800]  # Times when bursts occur

print("Creating burst patterns:")
print(f"Burst times: {burst_times} ms")
print(f"Burst duration: {burst_duration} ms")
print(f"Intra-burst frequency: {burst_frequency} Hz")

# Add synchronized bursts
for burst_start in burst_times:
    for neuron in range(n_neurons):
        # Each neuron participates with some probability
        if np.random.random() < 0.8:  # 80% participation rate
            # Generate burst spikes
            spike_interval = 1000 / burst_frequency  # ms between spikes
            n_spikes = int(burst_duration / spike_interval)

            for spike_num in range(n_spikes):
                spike_time = int(burst_start + spike_num * spike_interval +
                               np.random.normal(0, 2))  # Add jitter
                if 0 <= spike_time < n_time:
                    spikes_burst = spikes_burst.at[spike_time, neuron].set(1)

# Add some isolated spikes (not part of bursts)
isolated_spikes = (np.random.random((n_time, n_neurons)) < 0.002).astype(float)
spikes_burst = jnp.maximum(spikes_burst, isolated_spikes)

# Calculate burst synchrony
burst_sync = braintools.metric.burst_synchrony_index(spikes_burst,
                                                     burst_threshold=3,
                                                     max_isi=50.0,
                                                     dt=dt)

print(f"\nBurst Synchrony Index: {burst_sync:.3f}")

# Also calculate other synchrony measures for comparison
spike_sync = braintools.metric.spike_train_synchrony(spikes_burst, window_size=30.0, dt=dt)
cross_corr = braintools.metric.cross_correlation(spikes_burst, bin=20.0, dt=dt)

print(f"Spike Train Synchrony: {spike_sync:.3f}")
print(f"Cross Correlation: {cross_corr:.3f}")

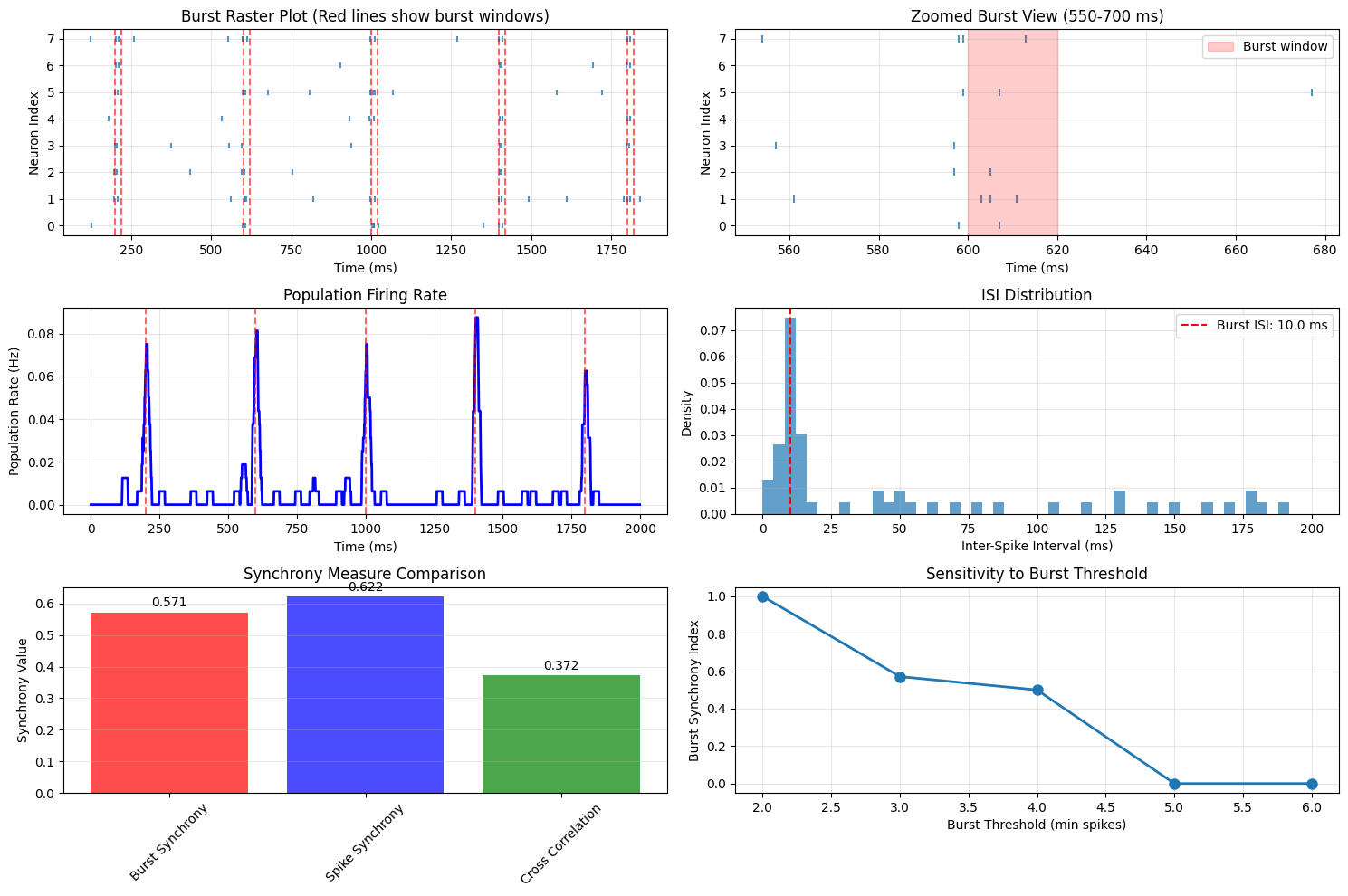

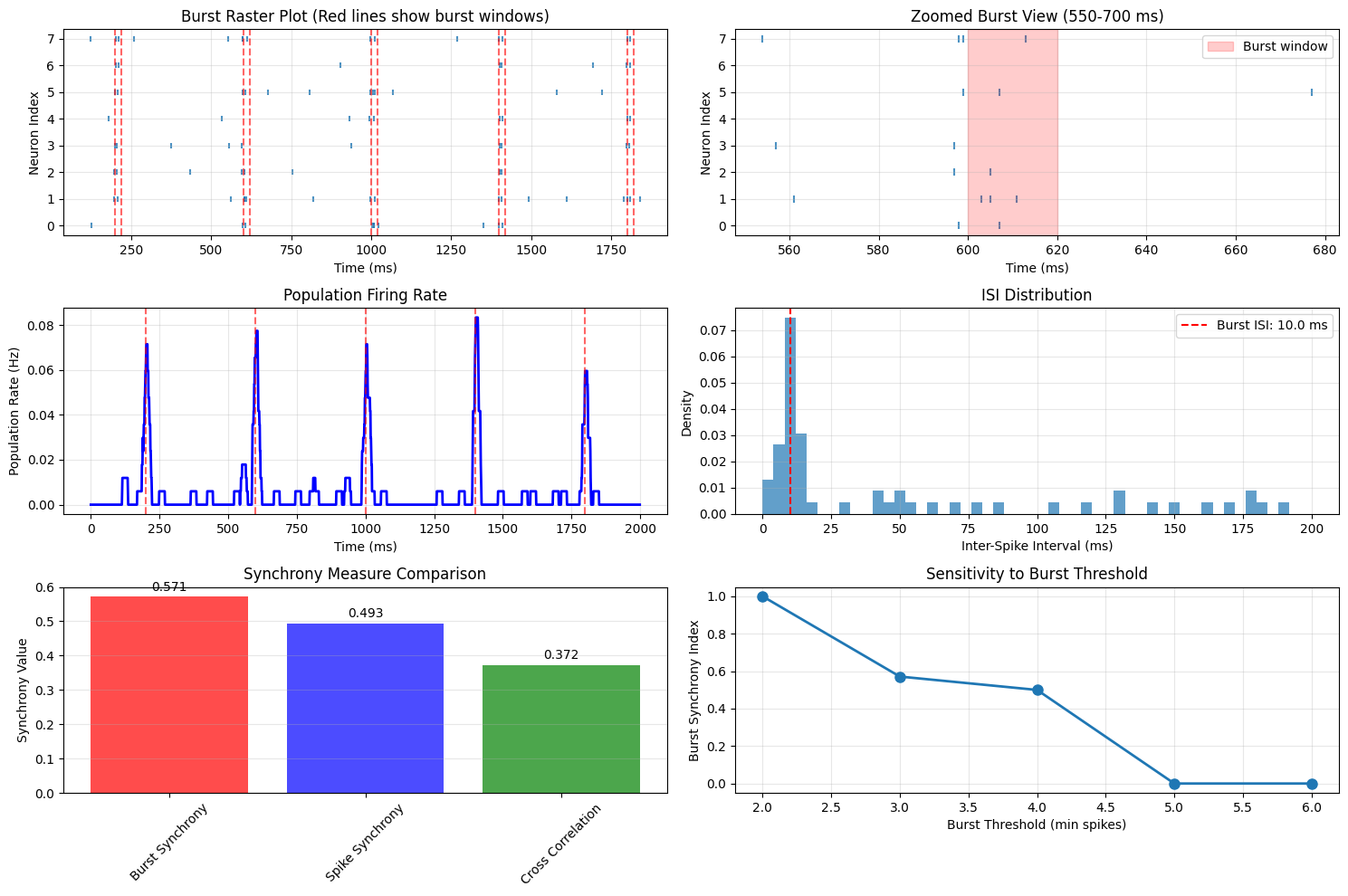

plt.figure(figsize=(15, 10))

# Full raster plot
plt.subplot(3, 2, 1)
neuron_indices, spike_times = braintools.metric.raster_plot(spikes_burst, jnp.arange(n_time) * dt)
plt.scatter(spike_times, neuron_indices, marker='|', s=20, alpha=0.8)
for t in burst_times:
    plt.axvline(t, color='red', linestyle='--', alpha=0.6)
    plt.axvline(t + burst_duration, color='red', linestyle='--', alpha=0.6)
plt.xlabel('Time (ms)')
plt.ylabel('Neuron Index')
plt.title('Burst Raster Plot (Red lines show burst windows)')
plt.grid(True, alpha=0.3)

# Zoomed view of one burst
plt.subplot(3, 2, 2)
zoom_start, zoom_end = burst_times[1] - 50, burst_times[1] + 100
zoom_mask = (spike_times >= zoom_start) & (spike_times <= zoom_end)
plt.scatter(spike_times[zoom_mask], neuron_indices[zoom_mask], marker='|', s=40, alpha=0.8)
plt.axvspan(burst_times[1], burst_times[1] + burst_duration, alpha=0.2, color='red', label='Burst window')
plt.xlabel('Time (ms)')
plt.ylabel('Neuron Index')
plt.title(f'Zoomed Burst View ({zoom_start}-{zoom_end} ms)')
plt.legend()
plt.grid(True, alpha=0.3)

# Population firing rate
plt.subplot(3, 2, 3)
pop_rate = braintools.metric.firing_rate(spikes_burst, 20.0, dt)
rate_times = jnp.arange(len(pop_rate)) * dt
plt.plot(rate_times, pop_rate, linewidth=2, color='blue')
for t in burst_times:
    plt.axvline(t, color='red', linestyle='--', alpha=0.6)
plt.xlabel('Time (ms)')
plt.ylabel('Population Rate (Hz)')
plt.title('Population Firing Rate')
plt.grid(True, alpha=0.3)

# Inter-spike interval distribution
plt.subplot(3, 2, 4)
all_isis = []
for neuron in range(n_neurons):
    neuron_spikes = spike_times[neuron_indices == neuron]
    if len(neuron_spikes) > 1:
        isis = jnp.diff(neuron_spikes)
        all_isis.extend(isis)

plt.hist(all_isis, bins=50, alpha=0.7, density=True, range=(0, 200))
plt.axvline(1000/burst_frequency, color='red', linestyle='--',
           label=f'Burst ISI: {1000/burst_frequency:.1f} ms')
plt.xlabel('Inter-Spike Interval (ms)')
plt.ylabel('Density')
plt.title('ISI Distribution')
plt.legend()
plt.grid(True, alpha=0.3)

# Synchrony comparison
plt.subplot(3, 2, 5)
measures = ['Burst Synchrony', 'Spike Synchrony', 'Cross Correlation']
values = [burst_sync, spike_sync, cross_corr]
colors = ['red', 'blue', 'green']

bars = plt.bar(measures, values, color=colors, alpha=0.7)
plt.ylabel('Synchrony Value')
plt.title('Synchrony Measure Comparison')
plt.xticks(rotation=45)
plt.grid(True, alpha=0.3, axis='y')

for bar, value in zip(bars, values):
    plt.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.01,
             f'{value:.3f}', ha='center', va='bottom')

# Burst detection sensitivity
plt.subplot(3, 2, 6)
burst_thresholds = [2, 3, 4, 5, 6]
burst_sync_vs_threshold = []

for threshold in burst_thresholds:
    bs = braintools.metric.burst_synchrony_index(spikes_burst,
                                                 burst_threshold=threshold,
                                                 max_isi=50.0, dt=dt)
    burst_sync_vs_threshold.append(bs)

plt.plot(burst_thresholds, burst_sync_vs_threshold, 'o-', linewidth=2, markersize=8)
plt.xlabel('Burst Threshold (min spikes)')
plt.ylabel('Burst Synchrony Index')
plt.title('Sensitivity to Burst Threshold')
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Creating burst patterns:
Burst times: [200, 600, 1000, 1400, 1800] ms
Burst duration: 20 ms
Intra-burst frequency: 100 Hz

Burst Synchrony Index: 0.571

D:\codes\projects\braintools\braintools\metric\_correlation.py:119: UserWarning: Explicitly requested dtype <class 'jax.numpy.float64'> requested in asarray is not available, and will be truncated to dtype float32. To enable more dtypes, set the jax_enable_x64 configuration option or the JAX_ENABLE_X64 shell environment variable. See https://github.com/jax-ml/jax#current-gotchas for more.
  states = jnp.asarray(jnp.sum(states, axis=2) > 0., dtype=jnp.float_)

Spike Train Synchrony: 0.622
Cross Correlation: 0.372

Summary and Comparison

1. When to Use Each Measure:

Distance Measures:

• Victor-Purpura Distance: Spike train clustering, template matching, cost-based dissimilarity

• van Rossum Distance: Temporal smoothing important, rate-based coding

Synchrony Measures:

• Spike Train Synchrony: Simple coincidence detection, event-based synchrony

• Correlation Index: Rate-based synchrony, bin-size effects important

• Cross-correlation: Population-level synchrony, binning approach

Advanced Measures:

• STTC: Rate-independent synchrony, controls for firing rate differences

• Phase Locking Value: Rhythmic synchronization, oscillatory coupling

• Burst Synchrony Index: Burst-based activity, epileptic-like patterns

2. Parameter Guidelines:

• Window sizes: 5-50ms for fast synchrony, 50-200ms for slower dynamics

• Cost factors (VP): 1-10 for temporal precision, >10 for strict timing

• Tau (van Rossum): 0.1-1ms for precise timing, 1-10ms for rate coding

• Burst thresholds: 3-5 spikes typical, adjust based on firing rates

3. Best Practices:

4. Multiple measures: Use several measures to capture different aspects

5. Parameter sensitivity: Test multiple parameter values

6. Statistical validation: Use surrogate data and significance testing

7. Biological relevance: Choose measures appropriate for your system

8. Computational efficiency: Consider trade-offs for large datasets
