Creating a Coupling

A coupling turns the per-region states of a network into the input current each region receives from the others. brainmass ships diffusive, additive, and several nonlinear couplings (DiffusiveCoupling, SigmoidalCoupling, …). This guide shows how to implement a new one against the same stable contract, so it drops into a network exactly like the built-ins.

If you only want to use the existing couplings through Network(coupling=...), see Custom Coupling. This guide is about the implementation contract.

Every coupling in coupling.py follows one pattern:

1. a pure kernel function doing the array math, and

2. a thin Module that holds the Params and the prefetch reads, and calls the kernel from update.

We will reproduce that pattern for a new power-law diffusive coupling.

The prefetch / delay contract

A coupling never reads another module’s state directly. It reads a prefetch – a zero-argument callable a node hands out that yields a (optionally delayed) snapshot of one of its states. There are two reads, and their shapes are the whole contract:

• Source (prefetch_delay): every target reads every source, so the source read is shaped (..., N, N) – x[i, j] is source j as seen by target i, already delayed by the conduction delay tau_ij = distance_ij / speed.

• Target (prefetch): each target reads its own current state, shaped (..., N).

A diffusive coupling needs both (it forms x_j - y_i); an additive one needs only the source. The node builds these reads; the coupling just consumes them:

src = node.prefetch_delay(coupled_var, (delay_matrix, idx), init=delay_init)  # (.., N, N)
tgt = node.prefetch(coupled_var)                                              # (.., N)

init_maybe_prefetch (called from the coupling’s init_state) sizes the delay buffer from delay / dt, so a global dt must be live in the environment before a delay-coupled network is constructed.

Step 1 – the kernel function

The kernel does the math on plain arrays (or callables that return them). Mirror brainmass.diffusive_coupling: accept the source/target reads, the connection matrix, and the strength k; return the (..., N) current. Strip units with brainunit.get_magnitude before any transcendental (here abs / sign / a fractional power), then let k carry the output’s units back.

def powerlaw_coupling(delayed_x, y, conn, k, p=1.0):
    """Power-law diffusive kernel: k * sum_j conn_ij * sign(d) * |d|**p, d = x_ij - y_i.

    A generalisation of diffusive coupling: p=1 recovers it; p<1 emphasises small
    differences, p>1 emphasises large ones.
    """
    # target read -> (..., N), expand to (..., N, 1) to broadcast against sources
    y_val = y() if callable(y) else y
    y_exp = u.math.expand_dims(y_val, axis=-1)
    # source read -> (..., N, N)
    x_mat = delayed_x() if callable(delayed_x) else delayed_x
    # difference, made dimensionless for the nonlinearity
    diff = u.get_magnitude(x_mat - y_exp)            # (..., N, N)
    shaped = jnp.sign(diff) * jnp.abs(diff) ** p
    return k * (conn * shaped).sum(axis=-1)          # (..., N)

Step 2 – the Module wrapper

The class holds the configuration as Params and stores the prefetch reads. The three required pieces, all mirroring DiffusiveCoupling:

• __init__ wraps every scalar/array through Param.init. Param.init(float) returns a non-trainable Const, so defaults add no trainable state; pass an explicit Param(..., fit=True) to make k or p learnable.

• init_state is decorated @brainstate.nn.call_order(2) (it must run after the node allocates its states) and calls init_maybe_prefetch on each read to size the delay buffers.

• update reads the current Param values and calls the kernel. Module is callable, so coupling() dispatches to update.

from brainstate.nn import Module, init_maybe_prefetch

class PowerLawCoupling(Module):
    """Power-law diffusive coupling (mirrors brainmass.DiffusiveCoupling)."""

    def __init__(self, x, y, conn, k=1.0, p=1.0):
        super().__init__()
        self.x = x          # source prefetch_delay -> (..., N, N)
        self.y = y          # target prefetch        -> (..., N)
        self.k = Param.init(k)
        self.p = Param.init(p)
        self.conn = Param.init(conn)

    @brainstate.nn.call_order(2)
    def init_state(self, *args, **kwargs):
        init_maybe_prefetch(self.x)
        init_maybe_prefetch(self.y)

    def update(self, *args, **kwargs):
        return powerlaw_coupling(
            self.x, self.y, self.conn.value(), self.k.value(), self.p.value()
        )

Step 3 – wire it into a network

brainmass.Network dispatches a fixed set of coupling names, so to use a brand new coupling we assemble the network the way Network does internally: build the prefetch reads on the node, hand them to the coupling, and feed the coupling current back as the node’s first input. This is the same current = coupling(); node(current) idiom, made explicit.

delay_index(N) builds the source-index matrix; brainstate.environ must already hold dt (the setup cell sets it) because prefetch_delay sizes its buffer at construction time.

from brainmass import delay_index

class PowerLawNetwork(brainstate.nn.Module):
    """Minimal whole-brain network using the custom coupling."""

    def __init__(self, node, conn, *, coupled_var, k=1.0, p=1.0,
                 delay_time=None, delay_init=braintools.init.Constant(0.0)):
        super().__init__()
        self.node = node
        n = node.varshape[0]
        conn = np.asarray(conn) * (1.0 - np.eye(n))         # zero the diagonal
        if delay_time is None:
            delay_time = u.math.zeros((n, n)) * u.ms        # instantaneous
        idx = delay_index(n)
        src = node.prefetch_delay(coupled_var, (delay_time, idx), init=delay_init)
        tgt = node.prefetch(coupled_var)
        self.coupling = PowerLawCoupling(src, tgt, conn, k=k, p=p)

    def update(self, *node_inputs):
        current = self.coupling()
        return self.node(current, *node_inputs)


N = 4
conn = np.ones((N, N)) * 0.1
node = brainmass.HopfStep(N, a=0.2, w=0.3)
net = PowerLawNetwork(node, conn, coupled_var='x', k=0.5, p=1.5)

sim = brainmass.Simulator(net, dt=0.1 * u.ms)
res = sim.run(40. * u.ms, monitors=lambda m: m.node.x.value)
print('trajectory shape :', res['output'].shape)
print('all finite       :', bool(jnp.isfinite(res['output']).all()))

trajectory shape : (400, 4)
all finite       : True

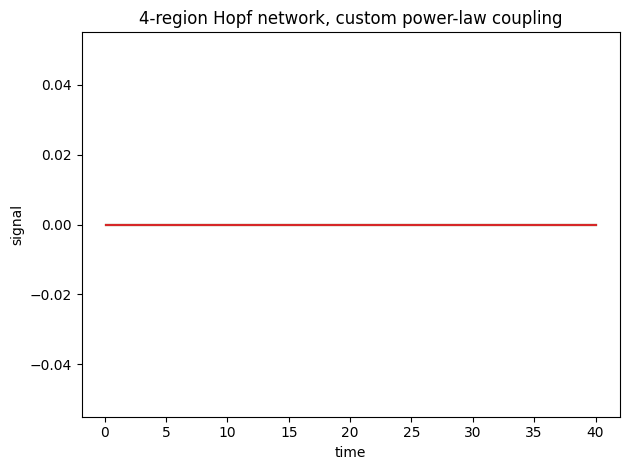

brainmass.viz.plot_timeseries(res['output'], ts=res['ts'])
plt.title('4-region Hopf network, custom power-law coupling')
plt.tight_layout()

It composes like the built-ins

Because the coupling exposes its parameters as Params, a Param(..., fit=True) makes k or p a trainable knob the Fitter / a hand-written loop can optimise (see Building a Data-Driven Workflow). And because it consumes prefetch reads rather than raw state, conduction delays come for free – pass a non-zero delay_time matrix and the source read is delayed per connection, no change to the coupling code.

# Same coupling, now with conduction delays (distance / speed).
dist = np.full((N, N), 10.0)
speed = 10.0                       # mm / ms -> 1 ms delays
delay_time = (dist / speed) * (1.0 - np.eye(N)) * u.ms
node_d = brainmass.HopfStep(N, a=0.2, w=0.3)
net_d = PowerLawNetwork(node_d, conn, coupled_var='x', k=0.5, p=1.5,
                        delay_time=delay_time,
                        delay_init=braintools.init.Uniform(0., 0.05))
res_d = brainmass.Simulator(net_d, dt=0.1 * u.ms).run(
    40. * u.ms, monitors=lambda m: m.node.x.value)
print('delayed run finite:', bool(jnp.isfinite(res_d['output']).all()))

delayed run finite: True

Checklist for a new coupling

• [ ] a pure kernel function: source (.., N, N), target (.., N), conn, strength -> current (.., N); strip units before any nonlinearity.

• [ ] a Module holding Param.init(...) parameters and the prefetch reads.

• [ ] init_state decorated @brainstate.nn.call_order(2) calling init_maybe_prefetch on each read.

• [ ] update reads .value() of each Param and calls the kernel.

• [ ] (optional) a @set_module_as('brainmass') decorator and a __all__ entry if you are contributing it upstream, plus a branch in Network’s coupling= dispatch.
