Working with Units

Working with Units#

brainmass uses brainunit for unit-safe computations, preventing common errors in scientific computing.

Why Units Matter#

Without units, it’s easy to make mistakes:

# DANGEROUS: Are these in ms or s?
tau = 10
frequency = 0.5

# What happens when you multiply them?
result = tau * frequency  # Meaningless without units!

With units, errors are caught automatically:

import brainunit as u

tau = 10 * u.ms
frequency = 0.5 * u.Hz

# Units are checked automatically
result = tau * frequency  # ✓ Dimensionless (ms * Hz = ms * 1/s = 0.001)

Basic Usage#

Creating Quantities#

import brainunit as u
import jax.numpy as jnp

# Scalar with units
time_const = 10.0 * u.ms

# Array with units
rates = jnp.array([1.0, 2.0, 3.0]) * u.Hz

# Common units
voltage = -65 * u.mV
current = 2.5 * u.nA
capacitance = 100 * u.pF
conductance = 10 * u.nS
time = 1.5 * u.second

Accessing Values and Units#

tau = 10.0 * u.ms

# Get magnitude (number)
magnitude = tau.magnitude  # 10.0

# Get unit
unit = tau.unit  # millisecond

# Convert to different unit
tau_in_seconds = tau.to(u.second)  # 0.01 s
tau_in_us = tau.to(u.us)  # 10000 μs

Unit Operations#

import brainunit as u

# Addition/subtraction: units must match
t1 = 10 * u.ms
t2 = 5 * u.ms
t_sum = t1 + t2  # 15 ms ✓

t3 = 1 * u.second
t_combined = t1 + t3  # 1.01 s (automatic conversion) ✓

# Multiplication/division: units combine
R = 10 * u.ohm
I = 2 * u.amp
V = R * I  # 20 volt ✓

# Powers
area = (5 * u.meter) ** 2  # 25 meter²

Common Units in Neuroscience#

Time#

import brainunit as u

# Time constants
tau = 10 * u.ms  # milliseconds
tau_slow = 0.5 * u.second  # seconds

# Sampling intervals
dt = 0.1 * u.ms
TR = 2 * u.second  # fMRI repetition time

Frequency#

# Oscillation frequencies
alpha = 10 * u.Hz  # 10 Hz
theta = 5 * u.Hz
gamma = 40 * u.Hz

# Convert to angular frequency
omega = 2 * jnp.pi * alpha  # rad/s

Voltage#

# Membrane potentials
V_rest = -70 * u.mV
V_thresh = -55 * u.mV
V_spike = 20 * u.mV

# EEG potentials
eeg_signal = 50 * u.uvolt  # microvolts

Current#

# Synaptic currents
I_ext = 2.5 * u.pA  # picoamperes

# Dipole moments (EEG/MEG)
dipole = 10 * u.nA * u.meter  # nanoampere-meters

Rate#

# Firing rates
rate_E = 10 * u.Hz
rate_I = 15 * u.Hz

# Rates can be added
total_rate = rate_E + rate_I  # 25 Hz

Using Units with brainmass#

Model Parameters#

Most brainmass models accept unit quantities:

import brainmass
import brainunit as u

model = brainmass.WilsonCowanStep(
    in_size=10,
    tau_E=10. * u.ms,    # with units
    tau_I=20. * u.ms,
    # Recurrent coupling weights are dimensionless
    wEE=12.0,  # E -> E coupling strength
    wEI=13.0,  # I -> E coupling strength
)

State Variables#

Internal states maintain units:

model = brainmass.HopfStep(
    in_size=5,
    w=0.2,  # intrinsic angular frequency (dimensionless)
)
model.init_all_states()

model.update()

# In the normal-form Hopf model the state is dimensionless; models such as
# JansenRitStep instead keep their internal states in physical units (e.g. mV).
x = model.x.value
y = model.y.value

Noise with Units#

# Noise in Hz (for firing rates)
noise = brainmass.OUProcess(
    in_size=10,
    sigma=0.5 * u.Hz,
    tau=20 * u.ms,
)

# Noise in mV (for voltages)
noise_V = brainmass.OUProcess(
    in_size=10,
    sigma=5 * u.mV,
    tau=10 * u.ms,
)

Forward Models#

# BOLD (dimensionless or %)
bold = brainmass.BOLDSignal(in_size=90)
# Input: neural activity (Hz or dimensionless)
# Output: BOLD % signal change

# EEG lead-field: maps in_size sources -> out_size sensors.
# Real lead-fields come from a head model; here we use a synthetic one.
# Shape is (in_size, out_size) and it carries units of volt / (nA * meter).
L_eeg = jnp.ones((68, 64)) * (u.volt / (u.nA * u.meter))

eeg_model = brainmass.EEGLeadFieldModel(
    in_size=68,
    out_size=64,
    L=L_eeg,  # with units
)

Unit Checking and Errors#

Automatic Error Detection#

import brainunit as u

tau = 10 * u.ms
rate = 5 * u.Hz

# This will raise a unit-mismatch error:
try:
    result = tau + rate  # Can't add time and frequency!
except u.UnitMismatchError as e:
    print(f"Error: {e}")

Error: Cannot calculate
10 ms + 5 Hz, because units do not match: ms != Hz

Common Unit Errors#

Error 1: Mixing incompatible units

# WRONG: adding incompatible quantities raises an error
time = 10 * u.ms
voltage = 5 * u.mV
try:
    result = time + voltage  # Error: can't add ms and mV
except u.UnitMismatchError as e:
    print(f"Caught: {e}")

# CORRECT:
# Don't add incompatible quantities

Caught: Cannot calculate
10 ms + 5 mV, because units do not match: ms != mV

Error 2: Forgetting units

# WRONG:
tau_E = 10 * u.ms
tau_I = 20  # forgot units!
ratio = tau_I / tau_E  # May work but wrong semantics

# CORRECT:
tau_E = 10 * u.ms
tau_I = 20 * u.ms
ratio = tau_I / tau_E  # 2.0 (dimensionless)

Error 3: Unit conversion mistakes

# WRONG:
tau_ms = 10  # assumed ms, but unclear
tau_s = tau_ms / 1000  # manual conversion, error-prone

# CORRECT:
tau = 10 * u.ms
tau_s = tau.to(u.second)  # 0.01 s, automatic

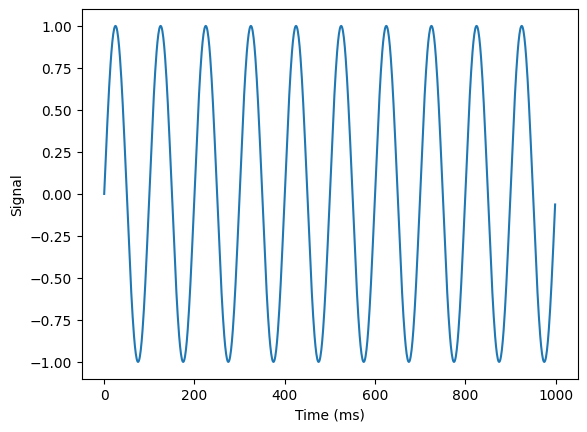

Converting to Unitless#

Sometimes you need plain numbers (for plotting, external libraries):

import brainunit as u
import matplotlib.pyplot as plt

time = jnp.arange(1000) * u.ms
# 2 * pi * (10 Hz) * time is dimensionless, so jnp.sin returns a plain array
signal = jnp.sin(2 * jnp.pi * 10 * u.Hz * time)

# Convert to unitless for plotting (u.get_magnitude works for Quantity or array)
time_ms = time.to(u.ms).magnitude  # array of numbers
signal_unitless = u.get_magnitude(signal)

plt.plot(time_ms, signal_unitless)
plt.xlabel('Time (ms)')
plt.ylabel('Signal')

Text(0, 0.5, 'Signal')
../_images/1812dddf56a2291c3bdc86d10857c9cf413da968e1f13a276c84200ddcdbd0c2.png

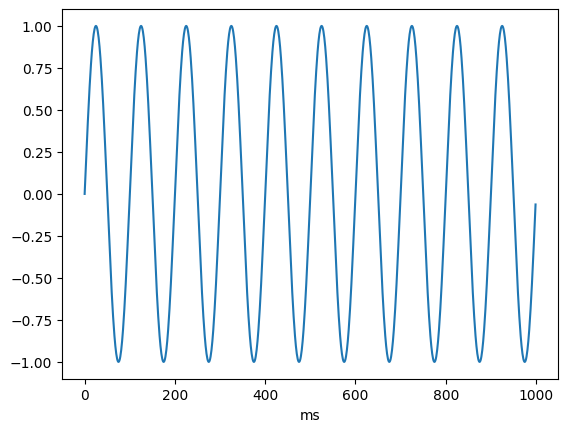

Or use brainunit’s plotting support:

# Some plotting functions may support units directly
plt.plot(time, signal)  # may work with recent brainunit versions

[<matplotlib.lines.Line2D at 0x73b8874ec690>]
../_images/f4a6e28e0f0da283d054214bc9538184c53343994e9b4ed905f3eda96bb899e7.png

Best Practices#

  1. Always use units for physical quantities

# GOOD
tau = 10 * u.ms
frequency = 5 * u.Hz

# BAD
tau = 10  # unclear: ms? s?
frequency = 5  # unclear: Hz? kHz?

  1. Use consistent units within modules

# Within a module, stick to one time unit
tau_E = 10 * u.ms
tau_I = 20 * u.ms  # not mixing with seconds
dt = 0.1 * u.ms

  1. Document units in comments when necessary

# Even with brainunit, document expected ranges
tau = 10 * u.ms  # typical range: 5-50 ms

  1. Convert units explicitly when needed

omega_Hz = 10 * u.Hz
omega_rad = 2 * jnp.pi * omega_Hz  # rad/s

# Convert time constant to frequency
tau = 10 * u.ms
f_cutoff = (1 / (2 * jnp.pi * tau)).to(u.Hz)

  1. Use dimensionless quantities appropriately

# Ratios are naturally dimensionless
tau_E = 10 * u.ms
tau_I = 20 * u.ms
ratio = tau_I / tau_E  # 2.0 (dimensionless)

Troubleshooting#

Issue: Dimension mismatch error

# Error: DimensionMismatch: cannot add Hz and mV
# Solution: Check that you're not mixing incompatible quantities

Issue: Lost units after JAX operations

# Some JAX operations may strip units
x = 10 * u.ms
y = jnp.exp(x.magnitude)  # operate on the magnitude

# Solution: reattach units when the result is dimensionless
y = jnp.exp(x.magnitude) * u.UNITLESS

Issue: Slow performance with units

# Units add overhead; for tight loops, consider converting to unitless
tau_ms = tau.to(u.ms).magnitude  # convert once
# ... use tau_ms in loop ...
